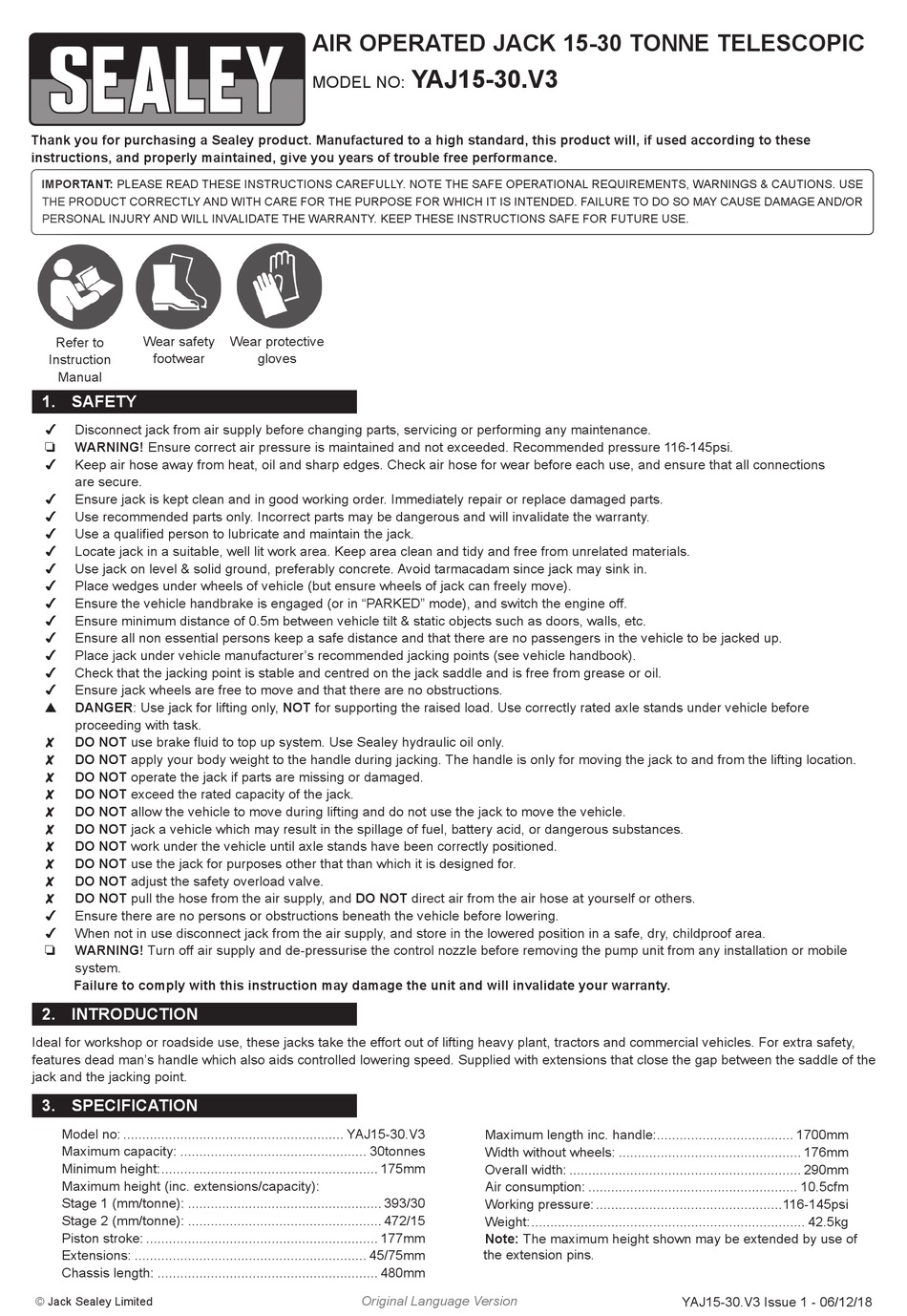

Sealey YAJ15-30.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Wear safety
Refer to
footwear
Instruction
Manual
1. SAFETY
Disconnect jack from air supply before changing parts, servicing or performing any maintenance.

WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure 116-145psi.
R
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use, and ensure that all connections

are secure.
Ensure jack is kept clean and in good working order. Immediately repair or replace damaged parts.

Use recommended parts only. Incorrect parts may be dangerous and will invalidate the warranty.

U se a qualified person to lubricate and maintain the jack.

Locate jack in a suitable, well lit work area. Keep area clean and tidy and free from unrelated materials.

Use jack on level & solid ground, preferably concrete. Avoid tarmacadam since jack may sink in.

Place wedges under wheels of vehicle (but ensure wheels of jack can freely move).

Ensure the vehicle handbrake is engaged (or in "PARKED" mode), and switch the engine off.

Ensure minimum distance of 0.5m between vehicle tilt & static objects such as doors, walls, etc.

Ensure all non essential persons keep a safe distance and that there are no passengers in the vehicle to be jacked up.

Place jack under vehicle manufacturer's recommended jacking points (see vehicle handbook).

Check that the jacking point is stable and centred on the jack saddle and is free from grease or oil.

Ensure jack wheels are free to move and that there are no obstructions.

DANGER: Use jack for lifting only, NOT for supporting the raised load. Use correctly rated axle stands under vehicle before
V
proceeding with task.
DO NOT use brake fluid to top up system. Use Sealey hydraulic oil only.

DO NOT apply your body weight to the handle during jacking. The handle is only for moving the jack to and from the lifting location.

DO NOT operate the jack if parts are missing or damaged.

DO NOT exceed the rated capacity of the jack.

DO NOT allow the vehicle to move during lifting and do not use the jack to move the vehicle.

DO NOT jack a vehicle which may result in the spillage of fuel, battery acid, or dangerous substances.

DO NOT work under the vehicle until axle stands have been correctly positioned.

DO NOT use the jack for purposes other that than which it is designed for.

DO NOT adjust the safety overload valve.

DO NOT pull the hose from the air supply, and DO NOT direct air from the air hose at yourself or others.

Ensure there are no persons or obstructions beneath the vehicle before lowering.

When not in use disconnect jack from the air supply, and store in the lowered position in a safe, dry, childproof area.

WARNING! Turn off air supply and de-pressurise the control nozzle before removing the pump unit from any installation or mobile
R
system.
Failure to comply with this instruction may damage the unit and will invalidate your warranty.

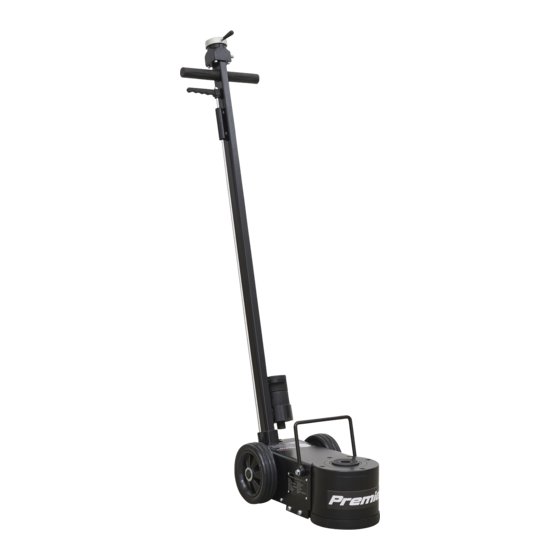

2. INTRODUCTION
Ideal for workshop or roadside use, these jacks take the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety,
features dead man's handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the
jack and the jacking point.
3. SPECIFICATION
Model no: .......................................................... YAJ15-30.V3
Maximum capacity: ................................................. 30tonnes
Minimum height: ......................................................... 175mm
Maximum height (inc. extensions/capacity):
Stage 1 (mm/tonne): ................................................... 393/30
Stage 2 (mm/tonne): ................................................... 472/15
Piston stroke: ............................................................. 177mm
Extensions: ............................................................. 45/75mm
Chassis length: .......................................................... 480mm
© Jack Sealey Limited
AIR OPERATED JACK 15-30 TONNE TELESCOPIC
MODEL NO:
Wear protective
gloves
Original Language Version
YAJ15-30.V3
Maximum length inc. handle: .................................... 1700mm
Width without wheels: ................................................ 176mm
Overall width: ............................................................. 290mm
Air consumption: ....................................................... 10.5cfm
Working pressure: .................................................116-145psi
Weight: ........................................................................ 42.5kg
Note: The maximum height shown may be extended by use of
the extension pins.
YAJ15-30.V3 Issue 1 - 06/12/18
