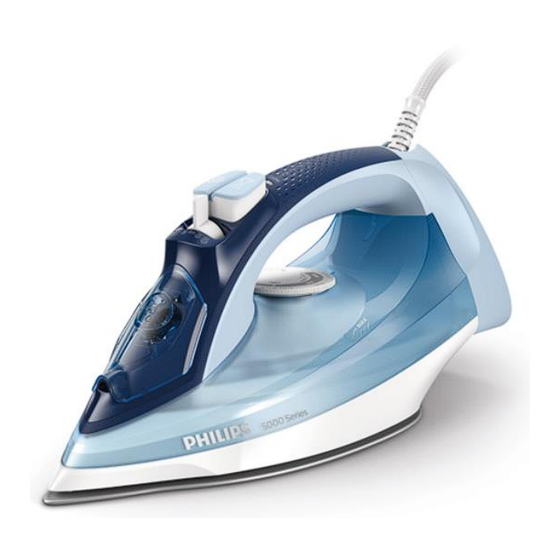

2. Product Information - Functions/ Features Information - Product Matrix 3. Troubleshooting Guide 4. Disassembly and Reassembly Instructions 5. Service Lists 6. Revision History For internal use only Published by Philips Consumer Lifestyle Page 2 of 14 Document No. : CSW-07-081-20617...
Loose part Check that there are no loose parts such as extra screws in the product that can cause short circuit or product malfunction. For internal use only Published by Philips Consumer Lifestyle Page 3 of 14 Document No. : CSW-07-081-20617...
147 x 127 x 312 mm is too low, the Tank Valve is closed. This prevent Weight of Iron: 1.552Kg water from dripping onto garment. For internal use only Published by Philips Consumer Lifestyle Page 4 of 14 Document No. : CSW-07-081-20617...
Remove SOS Knob 7 & Spray Knob 8 Open up Filling Door, remove Screw C Remove Inlay Assy 9 Remove Tank Top Seal 3 & ASO 6 (ASO version) For internal use only Published by Philips Consumer Lifestyle Page 8 of 14 Document No. : CSW-07-081-20617...
Page 9
Remove Water Tank Assy 4 13 Remove T’stat Bush & Remove Mainscord 15 & Ball Swivel 11 Soleplate Mtd Assy with Cover 1 For internal use only Published by Philips Consumer Lifestyle Page 9 of 14 Document No. : CSW-07-081-20617...
Page 10
Apply Heat Sink Paste with Cover 1 Assemble Water Tank Assy 4 Assemble ASO (ASO version only), connect wire & assemble Lamp Assy 2 For internal use only Published by Philips Consumer Lifestyle Page 10 of 14 Document No. : CSW-07-081-20617...
Page 11
Assemble SOS Knob 7 & Spray Knob 8 Assemble & fasten Screw A Assemble T’stat Dial prted 12 Assemble Spring Bullet 14, assemble Bullet Moulded 13 For internal use only Published by Philips Consumer Lifestyle Page 11 of 14 Document No. : CSW-07-081-20617...
SPRAY KNOB 423902288581 INLAY ASSY 423902288591 BACKPLATE 423902282881 BALL SWIVEL 423902283651 T'STAT DIAL PRTED 423902288541 BULLET MOLDED 423902283261 SPRING BULLET 423902283271 MAINSCORD 423902274301 For internal use only Published by Philips Consumer Lifestyle Page 12 of 14 Document No. : CSW-07-081-20617...
Page 13
Service Lists - Exploded view Notes: Scale: Not to scale For internal use only Published by Philips Consumer Lifestyle Page 13 of 14 Document No. : CSW-07-081-20617...
Revision History Version Records Author Date New release Chong Yoke Lan 24-Dec-2020 For internal use only Published by Philips Consumer Lifestyle Page 14 of 14 Document No. : CSW-07-081-20617...
