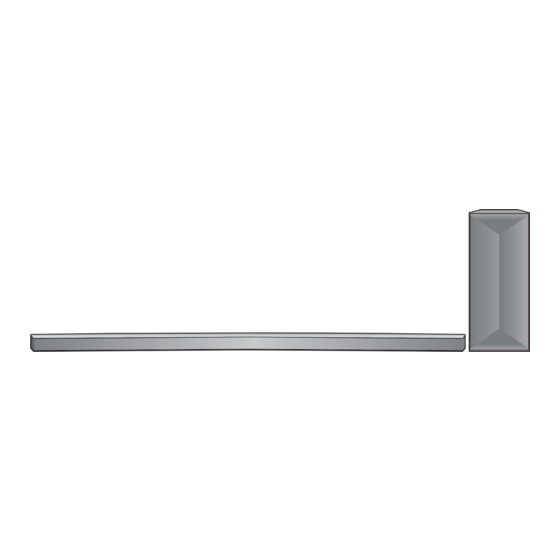

LG LAS855M Service Manual

Smart hi-fi audio wireless multi-room sound bar
Hide thumbs Also See for LAS855M:
Table of Contents

Advertisement

Quick Links

Download this manual
Internal Use Only
Website http://biz.lgservice.com
SMART Hi-Fi AUDIO
Wireless Multi-room Sound Bar
SERVICE MANUAL
MODEL: LAS855M
CAUTION
BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS"
IN THIS MANUAL.
P/NO : AFN77441543
JUNE, 2016
