Summary of Contents for Husqvarna 325iRJ

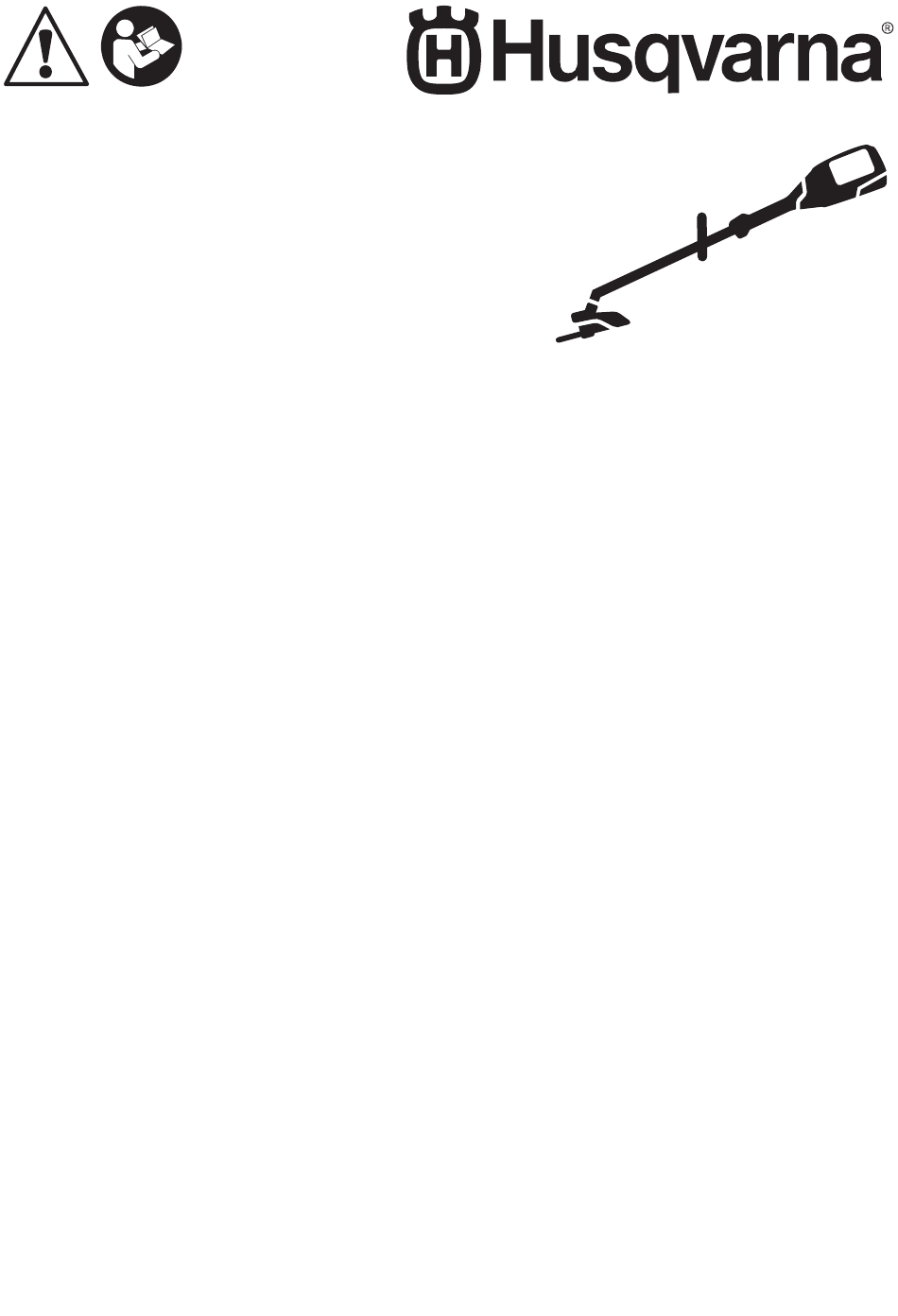

- Page 1 325iRJ Operator's manual 2-25...
-
Page 2: Table Of Contents
Contents Introduction..............2 Transportation, storage and disposal......21 Safety................5 Technical data.............. 22 Assembly..............12 Accessories..............23 Operation..............15 Declaration of Conformity..........24 Maintenance..............18 Appendix ..............26 Troubleshooting............21 Introduction Product description Note: National or local regulations can set limit to the operation of the product. - Page 3 Product overview 1. Operator's manual 14. Power trigger lockout 2. Bevel gear 15. User interface 3. Hole for locking pin 16. Power trigger 4. Trimmer head 17. Battery charger cord 5. Cutting attachment guard 18. Battery charger 6. Combination wrench 19.
- Page 4 27. Support flange 28. Locknut 29. Transport cover Use heavy-duty slip-resistant boots. 30. Harness 31. J-handle 32. Suspension point 33. Drive disc Symbols on the product Beware of blade thrust. Symbols on the product or its packaging WARNING! This product can be indicate that this product cannot be dangerous! Careless or incorrect use handled as domestic waste.
-
Page 5: Safety
• the product is incorrectly repaired. Note: Other symbols/decals on the product refer to • the product is repaired with parts that are not certification requirements for other commercial areas. from the manufacturer or not approved by the manufacturer. Product liability •... - Page 6 • Dress properly. Do not wear loose clothing or • Use power tools only with specifically designated jewellery. Keep your hair and clothing away from battery packs. Use of any other battery packs may moving parts. Loose clothes, jewellery or long hair create a risk of injury and fire.
- Page 7 • The rated rotational speed of the cutter must be at • Maintain control of the machine and do not touch least equal to the maximum rotational speed marked cutters, lines or blades and other hazardous moving on the machine. Cutters running faster than their parts while they are still in motion.
- Page 8 • Check that the trimmer head and trimmer guard are • Never use a product that is faulty. Carry out the not damaged or cracked. Replace the trimmer head safety checks, maintenance and service instructions or trimmer guard if it has been exposed to impact described in this manual.
- Page 9 • Listen out for warning signals or shouts when • Use a protective helmet where there is a risk of you wear hearing protection. Always remove your falling objects. hearing protection as soon as the product stops. • Use approved hearing protection that provides •...
- Page 10 WARNING: Never use a product with damaged safety components. The product's safety equipment must be inspected and maintained as described in this section. If your product fails any of these checks, contact your service agent to get it repaired. CAUTION: All servicing and repair work on the machine requires special training.
- Page 11 1. Stop the product and remove the battery. WARNING: Use correct cutting 2. Do a visual check for damages, for example cracks. attachment. Only use the cutting attachment with the guards we recommend, refer Accessories on page 23 . Make sure that the cutting attachment is sharpened correctly.
-
Page 12: Assembly
Safety instructions for assembly • Remove the battery before you do maintenance, other checks or assemble the product. WARNING: • The operator must only do the maintenance and Read, understand and servicing shown in this operator's manual. Turn to obey these instructions carefully before you your servicing dealer for maintenance and servicing use the product. - Page 13 3. Tighten the screws. Assembly of the trimmer head, the cutting attachment guard and the grass blade To assemble the cutting equipment To attach the trimmer head The cutting equipment includes a cutting attachment and 1. Put the drive disc (B) on the output shaft. a cutting attachment guard.
- Page 14 To attach the cutting attachment guard 4. Put the grass blade (D), the support cup (E) and the support flange (F) on the output shaft. 1. Attach the cutting attachment guard (A) to the hook on the plate holder (B). 5.
-
Page 15: Operation
Read and understand the safety chapter before you use the product. To connect the battery to the product WARNING: Only use Husqvarna original batteries with the product. 1. Make sure that the battery is fully charged. CAUTION: If the battery does not move easily into the battery holder, the battery is not installed correctly. - Page 16 Before you operate the product • Examine the work area to make sure that you know the type of terrain, the slope of the ground and if there are obstacles such as stones, branches and ditches. • Do an overhaul inspection of the product. •...
- Page 17 3. The grass is cut down with a sideways, swinging power. If the operation condition requires full speed/full movement, where the movement from right-to-left power, use level 3. Do not use a higher level than is the clearing stoke and the movement from left-to- necessary for the operation.
-
Page 18: Maintenance
To cut the grass 2. Apply full speed. 3. Move the trimmer head from side to side and sweep 1. Make sure that the grass trimmer line is parallel to the grass. the ground when you cut. WARNING: Clean the trimmer head cover each time you assemble new trimmer cord to prevent unbalance and vibrations in the handles. - Page 19 Make sure that the bevel gear is filled correctly with grease, see on page 22 . If not, use Husqvarna bevel gear grease. Make sure that the air intake of the motor is not dirty. Clean the air intake with compressed air.
- Page 20 5. If the grease level is too low fill the bevel gear with 1. Remove the cutting equipment. Husqvarna bevel gear grease. Fill slowly and turn the drive shaft as you apply the bevel gear grease, 2. Put the product with the grease plug at its highest stop at the correct level (B).
-
Page 21: Troubleshooting
Troubleshooting User interface Problem Possible faults Possible action Battery LED indicator flashes or- Low battery voltage. Charge the battery. ange Error LED flashes red Overload. The cutting attachment is jammed. Deacti- vate the product. Remove the battery. Clean the cutting attachment from unwanted mate- rials. -
Page 22: Technical Data
Technical data Technical data 325iRJ Motor Motor type BLDC (brushless) 36V Speed of output shaft, 1/min 5800 Cutting width, mm Weight Weight without battery, harness and cutting attachment, kg Noise emissions Sound power level, measured dB (A) Sound power level, guaranteed L... -
Page 23: Accessories
Battery BLi 200 Weight, kg (lb) 1.3 (2.9) Approved battery chargers Battery charger QC330 Input voltage, V 100-240 Frequency, Hz 50-60 Power, W Accessories Accessories Approved accessories Accessory type Cutting attachment guard, art. no. Centre hole in blades/knives, Ø 25.4 mm Output shaft thread M10 Multi 255-3 (Ø... -
Page 24: Declaration Of Conformity
Declaration of Conformity EU Declaration of conformity We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare on our sole responsibility that the product: Description Battery-operated brushcutter / grass trimmer Brand Husqvarna Type / Model 325iRJ Identification Serial numbers dating from 2023 and onwards... - Page 25 UK Declaration of conformity We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare on our sole responsibility that the product: Description Battery-operated brushcutter / grass trimmer Brand Husqvarna Type / Model 325iRJ Identification Serial numbers dating from 2023 and onwards...
-
Page 26: Appendix
T35, T35x Li-ion 8,5 m 10 cm 4" 4,3 m "Click" 15 cm 6" 1858 - 004 - 02.06.2023... - Page 27 1858 - 004 - 02.06.2023...
- Page 28 Original instructions 1143024-26 2023-06-12...
