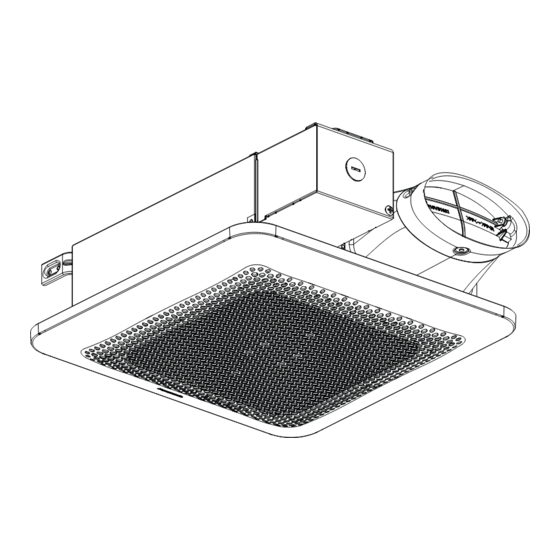

Service Manual Ventilating Fan (North AmericaMarket) RG-T810HA WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
2. Parts Identification RG-T810HA Main Body Section (2pcs) (2pcs) (3pcs) (4 pcs) (2 pcs) (2 pcs)
Page 4
2. Parts Identification RG-T810HA Main PCB Section (2 pcs) Main Labels ATTENTION Circuit board assembly inside, do not drill the can/housing.For details, please refer to installation instructions. ATTENTION Carte de circuit imprimé à l’intérieur, ne percez pas le boîtier. Pour plus de détails, consultez les instructions d’installation.
Page 5
2. Parts Identification RG-T810HA Packing Section...
4. Parts List RG-T810HA Main Body Section Part No. Part Name Q´ty Remark 1 FFV5710025S Suspension Bracket 2 FFV1600159S Frame Assy 3 FFV0000171S Adapter Assy 4 FFV0900053S Connector Plate 5 FFV3450010S Ground Wire 6 FFV0900073S ConnectorAssy(V) 7 FFV2800020S Junction Cover...
