Summary of Contents for Bosch PIL8 N1 Series

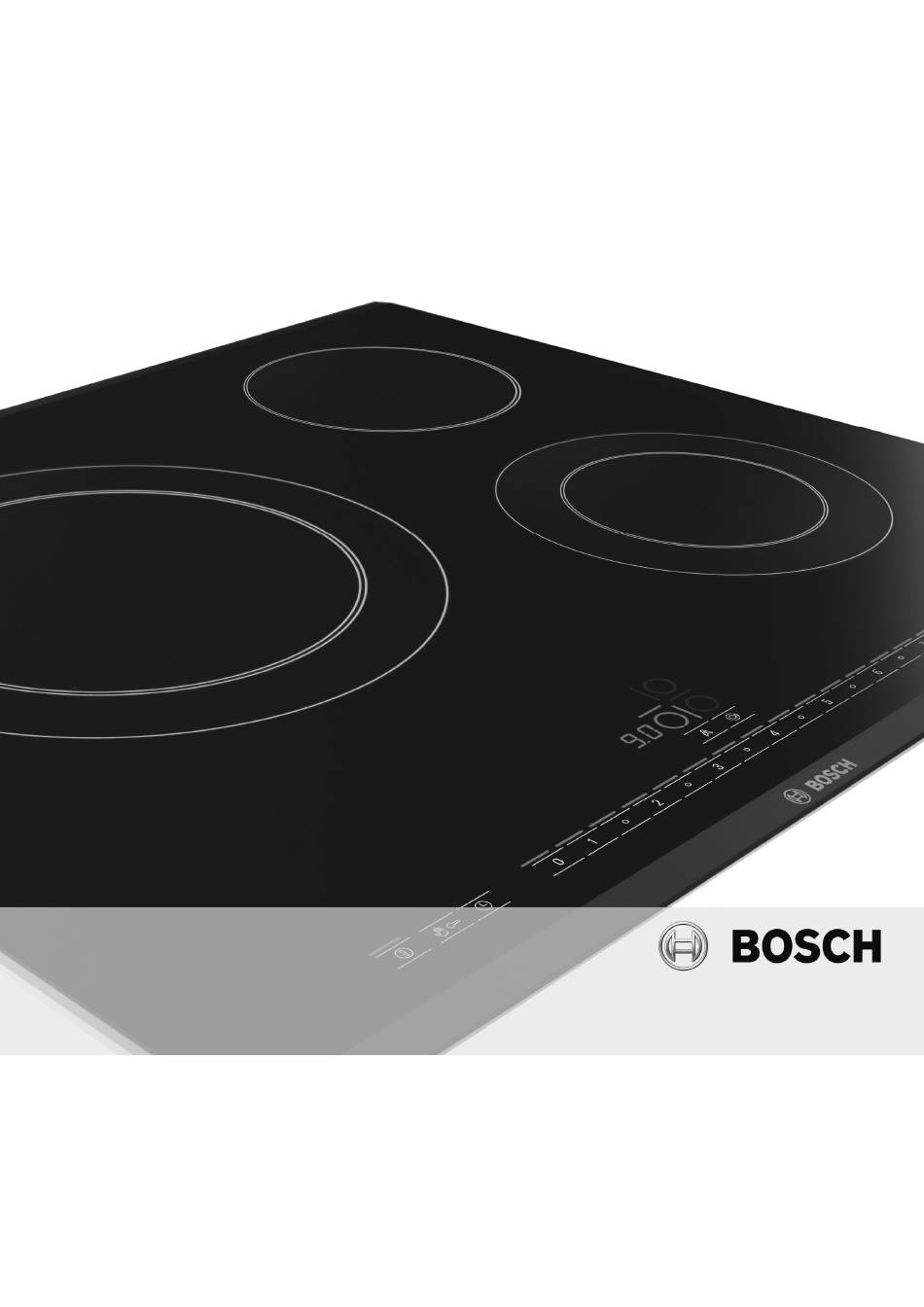

- Page 1 PIL8..N1.. [en] Instruction manual...
- Page 2 PIL8..N1.. Ø = cm...
-
Page 3: Table Of Contents
Turning on and off the childproof lock...........8 Childproof lock ..................8 Additional information on products, accessories, replacement Powerboost function..............9 parts and services can be found at www.bosch-home.com and Restrictions when using..............9 in the online shop www.bosch-eshop.com How to activate..................9 : Safety precautions Please read this manual carefully. -
Page 4: Elements That May Damage The Appliance
Do not use any high-pressure cleaners or Risk of fire! ■ steam cleaners, which can result in an Hot oil and fat can ignite very quickly. ■ electric shock. Never leave hot fat or oil unattended. Never use water to put out burning oil or A defective appliance may cause electric Risk of electric shock! ■... -
Page 5: Protecting The Environment
Overview The following table presents the most common damage caused: Damage Cause Measure Stains Food spillage Immediately remove spilt food using a glass scraper. Unsuitable cleaning products Only use cleaning products specifically designed for glass-ceramic hobs. Scratches Salt, sugar and sand Do not use the hob as a tray or working surface. -
Page 6: Getting To Know Your Appliance
displayed on the hotplate indicator will flash. Place a suitable Unsuitable pans pan on the hotplate to stop the flashing. If this takes more than Never use diffuser hobs or pans made from: 90 seconds, the hotplate will switch off automatically. common thin steel ■... -
Page 7: Residual Heat Indicator
Residual heat indicator Although the hob is switched off, the indicator will œ • remain on for as long as the hotplate is hot. The hob has a residual heat indicator for each hotplate to show If the pan is removed before the hotplate is turned off, the those which are still hot. -
Page 8: Childproof Lock
Power level Cooking time Boiling, steaming, sautéing Rice (with a double amount of water) 15-30 min. Rice pudding 30-40 min. Unpeeled potatoes 25-30 min. Peeled potatoes with salt 15-25 min. Pasta* 6-10 min. Soups 3.5-4.5 15-60 min. Vegetables 2.5-3.5 10-20 min. Greens, frozen foods 3.5-4.5 7-20 min. -
Page 9: Powerboost Function
Powerboost function How to activate The Powerboost function can be used to heat large amounts of water more quickly than the power level Š Select a hotplate. Restrictions when using Press the boost symbol. indicator lights up. › This function is available for all hotplates, provided that the other zone of the same group is not operating (see image). -
Page 10: Cleaning Lock Function
Cleaning lock function Cleaning the control panel while the hob is on may change the locked for 35 seconds. The surface of the control panel can settings. now be cleaned without risk of changing the settings. In order to avoid this, the hob has a cleaning lock function. Note: The lock does not affect the main switch. -
Page 11: Accessing The Basic Settings
Accessing the basic settings Touch the symbol repeatedly until the required function appears in the display. The hob must be switched off. Then select the required setting from the control panel. Switch on the hob using the main switch. Within the next 10 seconds, touch and hold the symbol for 4 seconds. -
Page 12: Normal Noise While The Appliance Is Working
Indicator Malfunction Solution There is an internal error in the working. Unplug the hob from the mains. Wait about 30 seconds before plug- ”‹ ”Š ging it in again. * The electronic system has overheated and Wait until the electronic system has cooled down completely. Then ”ƒ... -
Page 13: Tested Dishes
Tested dishes This table has been prepared for assessment institutions to Saucepan Ø 16 cm, 1.2 l for hotplates of Ø 14.5 cm ■ provide controls for our appliances. Pot Ø 16 cm, 1.7 l for hotplates of Ø 14.5 cm ■... - Page 14 Preheating Cooking Tested dishes Hotplate Power level Time (Min:S) Cover Power level Cover Pan-frying pork sirloin Cookware: Frying pan Sirloin initial temperature: 7 °C Ø 18 cm 1:30 2 pieces of sirloin (total weight approx. 200 g, 1 cm thick) Frying crêpes** Cookware: Frying pan Ø...
- Page 16 Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München Germany www.bosch-home.com *9000884499* 940805 9000884499...
