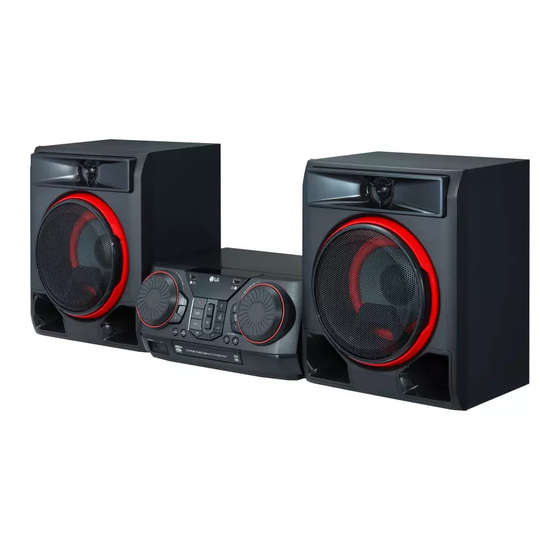

- Page 1 OWNER’S MANUAL Mini Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. MODEL CK57 (CK57, CKS57F, CKS57W) www.lg.com MFL71720506 Copyright © 2018-2020 LG Electronics Inc. All Rights Reserved. 2003_Rev03...
- Page 2 Getting Started Safety Information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC CAUTION: This product employs a Laser System. SHOCK DO NOT REMOVE COVER (OR BACK) To ensure proper use of this product, please read NO USER-SERVICEABLE PARTS INSIDE REFER this owner’...
- Page 3 Getting Started CAUTION concerning the Power Cord This device is equipped with a portable battery or accumulator. The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily How to Safely remove the batteries or the battery accessible.
-
Page 4: Table Of Contents
Table of Contents Table of Contents Getting Started Operating Safety Information Basic Operations Table of Contents – CD/USB Operations Unique Features – Auto Play Playable file Requirement – Selecting a folder and – Music file requirement an MP3/WMA file – Compatible USB Devices –... - Page 5 – AUTO POWER On – Auto function change Setting the Clock – Setting the Clock through “Music Flow Bluetooth” App – Using your player as an alarm clock LG Sound Sync WIRELESS PARTY LINK Connection Troubleshooting Troubleshooting – General Appendix...
-
Page 6: Getting Started
Records music to your USB device. Music Flow Bluetooth Music Flow Bluetooth is an app designed to let you take control of some of LG’ s latest audio devices. (Page 23) LG Sound Sync Controls volume level of this unit by the remote control of your LG TV that is compatible with LG Sound Sync. -
Page 7: Playable File Requirement
The unit cannot be used as a storage device. You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG y Some USB may not work with this unit. players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players. -
Page 8: Remote Control
Disc USB 1 / USB 2 AUX input Portable input PORTABLE Bluetooth LG Sound Sync (Wireless) LG TV Radio [ (Mute) : Mutes the sound. PRESET·FOLDER W / S : - Chooses a preset number for a radio station. (Page 25) - Searches for a folder of MP3/WMA files. - Page 9 Getting Started • • • • • • • • • • • • • • b • • • • • • • • • • • • • • • • • • • • • • • • • • • c • • • • • • • • • • • • • REPEAT : Listens to your tracks/files repeatedly or 0 to 9 numerical buttons : Selects numbered tracks, randomly.
-
Page 10: Front Panel
Getting Started Front panel a USB 1 Port e SPECIAL EQ / BASS BLAST (or BASS BLAST+) - Chooses special equalizer. You can play sound files by connecting the USB device. - Press and hold to select BASS (or BASS+) effect b Display window directly. - Page 11 KEY CHANGER ( l / L ) Portable input PORTABLE Changes the key to suit your vocal range. Bluetooth o AUTO DJ LG Sound Sync (Wireless) LG TV Selects the AUTO DJ mode. Radio N (Play/Pause) 3 WIRELESS LINK - Starts or pauses playback.
-
Page 12: Rear Panel
Getting Started Rear panel c d e a Power cord b SPEAKERS connector c SPEAKER LIGHTING SYSTEM Connect the speaker lighting cables. d AUX IN (L/R) Connect an auxiliary device. e ANTENNA (FM) - Page 13 Press and hold N for 5 seconds in BT Bluetooth device only on BT (Bluetooth) function. (Page 22) (Bluetooth) and LG TV functions. Press and hold N for 5 seconds in BT Initial setting of this function was (Bluetooth) function.
-
Page 14: Connecting
Connecting Connecting to speakers Attaching the subwoofer to the unit Connect a woofer cord to the player. Attaching the speakers to the When connecting a woofer cord to the player, insert the connector until it clicks. unit To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. -
Page 15: Optional Equipment Connection
Connecting Optional Equipment PORT. IN Connection Connection Connect an output (earphone or line out) of portable device (MP3 or PMP etc) to the PORTABLE IN (3.5 mm) connector. AUX IN Connection Connect an output of auxiliary device (Camcorder, TV, Player, etc) to the AUX IN (L/R) connector. If your device has only one output for audio(mono), connect it to the left(white) audio jack on the unit. -
Page 16: Usb Connection
Connecting USB Connection Antenna Connection Connect a USB device (or MP3 player, etc.) to the Connect the supplied FM antenna for listening to the USB ports on the unit. radio. Connect the FM wire antenna to the FM antenna connector. FM antenna Note Removing the USB device from the unit :... -
Page 17: Operating
Operating Note Basic Operations y Repeat/Shuffle playback operates as follows. On Display Description CD/USB Operations Plays songs in order and stops the playback. 1. Insert the disc by pressing B . Or connect the USB device to the USB port. Plays a same song repeatedly. -
Page 18: Selecting A Folder And An Mp3/Wma File
Operating Note Selecting a folder and an MP3/WMA file y CD/USB Folders/Files are recognized as below. On the unit 1. Press SEARCH and rotate EQUALIZER / SEARCH or C / V until a desired file appears. You can also search a folder if you press SEARCH again. -
Page 19: Deleting A File/Folder Or Format
Operating Deleting a file/folder or format AUTO DJ You can delete file, folder on your USB or format the Auto DJ blends the end of one song into the USB. beginning of another for seamless playback. It equalizes volume across tracks/files for 1. -
Page 20: Using Bluetooth® Wireless Technology
Bluetooth device display y Version : 4.0 depending on the type of Bluetooth device. Your y Codec : SBC, AAC unit appears as “LG CK57 (XX)” . Note Bluetooth Profiles y XX means the last two digits of In order to use Bluetooth wireless technology, Bluetooth address. - Page 21 Operating Note 3. When this unit is successfully connected with your Bluetooth device, “PAIRED” appears on the y The sound may be interrupted when the display window and change to Bluetooth device connection has interference from other name soon. Then “BT” will appear on the display electronic devices.
- Page 22 Bluetooth connection lock (BT LOCK) You can limit Bluetooth connection to only BT (Bluetooth) and LG TV function to prevent unintended Bluetooth connection. To turn on this function, press and hold N for about 5 seconds in BT (Bluetooth) function.
-
Page 23: Using The Music Flow Bluetooth App
Operating Using the Music Flow Install “Music Flow Bluetooth” App onto Your Bluetooth Device Bluetooth App There are two ways to install “Music Flow Bluetooth” app onto your Bluetooth device. Note Install “Music Flow Bluetooth” App y Only Android OS is available to use “Music Flow Bluetooth”... - Page 24 Operating Activate Bluetooth with “Music Install “Music Flow Bluetooth” App through “Google Android Market Flow Bluetooth” App (Google Play Store)” “Music Flow Bluetooth” app helps to connect your 1. Tap the “Google Android Market (Google Play Bluetooth device to this unit. Store)”...
- Page 25 Operating Radio Operations Presetting the Radio Stations You can preset 50 stations for FM. Before tuning, make sure to turn down the volume. Be sure that FM antenna is connected. (Page 16) 1. Press F until the FM appears in the display window.
- Page 26 Operating Sound adjustment You can select a desired sound mode by using SPECIAL EQ on the remote control or SPECIAL EQ / BASS BLAST (or BASS BLAST+) on the unit. Setting the sound mode On Display Region Description This system has a number of pre-set surround sound FUNK, REGUETON, fields.
- Page 27 Operating Advanced Operations To stop recording To stop recording, press and hold USB REC on the remote control or USB REC / DEMO on the unit for 3 seconds. Otherwise, the recording continues. Recording to USB Pausing recording You can record a various sound source to USB. (CD, USB1, AUX, PORTABLE, FM) During CD/USB playback or pause, or external sound 1.
- Page 28 Operating Note Note y You can record MIC. (Except when recording y When you stop recording, the file that has USB/ CD that are in stop status.) been recorded at that time will be stored. y You can control recorded microphone sound (Except when recording MP3/ WMA files that according to microphone volume.
- Page 29 Operating JUKE BOX Playback Editing JUKE BOX 1. Press and hold JUKEBOX/MEMORY on the JUKE BOX function enables you to make a playlist of remote control to enter the edit mode. your favorite tracks/files from a disc or USB device. (Playing will be stopped when you press A playlist of up to 100 tracks/files can be entered.
- Page 30 Operating Other Operations DEMO In the power off state, press USB REC / DEMO on the unit once. The unit will power on and display the each of functions in the display window. Turn off the sound temporarily To cancel the DEMO function, press USB REC / Press [ on the remote control to mute your sound.
- Page 31 Operating Using Microphone VOICE CANCELLER You can reduce the vocal tones during music playback 1. Connect your microphone to the MIC jack. from various input sources. 2. Play the music you want. Press VOICE CANCELLER and “ON - VOICE 3. Sing along with the accompaniment. CANCELLER”...
- Page 32 Operating KEY CHANGER VOCAL EFFECTS You can adjust the key to 9 steps (4 steps higher, 4 When you connect your microphone to the MIC steps lower and the original key). jack, you can enjoy karaoke function by changing voice in the various source. y To sharp the key one by one, press KEY CHANGER( L ) repeatedly during playback.
- Page 33 Operating LIGHTING ECHO When you connect your microphone to the MIC jack, This function offers a party atmosphere by operating you can give an echo effect to the sound from the speaker lighting and beat of music. microphones by pressing MIC ECHO. To select mode, pressing LIGHTING on the unit ECHO 1 ECHO 2...
- Page 34 Operating Sleep Timer Setting Dimmer Press SLEEP on the remote control repeatedly to Press SLEEP on the remote control once. select delay time between 10 and 180 minutes. The display window will be darkened by half. After the delay time, the unit will be turned off. To cancel it, press SLEEP on the remote control To cancel the sleep function, press SLEEP on the repeatedly until “OFF”...
- Page 35 If you try to connect to the “Music Flow Bluetooth” app, Bluetooth function of this unit is turned on. y If you turn on the unit using LG TV or Bluetooth function, proper function of this unit is turned on.
-
Page 36: Using Your Player As An Alarm Clock
Operating Setting the Clock Using your player as an alarm clock 1. Turn the unit on. 1. Turn the unit on. 2. Press and hold CLOCK on the remote control. 2. Press and hold ALARM on the remote control. 3. Select time mode by pressing C / V on the 3. -
Page 37: Lg Sound Sync
Note LG Sound Sync y You can also use the remote control of this unit while using LG Sound Sync. If you use TV’ s remote control again, the unit synchronizes with the TV. (According to TV Specifications, the volume and mute of this unit synchronize with TV.) -
Page 38: Wireless Party Link Connection
Operating Note WIRELESS PARTY LINK y If you using the LG Sound Sync, this function Connection is not available. If you connect the LG TV function, “NOT SUPPORT” appears in the display window. The output sound of (MAIN) unit is expanded to y You can use microphone in the OTHER unit (OTHER) unit. -
Page 39: Troubleshooting
Troubleshooting Troubleshooting General Problem Cause & Solution y Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn them on again. The unit does not work y Disconnect the power cord of this unit and the connected external device (TV, properly Woofer, DVD-player, Amplifier, etc.) and then try connecting again. - Page 40 Connect the speaker light cables to the unit correctly. No speaker light y Check the speaker light effects by pressing LIGHTING on the unit. (Page 33) y Check whether your LG TV supports LG Sound Sync. LG Sound Sync does not y Check connection of LG Sound Sync.
-
Page 41: Appendix
Appendix General specifications General Power requirements Refer to the main label on the unit. Power consumption Refer to the main label on the unit. Dimensions (W x H x D) Approx. 350 mm x 166 mm x 276 mm Operating temperature 5 °C to 35 °C Operating humidity 60 %... -
Page 42: Speakers Specifications
Trademarks and Licenses The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. -
Page 43: Maintenance
Appendix Maintenance Handling the Unit When shipping the unit Notes on Discs Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally Handling Discs packed at the factory.
