3. Construction

The E-Compact family of low high solid-state DTV transmitters provides maximum flexibility for site
layout and installation. Transmitters are installed in custom designed 22" wide (19" panel opening)
cabinets. Being available in several configurations depending on the output power, the redundancy
option implemented, and number of channels at a given site.

3.1. Single drive, Dual drive (optional), and touch screen display (optional)

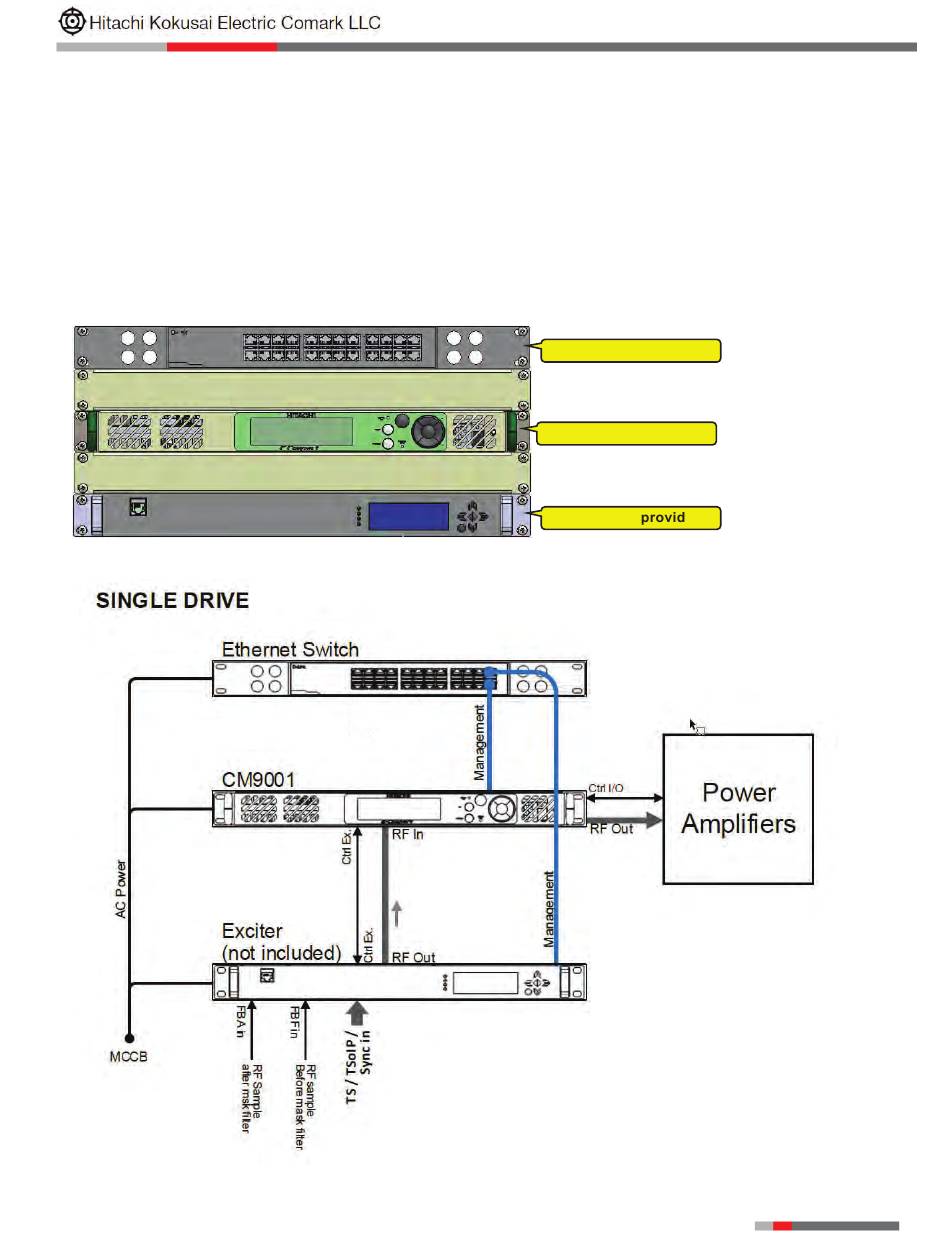

Ethernet Switch
Control Module CM9001
Exciter (not ed)
Single Drive
