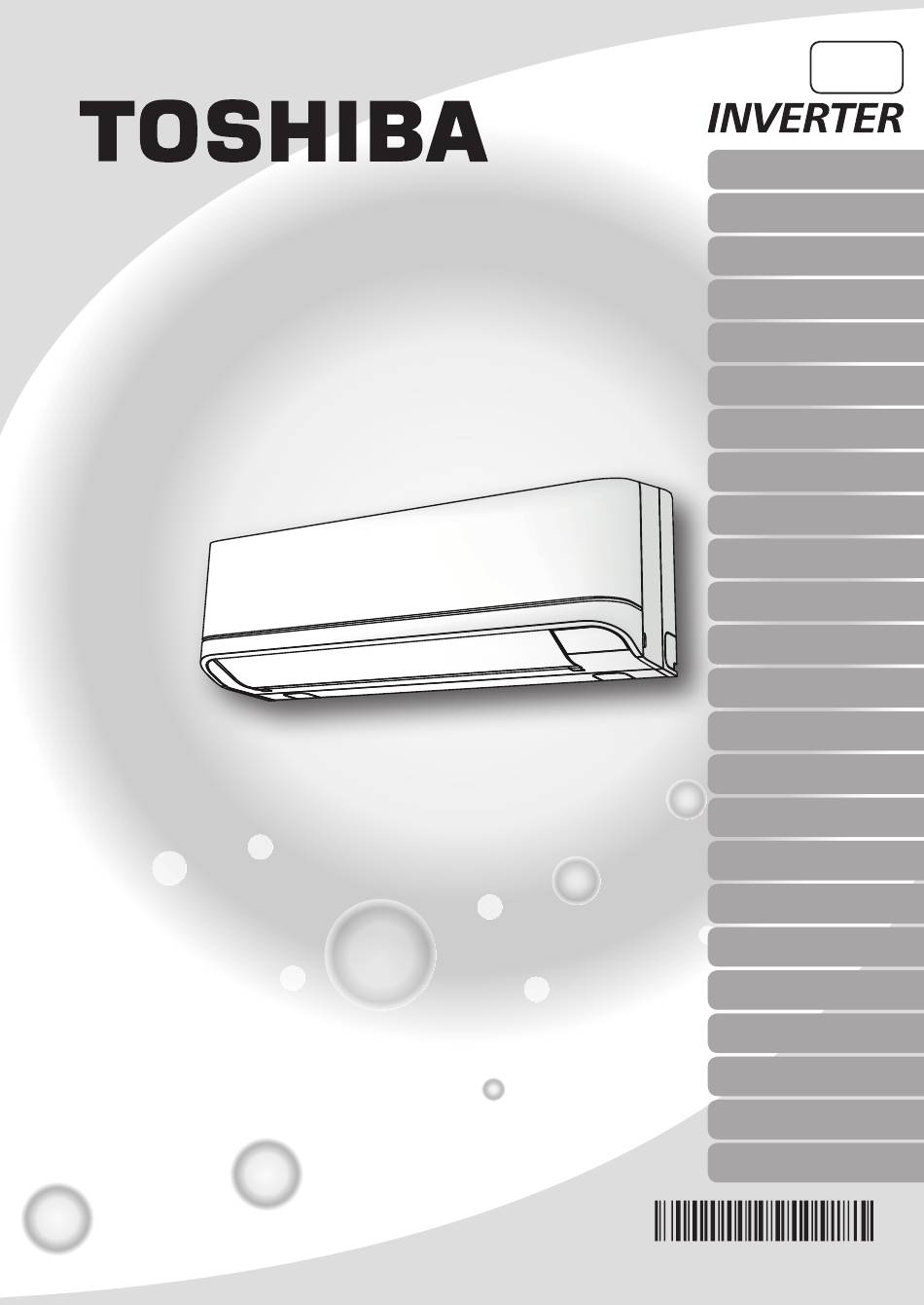

INSTALLATION MANUAL
AIR CONDITIONER (SPLIT TYPE)
Indoor unit
RAS-B10, 13, 16PKVSG-E
Outdoor unit
RAS-10, 13, 16PAVSG-E
R32
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
DEUTSCH
PORTUGUÊS
POLSKI
ČESKY
PУCСКИЙ
HRVATSKI
MAGYAR
NEDERLANDS
ΕΛΛΗΝΙΚΑ
SVENSKA
SUOMI
NORSK
DANSK
ROMÂNĂ
БЪЛГАРСКИ
EESTI
LATVISKI
SLOVENČINA
SLOVENŠČINA
LIETUVIŲ
11 229 501 98
Advertisement
Table of Contents
Related Manuals for Toshiba RAS-B10PKVSG-E
Summary of Contents for Toshiba RAS-B10PKVSG-E
- Page 1 ENGLISH INSTALLATION MANUAL ESPAÑOL AIR CONDITIONER (SPLIT TYPE) FRANÇAIS ITALIANO DEUTSCH PORTUGUÊS POLSKI ČESKY PУCСКИЙ HRVATSKI MAGYAR NEDERLANDS ΕΛΛΗΝΙΚΑ SVENSKA SUOMI NORSK DANSK ROMÂNĂ БЪЛГАРСКИ EESTI Indoor unit RAS-B10, 13, 16PKVSG-E LATVISKI SLOVENČINA Outdoor unit RAS-10, 13, 16PAVSG-E SLOVENŠČINA LIETUVIŲ 11 229 501 98...
-
Page 2: Table Of Contents
CONTENTS PRECAUTIONS FOR SAFETY ............................1 ACCESSORY PARTS .................................5 INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS ...................6 Optional Installation Parts ...............................6 INDOOR UNIT ..................................7 Installation Place ................................7 Cutting a Hole and Mounting Installation Plate .......................7 How to Connect Remote Controller for Wire Operation ....................7 Piping and Drain Hose Installation ..........................8 Indoor Unit Fixing ................................9 Drainage ..................................9... -
Page 3: Precautions For Safety
PRECAUTIONS FOR SAFETY PRECAUTIONS FOR SAFETY Read the precautions in this manual carefully before This appliance is fi lled with R32. operating the unit. • Before installation, please read these precautions for safety carefully. • Be sure to follow the precautions provided here to avoid safety risks. The symbols and their meanings are shown below. - Page 4 DANGER • FOR USE BY QUALIFIED PERSONS ONLY. • TURN OFF MAIN POWER SUPPLY BEFORE ATTEMPTING ANY ELECTRICAL WORK. MAKE SURE ALL POWER SWITCHES ARE OFF. FAILURE TO DO SO MAY CAUSE ELECTRIC SHOCK. • CONNECT THE CONNECTING CABLE CORRECTLY. IF THE CONNECTING CABLE IS CONNECTED WRONGLY, ELECTRIC PARTS MAY BE DAMAGED.
- Page 5 • Do not use any refrigerant different from the one specifi ed for complement or replacement. Otherwise, abnormally high pressure may be generated in the refrigeration cycle, which may result in a failure or explosion of the product or an injury to your body.
- Page 6 CAUTION • Exposure of unit to water or other moisture before installation could result in electric shock. Do not store it in a wet basement or expose to rain or water. • After unpacking the unit, examine it carefully for possible damage. •...
-
Page 7: Accessory Parts
Installation Plate × 1 Battery × 2 Remote control holder × 1 Mounting screw × 6 Toshiba new IAQ fi lter × 1 Flat head wood screw × 2 Owner’s Manual × 1 Flat head wood screw × 1 Installation Manual × 1 "... -
Page 8: Installation Diagram Of Indoor And Outdoor Units
INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS For the rear left and left piping Wall Hook Installation plate Insert the cushion between the indoor unit and wall, and tilt the indoor unit for Flat head better operation. -
Page 9: Indoor Unit
INDOOR UNIT INDOOR UNIT When the installation plate is directly mounted Installation Place on the wall • A place which provides the spaces around the indoor unit as shown in the 1. Securely fi t the installation plate onto the wall by screwing it in the upper and diagram lower parts to hook up the indoor unit. -
Page 10: Piping And Drain Hose Installation
Front panel Control wire Control wire Screw (Ø3.1×16L) for hang remote controller Hole for hang remote controller Remote controller Wall Screw Screw Remote controller Screw cap Screw (Ø3.1×25L) for fi x battery cover 70 mm * Wire size 28-22AWG or 0.08-0.32 mm Outer diameter not over 4.7 mm, control wire length 30 m. -
Page 11: Indoor Unit Fixing
How to remove the drain hose NOTE • The drain hose can be removed by removing the If the pipe is bent incorrectly, the indoor unit may unstably be set on the wall. screw securing the drain hose and then pulling out After passing the connecting pipe through the pipe hole, connect the the drain hose. -
Page 12: Outdoor Unit
2. Put water in the drain pan and make sure that the water is drained out of CAUTION doors. 3. When connecting extension drain hose, insulate the connecting part of Arrange the drain pipe for proper drainage from the unit. extension drain hose with shield pipe. -
Page 13: Evacuating
Tightening connection Compound pressure gauge Pressure gauge –101 kPa Align the centers of the connecting pipes and tighten the fl are nut as far as pos- (–76 cmHg) Manifold valve sible with your fi ngers. Then tighten the nut with a spanner and torque wrench as shown in the fi... -
Page 14: Electrical Works
ELECTRICAL WORKS ELECTRICAL WORKS Model RAS-B10PKVSG-E RAS-B13PKVSG-E RAS-B16PKVSG-E Power source 50Hz, 220 – 240 V Single phase Maximum running current 6.75A 7.35A 8.95A Circuit breaker rating 8.5A 9.5A 11.5A Power supply cable H07RN-F or 60245 IEC66 (1.5 mm or more) -
Page 15: In Case Of Indoor Unit Connect With 1:1 Outdoor Unit
In Case of Indoor Unit Connect With 1:1 Outdoor Unit Power Supply Input at Indoor Unit Terminal Block (Recommend) Indoor Unit Outdoor Unit Power supply cable Stripping length of the power Power supply cable Terminal block connect to L N supply cable Terminal block (L N 1 2 3) Earth line... - Page 16 Power supply input Wiring Diagram for 1:1 Outdoor Unit Power input at Indoor Terminal Block (Recommend) Indoor Chassis Terminal Block Power input Chassis Outdoor Terminal Block Power input at Outdoor Terminal Block (Optional) Indoor Chassis Terminal Block Chassis Outdoor Terminal Block Power input CAUTION...
-
Page 17: In Case Of Indoor Unit Connect With Inverter Multi System (Ims)
In Case of Indoor Unit Connect With Inverter Multi System (IMS) Power Supply Input at Outdoor Unit Terminal Block Indoor Unit Outdoor Unit Connecting cable Stripping length of the Connecting cable connect to L 2 3 Terminal block Connecting cable 1(L) Terminal block (L N 1 2 3) Earth line... -
Page 18: Others
OTHERS OTHERS Gas Leak Test Test Operation To switch the TEST RUN (COOL) mode, press [RESET] button for 10 seconds. (The beeper will make a short beep.) Check places for the indoor unit. OPERATION / RESET Button Check places for the outdoor unit.
