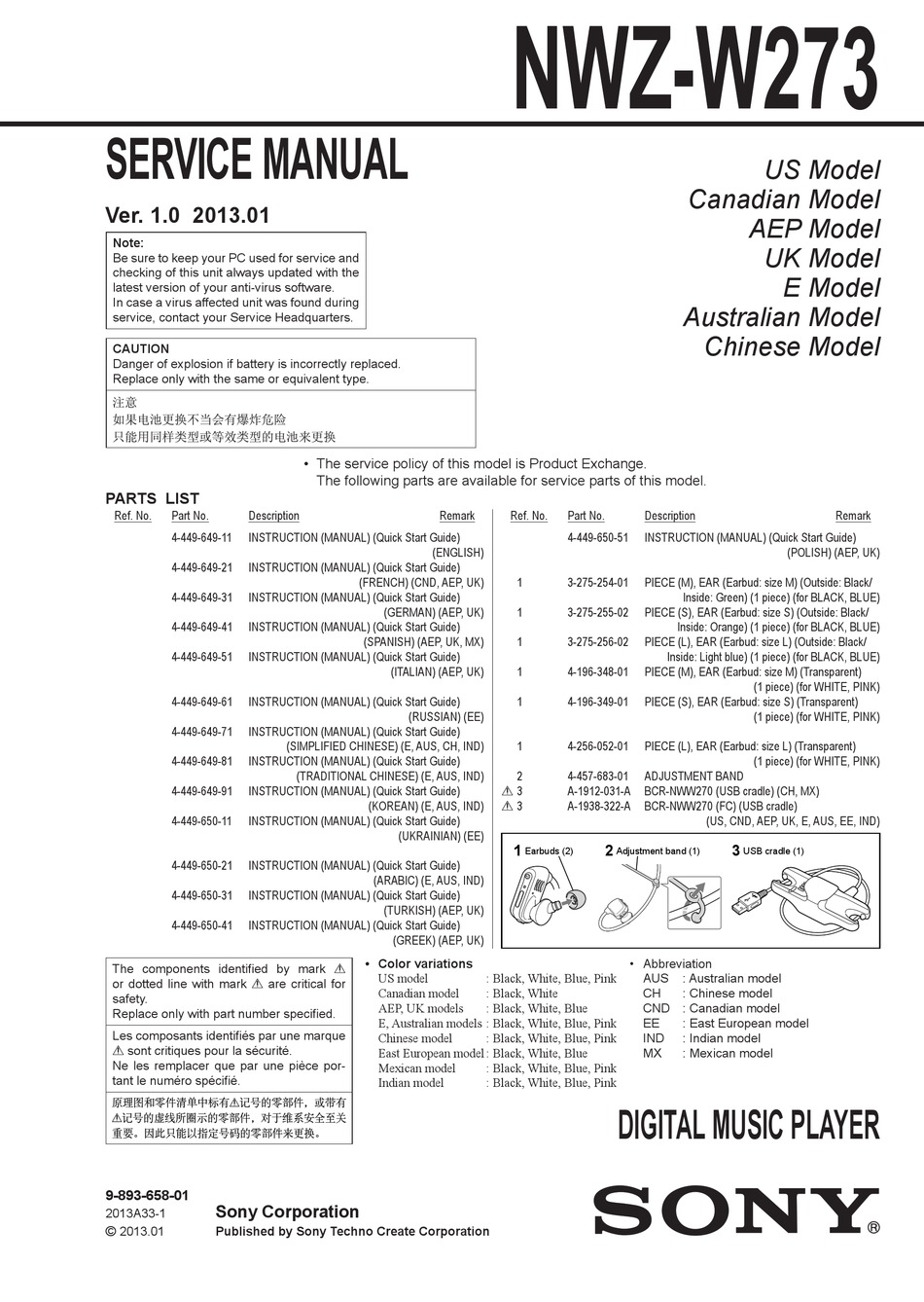

SERVICE MANUAL
Ver. 1.0 2013.01
Note:
Be sure to keep your PC used for service and
checking of this unit always updated with the
latest version of your anti-virus software.
In case a virus affected unit was found during
service, contact your Service Headquarters.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
PARTS LIST
Ref. No. Part No. Description
4-449-649-11 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-21 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-31 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-41 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-51 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-61 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-71 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-81 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-649-91 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-650-11 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-650-21 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-650-31 INSTRUCTION (MANUAL) (Quick Start Guide)
4-449-650-41 INSTRUCTION (MANUAL) (Quick Start Guide)
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
9-893-658-01
Sony Corporation
2013A33-1
©
2013.01 Published by Sony Techno Create Corporation
• The service policy of this model is Product Exchange.
The following parts are available for service parts of this model.
Remark
(ENGLISH)
(FRENCH) (CND, AEP, UK)
(GERMAN) (AEP, UK)
(SPANISH) (AEP, UK, MX)
(ITALIAN) (AEP, UK)
(RUSSIAN) (EE)
(SIMPLIFIED CHINESE) (E, AUS, CH, IND)
(TRADITIONAL CHINESE) (E, AUS, IND)
(KOREAN) (E, AUS, IND)
(UKRAINIAN) (EE)
(ARABIC) (E, AUS, IND)
(TURKISH) (AEP, UK)
(GREEK) (AEP, UK)
• Color variations
US model
Canadian model
AEP, UK models
E, Australian models : Black, White, Blue, Pink
Chinese model
East European model : Black, White, Blue
Mexican model
Indian model
NWZ-W273
Ref. No. Part No. Description
4-449-650-51 INSTRUCTION (MANUAL) (Quick Start Guide)
1 3-275-254-01 PIECE (M), EAR (Earbud: size M) (Outside: Black/
1 3-275-255-02 PIECE (S), EAR (Earbud: size S) (Outside: Black/
1 3-275-256-02 PIECE (L), EAR (Earbud: size L) (Outside: Black/
1 4-196-348-01 PIECE (M), EAR (Earbud: size M) (Transparent)
1 4-196-349-01 PIECE (S), EAR (Earbud: size S) (Transparent)
1 4-256-052-01 PIECE (L), EAR (Earbud: size L) (Transparent)
2 4-457-683-01 ADJUSTMENT BAND
0 3 A-1912-031-A BCR-NWW270 (USB cradle) (CH, MX)
0 3 A-1938-322-A BCR-NWW270 (FC) (USB cradle)
1 2
Earbuds (2) Adjustment band (1)
• Abbreviation
: Black, White, Blue, Pink AUS
: Black, White CH
: Black, White, Blue CND : Canadian model
EE
IND
: Black, White, Blue, Pink
MX
: Black, White, Blue, Pink
: Black, White, Blue, Pink
DIGITAL MUSIC PLAYER
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Remark
(POLISH) (AEP, UK)
Inside: Green) (1 piece) (for BLACK, BLUE)
Inside: Orange) (1 piece) (for BLACK, BLUE)
Inside: Light blue) (1 piece) (for BLACK, BLUE)
(1 piece) (for WHITE, PINK)
(1 piece) (for WHITE, PINK)
(1 piece) (for WHITE, PINK)
(US, CND, AEP, UK, E, AUS, EE, IND)
3
USB cradle (1)
: Australian model
: Chinese model
: East European model
: Indian model
: Mexican model
