Page 1

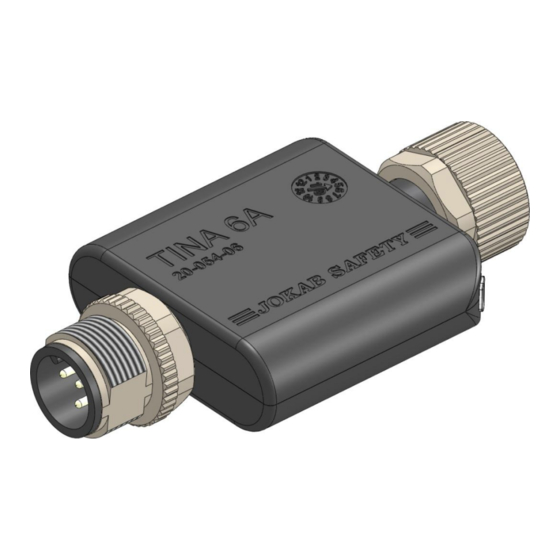

Original instructions Tina 6A Adaptor unit ABB AB / Jokab Safety Varlabergsvägen 11, SE-434 39 Kungsbacka, Sweden www.jokabsafety.com...
Page 2
DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of ABB/JOKAB SAFETY for any act exceed the individual price of the product on which liability asserted.
This document is intended for authorized installation personnel. Prerequisites It is assumed that the reader of this document has knowledge of the following: Basic knowledge of ABB/Jokab Safety products. Knowledge of machine safety. Special notes Pay attention to the following special notes in the document:...
Overview General description ABB/Jokab Safety adaptor units are used to adapt conventional safety sensors where the safety relies on e.g. one- or two-channel static signals, OSSD outputs, or short circuit detection, to the dynamic safety circuit monitored by a Vital safety module or Pluto safety-PLC.
5 ) Grey: Not used Caution! All cable colours according to ABB/Jokab Safety standard cables. Caution! The safety loop cables (1-4 on the female M12 connector) should be as short as possible to reduce the risk for electrical interference (max 150 mm).
Connection examples Caution! All cable colours according to ABB/Jokab Safety standard cables. More connection examples can be found at www.jokabsafety.com or in the Safety Handbook. 2TLC172133M0201, rev. A www.jokabsafety.com 2011-09-22...
(EN 62061:2005). In case of breakdown or damage to the product, contact the nearest ABB/Jokab Safety Service Office or reseller. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel.
Operation LED indication Indication Description Input signal on pin-2 Green Safety circuit closed (protection OK) Dynamic signal in LED on Tina Green-Red (flash) Safety circuit open (protection OK) No dynamic signal in or 0 VDC in Safety circuit interrupted (protection open) +24 VDC in or safety circuit interrupted Information output signal attributes The information output of the unit (pin-5) is set either high (+24 VDC) or low (0 VDC) depending on four different...
Technical data Manufacturer Address ABB AB / JOKAB SAFETY Varlabergsvägen 11 SE-434 39 Kungsbacka Sweden Article number/Ordering data Tina 6A: 2TLJ020054R0600 Power supply Operating voltage 24 VDC +15 %, -25 % Total current consumption 47 mA (57 mA with max information output)
EC Declaration of conformity EC Declaration of conformity (according to 2006/42/EC, Annex2A) ABB AB declare that the safety components of ABB AB make with type designations and safety JOKAB SAFETY functions as listed below, is in conformity with the Directives Varlabergsvägen 11...
