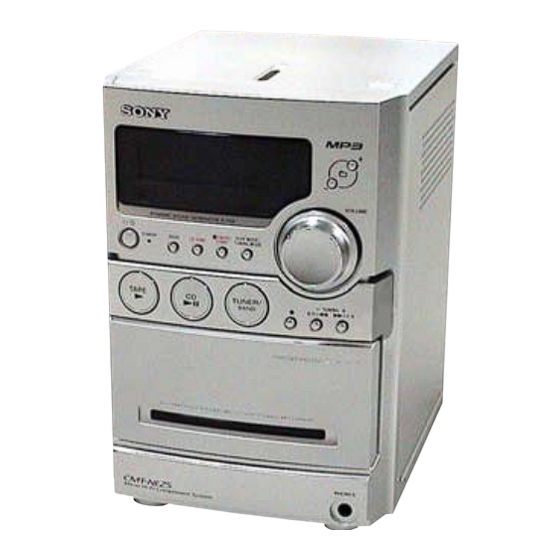

Sony CMT-CNEZ3 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
Ver. 1.0 2005.03
• CMT-NEZ3/NEZ5 are composed of the following models.
As service manuals are issued for each component model, please refer to them.
COMPONENT MODEL NAME
Compact Disc Deck Receiver
Speaker System
SPECIFICATIONS
Power requirements
North American model:
AC 120 V, 60 Hz
Mexican model:
AC 120 V, 60 Hz
European model:
AC 230 V, 50/60 Hz
AC 230 − 240 V, 50/60 Hz
Australian model:
Korean model:
AC 220 V, 60 Hz
Chinese model:
AC 220 V, 50/60 Hz
Taiwanese model:
AC 120 V, 50/60 Hz
Argentine model
AC 220 V, 50/60 Hz
AC 120 − 127, 220, 230 − 240 V, 50/60 Hz
Saudi Arabian model:
AC 120, 220 or 230 − 240 V, 50/60 Hz
Other models:
Adjustable with voltage selector
Power consumption
CMT-NEZ5
European model:
60 W
0.3 W (in Power Saving Mode)
Other models:
50 W
CMT-NEZ3
North American model:
40 W
European model:
45 W
0.3 W (in Power Saving Mode)
Other models:
45 W
Dimensions (w/h/d) (excl. speakers)
Approx. 164 × 235 × 265mm
Mass (excl. speakers)
CMT-NEZ5:
Approx. 3.6 kg
CMT-NEZ3
North American model:
Approx. 2.8 kg
Other models:
Approx. 3.6 kg
Supplied accessories
Remote Commander (1)
R6 (size AA) batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Design and specifications are subject to change without notice.
Sony Corporation
9-879-530-01
Personal Audio Group
2005C05-1
Published by Sony Engineering Corporation
© 2005.03
CMT-NEZ3/NEZ5
CMT-NEZ3
HCD-NEZ3
SS-CNEZ3
CMT-NEZ5
HCD-NEZ5
SS-CNEZ5
ACCESSORIES
Part No.
Description
1-754-102-31 ANTENNA, LOOP (LW.MW)
1-754-243-11 ANTENNA (FM)
2-055-382-01 BATTERY COVER (for RM-SC30)
2-582-894-11 MANUAL, INSTRUCTION (ENGLISH) (US, CND, AEP, UK, E,
2-582-894-21 MANUAL, INSTRUCTION (FRENCH) (CND, AEP, E, SP, EA)
2-582-894-31 MANUAL, INSTRUCTION (SPANISH)
2-582-894-41 MANUAL, INSTRUCTION (GERMAN, DUTCH) (AEP)
2-582-894-51 MANUAL, INSTRUCTION (ITALIAN, PORTUGUESE) (AEP)
2-582-894-61 MANUAL, INSTRUCTION (SWEDISH, DANISH, FINNISH)
2-582-894-71 MANUAL, INSTRUCTION (POLISH, CZECH, HUNGARIAN)
2-582-894-81 MANUAL, INSTRUCTION (GREEK, RUSSIAN) (EE, RU)
2-582-894-91 MANUAL, INSTRUCTION (ARABIC) (EA)
2-582-896-11 MANUAL, INSTRUCTION (TRADITIONAL CHINESE)
2-582-896-21 MANUAL, INSTRUCTION (KOREAN) (KR)
A-1108-432-A OVERALL ASSY (RM-SC30)
• Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
E51 : Chirean and Peruvian models
EA : Saudi Arabia model
EE
: East European model
MICRO HI-FI COMPONENT SYSTEM
US Model
Australian Model
CMT-CNEZ3
Canadian Model
AEP Model
UK Model
E Model
CMT-CNEZ3/CNEZ5
Remark
TW, AR, SP, EA, E51, AUS)
(AEP, E, AR, MX, SP, E51)
(EE, RU)
(EE, RU)
(TW, SP)
KR : Korean model
MX : Mexican model
RU : Russian model
SP
: Singapore model
TW : Taiwan model
