7SR46 Argus Quick Reference Guide 7SR46 Argus Quick Reference Guide
WARNING
Dangerous voltages may occur in devices and modules
during operation depending on the design and application.
Incorrect use of the devices can therefore result in severe
personal injury or substantial damage to property. Only
suitably skilled personnel must work on this device. Correct
and safe operation of this device is dependent on proper
handling, installation, operation, and maintenance.
Should you require further information, or should
problems occur which are not handled in sufficient depth
in the instructions of the respective product, help can be
requested through
representative.
Mounting and Commissioning
Mounting
The physical dimensions of the relay and the required cut-out
dimensions are shown in Figure 1.
1. As per the relay selection, create a slot of dimensions (in mm) to
house the relay in the Low Voltage (LV) compartment.
2. Insert the rear-side of relay into the RMU/LV compartment cut-out.
3. Fasten the relay with 4 M4x20 Pan Philips stainless-steel screws and
nuts provided in the relay packing box with a torque of
0.5 Nm to 0.6 Nm.
4. Carry-out all other installation steps and wiring connections from
the LV compartment.
5. In the rear terminal of the relay, execute the wiring process as
mentioned in the terminal diagram.
For more details on terminal connector diagram, refer to
Figure 2.
Refer to Table 1 for the recommended terminal lugs to be used.
If needed, use washers from the kit to connect the current
inputs.
6. The grounding cable must be wired as indicated in the Figure 2
using a non-stranded cable of 4 mm
This cable must be terminated in the shortest possible path
to the ground terminal/bus bar in LV compartment.
7. Maintain a minimum clearance (in mm) from the relay as given
in Figure 1 to ensure safety and accidental touch of terminals.
8. In case the work area is restricted in a cubicle, then suitable
protective terminals to be provided.

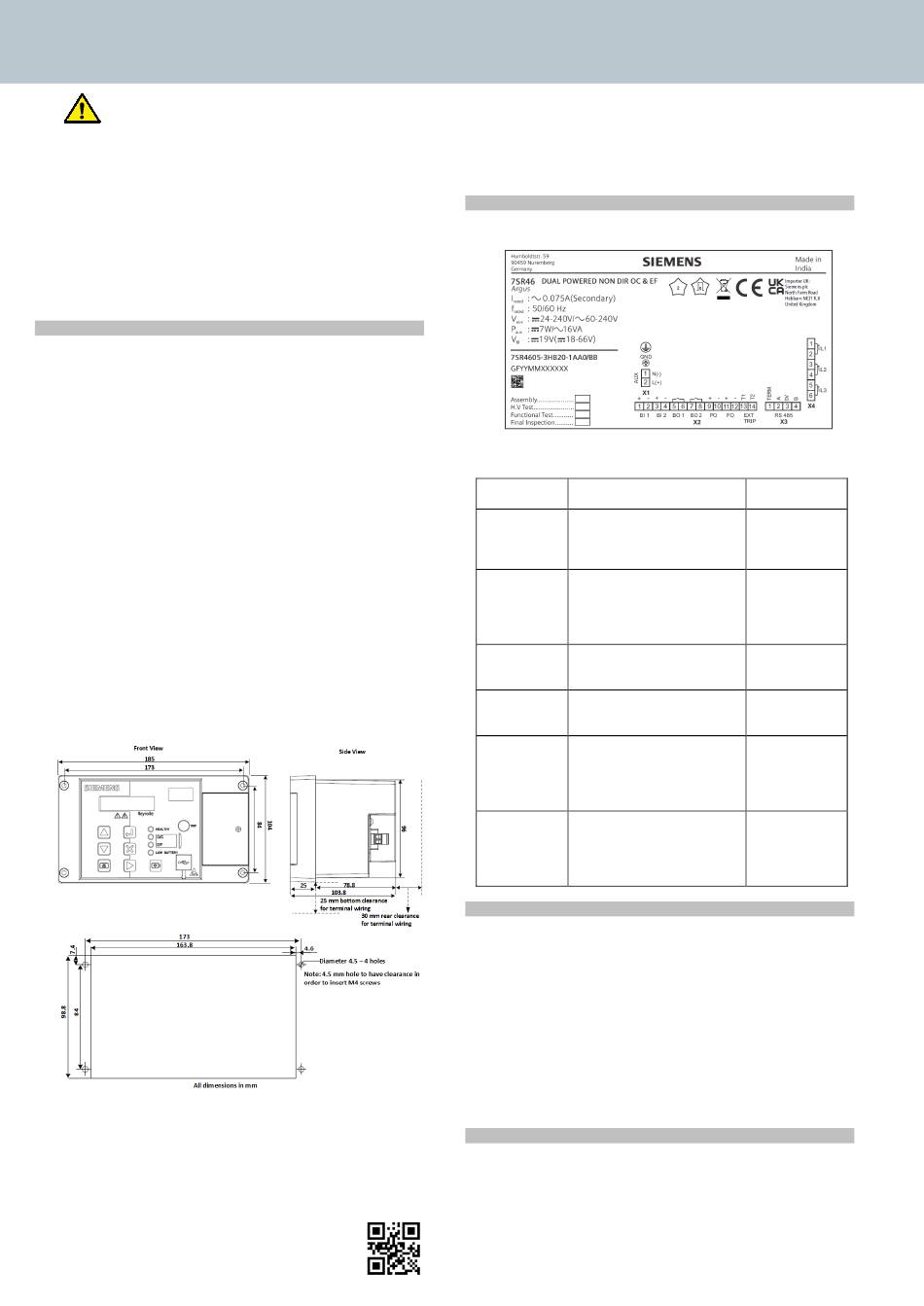

Figure 1: Device Dimensions and Panel Cut-out
Preparing for Commissioning
If the following criteria are satisfied, then proceed with the
commissioning tests:
1. Equipment has not been damaged in transit (physical damage).
2. Equipment has been correctly connected and installed.
3. Gland insulator from the battery compartment is removed.
Siemens Limited
your local Siemens Office or
/6 mm .
2 2
C53000-K7040-C103-1
4. Characteristics of the protection and settings are based on
calculations.
5. Relay thermal ratings have been considered before selecting the
specific CT. Refer to 7SR46 Device Manual for more information.
6. Confirm that settings have been correctly applied.
7. Synchronize the RTC via Reydisp Evolution or through HMI.
Terminal/Wiring Diagram
The 7SR46 Argus Relay must be wired with reference to the appropriate
terminal diagram.
g
Figure 2: 7SR46 Argus Terminal Diagram
Table 1 Recommended Terminal Lugs Specifications
Terminal Type/Cable Specifications
Blocks
Current Panduit ring terminal, Nylon
Inputs insulated M3 stud size,
4 mm
Torque required: 0.58 Nm
Auxiliary Insulated tin-plated crimp pin
Supply connector, 2.6 mm² to
6.6 mm², 12 AWG to
10 AWG, Torque required:
0.5 Nm to 0.6 Nm
Rear Pin type lug/1.5 mm
Communicat cable, Torque required:
ion Port 0.5 Nm to 0.6 Nm
Front USB, Type B
Communicat
ion Port
Binary Input/ Insulated tin-plated crimp pin
Binary connector, 2.6 mm² to
Output/Pulse 6.6 mm², 12 AWG to
Output/ Flag 10 AWG, Torque required:
Output/ETI 0.5 Nm to 0.6 Nm
Ground Panduit ring terminal, nylon
Terminal
insulated M3 stud size,
4 mm² to 6 mm², 12 AWG,
Torque required: 0.58 Nm
Do's
Follow the Do's when installing the 7SR46 Argus Relay:
• During installation, follow the instructions provided herewith.
For more information, refer to 7SR46 Operating Manual.
• Before energizing the relay, ensure that the relay is grounded
using ground terminal on the back plate. Refer to Figure 2.
• Use Auxiliary/CT/USB Power to configure the relay settings to
avoid any unnecessary consumption of battery power.
• Check the time duration and BI, BO operation counts on battery
power in Instrument menu.
• Maintaining a set of test results for future reference is
recommended.
• Remove the paper strip between battery clip and battery before
device is put in service.
Don'ts
Follow the Don'ts when working with the 7SR46 Argus Relay:
• Do not attempt to remove the relay without disconnecting all the
wires.
• Do not use non-recommended Specific CT. Refer to 7SR46 Device
Manual for Specific CT details.
• Do not replace the battery with a battery that is not recommended
from Siemens. Refer to 7SR46 Hardware Manual for battery details.
SIEMENS SIEMENS
Manufacturer/
Part number
TE Connectivity
Mfr. Part No.
to 6.6 mm , 12 AWG, 2-327960-1 or
2 2
equivalent
End sleeve
3D-8011H or
equivalent
control End sleeve
2
3D-8011H or
equivalent
Tyco/974329-1
or equivalent
End sleeve
3D-8011H or
equivalent
RS Stock No.
613-9334 or
equivalent,
Mfr. Part no.
RVY5-3.2
s
s
s
