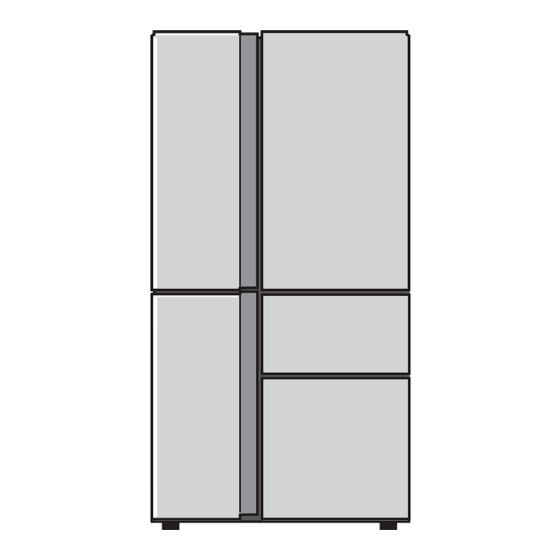

Refrigerator - Freezer
Operation manual
SJ-F889WG
SJ-F879G
SJ-F869M
Refrigerant: R600a
Insulation blowing gas: Cyclopentane
R600a
"Plasmacluster" and "Device of a cluster
of grapes" are trademarks of Sharp
Corporation.
Contents
• Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
• Storing food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Main modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Multi temperature room . . . . . . . . . . . . . . . . . . . . . 13
• Additional settings . . . . . . . . . . . . . . . . . . . . . . . . . 15
• Automatic ice maker . . . . . . . . . . . . . . . . . . . . . . . 17
• Water dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
• Care and cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . 22
• Before you call for service . . . . . . . . . . . . . . . . . . . 23
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
•
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
•
. . . . . . . . . . . . . . . . . . . . . . . . . 45
Advertisement
Table of Contents
Related Manuals for Sharp SJ-F889WG
Summary of Contents for Sharp SJ-F889WG
-

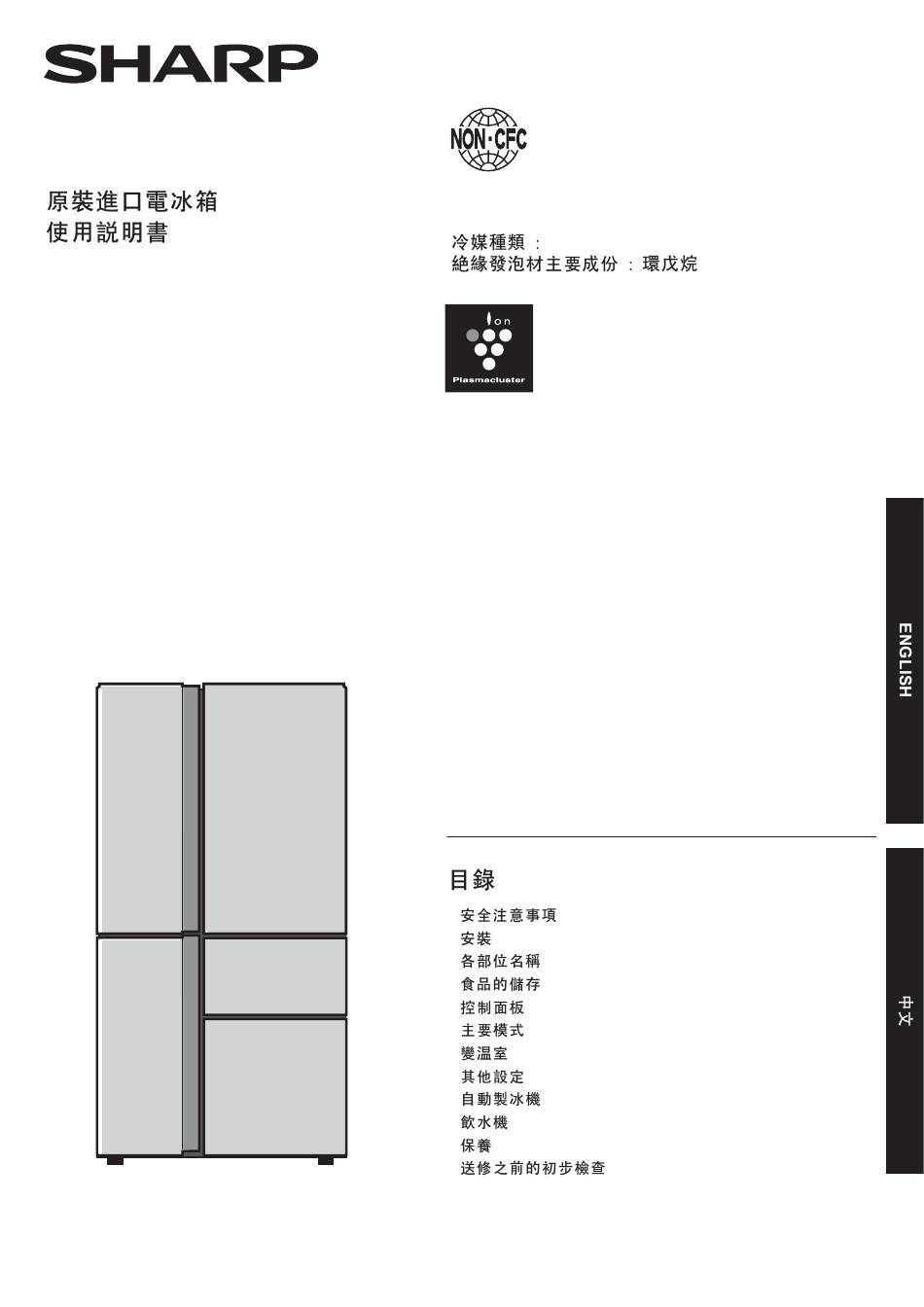

Page 1: Table Of Contents
R600a SJ-F889WG “Plasmacluster” and “Device of a cluster SJ-F879G of grapes” are trademarks of Sharp Corporation. SJ-F869M Contents • Safety information ......3 •... -
Page 3: Safety Information
Thank you very much for buying this SHARP product. Before using your SHARP Household use only refrigerator, please read this operation manual to ensure that you gain the maximum • This refrigerator is intended for making ice cubes, refrigerating and freezing food. - Page 4 If you smell something burning, pull out the power plug immediately. Then ask a service agent approved by SHARP for service. In case of gas leak, ventilate the area by opening window. Do not touch the refrigerator or the power socket.
-
Page 5: Installation
Connect the appliance via a correctly installed socket. Overall space required in use Note SJ-F889WG • Place your refrigerator to access the plug. SJ-F869M SJ-F879G • Keep your refrigerator out of direct sunlight and do not... -
Page 6: Description
Moisture cover is installed on the right side only. This cover works for storing food with high-moisture 17. Control panel freshly. 18. Water dispenser < Only for SJ-F889WG > Moisture cover (Unremovable) Fixed shelf Vegetable case If you wish to store large items within your refrigerator 6. - Page 7 Description < Only for SJ-F889WG > 9 way shelf Door Alarm • There are nine ways to use this shelf. • The door alarm sounds when the door* is left open. • The door alarm sounds in 1 minute after opening the Tall food •...
-
Page 8: Storing Food
Storing food Multi temperature room • Ensure that the food is of the freshest possible quality to maximize the storage life of perishable food. The following is a general guide to help promote longer food You can choose from four kinds of temperature storage. -
Page 9: Control Panel
Additional settings Temperature display changes variously. Water dispenser lock < Only for SJ-F889WG > Note • Press the keys with your bare hand to operate. Operation with wet hand is invalid. • Operation is not accepted while the door* is opened. -
Page 10: Main Modes
Main modes Controlling temperature Decrease Increase • The refrigerator controls its temperature automatically. You can set the preset temperature as below. Set the temperature. • See “Multi temperature room” about the preset temperature of multi temperature room. Refrigerator • • You can adjust between 0°C and 6°C in step of 1°C. Press enter key. - Page 11 Main modes Energy saving Vacation mode • Use this mode to switch the appliance to energy-saving • Use this mode when going on a trip or leaving the house operation. for a long time. • The temperature inside the refrigerator compartment is How to operate adjusted to approx.
- Page 12 Main modes Express freezing Plasmacluster The ionizer inside your refrigerator releases clusters of Most moisture inside the food freeze between -1°C - -5°C. ions which are collective masses of positive and negative It is important to accelerate the freezing speed to reach ions, into the refrigerator compartment.
-
Page 13: Multi Temperature Room
Multi temperature room Temperature zone Assisting modes • • See the next page about operation procedure. • See “Storing food” about suitable food for each • All assisting modes end automatically. temperature zone. • The mode of express cool, extra cool, defrost food and How to select cool down can not be in operation at the same time. - Page 14 Multi temperature room Assisting modes To select mode Put the food. Move to procedure 4 of each mode. Assisting mode icons turn on. Press enter key. Select multi temperature room. Express cool Defrost food Procedure Display Procedure Display Press icon. Current setting Press icon.
-
Page 15: Additional Settings
Hold enter key and press select key until the buzzer sounds. shown above by pressing < Only for SJ-F889WG > Water dispenser lock • Use this mode to prevent the water dispenser from being used unintentionally by children or others. - Page 16 Additional settings Control panel lock • Use this mode to prevent the control panel from being used unintentionally by children or others. Procedure Display Select icon. Press enter key. Current setting • key. Press enter key to set mode ON. How to cancel control panel lock Procedure Display...
-
Page 17: Automatic Ice Maker
Automatic ice maker Description Ice making Water tank Required time for Mode Icon each ice making Upper limit temperature Normal ice Approx. 2 hours Ice tray Large ice Approx. 3.5 hours Ice tray is located at the upper section in the Note back. - Page 18 Automatic ice maker How to use Note • Before using cubes. • • Wash the water tank and the ice storage box. if water remains in the tank. • Use ice tray cleaning mode to clean the ice tray and the •...
- Page 19 Automatic ice maker Canceling Ice making Ice tray cleaning • Use this mode during night time or winter time. • This mode is for cleaning the ice tray and the pipe. • You can use the ice storage box as a freezer case. •...
-
Page 20: Water Dispenser
Water dispenser < Only for SJ-F889WG > Description How to use Before using Refrigerator door open Dispenser door Remove the dispenser tank and wash it. open Lever Procedure Pour the water into the dispenser tank. Warning Fill with potable water only. - Page 21 Water dispenser Cleaning the dispenser tank After cleaning Assemble the dispenser tank. Remove the dispenser tank approximately once a month and wash it with water. Empty the dispenser tank. it may cause water leakage. Push the lever and let out all water in the dispenser tank. Assemble the tank nozzle.
-
Page 22: Care And Cleaning
Note • Contact the service agent approved by SHARP to paint, polishing powder, benzine, boiled water, etc.) replace the light. The light is not to be replaced other which may cause damages. • If you pull out the power plug once, wait 5 minutes at least before connecting the power plug again. -
Page 23: Before You Call For Service
Before you call for service Before calling for service, check the following points. General problems Problem Solution / Situation The refrigerator does not cool at all. Beep beep beep Cancel operation following display.) 1. Open the refrigerator door. The outside of the cabinet is It is normal. - Page 24 Water remains in the tray. • Some water may come out of the water dispenser or inner pipe. It is normal. Throw away the water. If you still require service • Refer to your nearest service agent approved by SHARP.
- Page 25 SHARP SHARP +5°C R600a SHARP SHARP...
- Page 26 SHARP rear bottom...
- Page 27 1028 SJ-F889WG SJ-F869M SJ-F879G 1440 1432 1330 1330...
- Page 28 SJ-F879G, SJ-F869M Cover SJ-F889WG 10 11...
- Page 29 SJ-F889WG...
- Page 32 減少 增加 0.5°C 減少 增加 → → → 減少 增加 10°C -10°C → → →...
- Page 33 10°C 1°C 10°C...
- Page 34 -1°C -5°C -5°C...
- Page 35 0°C 0°C → → → 60°C -8°C -18°C...
- Page 36 3°C 3°C 0°C 3°C...
- Page 37 SJ-F889WG...
- Page 39 60°C → → ...
- Page 40 100mg/L...
- Page 41 100mL → → → ...
- Page 42 SJ-F889WG 50°C...
- Page 44 SHARP...
- Page 45 0°C...
- Page 46 SJ-F889WG SHARP...
- Page 48 SHARP CORPORATION Printed in Thailand...
