Panasonic TH-42PV8D Service Manual

Plasma television
Hide thumbs
Table of Contents

Advertisement

Quick Links

TH-42PV8D
Model No.
TH-42PV8H
TH-42PV8HM
TH-42PV8M
TH-42PV8MR
TH-42PV8MS
TH-42PV8MT
GPH11DA Chassis
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO.MD0804019CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-42PV8D

Summary of Contents for Panasonic TH-42PV8D

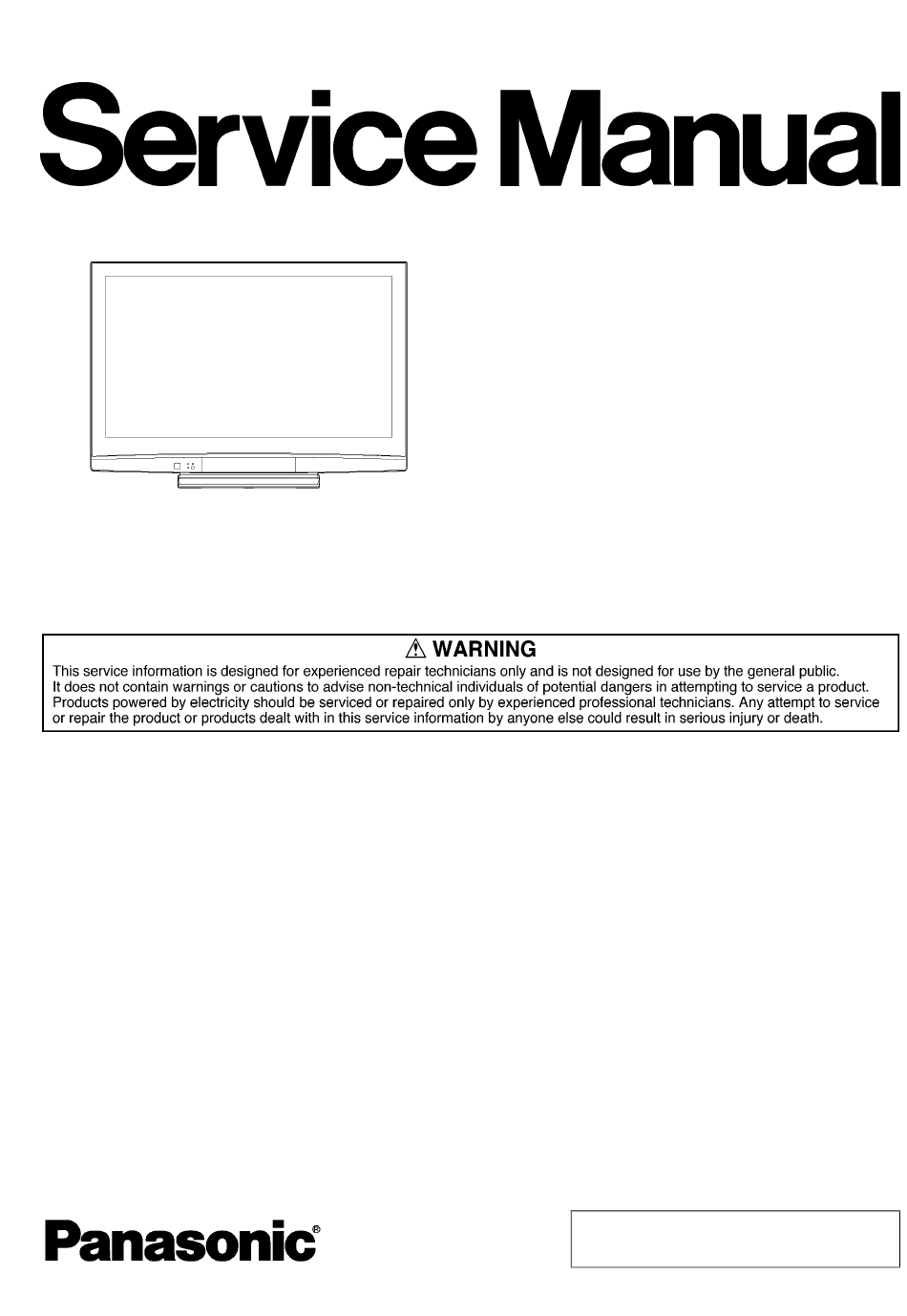

  • Page 1 ORDER NO.MD0804019CE Plasma Television TH-42PV8D Model No. TH-42PV8H TH-42PV8HM TH-42PV8M TH-42PV8MR TH-42PV8MS TH-42PV8MT GPH11DA Chassis © 2008 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law.

  • Page 2: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 3: Prevention Of Electrostatic Discharge (Esd) To Electrostatically Sensitive (Es) Devices

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi- tive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 4: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 5: Service Navigation

    3 Service Navigation 3.1. Service Hint Board Name Function Board Name Function Power Supply Data Driver (Lower Right) DC-DC Converter Data Driver (Lower Left) Speaker out, Sound Processor Scan Drive AV Terminal, AV Switch Scan out (Upper) Digital Signal Processor, Micon, HDMI Interface Scan out (Lower) Peaks Lite 2p Sustain Drive...

  • Page 6: Applicable Signals

    3.2. Applicable signals...

  • Page 7: Specifications

    4 Specifications Power Source AC 220 - 240 V, 50/60 Hz (D/H/HM/M/MR/MT) Power Consumption AC 110 - 240 V, 50/60 Hz (MS) Average use 335 W (D/H/HM/M/MR/MT) 340 W (MS) Standby condition 0.7 W Plasma Display panel Aspect Ratio 16:9 Visible screen size 106 cm (diagonal) 922 mm (W) ×...

  • Page 8: Monitor Output

    Monitor Output AUDIO L - R RCA PIN Type × 2 0.5 V [rms] (high impedance) RCA PIN Type × 1 1.0 V [p-p] (75 Ω) VIDEO Others HDMI1 / 2 Input TYPE A Connectors This TV supports [HDAVI Control 3] function. HIGH-DENSITY D-SUB 15PIN R, G, B/ 0.7 V [p-p] (75 Ω) PC Input HD, VD/TTL Level 2.0 - 5.0 V [p-p] (high impedance)

  • Page 9: How To Enter Into Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...

  • Page 10: Contents Of Adjustment Mode

    5.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

  • Page 11: Service Tool Mode

    5.2. Service tool mode 5.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

  • Page 12: Hotel Mode

    5.3. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Initial INPUT Select input signal modes. enter the following command (within 2 second).

  • Page 13: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 14: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
  • Page 15 6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
  • Page 16 6.4. No Picture...

  • Page 17: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 18: Remove The P-Board

    7 Disassembly and Assembly Instructions 7.1. Remove the rear cover 7.4. Remove the Tuner unit 1. See Service Hint (Section 3) 1. Unlock the cable clampers to free the cable. 2. Disconnect the connectors (A1, A7, A11, A12, A25, A31, 7.2.

  • Page 19: Remove The Su-Board

    7.7. Remove the SU-Board 3. Remove the screw ( ) and remove the GS-Board. 1. Remove the flexible cables (SU1, SU2, SU3 and SU4) connected to the SU-Board. 2. Remove the flexible cable (SU11-SD11) and the bridge connector (SC41-SU41). , ×2 3.

  • Page 20: Remove The Sc-Board

    7.9. Remove the SC-Board 7.10. Remove the SS-Board 1. Remove the SU-Board and SD-Board. (See section 7.7. 1. Unlock the cable clampers to free the cable. and 7.8.) 2. Disconnect the connectors (SS11, SS12, SS23 and 2. Unlock the cable clampers to free the cable. SS34).

  • Page 21: Remove The C1-Board

    7.12. Remove the C1-Board 7.15. Remove the G-Board 1. Remove the tuner unit. (See section 7.4.) 1. Remove the Front shield unit assy. (See section 7.14.) 2. Unlock the cable clampers to free the cable. 2. Remove the screws (×2 3.

  • Page 22: Remove The S-Board

    7.17. Remove the S-Board 7.19. Remove the Plasma panel sec- tion from the Cabinet assy 1. Remove the stand brackets. (See section 7.10.) 2. Remove the screws (×2 (glass) 3. Disconnect the connector (S1). 1. Remove the stand brackets (left, right) fastening screw (×1 each).

  • Page 23: Replace The Plasma Panel

    3. For leaving the plasma panel from the front frame, pull the bottom of the cabinet assy forward, lift, and remove. Caution: • Please confirm the installation place of BC hook (L, R), Spacer and Spacer Ring when you exchange the Plasma Panel, and install BC hook (L, R), Spacer and Spacer Ring in an original installation place after exchanging the Plasma Panel.

  • Page 24: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Driver Set-up 8.1.1. Item / Preparation 8.1.2. Adjustments 1. Input a white signal to plasma video input. Adjust driver section voltages referring the panel data on the 2. Set the picture controls as follows. panel data label. Picture menu: Dynamic Check or adjust the following voltages with the multimeter.

  • Page 25: Printed Circuit Board) Exchange

    8.1.3. P.C.B. (Printed Circuit Board) exchange 8.1.3.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 8.1.3.2. Quick adjustment after P.C.B. exchange Adjust the following voltages with the multimeter. P.C.B. Name Test Point Voltage Volume...

  • Page 27: Block Diagram

    MAIN+9V SENSE G_LED_ON +5V(S) SUB+5V SENSE +3.3V(M) MAIN+3.3V SENSE +3.3V(S) SUB+5V SENSE from +15V(SOUND) +5V(STB) +15V(F_STB) FOR FACTORY USE ALL OFF BT+30V +9V(P) +30V(BT) DIGITAL MAIN FOR FACTORY USE FOR FACTORY USE TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT Block (1/5) Diagram Block (1/5) Diagram...
  • Page 28 DATA DRIVER (LEFT) DATA DRIVER (RIGHT) +5V(P) +5V(P) SOS8_SS SOS8_SS SUSTAIN CONTROL SUSTAIN CONTROL SCAN OUT (LOWER) DATA DATA DATA DATA DATA DATA DATA DATA DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT Block (2/5) Diagram Block (2/5) Diagram...
  • Page 29 D5612 STB_RST (+5.6V) MAIN9V DTV9V Q5606,07 +1.2V STB+3.3V F+15V DET SUB5V_SENSE Norm:Low IC4811 Ab:high STB5V DTV_9V_SENSE STB5V STB3.3V IIC SW MAIN9V_SENSE RMIN +3.3V G_LED_ON BT30V Q2027 TUNER_SUB_ON IC1102 R_LED_ON ECO_ON BT30V BUFFER TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT Block (3/5) Diagram Block (3/5) Diagram...
  • Page 30 +3.3V FOR FACTORY USE +1.2V IC9806 P2.5V FOR FACTORY USE +2.5V JK7701 SUB+3.3V SD CARD SLOT 4bit SD DATA IC9802,03 LEVEL SHIFTER D2520 POWER LED G_LED_ON R_LED_ON RMIN SUB+5V RM2501 STB+3.3V REMOTE TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT Block (4/5) Diagram Block (4/5) Diagram...
  • Page 31 Q16876 D16820 COLD Vscn D16821 D16873 ERROR DET ERROR DET IC14961-63 2 10 5V_F_A SCAN CONTROL VSCN TPSOS7 Q16875,79 D16718 D16717 16V_F VSET ERROR DET VSET AC CORD (LED:7TIMES) SCAN OUT (LOWER) TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT Block (5/5) Diagram Block (5/5) Diagram...

  • Page 33: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring...

  • Page 35: Schematic Diagram

    Schematic Diagram 11.1. Schematic Diagram Note...
  • Page 36 11.2. P-Board (1/6) Schematic Diagram COLD COLD COLD Europe Asia Europe Asia AC CORD COLD P-BOARD (1/6) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) COLD AA AB TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT P-Board (1/6) Schematic Diagram P-Board (1/6) Schematic Diagram...
  • Page 37 11.3. P-Board (2/6) Schematic Diagram COLD COLD ERROR DET SS-BOARD (Vda) (SS12) COLD COLD POWER CONTROL (Vlow) P-BOARD (2/6) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) BO BP BQ BR TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT P-Board (2/6) Schematic Diagram P-Board (2/6) Schematic Diagram...
  • Page 38 11.4. P-Board (3/6) Schematic Diagram AA AB P-BOARD (3/6) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) ERROR DET PHOTO COUPLER ERROR DET COLD PHOTO PHOTO COUPLER COUPLER COLD CA CB TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT P-Board (3/6) Schematic Diagram P-Board (3/6) Schematic Diagram...
  • Page 39 11.5. P-Board (4/6) Schematic Diagram BO BP BQ BR P-BOARD (4/6) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) SC-BOARD (SC2) SS-BOARD (SS11) PHOTO COUPLER ERROR DET ERROR DET PHOTO COUPLER DA DB DF DG DK DL TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT P-Board (4/6) Schematic Diagram P-Board (4/6) Schematic Diagram...
  • Page 40 11.6. P-Board (5/6) Schematic Diagram CA CB POWER MCU RESET P-BOARD (5/6) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT P-Board (5/6) Schematic Diagram P-Board (5/6) Schematic Diagram...
  • Page 41 11.7. P-Board (6/6) Schematic Diagram DA DB DF DG DK DL P-BOARD (6/6) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) DC-DC CONV. A-BOARD (A6) A-BOARD (A25) A-BOARD (A7) TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT P-Board (6/6) Schematic Diagram P-Board (6/6) Schematic Diagram...
  • Page 42 2SD0601A0L Q2510 R2530 2SD0601A0L Q2511 R2542 R2516 2SD0601A0L D2530 MAZ80560ML R2520 R2524 220k C2527 R2557 1000p C2526 1000p C2522 1000p C2523 C2525 1000p 1000p K-BOARD C2524 1000p TXN/K1RRTM TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT G,GS, and K-Board Schematic Diagram G,GS, and K-Board Schematic Diagram...

  • Page 43: A-Board (1/19) Schematic Diagram

    Dig/Ana Tu. IC4510 IC4800 IC2106 IC3001 Ana Tu. IC8601 IC1100 ADV7495 ADAV4622 AV-SW TMP_SENSOR LITE2p-EEP GenX5 GenX-EEP TO 9/19 TO 18/19 TO 11/19 TO 8/19 TO 4/19 TO 6/19 TO 6/19 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (1/19) Schematic Diagram A-Board (1/19) Schematic Diagram...

  • Page 44: A-Board (2/19) Schematic Diagram

    C8033 C8034 C8080 IC8001 IC8001 AE25 IC8001 AGAVDD IC8001 LVVDD12 IC8001 IC8001 0.1u 0.1u 0.1u CLOCK GEN C8074 IC8001 AGAVSS IC8001 IC8001 AF21 C8076 C8075 0.1u IC8001 IC8001 AF24 0.1u TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (2/19) Schematic Diagram A-Board (2/19) Schematic Diagram...

  • Page 45: A-Board (3/19) Schematic Diagram

    11.11. A-Board (3/19) Schematic Diagram A-BOARD (3/19) TP8745 TZTNP01RWTM (D/H/HM/M/MR/MT) AA_XRST SUB3.3V TZTNP01RWTQ (MS) R8711 R8712 AA_ESZ1 AA_ESZ0 SUB3.3V L8551 J0JHC0000075 C8555 0.1u R8564 IC8554 TVRP798-2 NOR FLASH R8566 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (3/19) Schematic Diagram A-Board (3/19) Schematic Diagram...

  • Page 46: A-Board (4/19) Schematic Diagram

    TO 9/19 CH0PSYNC CH0VAL R8900 AA_SBI0 SBI0 DUBUG/JIG CH0DATA R8901 AA_SBO0 SBO0 INT.PU TO 9/19 R8959 AA_SBI1 IS1VAL SBI1 Hi-Z R8960 AA_SBO1 IS1PSYNC SBO1 Hi-Z *R8328 VI2P10 VI2CLK R8861 R8657 JTAG TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (4/19) Schematic Diagram A-Board (4/19) Schematic Diagram...

  • Page 47: A-Board (5/19) Schematic Diagram

    SUB5V C5607 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u R5604 SUB5V LSAT 220p D5605 D5600 MA22D3900L ILIM OUT-2 B0BC4R000002 R5607 TO 9,14/19 R5611 R5605 +INC PGND 12.7k D_PCB_MODE -INC R5612 R5603 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (5/19) Schematic Diagram A-Board (5/19) Schematic Diagram...

  • Page 48: A-Board (6/19) Schematic Diagram

    (PANEL_STATUS) AG_PANEL_ARARM AG_PANEL_ARARM (PANEL_SOS) AG_PANEL_STBY/VCC_ON AG_PANEL_STBY/VCC_ON TO 5,11/19 AG_KEY1(CON-PANE) AG_KEY1(CON-PANE) TO 5/19 HQ1L/CN to HFD AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON AG_R_LED_ON TO 9/19 AG_R_LED_ON AG_G_LED_ON AG_GRAB_MODULE_IIC/PWM_POWER_ON AG_GRAB_MODULE_IIC/PWM_POWER_ON AG_G_LED_ON AG_CONFIG_DONE R4327 TO 5,14/19 AG_RMIN AG_RMIN TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (6/19) Schematic Diagram A-Board (6/19) Schematic Diagram...

  • Page 49: A-Board (7/19) Schematic Diagram

    DDCSCL1 DDCSDA1 L4500 D4513 DDCG B0BC5R6A0275 VJUMP1608-P L4502 N.C. J0JYC0000068 R4508 RXC_CN CLK- CLKG R4509 RXC_CP CLK+ R4510 RXC_0N R4511 RXC_0P R4512 RXC_1N R4513 RXC_1P R4514 RXC_2N R4515 RXC_2P R4552 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (7/19) Schematic Diagram A-Board (7/19) Schematic Diagram...

  • Page 50: A-Board (8/19) Schematic Diagram

    AG_HPD1 C4634 C4580 C4612 R4631 0.01u 0.01u AG_HDMI_5V_DET4 AG_HDMI_5V_DET4 AG_HDMI_5V_DET2 AG_HDMI_5V_DET2 AG_HDMI_5V_DET1 AG_HDMI_5V_DET1 AG_HDMI_CEC AG_HDMI_CEC AG_EDID_WP AG_EDID_WP C4595 C4598 0.01u TO 6,11/19 AG_ADV_XRST AG_ADV_XRST A-BOARD (8/19) TZTNP01RWTM (D/H/HM/M/MR/MT) TZTNP01RWTQ (MS) TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (8/19) Schematic Diagram A-Board (8/19) Schematic Diagram...

  • Page 51: A-Board (9/19) Schematic Diagram

    MAIN3.3V GenX5 GenX6 TEMP SENSOR IC4800 GenX6 Lite2p IIC1 SDA0 R4821 TO 1/19 C1ZBZ0003775 GenX5 TMP-SENS_SDA C4807 STB3.3V TMP-SENS_SCL 0.1u GenX5 ALERT R4835 TO 6/19 R4833 AG_GRAB_MODULE_IIC/PWM_POWER_ON Q4811 2SD0601ASL R4834 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (9/19) Schematic Diagram A-Board (9/19) Schematic Diagram...

  • Page 52: A-Board (10/19) Schematic Diagram

    2SD0601A0L RCA_AUDIOOUT_L_ RCA_AUDIOOUT_L E_PC_RIN/A_AV1_RIN_ L3015 J0JCC0000100 R3019 RCA_AUDIOOUT_R_ 2.2k MONITOR OUT C3002 C3003 A_VOUT Q3000 560p 560p 2SD0601A0L RCA_AUDIOOUT_R RCA_AUDIOOUT_L_ R3024 R3025 MONITOROUT_MUTE 100k 100k RCA_AUDIOOUT_R_ R3021 2.2k *JK3100 K1U932A00002 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (10/19) Schematic Diagram A-Board (10/19) Schematic Diagram...

  • Page 53: A-Board (11/19) Schematic Diagram

    E_QLINK_AV1 QLINK_AV3 GND_C FRONT_AV_V FRONT_AV_VGND TP3018 R3210 FRONT_AV_C R3096 R3216 VARAY405 A-BOARD (11/19) TZTNP01RWTM (D/H/HM/M/MR/MT) FRONT_AVS_Y TZTNP01RWTQ (MS) FRONT_AVS_YGND R3211 FRONT_AVS_CGND R3209 FRONT_AVS_C AVSW,REAR TERMINAL R3088 VARAY405 R3215 R3214 CRNo.3000-.3399 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (11/19) Schematic Diagram A-Board (11/19) Schematic Diagram...

  • Page 54: A-Board (12/19) Schematic Diagram

    C5512 C5511 +15V 0.01u A-BOARD (12/19) FL5511 TP5510 F1J1E104A148 TZTNP01RWTM (D/H/HM/M/MR/MT) 0.1u C5516 C5517 TZTNP01RWTQ (MS) 0.1u TO 13/19 R5510 DCDC_PA PANEL_MAIN_ON PANEL_MAIN_ON R5511 SOS4_PS SOS4_PS CRNo.5400-5599 R5512 VDATA_DET VDATA_DET TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (12/19) Schematic Diagram A-Board (12/19) Schematic Diagram...

  • Page 55: A-Board (13/19) Schematic Diagram

    R9848 EXB2HV470JV CPH1 R9110 SOS6_SC1 SOS6_SC1 R9142 SOS7_SC2 SOS7_SC2 SC_LAT CERS SC_CEL SC_CBK SC_DRV_RST SC_DRV_RST SC_CSL SC_CSH SC_CML SC_CMH R9849 EXB2HV470JV +15V P15V_MOTO +15V PA9900 K5H5022A0023 +15V C9858 C9859 0.01u TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (13/19) Schematic Diagram A-Board (13/19) Schematic Diagram...

  • Page 56: A-Board (14/19) Schematic Diagram

    R9206 C0JBAZ002301 STB5V R9207 C9055 STB_SDA01 0.1u A-BOARD (14/19) C9050 R9200 R9171 D9017 AD_SDA0 TZTNP01RWTM (D/H/HM/M/MR/MT) C9049 R9170 B0BC3R3A0273 D9018 0.1u B0BC3R3A0273 0.1u TZTNP01RWTQ (MS) C9051 R9172 D9019 B0BC3R3A0273 0.1u TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (14/19) Schematic Diagram A-Board (14/19) Schematic Diagram...

  • Page 57: A-Board (15/19) Schematic Diagram

    FP_UML UML_C2 FP_UMH UMH_C2 R9610 EXB2HV470JV R9385 DD_LED2 D-LED2 4.7k DD_PCD3 D-PCD3 DD_PCD4 D-PCD4 DD_ODED2 D-ODED2 DD_CLRD2 D-CLRD2 R9608 EXB2HV470JV DD_LED1 D-LED1 DD_PCD1 D-PCD1 DD_PCD2 D-PCD2 DD_ODED1 D-ODED1 DD_CLRD1 D-CLRD1 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (15/19) Schematic Diagram A-Board (15/19) Schematic Diagram...

  • Page 58: A-Board (16/19) Schematic Diagram

    XOUT IC9900 P3.3V R9370 TP9010 Q9302 Q9301 2SD0601A0L 2SD0601A0L R9369 4.7k R9391 100k C9468 R9371 100k 0.01u R9116 FL9300 F1J1E104A148 FL9301 F1J1E104A148 K1MN68BA0266 K1MN55BA0266 DOWN_RIGHT DOWN_LEFT C1-BOARD C2-BOARD (C11) (C21) TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (16/19) Schematic Diagram A-Board (16/19) Schematic Diagram...
  • Page 59 IC9901 DQ28 L8DR_DQ29 IC9901 IC9901 DQ29 C9951 0.1u L8DR_DQ30 IC9901 IC9901 VREF IC9901 DQ30 L8DR_DQ31 IC9901 DQ31 L8DR_DQS0 R9938 IC9901 DQS0 L8DR_DQS1 IC9901 DQS1 L8DR_DQS2 IC9901 DQS2 L8DR_DQS3 IC9901 DQS3 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (17/19) Schematic Diagram A-Board (17/19) Schematic Diagram...

  • Page 60: A-Board (18/19) Schematic Diagram

    << SPDIF_IN, OUT>> MA3X704A0L 0.047u X2010 H0J245500089 DVDD1.8V R2211 1.8V IC2107 R2172 JS2311 C0DBFFD00003 SUB3.3V C2189 C2187 R2075 6.3V 158k 2.2u A-BOARD (18/19) R2111 R2074 TZTNP01RWTM (D/H/HM/M/MR/MT) C2188 TZTNP01RWTQ (MS) 470p TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (18/19) Schematic Diagram A-Board (18/19) Schematic Diagram...

  • Page 61: A-Board (19/19) Schematic Diagram

    D2302 D2301 0.1u B0HCMM000014 B0HCMM000014 REG5V_IN AH_HDMI_BCLK AH_HDMI_BCLK R2096 R2097 HDMI_BCLK STB3.3V STB3.3V_OUT AH_HDMI_SDIN AH_HDMI_SDIN C2408 HDMI_SDIN GND1 L2300 C2427 0.1u AH_HDMI_LRCK AH_HDMI_LRCK J0JYC0000068 Vref1 STB_RST HDMI_LRCK HDMI_SPDIF HDMI_SPDIF C2413 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-Board (19/19) Schematic Diagram A-Board (19/19) Schematic Diagram...

  • Page 62: C1-Board (1/2) Schematic Diagram

    C1_5V C1_5V C17133 C17131 C17132 C17134 C17153 C17151 C17152 C17154 250V 250V 250V 250V 0.15u 0.15u 0.15u 0.15u R17136 R17137 R17156 R17157 PANEL DATA DRIVER PANEL DATA VDA_75V DRIVER VDA_75V TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT C1-Board (1/2) Schematic Diagram C1-Board (1/2) Schematic Diagram...

  • Page 63: C1-Board (2/2) Schematic Diagram

    C17130 0.1u VDA_75V Vda 75V Vda 75V Vda 75V Vda 75V Vda 75V Vda 75V Vda 75V R17192 SIDE 220k C2-BOARD (C20) ZA17101 K4AD01Z00001 ZA17104 K4AD01Z00001 ZA17103 K4AD01Z00001 ZA17102 K4AD01Z00001 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT C1-Board (2/2) Schematic Diagram C1-Board (2/2) Schematic Diagram...

  • Page 64: C2-Board (1/2) Schematic Diagram

    Vda 75V Vda 75V R17226 R17227 Vda 75V Vda 75V PANEL DATA VDA_75V Vda 75V DRIVER C2_5V C17213 C17211 C17240 C17241 250V 250V 0.15u 0.15u R17216 R17217 PANEL DATA VDA_75V TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT DRIVER C2-Board (1/2) Schematic Diagram C2-Board (1/2) Schematic Diagram...

  • Page 65: C2-Board (2/2) Schematic Diagram

    C17214 C17212 C17215 250V 250V 0.15u 0.15u R17236 R17237 PANEL DATA VDA_75V DRIVER R17233 R17234 C2_5V C17233 C17231 C17232 250V 0.15u C17234 250V 0.15u R17223 R17224 PANEL DATA TH-42PV8D/H/HM/M/MR/MS/MT VDA_75V TH-42PV8D/H/HM/M/MR/MS/MT DRIVER C2-Board (2/2) Schematic Diagram C2-Board (2/2) Schematic Diagram...

  • Page 66: Sc-Board (1/3) Schematic Diagram

    A_+INPUT D16480 B_-INPUT C16582 R16584 MA2J11100L 8.2k B_+INPUT R16476 R16586 4.7k AA_DRV_RST 1.8k MAIN_STOP R16593 1.2k TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 C16480 0.1u IC16472 C0JBAA000377 AND GATE TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SC-Board (1/3) Schematic Diagram SC-Board (1/3) Schematic Diagram...

  • Page 67: Sc-Board (2/3) Schematic Diagram

    100k MA2J11100L Q16663 2SB0709ASL AA_DRV_RST C16806 160V 100u COLD FLOATING GND 16V_F R16670 R16657 AA_SCSU 6.8k D16659 B0HCMM000014 D16668 MA3X152D0L PC16710 Q16665 B3PBA0000223 B1ABCF000231 R16667 Q16664 B1HFPFA00001 D16669 R16672 MA2J11100L TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SC-Board (2/3) Schematic Diagram SC-Board (2/3) Schematic Diagram...

  • Page 68: Sc-Board (3/3) Schematic Diagram

    R16856 D16830 D16839 MAZ80560HL C16832 SCNR_PRO B0ECKP000047 VF_GND 3900p D16838 D16836 B0BC027A0234 MAZ81500ML R16886 L16801 TP51 G0ZZ00002183 220k SC42 R16887 220k R16888 220k TP59 SD-BOARD (SD42) TP60 TP61 TP62 TP63 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SC-Board (3/3) Schematic Diagram SC-Board (3/3) Schematic Diagram...
  • Page 69 AC_642 AD_578 AB_705 AC_641 AD_577 Vscn C14932 C14933 C14938 C14931 C14936 C14937 C14939 C14940 C14941 C14942 250V 250V 0.1u 0.1u 220p 1000p 220p 220p 220p 1000p 220p 220p D14902 MAZ80560HL TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SU-Board (1/2) Schematic Diagram SU-Board (1/2) Schematic Diagram...
  • Page 70 630V 1000p D14905 D14904 D14908 B0HCMM000013 B0HCMM000013 B0HCMM000013 Vscn 145V(DC) C14923 C14924 250V 250V C14934 C14935 250V 250V 0.1u 0.1u 0.1u 0.1u AA_CHA SU41 SC-BOARD (SC41) ZA14901 K4AD01Z00002 ZA14902 K4AD01Z00002 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SU-Board (2/2) Schematic Diagram SU-Board (2/2) Schematic Diagram...
  • Page 71 AB_381 AC_260 AC_317 AD_196 AD_253 AB_323 AB_382 AC_259 AC_318 AD_195 AD_254 AD_194 AB_322 AC_258 AB_321 AC_257 AD_193 Vscn C14974 C14975 C14977 C14978 250V 250V 250V 250V 0.1u 0.1u 0.1u 0.1u TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SD-Board (1/2) Schematic Diagram SD-Board (1/2) Schematic Diagram...
  • Page 72 AA_LATD1 C14986 R14972 R14970 R14969 AA_SO6 ZA14952 D14975 4.7k 3.3k 100p K4AD01Z00002 C14943 MA2J11100L R14949 4.7u D14959 Q14961 MA2J11100L 2SD0601A0L R14944 R14950 D14976 AA_CHA MA2J11100L SD11 SIDE SU-BOARD (SU11) SCNR_PRO TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SD-Board (2/2) Schematic Diagram SD-Board (2/2) Schematic Diagram...
  • Page 73 R16254 C2-BOARD 8.2k (C23) B_+INPUT AA_UMH R16231 R16221 R16256 4.7k 4.7k 1.8k TP22 TP37 AA_SOS8 IC16251 R16251 1.2k C16243 C0BBBA000024 0.01u ERROR DET TPSOS8 TP33 TP34 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SS-Board (1/2) and S-Board Schematic Diagram SS-Board (1/2) and S-Board Schematic Diagram...

  • Page 74: Ss-Board (2/2) Schematic Diagram

    200u R16312 R16314 C16311 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 120k SS56A VOUT VR16000 C16312 SS56 D16311 4700p MAZ81500ML SS23 R16317 SS34 SS22 C16313 ZA16003 R16315 K4CD01000011 1.24k TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SS-Board (2/2) Schematic Diagram SS-Board (2/2) Schematic Diagram...

  • Page 75: Printed Circuit Board

    12 Printed Circuit Board 12.1. P-Board P-BOARD (FOIL SIDE) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) TH-42PV8D/H/HM/MT TH-42PV8M/MR/MS TH-42PV8D/H/HM/MT TH-42PV8M/MR/MS P-BOARD LSEP1260MTHB P-BOARD LSEP1260MMHB P-BOARD LSEP1260MTHB P-BOARD LSEP1260MMHB...
  • Page 76 IC505 Q413 Q567 IC506 Q420 Q569 IC507 Q434 IC508 Q501 VOLUME IC509 Q502 IC510 Q507 R443 IC511 Q508 R628 IC512 Q509 R661 IC513 Q510 R665 IC520 Q517 Q520 Q521 Q524 Q525 Q527 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT P-BOARD PARTS LOCATION P-BOARD PARTS LOCATION...
  • Page 77 P-BOARD (COMPONET SIDE) LSEP1260MTHB (D/H/HM/MT) LSEP1260MMHB (M/MR/MS) TH-42PV8D/H/HM/MT TH-42PV8M/MR/MS TH-42PV8D/H/HM/MT TH-42PV8M/MR/MS P-BOARD LSEP1260MTHB P-BOARD LSEP1260MMHB P-BOARD LSEP1260MTHB P-BOARD LSEP1260MMHB...
  • Page 78 C2517 FOR ORDER TNPA4524 C2503 C2521 C2512 D2512 SW2500 R2507 RM2501 RM2501 R2519 R2517 R2554 R2542 R2516 R2565 R2520 D2530 Q2510 TNPA4524 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT G-BOARD TXN/G1RRTM G-BOARD TXN/G1RRTM S-BOARD TXN/S1RRTM S-BOARD TXN/S1RRTM GS-BOARD TXNGS1RWTM GS-BOARD TXNGS1RWTM K-BOARD TXN/K1RWTM K-BOARD TXN/K1RWTM...
  • Page 79 CL9249 CL9252 CL9255 CL9258 CL9261 CL9264 TP3018 CL9052 CL9056 CL9166 CL9171 CL9174 CL9177 CL9180 CL9183 CL9186 CL9190 CL9193 CL9199 CL9206 CL9213 CL9219 C5730 C3124 TP3017 FL3008 CL3185 R5732 TH-42PV8D/H/HM/M/MR/MT TH-42PV8MS TH-42PV8D/H/HM/M/MR/MT TH-42PV8MS A-BOARD TZTNP01RWTM A-BOARD TZTNP01RWTQ A-BOARD TZTNP01RWTM A-BOARD TZTNP01RWTQ...
  • Page 80 TP3009 Q9808 TP5500 IC9011 TP3013 Q9809 TP5510 IC9013 TP3014 TP5600 IC9805 TP3015 TP5601 IC9806 TP3017 TP5602 TP3018 TP5603 TP3019 TP5604 TP3020 TP5605 TP3021 TP5606 TP4500 TP5607 TP4501 TP5608 TP4502 TP5660 TP4503 TP5700 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT A-BOARD PARTS LOCATION A-BOARD PARTS LOCATION...
  • Page 81 L5611 C5733 C5732 R3030 R8834 FL5733 L3007 L3006 R8818 FL9300 FL9301 R3072 CL9275 TP4840 Q8801 A 3 2 FL5734 ZA0001 ZA0002 A 5 2 C5731 L5735 D5692 CL9278 TH-42PV8D/H/HM/M/MR/MT TH-42PV8MS TH-42PV8D/H/HM/M/MR/MT TH-42PV8MS A-BOARD TZTNP01RWTM A-BOARD TZTNP01RWTQ A-BOARD TZTNP01RWTM A-BOARD TZTNP01RWTQ...
  • Page 82 R 1 4 7 CR NO.17 C 1 2 5 C 1 4 5 D 1 2 1 D 1 3 1 C 1 3 5 C 1 5 5 D 1 5 1 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT C1-BOARD TXNC11RRTM C1-BOARD TXNC11RRTM...
  • Page 83 C 2 4 2 C 2 3 5 ZA202 ZA201 D 2 2 1 C 2 2 5 D 2 0 4 C 2 1 8 D 2 1 1 D 2 0 6 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT C2-BOARD TXNC21RRTM C2-BOARD TXNC21RRTM...
  • Page 84 T P 2 6 T P 3 6 T P 1 8 T P 2 2 T P 5 2 T P 3 7 T P 7 0 T P 1 0 T P 2 7 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SC-BOARD TXNSC1RRTM SC-BOARD TXNSC1RRTM...
  • Page 85 Q16876 VOLUME TP29 TP92 Q16879 Q16601 TP30 VR16600 TP93 Q16602 Q16881 TP31 VR16601 TP94 Q16882 Q16603 TP32 VR16602 TP95 Q16604 TP33 TP96 Q16605 TP34 Q16606 TP35 Q16607 TP36 Q16608 TP37 TP38 TP39 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SC-BOARD PARTS LOCATION SC-BOARD PARTS LOCATION...
  • Page 86 R 5 8 7 R 5 3 1 D 4 7 2 D 5 8 5 R 5 2 2 R 5 2 1 R 5 8 5 R 5 8 0 R 5 8 9 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SC-BOARD TXNSC1RRTM SC-BOARD TXNSC1RRTM...
  • Page 87 H . V . D A N G E R D 9 0 9 H . V . D A N G E R D 9 0 2 O R D E R N O . CRNo. 14 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SU-BOARD TXNSU1RRTM SU-BOARD TXNSU1RRTM...
  • Page 88 C 9 8 9 SD42 R 9 4 9 C 9 2 6 D 9 7 4 R 9 9 3 D 9 7 5 R 9 5 0 Z A 9 5 1 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SD-BOARD TXNSD1RRTM SD-BOARD TXNSD1RRTM...
  • Page 89 S S 5 5 A S S 5 6 A L 1 0 3 S S 5 4 S S 5 3 S S 5 5 S S 5 6 T P 2 7 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SS-BOARD TXNSS1RRTM SS-BOARD TXNSS1RRTM...
  • Page 90 L 1 0 4 L 1 0 2 S S 5 3 S S 5 6 S S 5 5 S S 5 4 T P S S 1 Z A 0 0 2 TH-42PV8D/H/HM/M/MR/MS/MT TH-42PV8D/H/HM/M/MR/MS/MT SS-BOARD TXNSS1RRTM SS-BOARD TXNSS1RRTM...

  • Page 91: Exploded View And Replacement Parts List

    13 Exploded View and Replacement Parts List 13.1. Exploded View and Mechanical Replacement Parts List 13.1.1. Exploded View...
  • Page 92 13.1.2. Packing...

  • Page 93: Mechanical Replacement Parts List

    13.1.3. Mechanical Replacement Parts List...
  • Page 94 Ref. Safety Part No. Part Name & Description Q'ty Remarks EAS16S06A SPEAKER K2CN3DH00006 AC CORD 1 MR K2CT3DH00018 AC CORD 1 H/HM/M K2CT3DH00025 AC CORD 1 MS K2CZ3YY00004 AC CORD 1 MT MD42H11A1J PLASMA DISPLAY PANEL N2QAYB000227 REMOTE CONTROL 1 PAVCSG TBLA3652 STAND POLE RIGHT 1 PAVCSG...
  • Page 95 Ref. Safety Part No. Part Name & Description Q'ty Remarks TMMX212 REAR COVER SPACER RING 6 PAVCSG TMMX214 REAR COVER HOOK LEFT TMMX215 REAR COVER HOOK RIGHT TMMX222 M8 SPACER 4 PAVCSG TMXX041 AC CORD CLAMPER 2 D/H/HM/M/MR/MS TMXX045 AC CORD HOLDER TMXX048 AC CORD CLAMPER 2 MT...
  • Page 96 Ref. Safety Part No. Part Name & Description Q'ty Remarks TTUA1858 REAR COVER 1 PAVCSG D TTUA1870 REAR COVER 1 PAVCSG M TTUA1966 REAR COVER 1 PAVCSG HM TXAJS01RRTH INLET ASSY 1 PAVCSG D/H/HM/MT TXAJS01RRTM INLET ASSY 1 PAVCSG M/MR/MS TXFKY01RWTM CABINET ASSY 1 PAVCSG...

  • Page 97: Electrical Replacement Parts List

    13.2. Electrical Replacement Parts List 13.2.1. Replacement Parts List Notes...
  • Page 98 13.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2106 F1G1C104A116 C 0.10UF, K, 16V Description C2107 F2G0J470A019 E 47UF 6.3V C2108 F2G0J470A019 E 47UF 6.3V K1KA11A00178 11P CONNECTOR C2109 F1G1C104A116 C 0.10UF, K, 16V...
  • Page 99 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2263 F1J1A106A043 C 0.010UF, K, C3003 F1H1H561A971 C 560UF, 50V C3007 F1H1H561A971 C 560UF, 50V C2264 F1J1A106A043 C 0.010UF, K, C3008 F1H1H561A971 C 560UF, 50V C3010...
  • Page 100 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C3701 ECJ2XC1H561K C 560PF, K, 50V C5402 F1G1E103A123 C 0.010UF, K, C3703 ECJ2XC1H561K C 560PF, K, 50V C5404 F1H1H392A970 C 3900PF, K, 50V C3711 ECJ2VF1H333Z C 0.033UF, Z,...
  • Page 101 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C7705 F1G1C104A119 C 0.10UF, K, 16V C8067 F1G1E103A123 C 0.010UF, K, C7708 F1G1C104A119 C 0.10UF, K, 16V C8068 F1G1C104A116 C 0.10UF, K, 16V C7709 F1G1C104A119 C 0.10UF, K, 16V...
  • Page 102 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C9862 F1H1E104A129 C 0.1UF, 25V C9947 F1G1C104A116 C 0.10UF, K, 16V C9863 F1J0J475A035 C 4.7UF, K, 16V C9948 F1G1C104A116 C 0.10UF, K, 16V C9864 F1H1E104A129 C 0.1UF, 25V...
  • Page 103 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C14978 F1L2E104A028 E 1000UF, 25V C16505 F1K1E105A029 C 1UF, Z, 25V C14981 F1J1H221A709 C 220UF, 50V C16521 F1K1E105A029 C 1UF, Z, 25V C14984 F1L2E104A028 E 1000UF, 25V C16522...
  • Page 104 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C17134 F1L2E154A009 E 1500UF, 25V D4502 EZAEG2A50AX DIODE C17141 F1H1A1050032 C 10UF, 50V D4503 EZAEG2A50AX DIODE C17142 F1H1A1050032 C 10UF, 50V D4504 EZAEG2A50AX DIODE...
  • Page 105 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D14976 MA2J11100L DIODE D16664 MA8330M ZENER DIODE D16001 B0FBCN000005 DIODE D16665 MAZ80510LL ZENER DIODE D16021 MA3DF30000LW ZENER DIODE D16667 MA2J11100L DIODE...
  • Page 106 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC1100 MNZSFG3GP53 IC16561 C0JBAZ002811 IC IC1101 TVRP930 IC16562 C0JBAZ002811 IC IC1102 C0JBAZ002261 IC IC16581 C0BBBA000024 IC IC2008 C0CBCBE00001 IC IC16724 C0CBADC00072 IC IC2012...
  • Page 107 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description L2028 J0JYC0000068 CHIP INDUCTOR L16011 G0C2R1KA0190 PEAKING COIL L2030 J0JYC0000068 CHIP INDUCTOR L16012 G0C2R1KA0190 PEAKING COIL L2031 J0JYC0000068 CHIP INDUCTOR L16013 G0C2R1KA0190 PEAKING COIL L2032...
  • Page 108 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q4501 2SD0601ARL TRANSISTOR Q16623 2SK399500L Q4502 2SD0601ARL TRANSISTOR Q16642 2SK4175000LZ FET Q4503 2SD0601ARL TRANSISTOR Q16643 2SK4175000LZ FET Q4514 2SB0709ARL TRANSISTOR Q16645...
  • Page 109 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R1196 ERJ2GEJ473 M 47KOHM, R2051 D1BB2002A055 M 20KOHM, 1/10W J,0.063W R2052 ERJ6GEYJ331V M 330 OHM J 1/ R1197 ERJ2GEJ103 M 10KOHM, J,0.063W...
  • Page 110 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2175 ERJ2GEJ561 M 60 OHM, R3086 ERJ6RED750 M 75 OHM, 1/10W J,0.063W R3097 ERJ6RED750 M 75 OHM, 1/10W R2176 ERJ6GEYJ271V M 270 OHM J 1/ R3101...
  • Page 111 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3227 ERJ6GEYJ472V M 4.7K OHM J 1/ R4601 ERJ6GEYJ102V M 1K OHM J 1/10W R4606 D1BB9101A055 M 9.1KOHM, 1/10W R3230 ERJ6RED750 M 75 OHM, 1/10W...
  • Page 112 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R5510 ERJ2GEJ101 M 100 OHM, R5763 ERJ2GEJ101 M 100 OHM, J,0.063W J,0.063W R5511 ERJ2GEJ101 M 100 OHM, R7701 ERJ2GEJ680 M 68 OHM, J,0.063W...
  • Page 113 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8072 ERJ2GEJ470 M 47 OHM, R8605 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R8073 ERJ2GEJ470 M 47 OHM, R8657 ERJ2GEJ103 M 10KOHM, J,0.063W...
  • Page 114 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8887 ERJ2GEJ680 M 68 OHM, R8963 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R8888 ERJ2GEJ680 M 68 OHM, R9062 ERJ2GEJ101 M 100 OHM, J,0.063W J,0.063W...
  • Page 115 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9163 ERJ2GEJ103 M 10KOHM, R9586 ERJ2GEJ470 M 47 OHM, J,0.063W J,0.063W R9164 ERJ2GEJ103 M 10KOHM, R9587 ERJ2GEJ470 M 47 OHM, J,0.063W J,0.063W R9166...
  • Page 116 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9955 ERJ2GEJ470 M 47 OHM, R14954 ERJ6GEYJ221V M 220 OHM,J,1/ J,0.063W R9956 D0GDR00Z0002 M 0 OHM, 1/10W R14955 ERJ6GEYJ221V M 220 OHM,J,1/ R9957 D0GDR00Z0002 M 0 OHM, 1/10W...
  • Page 117 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16116 ERJ6GEYF473 M 47KOHM,J,1/10W R16301 ERJ6GEYJ472V M 4.7K OHM J 1/ R16131 D0GD101JA036 M 100 OHM,J,0.25W R16302 ERJ8GEYJ105V M 1MOHM, J,1/8W R16132 D0GD101JA036 M 100 R16303...
  • Page 118 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16501 D0GD101JA036 M 100 R16617 ERJ6GEYJ222V M 2.2K OHM J 1/ OHM,J,0.25W R16502 D0GD101JA036 M 100 R16622 ERJ6GEYJ221V M 220 OHM,J,1/ OHM,J,0.25W R16503 ERJT06J100V...
  • Page 119 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16738 ERG1FJS823D M 82KOHM, J, 1W R16887 ERJ6GEYJ224 M 220KOHM,J,1/ R16740 ERJ6GEYJ104V M 100KOHM,J,1/ R16888 ERJ6GEYJ224 M 220KOHM,J,1/ R16744 ERJ6ENF2003 M 200KOHM, 1/10W...
  • Page 120 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17244 ERJ3GEYJ471 M 470 OHM,J,1/ VR16602 EVMEASA00B33 CONTROL 3KOHMB 0.3W R17245 EXB38V102J RESISTOR ARRAY R17249 EXB38V220JV RESISTOR ARRAY X1100 H0J100500035 CRYSTAL R17250...
  • Page 121 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C475 F1BAF221A107 C 220UF, 250V C639 ECJ1VB1H103K C 0.001UF, K, C478 F1BAF221A107 C 220UF, 250V C640 ECJ1VC1H330J C 33PF, J, 50V C492 F2A1H1000083 E 10UF, 50V C650...
  • Page 122 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D544 B0BA02100001 ZENER DIODE PR509 ERBSE0R50U FUSE D545 B0BA02100001 ZENER DIODE PR601 K5G312B00012 FUSE D546 B0BA02800001 ZENER DIODE D549 B0BC02500008 ZENER DIODE Q401...
  • Page 123 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R432 D1AB4303A023 CHIP RESISTOR R523 ERJ6GEYF473 M 47KOHM,J,1/10W R433 ERJ6RBD123V M 12KOHM, 1/10W R524 D0GB102JA057 M 1KOHM,J,1/16W R436 ERJ8GEYJ153 M 15KOHM, J,1/8W R526...
  • Page 124 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R596 ERJ6GEYJ101V M 100 OHM,J,1/ R662 ERJ6ENF1503 M 150KOHM, 1/10W R664 ERJ3EKF9101 M 9.1KOHM, 1/16W R597 ERJ3EKF3302 M 33KOHM, 1/16W R665 EVMAASA00B23 CONTROL 2KOHMB R598...
  • Page 125 Safety Ref. No. Part No. Part Name & Pcs Remarks Description R734 ERJ8GEYJ105 M 1MOHM, J,1/8W R735 ERJ8GEYJ105 M 1MOHM, J,1/8W R736 ERJ8GEYJ105 M 1MOHM, J,1/8W R737 ERJ8GEYJ105 M 1MOHM, J,1/8W R738 ERJ8GEYJ105 M 1MOHM, J,1/8W R739 ERJ3EKF1803 M 180KOHM, 1/16W R742 D0GB102JA057 M 1KOHM,J,1/16W RL401...

This manual is also suitable for:

Th-42pv8hTh-42pv8hmTh-42pv8mTh-42pv8mrTh-42pv8msTh-42pv8mt

Table of Contents
