Panasonic Panaboard UB-8325 Operating Instructions Manual

Electronic board
Hide thumbs Also See for Panaboard UB-8325:
  • (2 pages)
Table of Contents

Advertisement

Quick Links

• To assemble this unit, please refer to the Installation manual on page 83 through 99.
• Before operating this unit, please read these instructions completely and keep them carefully for future
reference.
• Because of the nature of the print film, all the printed text will remain on the film.
• This unit is designed for installation by a qualified servicing dealer.
Installation performed by non-authorized individuals could cause safety-related problems with the operation of
this equipment.
For U.S.A. only:
• To locate the closest authorized dealer in your area, please call 1-800-449-8989.

Operating Instructions

With Installation Manual
(for qualified service personnel)
(Interactive Panaboard)

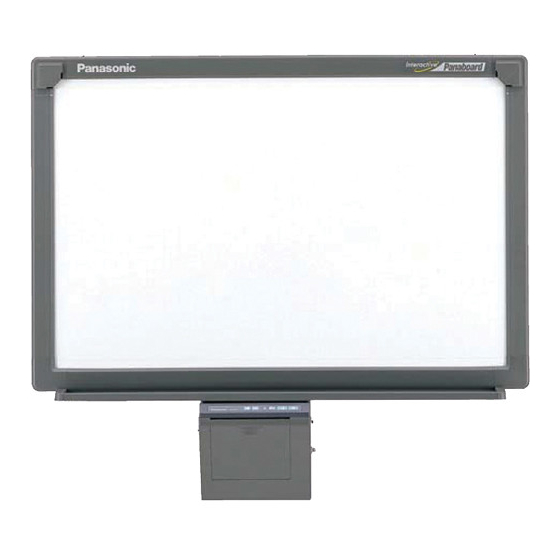

Panaboard
Electronic Board
UB-8325
Model No.
Stand is optional.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Panaboard UB-8325

Summary of Contents for Panasonic Panaboard UB-8325

  • Page 1: Operating Instructions

    Installation performed by non-authorized individuals could cause safety-related problems with the operation of this equipment. For U.S.A. only: • To locate the closest authorized dealer in your area, please call 1-800-449-8989. Operating Instructions With Installation Manual (for qualified service personnel) Electronic Board (Interactive Panaboard) Panaboard UB-8325 Model No. Stand is optional.
  • Page 2 In this manual, the pen holder with a marker for interactive (small) is called the Electronic Pen. The Electronic Pen and the Electronic Eraser are used with the interactive function. * The stand and wall-mounting kit are optional. By way of example, this manual describes an Electronic Board which is used with the stand.
  • Page 3 Federal Communications Commission Requirements Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Features The UB-8325 is equipped with two interactive functions; Projector mode and Whiteboard mode, in addition to a regular electronic board that utilizes plain paper. It is possible to use this unit as follows. ■ Electronic Board Functions • Allows copying up to 9 copies per screen •...

  • Page 5: Computer Interfacing

    • Panasonic-DMS uses the TWAIN driver to scan monochrome images drawn on the UB-8325. • Panasonic-DMS has a capability of managing documents (image files). • The printer driver allows the printer of the UB-8325 to print documents from a computer.

  • Page 6: Table Of Contents

    • Installing Drivers / Interactive Panaboard Software ..... 28 • Installing the Panasonic-DMS Software......30 •...
  • Page 7 Using the Panasonic-DMS ....... 72 • Scanning ........... . . 72 •...

  • Page 8: For Your Safety

    For Your Safety For Your Safety To prevent severe injury and loss of life, read this section carefully before using the unit to ensure proper and safe operation of your unit. CLASS 1 LED PRODUCT The following graphic symbols are used in this Operating Instructions manual.
  • Page 9 Stop operation immediately if your unit emits smoke, excessive heat, abnormal smell or unusual noise. These conditions can cause fire or electric shock. Immediately turn the unit off and unplug the power cord, and contact your dealer for service. When disconnecting the unit, grasp the plug instead of the cord.

  • Page 10: For Users In The United Kingdom Only

    A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safely.

  • Page 11: Precautions

    • If you connect the electronic board to a USB hub, it is not guaranteed to work. • Do not connect two or more Panasonic electronic boards to a computer. It may cause the computer operation to become unstable.
  • Page 12 Precautions Replacing • Dispose of the used thermal transfer film in a trash receptacle for burnable trash. • A negative of the copied image will remain on the thermal transfer film. (To protect the the Thermal security of your information, we recommend cutting up the used thermal transfer film with Transfer Film scissors or shredder before disposing of it.) Electronic...
  • Page 13 Battery If batteries are used improperly, batteries may leak, causing corrosion of the unit, or they may burst. To prevent this, always follow the precautions given below. • Always remove batteries from the Electronic Pen and Electronic Eraser if they are not to be used for an extended period of time.

  • Page 14: Cd-Rom

    Precautions CD-ROM To prevent the CD-ROMs from accidental damages: Do not touch or write on the surface of the disc. Do not place heavy objects on the disc case or drop the case. Do not leave the disc out of the protective case.

  • Page 15: Part Names And Functions

    Part Names and Functions Electronic Pen / Electronic Eraser Position Receiver Printer Output Port This port holds up to 10 sheets of output paper. Printer Open Lever Push down this lever to open the printer door. USB Connector (See page 27.) Part Names and Functions Scanner Electronic Pen /...

  • Page 16: Control Panel

    Part Names and Functions Control Panel Contrast/Remaining Film Indicator Contrast Key 2-Screen Copy Key Panel Name Contrast/ Remaining Film Indicator Contrast 2-Screen Copy Key Multi-Copy/ Error Indicator Multi-Copy/ Stop Key Copy Key Advance Advance Key Copy Key Description This lamp indicator notifies the user when the time to replace the thermal transfer film is approaching (estimated) and of the printing contrast used during copying.

  • Page 17: Electronic Pen And Eraser

    Part Names and Functions Electronic Pen and Eraser ■ Electronic Pen (see page 25) Pen button* Pen holder lever * When using the projector mode to operate the computer screen on the Interactive Panaboard screen and operating the pen while holding down the pen button achieves the same function as pressing the right mouse button. ■...

  • Page 18: Installing The Thermal Transfer Film

    Installing the Thermal Transfer Film Installing the Thermal Transfer Film Install the thermal transfer film in the printer. Set the power switch to on ( I ). • “ ” will flash on the Multi-Copy/Error Indicator when the thermal transfer film has run out.

  • Page 19: Loading Copy Paper

    Tighten the film, then close the printer door. 1) Rotate the blue gear in the direction of the arrow to take up the slack on the film. Blue gear • If a slack remains, perform step 3-2) through 4-1) again. 2) Securely close the printer door by using both hands until a click is heard.
  • Page 20 Loading Copy Paper Pull the paper cover forward as shown in the figure. To prevent paper jams such as those caused by multiple sheets feeding at once, fan the paper thoroughly, square it, align it with the guide inside, and insert as far as it will go. Guide Maximum paper limit Note...

  • Page 21: Making Copies

    Making Copies This section describes how to copy text and illustrations drawn on the screen. Set the power switch to on ( I ). • “ ” will light on the Multi-Copy/Error Indicator to indicate that the unit is ready to copy.

  • Page 22: Replacing The Thermal Transfer Film

    Notes on Replacing Thermal Transfer Film • Only use the designated product (UG-6001) from Panasonic as the replacement film. (Note that using another type of replacement film may result in degraded printing quality or damage to the unit.) • Thermal transfer film is disposable. Dispose of used thermal transfer film as “burnable”...

  • Page 23: Paper Jams

    Paper Jams Remove paper jams by the following procedure when copy paper does not come out of the output port or when “ ” flashes on the Multi-Copy/Error Indicator. Push down the printer open lever to open the printer door. Remove the thermal transfer film with both hands.
  • Page 24 Paper Jams To prevent paper jams such as those caused by multiple sheets feeding at once, fan the paper thoroughly, square it, align it with the guide inside, and insert as far as it will go. Guide Maximum paper limit Note •...

  • Page 25: Setting The Electronic Pen And Eraser

    Setting the Electronic Pen and Eraser Setting the Electronic Pen Remove the battery cover on the pen holder, insert the batteries as shown in the figure, and re-attach the battery cover. • Always use “LR03 (AAA size)” (alkaline) batteries and be sure that their polarity is properly oriented.

  • Page 26: Setting The Electronic Eraser

    Setting the Electronic Pen and Eraser Setting the Electronic Eraser Remove the eraser cover, insert the batteries as shown in the figure, and re-attach the eraser cover. • Always use “LR03 (AAA size)” (alkaline) batteries and be sure that their polarity is properly oriented. •...

  • Page 27: Installing Drivers And Software

    Interactive Panaboard Software”). • If you connect the electronic board to a USB hub, it is not guaranteed to work. • Do not connect two or more Panasonic electronic boards to a computer. It may cause the computer operation to become unstable.

  • Page 28: Installing Drivers / Interactive Panaboard Software

    CD-ROM from the Explorer. When “Welcome” window appears, click [Next]. Click [Interactive Panaboard Setup]. • To install the Panasonic-DMS software, click [Panasonic-DMS] (see page 30). • To read the operating instructions in the provided CD-ROM, the Adobe Reader or Acrobat Reader must be installed in your computer.
  • Page 29 CD-ROM for installing the operating system may be required When the installation is completed, click [OK]. • Interactive Panaboard group is registered in the Panasonic of the Programs menu. • The following is installed in the Interactive Panaboard group. - Interactive Panaboard (application)

  • Page 30: Installing The Panasonic-Dms Software

    Installing Drivers and Software Installing the Panasonic-DMS Software When Panasonic-DMS is already installed, leave it (do not uninstall it) and install the new software in the same folder to overwrite it. Power on your computer and start Windows. • Log on as an administrator for Windows 2000 or Windows XP.

  • Page 31: Removing Drivers / Interactive Panaboard Software

    After uninstalling, restart your computer. Installing Drivers and Software Removing the Panasonic- DMS Software If you need to remove the Panasonic-DMS software, perform the following steps. Power on your computer and start Windows. • Log on as an administrator for Windows 2000 or Windows XP.

  • Page 32: Using The Panaboard In Projector Mode

    Using the Panaboard in Projector Mode Using the Panaboard in Projector Mode Precautions When Using a Projector Interactive upper limt mark 100 mm 35 mm Projector • When using a projector to project images, be sure to display the image so that it is centered left-to-right on the Interactive Panaboard screen and with at least a 50 mm (2”) gap between the top of the image and the screen border.

  • Page 33: Starting The Interactive Panaboard Software

    • The Interactive Panaboard Software is automatically started. For WIndows 98 / Windows Me Click [Start] and select Programs - Panasonic - Interactive Panaboard - Interactive Panaboard. • The window appears to show the Interactive Panaboard is detected. Note •...

  • Page 34: Pop-Up Menu Configuration

    Using the Panaboard in Projector Mode • When the calibration is completed and the Projector mode become active, the icon will be registered in the Taskbar and the Desktop Drawing Tool will appear automatically. [Desktop Drawing Tool] Note • If the Interactive Panaboard is not detected, the following notification window appears.
  • Page 35 ■ Switching the Mode You can freely switch the Projector mode and the Whiteboard mode while the Interactive Panaboard Software is running. Right-click the icon in the Taskbar and click Select Mode... in the pop-up menu. In addition, you can double-click the icon in the Taskbar.
  • Page 36 Using the Panaboard in Projector Mode ■ Adjusting the Shifted Position The Electronic Pen or Electronic Eraser position may largely shift by the using environment. In this case, adjust the position according to the following procedures to improve the shifted position. Right-click the icon click Settings - Adjustment...

  • Page 37: Basic Operation In Projector Mode

    • JPEG: Sets the quality level when exporting a page as a JPEG format image file. The larger number will get higher quality for the image file than small number when exporting. However, the file size will be large. • TIFF: When exporting a page as a TIFF format, an image file is compressed by checking the Compression (PACKBITS) check box.
  • Page 38 Using the Panaboard in Projector Mode Note • If you move the projector or Interactive Panaboard, the position of the computer screen projected onto the Interactive Panaboard screen will be moved. This will result in out of position of the Electronic Pen. If this happens, you will need to calibrate the unit again by executing Calibrate in the pop- up menu from the Toolbar.
  • Page 39 Step 3: Recording image and lines data on the Desktop Data of lines drawn or erased on the Desktop using the Desktop Drawing Tool can be recorded in Interactive Panaboard format files (extension “.ipb”, referred to as IPB documents). There are two methods to record drawings. To select the recording method, refer to “Setting Options”...

  • Page 40: Using The Desktop Drawing Tool

    Using the Panaboard in Projector Mode Using the Desktop Drawing Tool The Desktop Drawing Tool is a tool for drawing, erasing, recording, etc. on the Desktop. Right-click the icon and click Tool - Draw in the pop-up menu. The Desktop Drawing Tool will appear and check mark is placed next to the Draw menu.
  • Page 41 Note • When the Desktop Drawing Tool is closed, the drawings are erased. • (Next) and (Previous) are only displayed when the PowerPoint Slide Show is running. ■ Drawing or Erasing Lines For the instructions, refer to “Step 2: Drawing and erasing lines on the Desktop”...
  • Page 42 Using the Panaboard in Projector Mode • Highlight: The line becomes transparency by clicking it so the background can be seen. • Eraser Radius: The size of the eraser can be set from 1 to 60 dots. To change the size, - Type the number of size.
  • Page 43 [B] Saving files automatically, named with the date If the Save file automatically, named with date is enabled in the Options setting, files will be automatically saved. (Refer to “Setting Options” on page 36.) Click (Capture) in the Desktop Drawing Tool.
  • Page 44 Using the Panaboard in Projector Mode Draw text in the Handwriting Tablet using the Electronic Pen. • The handwriting will be recognized and displayed on the upper-left of the Handwriting Tablet. Click [send] of the Handwriting Tablet. • The recognized text is entered into the application.
  • Page 45 [F] Changing the keyboard size Click the desired On-Screen Keyboard size from Resize in the Settings menu. Note • Alternatively, the size of the On-Screen Keyboard can be changed by dragging one of the edges of the On-Screen Keyboard window. •...
  • Page 46 Using the Panaboard in Projector Mode [B] Switching slides in the slide show The Desktop Drawing Tool displays (Previous) buttons when a Slide Show is running. Click (Next) or Desktop Drawing Tool. • There is no need to momentarily change to (Arrow) to switch slides when selecting the Marker or Eraser tool.
  • Page 47 ■ Recording Drawing Data in IPB Document Allows you to create an IPB document to record the drawing on the Interactive Panaboard. There are two ways to record. To select it, refer to “Setting Options” on page 36. [A] Recording by using “(Method 1) Draw strokes and record after verifying the background image”...
  • Page 48 Using the Panaboard in Projector Mode Click (REC Stop) in the Desktop Drawing Tool. • The Save As window appears. Enter the folder where you want to save the file and the file name. • The extension of the file is “.ipb”. Click [Save].

  • Page 49: Using The Panaboard In Whiteboard Mode

    • The Interactive Panaboard Software is automatically started. For WIndows 98 / Windows Me Click [Start] and select Programs - Panasonic - Interactive Panaboard - Interactive Panaboard. • The window appears to show the Interactive Panaboard is detected. Note •...

  • Page 50: Basic Operation In Whiteboard Mode

    Using the Panaboard in Whiteboard Mode Print out image automatically rotates to fit printer paper direction setting is only related to the Whiteboard mode. Help Topics...: Displays the help of the Interactive Panaboard Software. About...: Displays the Interactive Panaboard Software version information.
  • Page 51 Step 2: Adding a new page by pressing the Advance Key Add New Page when Advance Key is pressed is selected in the Options window, a new page is added to an IPB document when the the Interactive Panaboard is pressed. This method is recommended in the case the screen is fed every time one topic is finished in only one side of the screen.
  • Page 52 Using the Panaboard in Whiteboard Mode Press (Advance Key) on the Interactive Panaboard. • The screen is fed and the last page of the IPB document is selected. Draw lines and press the Interactive Panaboard to return to the other side screen if needed. •...

  • Page 53: Using The View Window Or Whiteboard Window

    Using the View Window or Whiteboard Window About View Window / Whiteboard Window ■ View Window in Projector Mode Desktop background data and data of handwritten lines recorded using the Desktop Drawing Tool can be displayed in the View window as well as browsed, reproduced and edited.
  • Page 54 Using the View Window or Whiteboard Window ■ Difference between the View Window and the Whiteboard Window The View window (Projector mode) and the Whiteboard window (Whiteboard mode) are windows which function to display and edit IPB documents. Basically, they both have identical functions. However, the Whiteboard window has some functions the View window does not have as follows.
  • Page 55 Menu Description Add Copy Page * Adds copied page next to the last page. (See page 62.) Delete Current Deletes the displayed page. Page (See page 62.) Handwriting Converts handwriting letters Recognition to texts. (See page 64.) [Edit] menu (When editing using the Text Editor) Undo Restores the state before the last text action.
  • Page 56 Using the View Window or Whiteboard Window Menu File Changes the default folder to save an IPB document or interval timing when performing the automatic back up. (See page 69.) Spell Check Sets the setting for spellcheck of the Text Editor. (See page 70.) Options Sets the length unit mm or...

  • Page 57: Managing Ipb Documents

    Managing IPB Documents ■ Creating an IPB Document (Whiteboard window only) In Whiteboard mode, creating a new IPB document is needed to record work performed on the Interactive Panaboard. Click New in the File menu. • When the IPB document currently being edited is changed, a window will display asking you to confirm the save.
  • Page 58 Using the View Window or Whiteboard Window [A] Saving as an image file Click Image... of Export in the File menu. • The Export Image window appears. Specify the pages to be exported and image size. • To save all the pages, select All # Pages. (#: total number of pages) •...
  • Page 59 [B] Saving as an HTML file You can save the IPB document as an HTML file per page. In addition, meeting information can also be output at the same time to that index page. Setting multiple pages and saving the IPB document as an HTML file will create an index file, linked HTML pages and images.
  • Page 60 Using the View Window or Whiteboard Window • Participants / Manager / Subject / Description / Contacts / Company: Displays the information specified in the Information... in the Settings menu. Note • It is recommend to save HTML files in an empty folder where another HTML files are not stored.
  • Page 61 ■ Switching a Page of the IPB Document [A] Displaying first page Click Go to First Page in the Page / Play menu. [B] Displaying previous page Click Go to Previous Page in the Page / Play menu. [C] Displaying next page Click Go to Next Page in the Page / Play menu.
  • Page 62 Using the View Window or Whiteboard Window [B] Undoing You can restore the drawing using the marker or eraser to their original state, stroke by stroke. Click Undo in the Edit menu. • To return to the previous state, click Undo again.
  • Page 63 [G] Copying selected page range to other application You can copy data to other applications by dragging and dropping the selected page area. To perform this operation, the application copied to must support OLE (Object Linking and Embedding). Open the file where the data will be copied to and adjust the position of the application window such that the page to be copied and the file to be copied are displayed in the...
  • Page 64 Using the View Window or Whiteboard Window ■ Recognizing Handwriting in the IPB document [A] Recognizing Handwriting Click icon or Handwriting Recognition... in the Edit menu. • The Handwriting Recognition window appears. Select the Recognition Range and click [OK]. • The recognition results will be output as text to the Text Editor.
  • Page 65 [D] Copying Text Click inside the Text Editor window. Select the target text by dragging it. Click Copy in the Edit menu. • The text will be copied to the clipboard. • Selected text can be removed and copied to the clipboard by clicking Cut in the Edit menu.
  • Page 66 Using the View Window or Whiteboard Window ■ Print the IPB document [A] Confirming print image of the IPB document before printing Click Print Preview in the File menu. • The window is switched to the Print Preview screen. Click [Close] to exit the Print Preview and return the display mode to the original state.
  • Page 67 [B] Setting conditions when playing back the IPB document Click Play... in the Settings menu. • The Playback Setting window appears. Enter an interval for playing back the stroke in the Interval time between strokes. • You can click the arrows at the right and left of the scroll bar or drag the scroll bar to the right or left to set a desired interval.
  • Page 68 Using the View Window or Whiteboard Window • Eraser Radius: The size of the eraser can be set from 1 to 60 dots (View window) or 0.1 - 50.8 mm (Whiteboard window). To change the size, - Type the number of size. - Click the right or left arrow of the scroll bar.
  • Page 69 Click [OK]. Note • The default of the width is 800 dots and the Constrain Proportions check box is checked. The height will be different depending on the size of the Panaboard screen and the screen resolution of the computer where the projector is projecting the image.
  • Page 70 Using the View Window or Whiteboard Window [F] Spell check setting for recognized handwriting Set the spell check for recognized handwriting. Click Spell Check... in the Settings menu. • The Spell Check Setting window appears. Specify the spell check setting. •...
  • Page 71 - Make the current page empty after copy page is added: With check mark (default setting): The selected page of the IPB document is copied and the selecting page is automatically erased as a new page (blank page) by pressing the When selecting this option, be sure to wipe to clear the Interactive Panaboard screen after pressing the...

  • Page 72: Using The Panasonic-Dms

    Image..., or click the Toolbar. • The Panaboard Operation Panel appears. Note • If the Panasonic Interactive Software is started, the Panaboard Operation Panel cannot be displayed. Close the Panasonic Interactive Software and start it. • When the Panaboard Operation Panel is not displayed, check the USB cable connection or the condition of the electronic board.

  • Page 73: Panaboard Operation Panel

    Panaboard Operation Panel It is possible to perform the same operations as with the electronic board control panel (page 16) from the following Panaboard Operation buttons. Note • While the Panaboard Operation Panel is displayed, the the electronic board control panel are used for scanning images into the computer.

  • Page 74: Printing

    • You cannot stop printing after printing starts. Do not attempt to stop printing. • Do not turn off the power of the electronic board or unplug the USB cable before printing finishes. It may cause the computer operation to become unstable.

  • Page 75: Daily Care And Maintenance

    Daily Care and Maintenance Always turn off the power switch and unplug the power plug when cleaning outside and inside the unit. Cleaning the Screen and the Unit Gently wipe the screen film and unit with a water- dampened cloth that has been thoroughly wrung. Note •...
  • Page 76 Daily Care and Maintenance Clean the Printer Head Dampen the tip of a cotton-tipped swab in ethyl alcohol and gently wipe the printer head. Note • Never touch the printer head or the surrounding area with your hands as this may disable copying.

  • Page 77: Replacing The Batteries In The Electronic Pen And The Electronic Eraser

    As the lifetime of the batteries in the Electronic Pen or the Electronic Eraser comes near to the end, the message “Low Battery” appears on the computer screen to which the electronic board is connected using interactive functions. When this message appears, get new batteries ready and replace the old ones as soon as possible.

  • Page 78: Troubleshooting

    Troubleshooting Troubleshooting Treat problems according to the information given in the table below. If problems still persist, call your dealer for service. Symptom Power switch is on but the indicator is off. Copied copy paper will not come out. Nothing is printed on the paper or copies are faint or blurred.
  • Page 79 3. Install the new Panasonic-DMS in the same folder with the old one. The old Panasonic-DMS is not uninstalled if the old version of the Panasonic-DMS has been installed before installing the new one. Uninstall the old Panasonic-DMS from the Add / Remove Programs of the Control Panel.

  • Page 80: Meanings Of Error Codes

    Troubleshooting Detection of the marker color of the Electronic Pen does not work well when the Whiteboard mode of the interactive function is used. The message "Low Battery" appears on the computer screen. Meanings of Error Codes The following table describes the meaning of each of the symbols which may flash in the Multi-Copy/Error Indicator. Indication Data transfer error (Error)

  • Page 81: Specifications

    Dry erase felt-tipped markers (black, red, blue and green *) * The green marker is only for the interactive function. Full Speed USB 2.0 * *This electronic board does not function with Hi-Speed USB 2.0. 900 mm × 1,400 mm (2' 11 "...

  • Page 82: Optional And Separately Available Items

    35 mm (1 LR03 (AAA size) x 2 *Alkaline battery 48 hours [Continuously at 25°C (77 * When using Panasonic UG-6001 (Set of 2 rolls [50 m (164' )]) KX-B031 (set of 10 black markers), KX-B032 (set of 10 red markers),...

  • Page 83: Installation Manual

    ●Notice ..........84 Assembling the Electronic Board ..... . . 85 ●Accessories for assembling .

  • Page 84: For Your Safety

    1,005 N [103 kgf (227 lbs.)] Do not attach the electronic board to mortared walls. Accidental electric leakage from the wall-mounting fixture bolts to metal laths or wire laths can cause heat, smoke or a fire.

  • Page 85: Assembling The Electronic Board

    Assembling the Electronic Board ■ Accessories for assembling The package includes the parts for setting up the electronic board shown below. Make sure that all of these parts are included in the package before proceeding. Part Name Power cord Wall-mounting...

  • Page 86: Assembly

    ■ If you are using a stand, refer to page 92. ■ If you are using a wall-mounting kit, refer to page 96. Remove the electronic board from the shipping box. Remove the joints, then remove the electronic board from the shipping box. Electronic board Joints Caution •...
  • Page 87 Install the electronic board. Install the electronic board using the stand (option) or wall-mounting kit (option). ■ Using the stand (option) 1) Hang the electronic board on the optional stand. • The electronic board can be mounted 200 mm (7 ”) higher than hang position A...
  • Page 88 Doing so may cause discoloration. • Do not wipe the screen film surface with a dry cloth. Doing so may create static electricity. Check operations. Refer to “Electronic Board Operations Check” on page 89.

  • Page 89: Electronic Board Operations Check

    Electronic Board Operations Check After assembling the electronic board, perform the procedures presented in the following table to make sure it functions properly. Step Turn on the power switch. Open the printer door and attach the accessory thermal transfer film, then close the printer door.

  • Page 90: Interactive Operations Check

    Electronic Board Operations Check Step Press Contact the store or dealer from which the unit was purchased. ■ Interactive Operations Check Install the software on the computer and connect the supplied USB cable according to “Installing Drivers / Interactive Panaboard Software” on page 28.

  • Page 91: Repacking

    Repacking Perform Assembly Steps 2 through 4 on pages 86 - 88 in reverse to repack the electronic board and accessories. Use the joints to fasten the shipping box. Electronic board Joints Caution • Do not touch the screen film surface, as this may damage it.

  • Page 92: Assembling The Optional Stand (Kx-Bp065)

    Assembling the Optional Stand (KX-BP065) ■ Accessories The package box for the optional stand includes the parts noted below; please confirm that all parts are present before beginning installation Part name Stand base Pipe Cover Side bar (A) Side bar (B) Screw M8 x 45 mm (1 Fixture...

  • Page 93: Assembly

    ■ Assembly Assembling the stand ■ Assembling the fall-prevention extension legs The fall-prevention extension legs increase the safety of the electronic board. Fall-prevention extension legs Caution • Install and always set the fall-prevention legs when using the stand. • When tightening the screw Note •...
  • Page 94 Assembling the Optional Stand (KX-BP065) ■ Assembling the stand Note Do not tighten the screw Assemble with the holes toward the front. Pull the fall-prevention extension legs Locking down (fall-prevention extension legs casters side will be fixed by the lock pin.) (rear) Locking casters side (rear)
  • Page 95 Attach the fixtures Assemble and install the electronic board. Refer to step 3 on page 87. Assembling the Optional Stand (KX-BP065) with the four wing-bolts.

  • Page 96: Optional Wall-Mounting Kit (Kx-B063)

    UB-8325 is 103 kgf (227 lbs.). 2. The position of the intended installation is of adequate size for the selected Panaboard. UB-8325 is 1,516 mm (H) × 1,550 mm (W) [5' (H) × 5' 2" (W)]. 3. An outlet is within 3 m (9' 10 ■...

  • Page 97: Wall-Mounting Procedure

    ■ Wall-mounting procedure Confirm that the wall is strong enough to support the weight of the electronic board. Caution The wall must be capable of supporting at least 1,005 N [103 kgf (227 lbs.)] for UB-8325. Tape the Wall-mounting template on the wall.

  • Page 98: Attaching The Wall-Mounting Fixtures

    Optional Wall-mounting Kit (KX-B063) ■ Attaching the wall-mounting fixtures The electronic board must be mounted with the method most suited to the material of the wall. Three methods are presented here. (Other options may be available in your area.) Attaching to metal or concrete walls ●...
  • Page 99 Attaching to plasterboard walls ● Split-wing toggles (sold in stores) are needed. Split-wing toggle Plasterboard Arms Arms Attaching to wooden walls ● Use wood screws (sold in stores). Wooden wall Optional Wall-mounting Kit (KX-B063) Insert each bolt through a hole Wall-mounting in the wall-mounting fixture and fixture...
  • Page 100 A Division of Panasonic U.K. Ltd. Willoughby Road, Bracknell, Berkshire, RG12 8FP Panasonic Marketing Europe GmbH Hagenauer Strasse 43 65203 Wiesbaden, Germany Matsushita Electric Industrial Co., Ltd. http://www.panasonic.co.jp/global/ © 2005 Panasonic Communications Co., Ltd. All Rights Reserved. Printed in Malaysia PJQXC0073ZA-F F1205B0...

This manual is also suitable for:

Ub-8325ewUb-8325
