Page 1: Operating Instructions

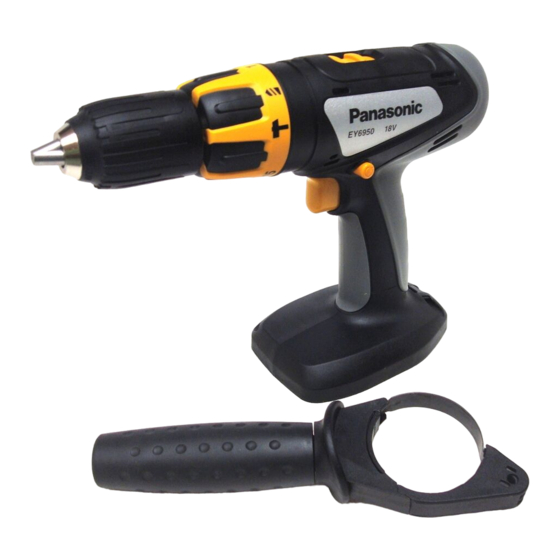

Cordless Hammer Drill Driver Operating Instructions Model No: EY6950 IMPORTANT This manual contains safety information. Read manual completely before first using this product and save this manual for future use. -
Page 2: Work Area
1) Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. 2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liq- uids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. -
Page 3: Specific Safety Rules
14) Do not use tool if switch does not turn it on or off. A tool that cannot be controlled with the switch is dangerous and must be repaired. 15) Disconnect battery pack from tool or place the switch in the locked or off position before making any adjust- ments, changing accessories, or stor- ing the tool. -
Page 4: Battery Charger
8) During charging, the charger may become slightly warm. This is nor- mal. Do not charge the battery for a long period. Symbol meaning Volts Direct Current no load speed revolutions or …/min reciprocation per minutes Forward Rotation Reverse Rotation Rotation with Hammering Rotation only WARNING;... - Page 5 RECOMMENDED MINIMUM AWG SIZE OF EXTENSION CORDS FOR BATTERY CHARGERS AC Input Rating. Amperes AWG Size of Cord Length of Cord, Feet Equal to or But less greater than than 25 50 100 150 18 18 18 16 8) Do not operate charger with damaged cord or plug replace them immedi- ately.
-
Page 6: Functional Description
.FUNCTIONAL DESCRIPTION Clutch handle Keyless drill chuck Variable speed control trigger 18V Battery pack (EY9251) Battery charger (EY0110) . ASSEMBLY Attaching or removing bit Note: When attaching or removing a bit, disconnect battery pack from tool or place the switch in the center position (switch lock). -
Page 7: Attaching Or Removing Battery Pack
Attaching or removing battery pack 1. To connect the battery pack: Insert the battery pack. It snaps into place to indicate proper connection. 2. To remove the battery pack: Press the two buttons on the sides of the battery pack. Slide the battery pack out of the tool body. -
Page 8: Speed Selection
Bit-locking function 1. With the trigger switch not engaged and a screwdriver bit locked in place, the tool can be used as a manual screwdriver (up to 22.6 Nm, 230 k f-cm, 199 in-lbs). There will be a little play in the chuck, but this is not a malfunction. - Page 9 extremely short after recharging, replace the battery pack with a new one. Note: Use under extremely hot or cold conditions will reduce operating capacity per charge. Charging Note: When you charge the battery pack for the first time, or after prolonged storage, charge it for about 24 hours to bring the batteries up to full capacity.
-
Page 10: Lamp Indications
. LAMP INDICATIONS Red Flashing Red Lit Flashing quickly Orange Lit Orange Flashing . MAINTENANCE Use only a dry, soft cloth for wiping the unit. Do not use a damp cloth, thinner, ben- zine, or other volatile solvents for cleaning. BATTERY RECYCLING ATTENTION: A nickel metal hydride battery that is recyclable powers the product you have pur-... -
Page 11: Specifications
. SPECIFICATIONS MAIN UNIT Model Machine screw Screw Wood screw driving Masonry screw Capability Mortar/Brick Wood Drilling Metal Metal hole saw Motor No load speed HIGH Blows rate per minute HIGH Chuck capacity Stage1-15 Cluch stage Blow strength Overall length Weight (with battery pack) BATTERY PACK Model... - Page 12 30-DAY QUALITY SATISFACTION GUARANTEE: If you are dissatisfied with any Panasonic Cordless Power Tool for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 201-392-6655.
