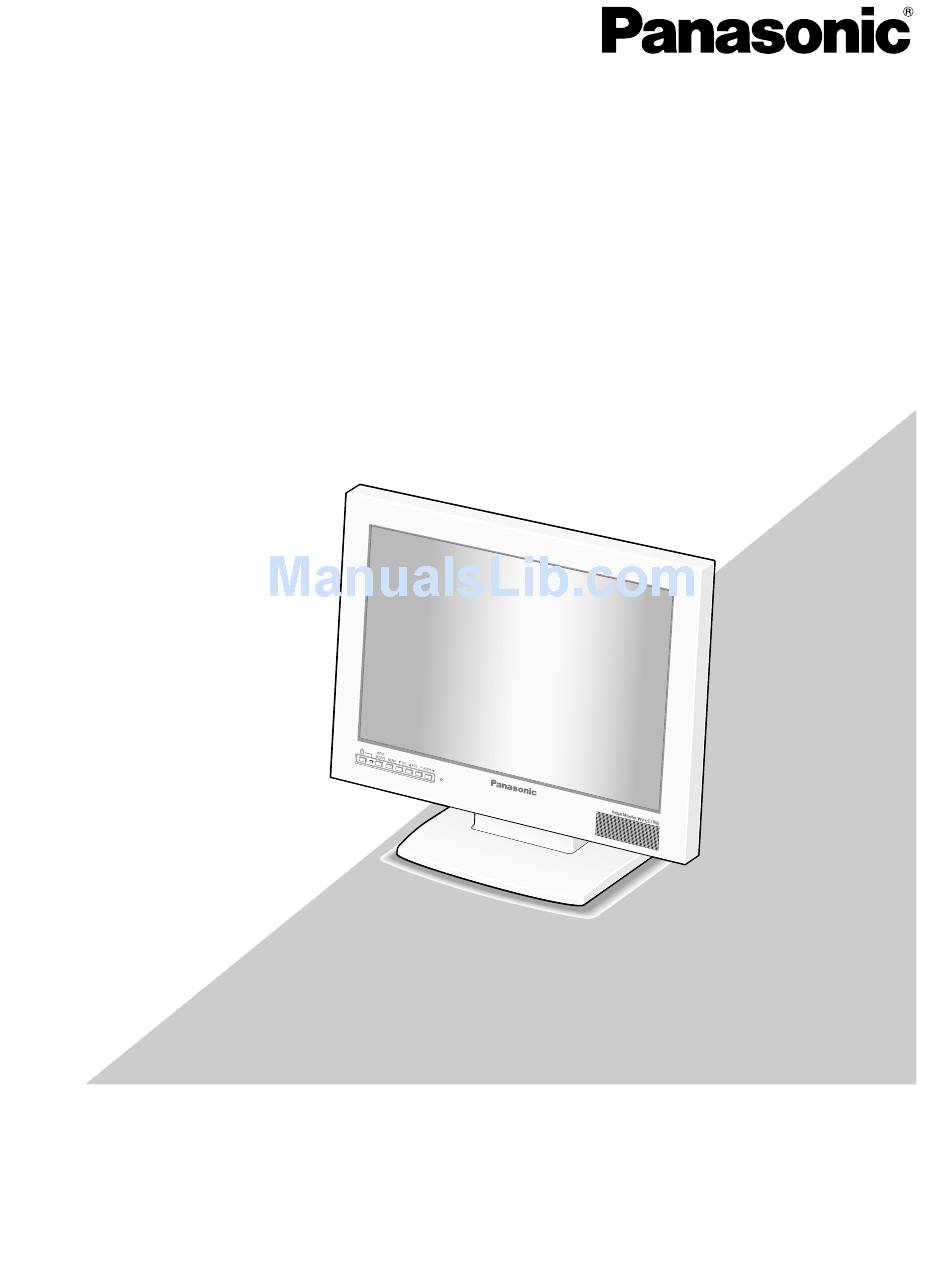

Video Monitor Operating Instructions WV-LC1700 Model Nos. WV-LC1900 This illustration represents WV-LC1900. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Page 2
ENGLISH VERSION This product has a fluorescent lamp that contains mercury. Dispose may be regulated in your com- munity due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org WARNING: •...
Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Limitation of Liability THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WAR- RANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WAR- RANTIES OF MERCHANTABILITY, FITNESS FOR ANY PAR- TICULAR PURPOSE, OR NON-INFRINGEMENT OF THE THIRD PARTY'S RIGHT.
Major Operating Instructions and Their Functions ... 8 I Front View ... 8 I Rear View ... 8 Installations ... 10 I Installation this monitor in a rack ... 10 Connections ... 12 I Connection Example ... 12 I Camera Connection ... 13 I Connection with Two or More Video Monitors ...
Preface This is a video monitor provided with a 17"-type (V) (WV- LC1700) or a 19"-type (V) (WV-LC1900) LCD panel. It uses a motion follow-up type I-P converter circuit and a 3D Y/C separation circuit for the high quality and high definition of picture display.
Page 7
It can cause scratches and damages on the LCD screen. • The LCD panel is made from a very precise technol- ogy. Some bright and dark spots may exist on the monitor screen. It is operating normally if there are 99.99 % active pix- els.
OFF. w Power indicator This indicator lights green while power is supplied to the monitor. Even though the monitor power is turned off, it lights in red while the power supply is available. e Input signal selection button (INPUT SELECT) Every pressing this button can change input signals as follows.
Page 9
VIDEO-B IN connector to another external device. !9 Video input A connector (VIDEO-A IN) Accepts a composite video signal from an external device. Timing data chart for PC input This monitor supports the timing data listed as follows. Resolution Vertical frequency (Hz) 640 x 400...
WARNING The installations described in the figures should be made by qualified service personnel or system installers. Caution: Attach this monitor to a flat wall with a locally procured mounting bracket. After the installation, secure the monitor to prevent dropping.
Page 11
• Check how heavy the wall mount bracket and this unit are. • Examine the strength of the area on the wall where the monitor is to be mounted, and the pull-out strength should be more than 5 times the total weight of the wall mount bracket and this unit.
Connections I Connection Example Monitor output (VGA) * Be sure to secure the power cord with a power cord clamp. Power cord (supplied) Audio output Digital disk recorder Other video monitors Video input S-video Video output output Audio input...
Notes: • Up to 10 monitors can be connected to this monitor. If 11 or more monitors are connected, picture quality may be degraded. • Total length of each cable should not exceed 150 m {492 ft.}.
Composite video A Composite video B S-video PC (Analog RGB) • When no input signal is supplied to the monitor, "NO SIGNAL" will be displayed on the screen. "NO SIGNAL" will continue to be displayed until an input signal is supplied.
AUDIO Video Adjustment and Setup I Video Adjustment (Video Input, S-Video Input) Setup of this monitor will be performed in the VIDEO ADJUST menu. Notes: • The menu title display differs depending on the select- ed input signal. Before adjustment, press the INPUT SELECT button surely to select the input signal.
Page 16
6. After returning to the top menu, move the cursor to EXIT by pressing the C or D button. Then, press the MENU button. The monitor display return to the default status. Note: If no operation has been performed for 10 seconds or more, the monitor display returns to the default status. Effect +: Brightness level goes up.
5. Select EXIT, and press the MENU button. The top menu will be displayed. 6. Select EXIT on the top menu, and press the MENU button. The monitor display return to the default status. Note: If no operation has been performed for 10 seconds or more, the monitor display returns to the default status.
PHASE 5. Select EXIT, and press the MENU button. The top menu will be displayed. 6. Select EXIT on the top menu, and press the MENU button. The monitor display return to the default status. Notes: • If no operation has been performed for 10 seconds or more, the monitor display returns to the default status.
5. Select EXIT on the top menu, and press the MENU but- ton. The monitor display return to the default status. Note: If no operation has been performed for 10 seconds or more, the monitor display returns to the default sta- tus.
Check if the cable connection is corresponding with the selected input signal. When the PC input signal does not meet the standards of this monitor, no picture is displayed. → Check the specifications of connected PC. Perform auto adjustment on the PC menu. If the picture display position is not properly adjusted, perform manual adjustment.
41 W (WV-LC1700), 43 W (WV-LC1900) 17" (WV-LC1700), 19" (WV-LC1900) TFT LCD, built-in dual CCFT's 337 mm (H) x 270 mm (V) {13-1/4" (H) 10-5/8" (V)} (WV-LC1700) 376 mm (H) x 301 mm (V) {14-13/16" (H) 11-7/8" (V)} (WV-LC1900) 1 280 x 1 024 (SXGA)
