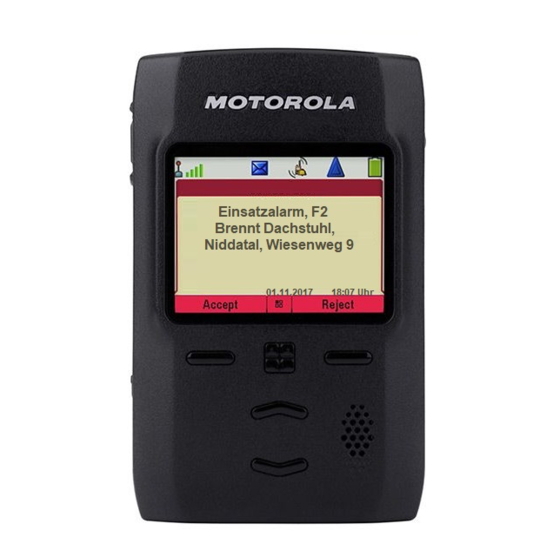

Advisor™ TPG2200
QUICK START GUIDE
LED Message and Status Indicators
Indication
Landyard Holes
1
2 Lock Key
2
3 Battery Cover
1
3
4 LED Message Indicator
5 Power/Sleep/Wake Button
6 Soft Keys
4 9
7 Mute/Shortcut Button
Solid orange
Speaker
8
5
9 LED Status Indicator
10
10 Display
11
6
Menu Key
11
6
No indication
7
12 Up Navigation Key
12
8
Down Navigation Key
13 Battery Capacity Information
13
14 USB-C Connector
15
15 Home Station Connector
14
* The LED indication and flashing pattern can be configured in the Customer
Programming Software (CPS).
All manuals and user guides at all-guides.com
Charging
Message LED Status LED
Status
Solid green Not applicable In use Fully Charged
Blinking
Not applicable In service 90% Charged
green
Out of service*
Solid red Not applicable Rapid Charge
Blinking Connecting to a network Faulty or Invalid
Not applicable
red Entering DMO Battery
Transmit Inhibit in service
Not applicable Not applicable
Channel busy in DMO
Blinking Battery waiting
Not applicable Not applicable
to charge
orange
Blinking Message/Call Out
Not applicable Not applicable
blue received or missing*
Not applicable
Pager powered off Not applicable
Information Description
Full (80% – 100% capacity)
Middle (60% – 80% capacity)
Low (25% – 60% capacity)
Very low (5% – 25% capacity)
Less than 5% capacity
Removing the Battery Cover Installing the Battery
2
1
2
1. Slide the Lock key to the left to unlock the battery cover.
1. Insert the bottom part of the battery into the compatment.
2. Lift up the battery cover. 2. Press down the top part of the battery into the compartment until it clicks.
Attaching the Battery Cover Looking After the Pager
1
Never leave the pager or battery in extreme temperatures (over +85 °C), for
example, behind a windscreen in direct sunlight.
The pager is not submersible (compliant with the IP54 standard, only when the
3
battery cover is attached).
2
To clean the pager, use a moistened or antistatic cloth.
2
1. Insert the bottom part of the battery cover into the slot.
2. Press down the top part of the battery cover.
3. Slide the Lock key to the right to lock the battery cover.
2
1
