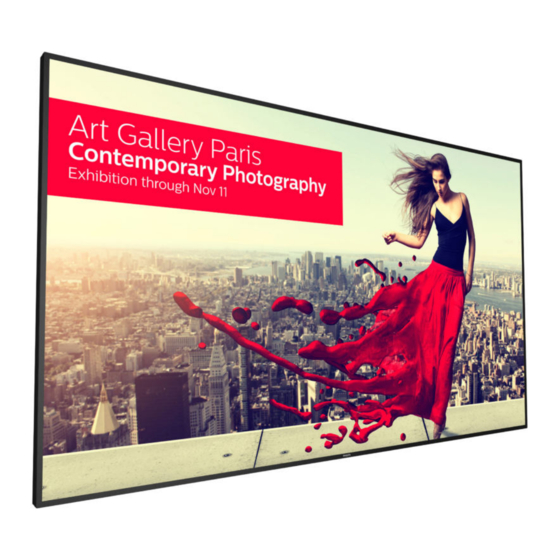

- Page 1 75BDL3000U V2.00 www.philips.com/welcome User Manual (English)
- Page 2 Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour. Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
- Page 3 75BDL3000U Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
- Page 4 75BDL3000U Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/ E-06251. Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.
- Page 5 75BDL3000U Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type. 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.
- Page 6 75BDL3000U China RoHS 根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害物 质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏/灯管 ○ ○ ○ ○ × × 电路板组件* ○ ○ ○ ○ ○...
- Page 7 75BDL3000U 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○ ○ ○...
- Page 8 75BDL3000U End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
- Page 9 75BDL3000U Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes. For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery. According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao...
-
Page 10: Table Of Contents
75BDL3000U 4.4. How to use Opera browser (HTML5) ....... 16 Table Of Contents OSD Menu ................17 Unpacking and Installation ............1 5.1. Navigating the OSD Menu ..........17 5.1.1. Navigating the OSD menu using the 1.1. Unpacking ..................1 remote control............17 1.2. Package Contents ................1 5.1.2. Navigating the OSD menu using the 1.3. Installation Notes .................1 display’s control buttons ........17 1.4. Mounting on a Wall ..............2 5.2. -
Page 11: Unpacking And Installation
75BDL3000U Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • Quick start guide • Remote control with AAA batteries • Power cord • HDMI cable • RS232 cable Quick start guide • RS232 daisy chain cable • IR sensor cable NORMAL • Logo... -
Page 12: Mounting On A Wall
75BDL3000U 1.4. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard. Eye bolt Protective Sheet VESA Grid Table Carrying handle 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. -
Page 13: Using Of Remote Sensor And Power Indicator
75BDL3000U 1.5. Using of Remote sensor and power indicator 1. Pull down the lens to have better remote control performance and easy to observe the light information of power status. 2. Push up the lens before mounting the display for video wall application. -
Page 14: Parts And Functions
75BDL3000U Parts and Functions 2.1. Control Panel MUTE INPUT MENU [ ] button Use this button to turn the display on or put the display to standby. [MUTE] button Switch the audio mute ON/OFF. [INPUT] button Use this button to select the input source. [ ] button Increase the adjustment while OSD menu is on, or increase the audio output level while OSD menu is off. • Used as [ ] button in the On-Screen-Display menu. [ ] button Decrease the adjustment while OSD menu is on, or decrease the audio output level while OSD menu is off. [ ] button Move the highlight bar up to adjust the selected item while OSD menu is on. -
Page 15: Input/Output Terminals
75BDL3000U 2.2. Input/Output Terminals 19 21 AC IN SPDIF OUT AC power input from the wall outlet. Digital audio output MAIN POWER SWITCH AUDIO IN Switch the main power on/off. Audio input for VGA source (3.5mm stereo phone). AC OUT AUDIO OUT AC power supply to the AC IN jack of a media player. Audio output to external AV device. HDMI1 IN / HDMI2 IN / HDMI3 IN SPEAKER SWITCH HDMI video/audio input. Internal speaker on/off switch. RS232C IN /... -
Page 16: Remote Control
75BDL3000U AUDIO IN [ ] POWER button Audio input from external AV device (RCA). Turn the display on or put the display to standby. USB PORT [PLAY] buttons Connect your USB storage device. Control playback of media files. ] SOURCE button 2.3. Remote Control Choose input source. Press [ ] or [ ] button to choose from DisplayPort DVI-D HDMI 1 HDMI 2 HDMI 3 2.3.1. General functions , or... -
Page 17: Id Remote Control
75BDL3000U Press [ID] button. The red LED blinks twice. 2.3.2. ID Remote Control 1. Press [ID SET] button for more than 1 second to enter the ID You can set the remote control ID when you want to use this remote Mode. The red LED lights up. control on one of several different displays. Press the [ID SET] button again will exit the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255]. 2. Not pressing any button within 10 seconds will exit the ID Mode. 3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again. -
Page 18: Inserting The Batteries In The Remote Control
75BDL3000U 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin. -
Page 19: Connecting External Equipment
75BDL3000U Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using COMPONENT video input [COMPONENT IN] (YPbPr) [AUDIO IN] COMPONENT Out Audio Out (YPbPr) DVD / VCR / VCD 3.1.2. Using Video Source input [Y/CVBS IN] [AUDIO IN] Y/CVBS Out... -
Page 20: Using Hdmi Video Input
75BDL3000U 3.1.3. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] 3.2. Connecting a PC 3.2.1. Using VGA input Audio Out [VGA AUDIO IN] VGA Out D-Sub 15 pin [VGA IN]... -
Page 21: Using Dvi Input
75BDL3000U 3.2.2. Using DVI input [VGA AUDIO IN] Audio Out DVI Out [DVI IN] 3.2.3. Using HDMI input HDMI Out [HDMI IN] 3.2.4. Using DisplayPort input DisplayPort Out [DisplayPort IN]... -
Page 22: Connecting Audio Equipment
75BDL3000U 3.3. Connecting Audio Equipment 3.3.1. Connecting external speakers External speakers 3.3.2. Connecting an external audio device Audio In [AUDIO OUT] Stereo Amplifier [SPDIF OUT] 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: M aximum 25 displays (5x5) can be used in a daisy-chain configuration. 3.4.1. Display control connection... -
Page 23: Digital Video Connection
75BDL3000U DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN] 3.4.2. Digital video connection Connect the [DP OUT] connector of DISPLAY 1 to the [DP IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [DP] [DP IN] [DP OUT] [DP IN] 3.5. IR connection External IR Receiver [IR OUT] DISPLAY 1 DISPLAY 2... -
Page 24: Ir Pass-Through Connection
75BDL3000U 3.6. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] NORMAL SOURCE FORMAT (DVD / VCR / VCD) LIST INFO ADJUST OPTIONS ID SET ENTER 3.7. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45]... -
Page 25: Operation
75BDL3000U 7. Press [PLAY] buttons ( H F G I J ) to control playing. Operation NOTE: T he control button described in this section is mainly on the 4.3. Play options remote control unless specified otherwise. 4.3.1. Playing music files 4.1. Watch the Connected Video Source 1. Choose in the top bar. Music See page 13 for external equipments connection. 1. Press [ ] SOURCE button. -
Page 26: How To Use Opera Browser (Html5)
75BDL3000U 4.4. How to use Opera browser (HTML5) ] SOURCE button, choose 1. Press [ , and press BROWSER ] button. 2. Move the cursor to URL address bar. Press [ ] button and it will pop out the on-screen keyboard. You can move the cursor to enter the URL address. After finishing the URL address, choose Done Internet Web Address： http:// History www.google.com... -
Page 27: Osd Menu
75BDL3000U 5.2. OSD Menu Overview OSD Menu An overall view of the On-Screen Display (OSD) structure is shown below. You can use it as a reference for further adjusting your display. 5.2.1. Picture menu Brightness 5.1. Navigating the OSD Menu Picture Contrast Sharpness 5.1.1. Navigating the OSD menu using the Screen Black level remote control Tint Audio FORMAT Color SOURCE... -
Page 28: Screen Menu
75BDL3000U NOTES: Color control You can adjust the color tones of the image precisely by changing the • V position adjustment is functional for VGA input only. User-R (Red), User-G (Green) and User-B (Blue) settings independently • V position cannot be adjusted when {Pixel Shift} is activated. when the following condition: Clock {Picture} - {Color temperature} - {User} setting to [User 1] Adjust the width of the image. Or, you can adjust the color tones per 100K in the range of 2000K to NOTE: T his item is functional for VGA input only. 10000K when the following condition: {Picture} - {Color temperature} - {User} setting to [User 2] Clock phase Adjust to improve the focus, clarity and stability of the image. Smart picture NOTE: T his item is functional for VGA input only. -
Page 29: Audio Menu
75BDL3000U 5.2.4. PIP menu H position Moves the horizontal position of the image left or right. Sub mode Picture PIP size Small V position PIP position Bottom-Left Screen Moves the vertical position of the image up or PIP change Cancel down. PIP reset Cancel Audio Screen reset Reset all settings in the Screen menu to factory preset values. Configuration 1 5.2.3. Audio menu Balance Picture Sub mode Treble Select the PIP (Picture-in-Picture) mode. -
Page 30: Configuration1 Menu
75BDL3000U • The PIP function is available only for certain signal source Panel saving combinations as shown in the table below. Choose to enable the panel saving functions and thus reduce the risk of “image persistence” or “ghost-imaging”. Main • {Cooling Fan} - Choose to adjust the cooling fan’s speed of Sub rotation. Select {Auto} to turn on/off the cooling fan according to the display’s temperature. Choose from: {Auto} / {Off} / {Low} / {Medium} / {High}. HDMI1 NOTES: • The default {Auto} option will start running the cooling fan if HDMI2 the temperature of 55°C (130°F) is reached, and stop running HDMI3 the cooling fan if the temperature of 53°C (127°F). COMP VIDEO • A temperature-warning message will be shown on the screen if the temperature reaches 68°C (154°F). All key functions except BROWSER [ ] key will then be disabled. -
Page 31: Configuration2 Menu
75BDL3000U OSD rotation Receive multimedia files from the connected device by your network. Rotate the OSD Menu. The options are: Clear internet memory • {Landscape} (Default) Clear all the cookies, bookmarks, history list and text used for filling automatically. • {Portrait} Configuration1 reset Monitor ID Reset all settings in Configuration1 menu to the factory preset values. Set the ID number for controlling the display via the RS232C connection. Each display must have a unique ID number when multiple Factory reset sets of this display are connected. Monitor ID number range is between Reset all settings in the OSD menus of {Picture}, {Screen}, {Audio}, {PIP}, 1 to 255. -
Page 32: Advanced Option Menu
75BDL3000U IR control Monitor information Select the operation mode of the remote control when multiple displays are connected via an RS232C connection. • {Normal} - All displays can be operated normally by the remote Model name 75BDL3000U Serial no CNCA123456789 control unit. Operation hours 46H45M • {Primary} - Designate this display as the primary display for remote SW Version V0.300 control operation. Only this display can be operated by the remote control. DP Version • {Secondary} - Designate this display as the secondary display. This The option are: {DP 1.1} / {DP 1.2} / {DP 1.2 multi}. The default is {DP display can not be operated by the remote control, and will only 1.1}. - Page 33 75BDL3000U Example: 2 x 2 screen matrix (4 displays) Frame comp. - No H monitors = 2 displays V monitors = 2 displays H monitors Position Example: 5 x 5 screen matrix (25 displays) • {Enable} - Choose to enable or disable the Tiling function. If enabled, H monitors = 5 displays the display will apply the settings in {H monitors}, {V monitors}, V monitors = 5 displays {Position}, and {Frame comp.}.
- Page 34 75BDL3000U • {Daylight saving stop date} - Select {1st / 2nd / 3rd / 4th / last} Date schedule: Press [ ] button to select which day in a Sunday of the month {Jan ~ Dec}. week this schedule item will be take effect, and then press the [OK] button. • {Correction time} - The options are: {0.5 / 1.0 / 1.5 / 2.0} • {Daylight saving correction} Select {On} to enable this function. When Input-source select to USB, enable to access USB play list setting: Off Timer Set the display to turn itself off to standby mode within an amount of 0001/0002 Photo time specified. The options are: {Off, 1 ~ 24} hours from current time.
-
Page 35: Input Menu
75BDL3000U Specific commands to control monitors are defined in a separate Monitor Control Command Set (MCCS) standard. Power save setting. DDC/CI monitors are sometimes supplied with an external color sensor • Off (TCP off/WOL off) - not support WOL / not support wake up to allow automatic calibration of the monitor’s color balance. Some tilting on TCP socket / not support wake up on web page. DDC/CI monitors support an auto pivot function, where a rotation • Mode 1 (TCP off/WOL on) - support WOL / not support wake up sensor in the monitor enables the operating system to keep the display on TCP socket / not support wake up on web page. upright as the monitor is moved between its portrait and landscape • positions. Mode 2 (TCP on/WOL off) - not support WOL / support wake up on TCP socket / support wake up on web page. The following DDC/CI commands should be supported via command line: 5.2.8. Input menu Commands Commands Set Brightness... -
Page 36: Usb Device Compatibility
75BDL3000U Card OPS audio Select the analog or digital audio mode for card OPS. Input reset Reset all settings in the Input menu to factory preset values. USB device compatibility USB Video Subtitle Formats (for language subtitles, etc.) File Max. Bit Rate Container Video codec Maximum resolution Max. Frame Rate (fps) Audio codec Extensions (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG-1(L1&L2), .mpg MPEG-2 1920x1080 25p,30p,50i,60i MPEG-1,2,2.5 L3,... - Page 37 75BDL3000U USB Multimedia Formats Frequency Max.Bit Rate File Extensions Container Video codec Maximum resolution Audio codec (kHz) (Mbps) .mp3 MPEG-1,2,2.5 L3 .wma .asf (V2 up to V9.2) .wma WMA Pro WMA,WMA Pro .wav(PC) LPCM LPCM .aif(mac) LPCM LPCM .aiff(mac) .aac .mp4 1024 AAC,HE-AAC(v1&v2) .m4a .pls Playlists .m3u .m4a 1024 AAC,HE-AAC(v1&v2) USB Photo file format type: JPEG, BMP, PNG, GIF NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.
-
Page 38: Input Mode
75BDL3000U Item Resolution H.Freq. (KHz) V.Freq. (Hz) BW(MHz) Input Mode 3840x2160 56.25 25.000 297.000 FHD Preset Mode (VGA/DVI timing support): 3840x2160 67.432 29.900 296.703 Item Resolution H.Freq. (KHz) V.Freq. (Hz) BW(MHz) 3840x2160 67.5 30.000 297.000 640x350 31.469... -
Page 39: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 8.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub-pixels of a pixel are lit, the three colored subpixel sub-pixels together appear as a single white pixel. -
Page 40: Dark Dot Defects
Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 8.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 8.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table. -
Page 41: Cleaning And Troubleshooting
75BDL3000U Cleaning and Troubleshooting 9.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. -
Page 42: Troubleshooting
75BDL3000U 9.2. Troubleshooting Symptom Remedy Possible Cause No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible... -
Page 43: Technical Specifications
75BDL3000U Technical Specifications Display: Specifications Item Screen Size (Active Area) 74.52 inches (1892.73 mm) Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.429 x 0.429 mm Color depth 1073.7M colors Brightness 410cd/m Contrast ratio 1200:1 Viewing angle 89 degrees In/Out Terminals: Specifications Item Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω External Speakers 1 Way 1 Speaker System 82 dB/W/M/160 Hz ~ 13 KHz SPDIF Output SPDIF Port Serial digital audio output when input is HDMI Audio Output 3.5 mm Stereo x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input RCA Jack x 2 0.5V [rms] (Normal) / 2 Channel (L+R) - Page 44 75BDL3000U Gross Weight (Without Stand) 65.5 Kg Product Fiche : Specifications Item Energy Efficiency Class Visible Screen Size 189.3 cm / 75 inch On Mode Power Consumption (W) 197 W Annual Energy Consumption (kWh) 288 kWh Standby Power Consumption (W) 0.50 W Off Mode Power Consumption (W) 0.50 W Display Resolution (Pixels) 3840*2160 Network Standby (W) 4.05w Environmental Condition: Specifications Item Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% (without condensation) Storage 5 ~ 95% (without condensation) Altitude Operational 0 ~ 3,000 m...
- Page 45 2016 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
