Sony Digital Wireless Generation 3 Manual

By karno
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

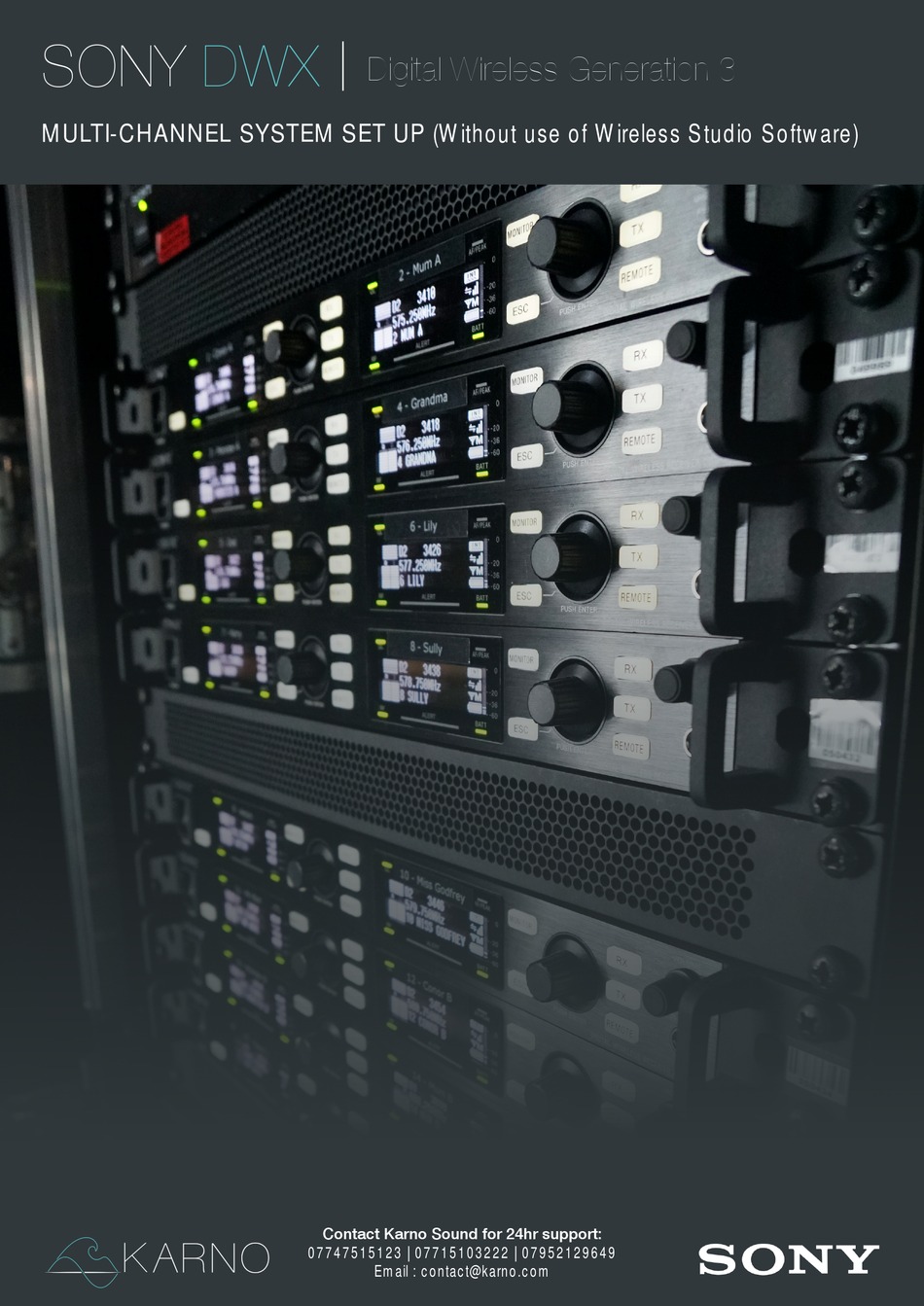

SONY
SONY
DWX
MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software)
ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM
K
K
DWX
Digital Wireless Generation 3
Contact Karno Sound for 24hr support:
Contact Karno Sound for 24hr support:
07747515123 | 07715103222 | 07952129649
07747515123 | 07715103222 | 07732398619
Email : contact@karno.com
Email : contact@karno.com

Advertisement

Table of Contents
loading

Related Manuals for Sony Digital Wireless Generation 3

Summary of Contents for Sony Digital Wireless Generation 3

  • Page 1 SONY SONY Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Contact Karno Sound for 24hr support: Contact Karno Sound for 24hr support: 07747515123 | 07715103222 | 07952129649 07747515123 | 07715103222 | 07732398619 Email : contact@karno.com...

  • Page 2: Table Of Contents

    SONY SONY Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Contents About the Sony DWX Digital Wireless System Sony CrossRemote™ ............3 Antennas ...............4 Battery Charges ...............4 Sony DWR-R03D Front & Rear Panels Sony DWR-R03D Front &...

  • Page 3: About The Sony Dwx Digital Wireless System

    Sony CrossRemote™ The Sony DWX Digital Wireless system is an innovative, fully digital wireless system, and still uses the fundamental of all wireless systems in that if a Receiver (Rx) and Transmitter (Tx) are set on the same frequency, they will pass audio.

  • Page 4: Antennas

    Antennas Sony AN-01 Antennas have an Active Booster on board and can be provided with up to 12V phantom power (9 or 12V if used in Remote mode). As a starting point, the Booster is set to 0dB gain (Blue LED). If your cable runs are over 20m+ the gain can be increased to 10dB (Green LED).

  • Page 5: Pre Set Up

    Pre Set Up This guide works best from factory settings and is for use with the DWR-R03D Sony DWX Generation 3 receiver. To start, all receiver (Rx) units should be wired within a network via a switch or daisy-chain using the primary and/ or secondary LAN slots on the back of the receivers.

  • Page 6: Preparing Receivers For Frequency Allocation

    Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Preparing Receivers for Frequency Allocation To avoid any duplicated frequencies or ‘Band Mismatch’ alerts, it is best to allocate frequencies to all receiver channels before pairing the Tx units.

  • Page 7: Assigning Frequencies Wihout Using Channel Coordinate (Different Bands)

    Select Auto assign and select any group (D7 is recommended for allocation) If on site and selecting frequencies for deployment and use Select Auto assign (unless there are specific frequencies you wish to avoid) Select a D group (please see figure 2 for details on Sony groups) AF/PEAK AF/PEAK CH COORDINATE >...

  • Page 8: Pairing The Transmitters

    SONY SONY Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM AF/PEAK GROUP D1 > CHANNEL 2102 470.250MHz 2106 470.750MHz 2110 471.250MHz BATT ALERT REPEAT FOR EACH CHANNEL (Left and right channel of each receiver unit).
  • Page 9 Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Put the Tx into Pairing Mode by holding down the ‘Minus’ button whilst powering on the Tx. If using a DWM-02N Handheld, make sure to assemble the handheld once in scanning mode.

  • Page 10: Setting Receiver & Transmitter Settings

    SONY SONY Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Setting Receiver and Transmitter Settings • RECEIVER (RX) MENU CODEC MODE – Set to Mode 4 for DWT-B03R and DWT-B30 Generation 3 Txs, Mode 2 for DWM-02N Handheld Txs.

  • Page 11: On-Site Frequency Deployment

    Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Redundancy on site If your environment changes onsite (e.g. you move venue/another RF system is bought in) we would recommend using channel coordinate to allocate new frequencies (Step 3).
  • Page 12 SONY SONY Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Clear Channel Scan • RX MENU Clear channel scan • Start scan. Audio is lost whilst performing the scan. A list of clear frequencies is then presented (those with the same level of noise are listed by frequency).
  • Page 13 SONY SONY Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Full Spectrum analyser • RX MENU Spectrum Analyzer • Start scan. Audio is lost whilst performing the scan. Once the scan is complete, you...
  • Page 14 Active channel scan. Start scan. Audio is lost whilst performing the scan. This will pick up Sony active channels, select continue to scan for the next frequency or select the Tx frequency for that receiver channel to adopt. We would recommend re-pairing the transmitter and receiver if using cross-remote when possible.

  • Page 15: Index

    SONY SONY Digital Wireless Generation 3 MULTI-CHANNEL SYSTEM SET UP (Without use of Wireless Studio Software) ABOUT THE SONY DWX DIGITAL WIRELESS SYSTEM Index DWR-R03D TV Channel Band Blocks European models Channel step: 25 kHz Model No. BAND BLOCK Frequency band...
