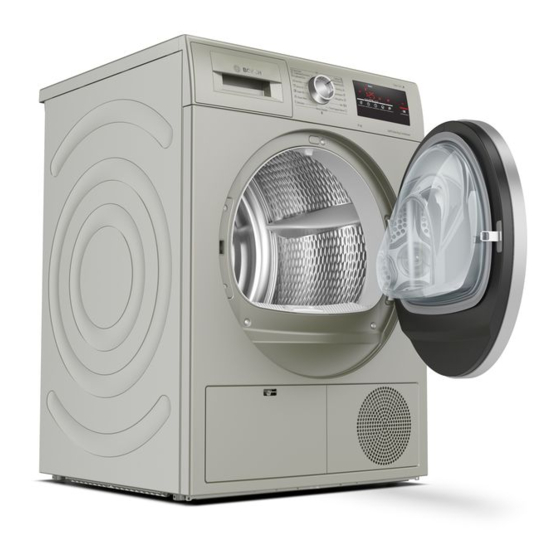

- Page 1 Tumble dryer WTN8543SME [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 9 Programmes ...... 21 1.1 General information.... 4 9.1 Automatic programmes... 21 1.2 Intended use...... 4 9.2 Timed programmes .... 22 1.3 Restriction on user group.. 4 10 Accessories...... 24 1.4 Safe installation ...... - Page 3 15 Basic settings...... 31 15.1 Overview of the basic set- tings........ 31 15.2 Changing the basic set- tings........ 32 16 Cleaning and servicing ... 32 16.1 Tips on cleaning and care .. 32 16.2 Base unit ....... 33 16.3 Moisture sensor..... 35 17 Troubleshooting...... 36 18 Transportation, storage and disposal ........ 39...
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶...
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts. ▶ Do not touch the sharp edges on the appliance. ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. - Page 8 en Safety WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion. ▶ Keep the area around the appliance clean during operation. WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.
-
Page 9: Safe Cleaning And Maintenance
Safety en ▶ If drying is interrupted early, remove the laundry immediately and spread it out. CAUTION ‒ Risk of injury! The covering plate may break if you stand on or climb onto the appliance. ▶ Do not stand on or climb onto the appliance. The appliance may tip over if you sit on or lean against the open door. - Page 10 en Safety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. ▶ Only use the manufacturer's original spare parts and original ac- cessories. WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.
-
Page 11: Preventing Material Damage
Preventing material damage en Clean the appliance with nothing ▶ 2 Preventing material but water and a soft, damp cloth. Remove all detergent residue, damage ▶ spray residue or other residues im- mediately if they come into contact ATTENTION! with the appliance. The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, de-... -
Page 12: Energy Saving Mode
en Installation and connection Open the door. After drying, clean the fluff filter Remove any accessories from the → Page 26. drum. a If the fluff filter is dirty, this reduces Close the door. the air flow in the appliance, ex- tends the programme duration and 4.2 Scope of delivery increases energy consumption. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en 4.3 Requirements for the in- Installation loca- Requirements tion stallation location respond with the ATTENTION! dimensions of If the appliance is tilted at an angle the washing ma- greater than 40°, residual water may chine. leak out of the appliance and cause Do not place the material damage. -
Page 14: Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Ventilation opening Maintenance flap on the base unit → Page 33 Fluff filter → Page 26... -
Page 15: Wool Basket
Familiarising yourself with your appliance en 5.2 Wool basket Securing foot Wool basket Insert Tab for securing in the hook 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 21 Programme selector → Page 24... -
Page 16: Display
en Display 6 Display The display shows the current settings, options or relevant information. Example: Display Display Designation Description 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. 1:25 Timed programme The timed programme is set. → "Timed programmes", Page 22 Programme end → "Buttons", Page 19... -
Page 17: Dryness Level
Display en Display Designation Description Condensation Empty the condensation container container → Page 27. Insert the condensation container → Page 28. Fluff filter Clean the fluff filter. Base unit → "Cleaning the fluff filter", Page 26 Clean the base unit. → "Base unit", Page 33 Drying Programme status Dryness level: Iron Programme status Dryness level: Programme status... - Page 18 en Buttons 7 Buttons Below is an overview of the buttons and their setting options. Button Selection Description ¡ Start Start, cancel or pause the programme. ¡ Cancel ¡ Pause 3 sec. ¡ Activate Activate or deactivate the childproof lock. ¡ Deactivate Disable the control panel to prevent unwanted or accidental operation.
- Page 19 Buttons en Button Selection Description Up to 24 hours Set the programme end time. The programme duration is already included in the set number of hours. Once the programme has started, the pro- gramme duration is dis- played. Multiple selection Set the programme dura- tion for timed pro- grammes.
-
Page 20: Changing The Dryness Level
en Dryness level 8 Dryness level Each automatic programme has a specified dryness level. The dryness level defines how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Cupboard Dry Multi-layered, thick laundry The laundry is dry. Extra that does not dry readily. -
Page 21: Programmes
Programmes en 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors ¡ Select the dryness level according measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 22: Timed Programmes
en Programmes Programme Description Max. load (kg) ¡ If you dry the pillows and the pillows are not completely dry at the end of the programme, dry the pillows with a timed programme. → "Timed programmes", Page 22 AllergyPlus Dry hard-wearing, heat-resistant fabrics made of cotton or linen. - Page 23 Programmes en Programme Description Max. load (kg) Time Program Warm Dry all types of fabric except for wool and silk. Suitable for pre-dried or slightly damp laundry and for drying off multi-layered, thick laundry. Note: This programme is suitable for dry- ing using the wool basket. → "Wool basket", Page 29...
-
Page 24: Accessories
en Accessories 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 40. Order number Connection kit To save space, stack the WTZ2041X appliance on a suitable washing machine of the same width and depth and that is from the... -
Page 25: Setting A Programme
operation en a The display shows the programme 12.2 Setting a programme duration or the programme end time. Turn the programme selector and a After the programme has ended, set the required programme. the display shows: "End". → "Programmes", Page 21 If required, adjust the programme 12.6 Changing the activated settings. -
Page 26: Unloading The Laundry
en operation Remove the fluff filter. 12.9 Unloading the laundry Open the door. Remove the laundry from the drum. 12.10 Switching off the appli- ance Turn the programme selector to ▶ Off. 12.11 Fluff filter Remove the fluff from the recess. During drying, fluff from the laundry is collected in the fluff filter. -
Page 27: Condensation Container
operation en Remove the fluff. Insert the fluff filter. Clean the fluff filter thoroughly un- Close the door. der warm, running water and then dry it off. 12.12 Condensation con- tainer Condensation forms during drying, which your appliance uses for auto- matic cleaning. By default, the con- densation is collected in the appli- ance's condensation container. -
Page 28: Childproof Lock
en Childproof lock Pull out the condensation con- Inserting the condensation tainer, keeping it level. container Push the condensation container ▶ in as far as it will go. Empty the condensation container. 13 Childproof lock Secure your appliance against being operated unintentionally using the controls. -
Page 29: Wool Basket
Wool basket en 14.2 Starting a programme 14 Wool basket with the wool basket Use the wool basket to gently dry ATTENTION! delicate fabrics, soft toys or sports If items of laundry in the wool basket shoes in a stationary position. touch the rotating drum or the ribs of Note: You can order this optional the drum, the laundry may cause ma- → "Accessories", Page 24 from our... -
Page 30: The Wool Basket
en Wool basket Laundry item Programme Example duration in Pullover hours:minutes Thin woollen Approx. 1:20 pullover Thick woollen Approx. 1:30 - pullover 3:00 Skirt Approx. 1:00 - Sports shoes Lift the tongues 1:30 of the shoes. Trousers Approx. 1:00 - Remove the in- 1:30 soles or heel cushions. -
Page 31: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 32: Changing The Basic Set- Tings
en Cleaning and servicing Basic setting Programme Value Description position changed to 10 A, the drying time and energy consumption will be higher. → "Consumption values", Page 41 15.2 Changing the basic set- 16 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. -
Page 33: Base Unit
Cleaning and servicing en Pull out the heat exchanger cover 16.2 Base unit by the handle. The base unit is the accessible area at the bottom of the appliance in which you will find the heat ex- changer. Opening the base unit Requirements ¡... - Page 34 en Cleaning and servicing Pull out the heat exchanger hori- Slide the heat exchanger in hori- zontally. zontally as far as it will go. Ensure that the heat exchanger is Clean the heat exchanger from all inserted with its handle pointing sides under running water and dry downwards.
-
Page 35: Moisture Sensor
Cleaning and servicing en Close the lever for the heat ex- ance changes the duration of the changer. automatic programme depending on the residual moisture in the laundry. Cleaning the moisture sensor Over time, residue from limescale, detergents and care products can build up on the moisture sensor. -
Page 36: Troubleshooting
en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 37 Troubleshooting en Fault Cause and troubleshooting Creasing. → "Changing the dryness level", Page 20. ▶ → "Adjusting the dryness level", Page 20. ▶ Anti-Crease not activated. Activate the Anti-Crease function. ▶ → "Buttons", Page 18 and programme ter- Condensation tank filled. minated. → "Emptying the condensation container", Page 27. → "Inserting the condensation container", Page 28. → "Starting the programme", Page 25.
- Page 38 en Troubleshooting Fault Cause and troubleshooting The drying time is too The appliance's ventilation opening is blocked. long. Ensure that the ventilation opening of the appliance ▶ is kept clear. Heat exchanger is soiled. Opening the base unit. → "Opening the base unit", Page 33. Cleaning the heat exchanger.
-
Page 39: Transportation, Storage And Disposal
Transportation, storage and disposal en 18.2 Disposing of old appli- 18 Transportation, stor- ance age and disposal Valuable raw materials can be re- used by recycling. 18.1 Preparing the appliance for transportation WARNING Risk of harm to health! Tip: The appliance may contain re- Children can lock themselves in the sidual water, which may drip out of it appliance, thereby putting their lives when transported. -
Page 40: Customer Service
en Customer Service 19 Customer Service Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance. -
Page 41: Consumption Values
Consumption values en 20 Consumption values The Cottons Cupboard Dry The actual values may deviate from programme (denoted by the arrow the indicated values depending on symbol) is suitable for drying cotton the type of fabric, composition of laundry with a normal dampness laundry to be dried, residual moisture level, and is the most efficient pro- in the fabric, set degree of dryness,... -
Page 42: Technical Data
en Technical data Programme Final Load Spin Initial Pro- Energy mois- (kg) speed mois- gramm con- ture (rpm) ture e dura- sump- level level tion tion (h:min) (kWh/ cycle) Cottons Iron Dry 12.0 1000 01:18 / 2.08 / 01:02 2.03 Cottons Iron Dry 12.0 02:37 /... - Page 44 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
