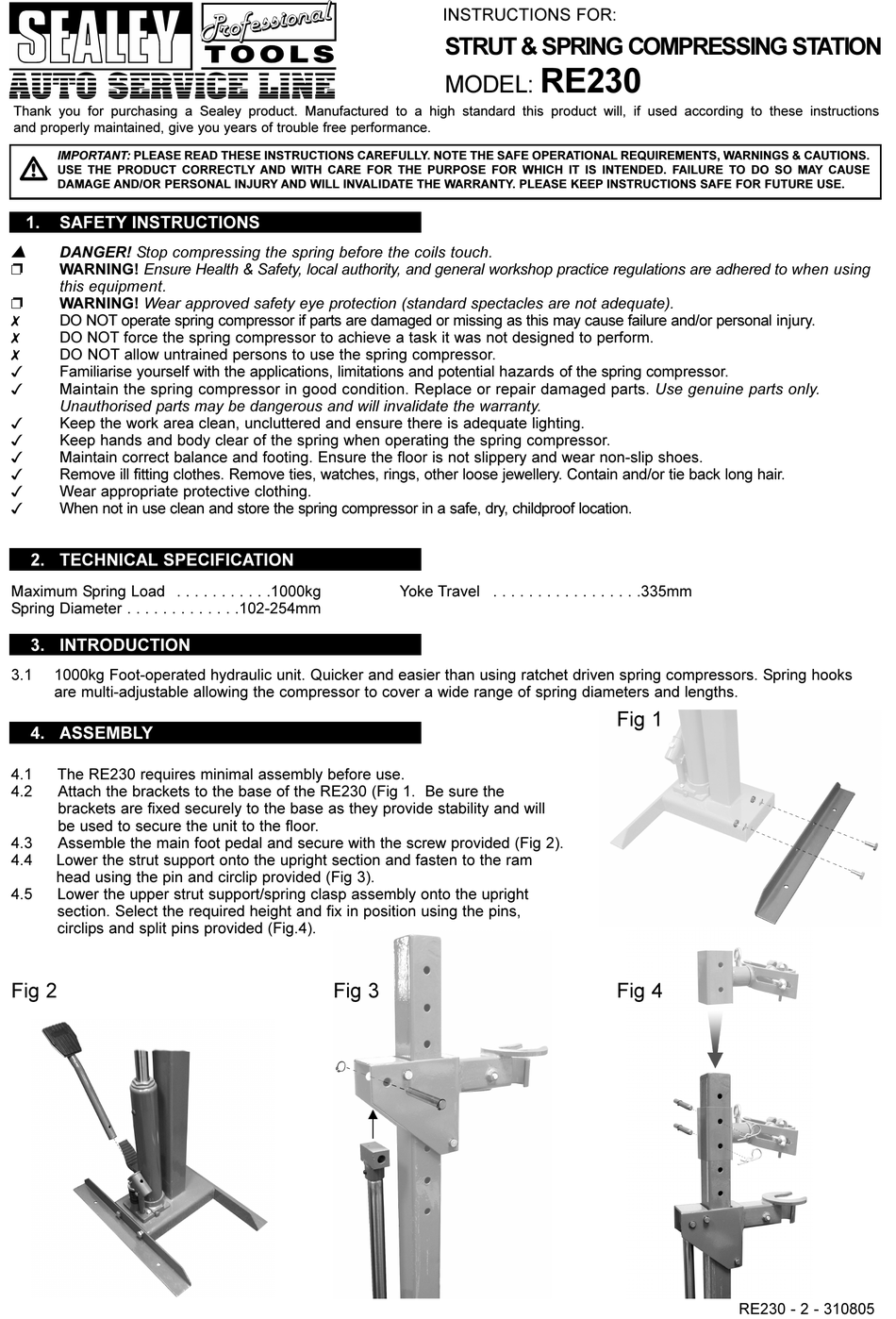

Sealey RE230 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
DANGER! Stop compressing the spring before the coils touch.
s
s
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using
p
this equipment.
WARNING! Wear approved safety eye protection (standard spectacles are not adequate).
p
DO NOT operate spring compressor if parts are damaged or missing as this may cause failure and/or personal injury.
7
DO NOT force the spring compressor to achieve a task it was not designed to perform.
7
DO NOT allow untrained persons to use the spring compressor.
7
Familiarise yourself with the applications, limitations and potential hazards of the spring compressor.
3
Maintain the spring compressor in good condition. Replace or repair damaged parts. Use genuine parts only.
3
Unauthorised parts may be dangerous and will invalidate the warranty.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
3
Keep hands and body clear of the spring when operating the spring compressor.
3
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
3
Remove ill fitting clothes. Remove ties, watches, rings, other loose jewellery. Contain and/or tie back long hair.
3
Wear appropriate protective clothing.
3
When not in use clean and store the spring compressor in a safe, dry, childproof location.
3
2. TECHNICAL SPECIFICATION
Maximum Spring Load . . . . . . . . . . .1000kg
Spring Diameter . . . . . . . . . . . . .102-254mm
3. INTRODUCTION

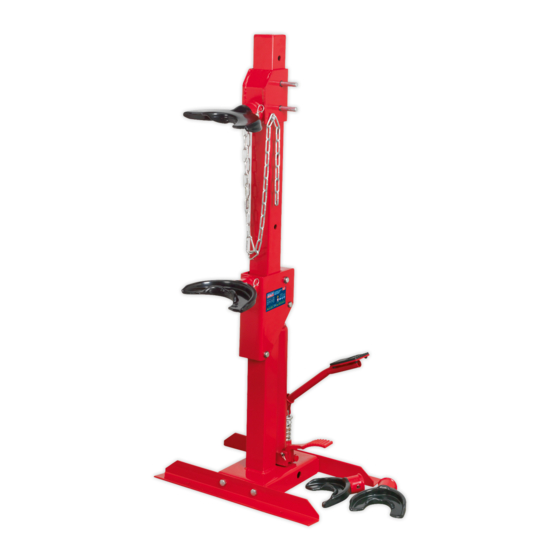

3.1 1000kg Foot-operated hydraulic unit. Quicker and easier than using ratchet driven spring compressors. Spring hooks
are multi-adjustable allowing the compressor to cover a wide range of spring diameters and lengths.
4. ASSEMBLY
4.1 The RE230 requires minimal assembly before use.
4.2 Attach the brackets to the base of the RE230 (Fig 1. Be sure the
brackets are fixed securely to the base as they provide stability and will
be used to secure the unit to the floor.
4.3 Assemble the main foot pedal and secure with the screw provided (Fig 2).
4.4 Lower the strut support onto the upright section and fasten to the ram
head using the pin and circlip provided (Fig 3).
4.5 Lower the upper strut support/spring clasp assembly onto the upright
section. Select the required height and fix in position using the pins,
circlips and split pins provided (Fig.4).
Fig 2
INSTRUCTIONS FOR:
STRUT & SPRING COMPRESSING STATION
MODEL:
Yoke Travel . . . . . . . . . . . . . . . . .335mm
Fig 3
RE230
Fig 1
Fig 4
RE230 - 2 - 310805
