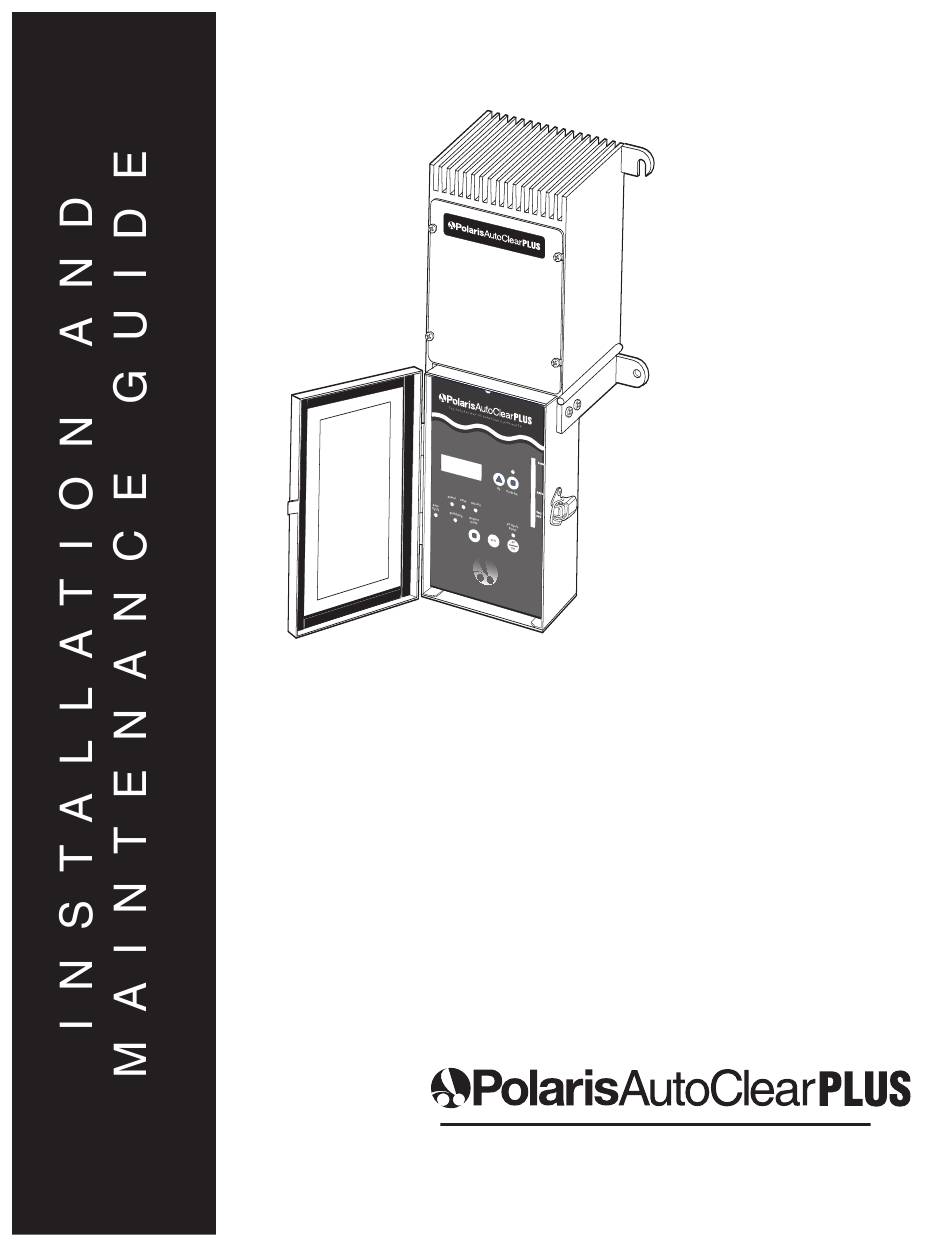

- Page 1 I M P O R TA N T I N F O R M AT I O N SERIAL NUMBER...
-
Page 2: Specifications
Do not bury cell cord but position it to eliminate contact with lawn mowers, hedge trimmers and other such equipment. • Damaged cell cords must be replaced by a Polaris Authorized Service Center. For customer service or support: • For on-line support: www.polarispool.com •... - Page 3 Using an electrolytic cell installed on the pool return line, the AutoClearPLUS converts salt (NaCL) dissolved in the pool water into pure chlorine. The chlorine is used to sanitize the pool, then converts back to salt.
-
Page 4: Installation Instructions
Installation Instructions Simple installation in four easy steps: • Determine pool/spa capacity (total gallons) and prepare the pool water • Install the cell • Install the power supply and controller • Start and set the system Prepare the Pool Water Figure the pool/spa capacity, total gallons being circulated by the primary pump, using the guidelines specified below. - Page 5 Use a test strip (AquaChek or equivalent) to determine the salt content of the water. Add enough salt to attain a level between 3000-3500 ppm, the optimum level is 3250 ppm. Use only granulated, evaporated sodium chloride (99%plus pure) and never use salt with anti- caking additives or Yellow Prussiate of Soda.
- Page 6 Install the Cell Install the cell in a section of straight pipe, at least 22 inches long, downstream from all pool equipment. Position the cell within 10-12 feet of the controller/power supply location to accommodate the 12 ft. cell cord. If an in-floor cleaning system or other high-flow application is present, install the cell on a bypass manifold and include a check valve.
- Page 7 • If installing with a Polaris Eos or Jandy AquaLink control system, wire unit to its own, independent power source, not the load side of the filter pump relay.
- Page 8 Controller The AutoClearPLUS can be operated as a stand alone unit or can be connected to the Polaris Eos or Jandy AquaLink automation control system. These multi-functional systems are designed to fully control the chlorinator. To connect unit to an automated control system: 1.
- Page 9 Normal When the Eos (or another controller) is connected, a Chlorination flashing triangle will appear in the top left hand corner of the AutoClearPLUS LCD screen. Air 60° Pool 60° Spa 60° Install controller: Replace and secure power supply face plate Eos Control Screen and connection cover plate.
- Page 10 55-100° F. When the adjustment is complete, the display will revert back to the run time setting. 5. The pool pump must be set to run longer than the AutoClearPLUS unit. A minimum of five hours per day is required for proper circulation and filtration.
-
Page 11: Operation And Maintenance
Operation and Maintenance THE NATURAL WAY TO SPARKLING CLEAR WATER Once installed, the Polaris AutoClearPLUS will continuously use existing salt in the pool to provide chlorination. LED Bar Graph Display Consisting of three green lights, three yellow and two Normal... -
Page 12: Cleaning The Cell
Cleaning the Cell The AutoClearPLUS is self-cleaning under normal, balanced water conditions. The controller will initiate a cell cleaning cycle every two hours indicated by a 5-second flashing of the Service light. This cleaning feature is not designed to eliminate excessive build-up caused by improper water balance or low flow. -
Page 13: Troubleshooting
If the system displays any of these Action: Power light is not lit and actions, adjustments may be necessary display is dark. to restore performance. Contact Polaris Solution: 1. Check circuit breaker and Customer Service at 1-800-822-7933 for reset if needed. - Page 14 Reference Stabilizer Requirements Stabilizer requirements vary depending on the climate. Adjust to standards for local conditions. Pounds Of Cyanuric Acid Needed For 80 ppm Existing Salt Pool Volume in Gallons Concentration 10,000 15,000 20,000 25,000 30,000 35,000 40,000 7 lbs. 10 lbs.
- Page 15 Run Time Recommendations Cycle times in hours based on water temperature and pool size. Pool Size Water Temperature In Gallons 55°F to 78°F 78°F to 85°F Above 85°F 15,000 1.0 to 2.0 hrs 4.0 to 5.0 hrs 6.0 to 7.0 hrs 20,000 1.5 to 2.0 hrs 5.0 to 6.0 hrs...
- Page 16 Polaris Pool Systems or one of its Authorized Service Centers. Polaris will repair or replace, at its option, a unit or part proved to be defective within the warranty period and under the conditions of the warranty.
- Page 17 ® 2005 Polaris Pool Systems, Inc. All rights reserved. TL-1401 10/05...
