Sealey AK96SET Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. INTRODUCTION
Five of the most commonly used precision engineering measuring/checking devices, comprising of digital vernier caliper, micrometer, dial
indicator, bevelled edge square and stainless steel rule. Supplied in storage case.
2. SPECIFICATION
Model No. ........................................................AK96SET
Digital Vernier Calliper:
Range: ................................................... 0-150mm(0-6")
Resolution: ..........................................0.01mm(0.0005")
Accuracy:> ............................................ ±0.03mm(0.001")
Accuracy:< ............................................... ±0.02mm(0.01")
Battery: ........................................... 1 x LR44 (supplied)
Micrometer:
Range: .............................................................. 0-25mm
Accuracy: ........................................................ ±0.01mm
Dial Indicator:
Deflection: ......................................................... 0-10mm
Graduation: ....................................................... 0-01mm
Shank Size: ............................................................ 8mm
Bevelled Edge Square: .............................. 10 x 70mm
Stainless Steel Ruler: .....................................150mm(6")
3. OPERATION
3.1. DIGITAL VERNIER CALLIPER
DO NOT use the calliper if damaged.
8
DO NOT use the calliper for any purpose other than for which it is designed.
8
DO NOT get calliper wet or use in damp or wet locations, or areas where there is condensation. Keep calliper clean and dry using a dry
8
cotton cloth only.
DO NOT dip or submerge the calliper in any type of liquid.
8
DO NOT expose calliper to bright sunlight or dust.
8
DO NOT apply any voltage to the calliper, e.g. with an electric marker pen.
8
The calliper is a precision instrument, treat with care, avoid using force and do not subject to knocks or shocks.
9
Take particular care not to damage or scratch the scale surface.
9
Switch off when not in use.
9
3.1.1. Ensure all measuring surfaces are clean and then turn on calliper by pressing on/off control. Wait at least one second before use.
3.1.2. Loosen locking screw and close calliper; if read-out does not show zero when in closed position, reset by pressing zero control.
3.1.3. Select inch or mm units, as required, with the metric/imperial selector. Check that display shows the required units.
3.1.4. Measurements will now be shown directly on the LCD display.
3.1.5. A new zero may be obtained, at any open position of the calliper, by pressing the zero control.
3.1.6. A second measurement that then also needs to be added to the first one can be obtained by pressing the ABS/0
switch after obtaining the first measurement (display will show INC), then move the legs to measure the second.
After noting this, press the ABS/0 switch again and the display will show the total of both measurements.
3.2. Battery Replacement/Disposal
The battery is accessed by siding the battery cover (fig.1) to reveal.
Fit the replacement battery with the lip uppermost and replace the cover.
Dispose of waste batteries in accordance with local regulations and not as normal waste.
© Jack Sealey Limited

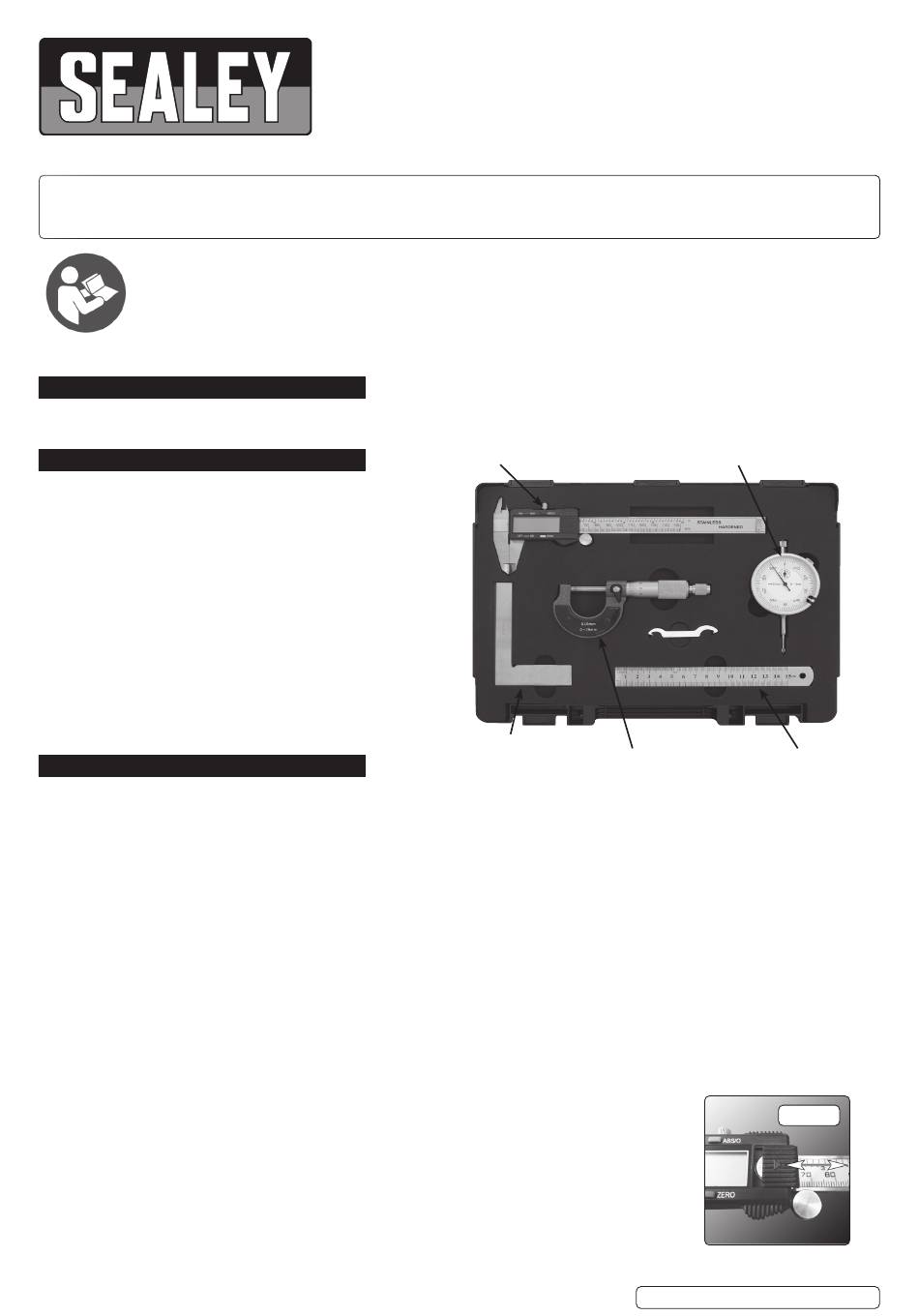

MEASURING TOOL SET 5 PC
AK96SET
MODEL NO:
Digital Vernier Calliper
Bevelled Edge Square
Original Language Version
Dial Indicator
Micrometer Stainless Steel Ruler
fig.1
AK96SET Issue:2 (H,2,F) 16/09/22
