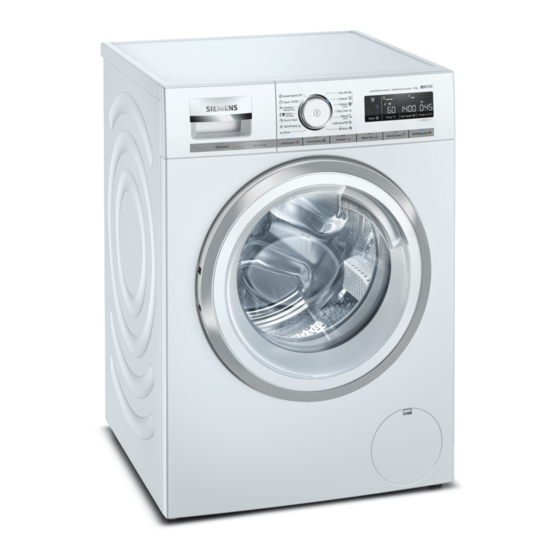

- Page 1 Washing machine WM14XMH0EU User manual and installation instructions Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances...
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Laundry.......... 33 General information...... 4 Preparing the laundry ..... 33 Intended use........ 4 Sorting laundry ....... 34 Restriction on user group.... 5 Degrees of soiling ...... 34 Safe installation ........ 5 Care symbols on the care labels ... 34 Safe use ........... 7 Detergents and care products.. - Page 3 Customer Service...... 62 Connecting your appliance to Product number (E-Nr.) and pro- the Home Connect app.... 43 duction number (FD) ...... 62 Connecting the appliance to the energy manager ...... 43 AQUA-STOP guarantee .... 62 Activating Wi-Fi on the appliance... 44 Consumption values..... 64 Deactivating Wi-Fi on the appli- ance.......... 44 Technical specifications....
-
Page 4: Safety
en Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡... -
Page 5: Restriction On User Group
Safety en Restriction on user group Avoid risks to children and vulnerable persons. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. - Page 6 en Safety ¡ If the insulation of the power cord is damaged, this is danger- ous. ▶ Never let the power cord come into contact with hot appli- ance parts or heat sources. ▶ Never let the power cord come into contact with sharp points or edges.
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of injury! ¡ The appliance may vibrate or move when in use. ▶ Place the appliance on a clean, even, solid surface. ▶ Align the appliance using the appliance feet and a spirit level. ¡ If hoses and power cords have been laid incorrectly, this causes a tripping hazard. - Page 8 en Safety ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners, hoses or sprays to clean the appliance. WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk.
-
Page 9: Safe Cleaning And Maintenance
Safety en ¡ The appliance may tip over if you sit on or lean against the open door. ▶ Do not sit on or lean against the appliance door. ▶ Do not place any objects on the appliance door. ¡ Reaching into the drum while it is still turning may cause hand injuries. - Page 10 en Safety ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
-
Page 11: Preventing Material Damage
Preventing material damage en Make sure that the valve hous- ▶ Preventing material damage Preventing material dam- ing for the water inlet hose does not come into contact with its surroundings and is not subjec- ted to any external forces. Follow these instructions to avoid ma- Ensure that the inner diameter terial damage and damage to the ap- ▶... -
Page 12: Environmental Protection And Saving Energy
en Environmental protection and saving energy Do not use cleaning products Use the economy programme set- ▶ with a high alcohol content. tings. Do not use hard scouring pads ▶ If you adjust the programme set- or cleaning sponges. tings for a programme, the display Clean the appliance with nothing ▶... -
Page 13: Energy Saving Mode
Installation and connection en Energy saving mode Installation and connection Installation and connec- If you do not use the appliance for an tion extended period, it automatically switches to energy-saving mode. All You can find out where and how best displays go out and Start/Reload to install your appliance here. -
Page 14: Contents Of Package
en Installation and connection Contents of package After unpacking all parts, check for any damage in transit and completeness of the delivery. Requirements for the installa- Washing machine tion location Accompanying documents The appliance may "wander" when it Elbow for fixing the water outlet hose spins. -
Page 15: Removing The Transit Bolts
Installation and connection en Installation location Requirements WARNING Risk of electric shock! On a wooden joist Place the appliance The appliance contains live parts. floor on a water-resistant Touching live parts is dangerous. wooden board which Do not operate the appliance ▶... -
Page 16: Removing The Transport Struts
en Installation and connection Unscrew and remove all four Put on the four cover caps. screws for the transit bolts with a WAF 13 wrench. Press down on the four cover caps. Pull the power cord out of the holder. Removing the transport struts Remove the four sleeves. -
Page 17: Connecting The Appliance
Installation and connection en Unscrew and remove the screws in the vertical transport struts using a T20 screwdriver. Connecting the appliance Connect your appliance to the power Remove the transport struts. supply, water inlet and water outlet. Connecting the water inlet hose Note: Please read the information in the "Safety"... -
Page 18: Aligning The Appliance
en Installation and connection The connection details of the appli- Water outlet connection types ance can be found under "Tech- This information is intended to help nical data" → Page 64. you to connect this appliance to the Check the mains plug is inserted water outlet. - Page 19 Installation and connection en All appliance feet must stand firmly on the ground. Screw the lock nuts tightly against the housing using a WAF 17 wrench. In doing so, hold the foot tight and do not adjust its height.
-
Page 20: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 21: Detergent Drawer
Familiarising yourself with your appliance en Detergent drawer Measuring aid for liquid detergent → "Using a measuring aid for liquid Below is an overview of the structure detergent", Page 37 of the detergent drawer. Compartment II: ¡ Detergent for main wash ¡ Water softener ¡... -
Page 22: Display
en Display Display Display The display shows the current settings, options or relevant information. Display Designation Description 0:40 Programme duration/ Approximate expected programme duration or pro- programme time re- gramme time remaining. maining "Ready in" time The programme end has been set and the remaining number of hours is displayed. - Page 23 Display en Display Designation Description End of programme Programme status Childproof lock ¡ Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is active and the pro- gramme selector has been adjusted. → "Deactivating the childproof lock", Page 40 ...
-
Page 24: Buttons
en Buttons Buttons Buttons Below is an overview of the buttons and their setting options. The selection of programme settings depends on the selected programme. You can see the selection options for each programme in the overview for → "Programmes", Page 26. Button Selection Description Start/Reload... - Page 25 Buttons en Button Selection Description Remote Start ¡ Activate If you briefly press the button, the appliance will be enabled for remote start via the Home Con- ¡ Deactivate nect app ¡ Open the If you press the button for approx. 3 seconds, the Home Connect Home Connect menu opens.
-
Page 26: Programmes
en Programmes Less Ironing Water Plus Prewash Spin Speed (Rinse Hold) Select varioSpeed Max. spin speed (rpm) Max. temperature (°C) Max. load (kg) - Page 27 Programmes en Less Ironing Water Plus Prewash Spin Speed (Rinse Hold) Select varioSpeed Max. spin speed (rpm) Max. temperature (°C) Max. load (kg)
- Page 28 en Programmes Less Ironing Water Plus Prewash Spin Speed (Rinse Hold) Select varioSpeed Max. spin speed (rpm) Max. temperature (°C) Max. load (kg)
- Page 29 Programmes en Less Ironing Water Plus Prewash Spin Speed (Rinse Hold) Select varioSpeed Max. spin speed (rpm) Max. temperature (°C) Max. load (kg)
- Page 30 en Programmes Less Ironing Water Plus Prewash Spin Speed (Rinse Hold) Select varioSpeed Max. spin speed (rpm) Max. temperature (°C) Max. load (kg)
- Page 31 Programmes en Less Ironing Water Plus Prewash Spin Speed (Rinse Hold) Select varioSpeed Max. spin speed (rpm) Max. temperature (°C) Max. load (kg)
-
Page 32: Accessories
en Accessories Accessories Accessories Only use original accessories. These have been made especially for your appli- ance. Here you can find an overview of your appliance's accessories and how to use them. Order number Water inlet hose extension Extend the water inlet hose for WZ10131 cold water or AquaStop (approx. -
Page 33: Laundry
Laundry en Pour washing powder into com- Laundry Laundry partment II. You can wash all items that the man- ufacturer has marked as machine- washable on the care label and fab- rics made from hand-washable wool using your appliance. Preparing the laundry ATTENTION! Objects remaining in the laundry may damage the laundry and the drum. -
Page 34: Sorting Laundry
en Laundry – Type of fabric and fibre type Sorting laundry – Whites Note: Please read the information in – Colours the "Safety" → Page 4 and "Prevent- Wash new coloured items ing material damage" → Page 11 sec- separately the first time you tions to ensure that you use the appli- wash them. -
Page 35: Detergents And Care Products
Detergents and care products en Notes Detergents and care products Detergents and care ¡ Only use liquid detergents that are self-flowing products ¡ Do not mix different liquid deter- gents You can protect your appliance and ¡ Do not mix detergent and fabric your laundry by selecting and using softener the correct detergents and care... -
Page 36: Detergent Dosage
en Basic operation Detergent dosage Use the correct detergent dosage to ¡ Water hardness achieve optimal washing results and You can find out how hard your save resources. water is from your local water com- The detergent dosage depends on: pany or measure it yourself using ¡... -
Page 37: Setting A Programme
Basic operation en Requirement: Prepare and sort the Setting a programme laundry. Set the programme selector to the → "Laundry", Page 33 required "programme" → Page 26. Open the door. If necessary, "adjust the pro- Ensure that the drum is empty. gramme settings" → Page 37. Separate the laundry and place it in the drum. -
Page 38: Use The Measuring Aid For Liquid Detergent
en Basic operation Insert the measuring aid. Fold the measuring aid down and click it into place. Insert the detergent drawer. Push in the detergent drawer. Adding detergent and care product Notes ¡ Please read the information in the "Safety" → Page 4 and "Preventing material damage"... -
Page 39: Starting The Programme
Basic operation en Push in the detergent drawer. Add or remove laundry. Close the door. Starting the programme Press Start/Reload Note: If you want to change the time Cancelling the programme until the programme ends, set the "Ready in" time first. Once the programme has started, you can cancel it at any time. -
Page 40: Switching Off The Appliance
en Childproof lock Childproof lock Childproof lock Secure your appliance against being operated unintentionally using the controls. Activating the childproof lock Press and hold the two 3 sec. ▶ buttons for approx. 3 seconds. a The display shows . a The controls are locked. -
Page 41: Home Connect Settings
Home Connect en ¡ → "Connecting the appliance to a Connecting the appliance to a WLAN home network (Wi-Fi) with WLAN home network (Wi-Fi) WPS function", Page 41 with WPS function ¡ → "Connecting the appliance to a WLAN home network (Wi-Fi) Using your router's WPS function is without WPS function", Page 42 the simplest way to connect the ap- The Home Connect app guides you... -
Page 42: Connecting The Appliance To A Wlan Home Network (Wi-Fi) Without Wps Function
en Home Connect "Connect your appliance to the Connect the mobile device to the Home Connect app." → Page 43 Home Connect Wi-Fi network and enter the password (key) Home- Connect. Connecting the appliance to a a Your mobile device now connects WLAN home network (Wi-Fi) to the appliance. -
Page 43: Connecting Your Appliance To The Home Connect App
Home Connect en Press Start/Reload Connecting your appliance to a The appliance is connected to the the Home Connect app smart energy system (energy man- ager). Requirements a If the appliance has connected to ¡ The appliance is connected to the the energy manager successfully, WLAN home network (Wi-Fi). -
Page 44: Activating Wi-Fi On The Appliance
en Home Connect Press and hold Remote Start Note Flex Start is deactivated for safety for approx. 3 seconds. reasons in the following circumstances: Set the programme to position 6. ¡ Press Start/Reload a UPd appears on the display. ¡ Open the door. Press Start/Reload ¡... -
Page 45: Data Protection
A detailed RED Declaration of Con- communication module (to ensure formity can be found online at a secure data connection). www.siemens-home.bsh-group.com ¡ The current software and hardware among the additional documents on version of your appliance. the product page for your appliance. -
Page 46: Basic Settings
en Basic settings Basic settings Basic settings You can configure the appliance to meet your needs. Overview of basic settings Below is an overview of the basic settings on your appliance. Basic setting Programme position Value Description End signal 0 (off) Set the volume of the 1 (quiet) signal at the end of the... -
Page 47: Cleaning And Servicing
Cleaning and servicing en Press Spin Speed and, at the Add washing powder. same time, turn the programme selector to position 2. Cleaning the detergent drawer a The display shows the current Note: Please read the information in value. the "Safety" → Page 4 and "Prevent- Set the programme selector to the ing material damage"... -
Page 48: Descaling
en Cleaning and servicing Descaling If you add detergent correctly, you do not need to descale your appliance. If you still wish to use descaler, follow the manufacturer's instructions for use. ATTENTION! The use of unsuitable descaling agents, e.g. for coffee machines, may damage the appliance. - Page 49 Cleaning and servicing en To allow the detergent solution to flow out into the container, remove the sealing cap. Slide a receptacle under the open- ing. Firmly press on the sealing cap. Take the drain hose out of the holder. Insert the drain hose into the holder.
- Page 50 en Cleaning and servicing Make sure that the impeller in the Cleaning the drain pump drain pump can be rotated. Note: Please read the information in Insert the pump cap. the "Safety" → Page 4 and "Prevent- Ensure that the parts of the ing material damage" → Page 11 sec- ‒...
-
Page 51: Cleaning The Water Outlet Hose At The Siphon
Cleaning and servicing en Before the next wash To prevent unused detergent from flowing straight into the outlet in the next wash, run the Empty pro- gramme after you have emptied the drain pump. Turn on the tap. Insert the mains plug. Switch on the appliance. - Page 52 en Cleaning and servicing Cleaning the filter on the tap Note: Please read the information in the "Safety" → Page 4 and "Prevent- ing material damage" → Page 11 sec- tions to ensure that you use the appli- ance safely. Requirement: The water inlet hose is empty. Remove the water inlet hose from the tap.
-
Page 53: Troubleshooting
Troubleshooting en Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... -
Page 54: Malfunctions
en Troubleshooting Fault Cause troubleshooting The filter in the water inflow "Clean the water inflow filter" ▶ → Page 51. is blocked. The tap is turned off. Turn on the tap. ▶ The water inlet hose is Ensure that the water inlet hose is ▶... - Page 55 Troubleshooting en Fault Cause troubleshooting → "Deactivating the childproof The programme does not Childproof lock is activated. ▶ start. lock", Page 40 - Finish in + is activated. Check whether - Finish in + ▶ activated. → "Buttons", Page 24 Laundry is caught in the Open the door again. door.
- Page 56 en Troubleshooting Fault Cause troubleshooting The water is not draining. The water outlet hose is con- Install the water outlet hose at a ▶ nected too high. maximum height of 1 metre. → "Technical specifications", Page 65 Pump cover is not correctly Correctly assemble the pump ▶...
-
Page 57: Noise
Troubleshooting en Fault Cause troubleshooting Vibrations and movement of Appliance is not correctly Aligning the appliance ▶ the appliance whilst spin- aligned. ning. The appliance feet are not Secure the appliance feet. Aligning ▶ fixed. the appliance Transit bolts have not been Removing the transit bolts ▶... -
Page 58: Problem With Results
en Troubleshooting Problem with results Fault Cause troubleshooting Creasing. The spin speed is too high. The next time you run a wash cycle, ▶ set a lower spin speed. The load is too large. The next time you run a wash cycle, ▶... -
Page 59: Leakage
Troubleshooting en Fault Cause troubleshooting No connection to the home Wi-Fi is activated but a con- Ensure that the home network is network. nection to your home net- available. work cannot be established. Reconnect the appliance to the home network. → "Connecting the appliance to a WLAN home network (Wi-Fi) with WPS function", Page 41 → "Connecting the appliance to a... -
Page 60: Emergency Release
en Transportation, storage and disposal Unplug the appliance's mains plug. Emergency release Drain the remaining detergent To remove the laundry in the event of solution. a power failure, for example, you can → "Cleaning the drain pump", manually release the door. Page 48 Detach the hoses. -
Page 61: Using The Appliance Again
Transportation, storage and disposal en Start the Empty programme. a The unused detergent cannot flow straight into the outlet during the next wash. Disposing of old appliance Valuable raw materials can be re- used by recycling. WARNING Risk of harm to health! Insert the power cord into the Children can lock themselves in the holder... -
Page 62: Customer Service
en Customer Service Detailed information on the warranty Customer Service Customer Service period and terms of warranty in your country is available from our after- If you have any queries on use, are sales service, your retailer or on our unable to rectify faults on the appli- website. - Page 63 Customer Service en ¡ A claim can only be made under the guarantee if the appliance has been correctly installed and con- nected with Aqua-Stop according to our instructions; this also in- cludes correctly fitting the Aqua- Stop extension (genuine access- ory).
-
Page 64: Consumption Values
en Consumption values Consumption values Consumption values The following information is given according to the EU-Ecodesign-Regulation. The values given for programs other than the Eco 40-60 are indicative only and have been determined in accordance with the applicable standard EN60456. Programme Load Pro- Energy... - Page 65 Technical specifications en Power consumption ¡ Off mode: 0,10 W ¡ Left-on mode: 0,50 W ¡ Time in networked standby mode (Wi- Fi): 5 min(s) ¡ Networked standby mode (Wi- Fi): 1,50 W Water pressure ¡ Minimum: 100 kPa (1 bar) ¡ Maximum: 1000 kPa (10 bar) Length of the water in- 150 cm let hose...
- Page 68 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY www.siemens-home.bsh-group.com Manufactured by BSH Hausgeräte GmbH under Trademark License of Siemens AG *9001424390* 9001424390 (000401)
