Product and Cut-out Dimensions

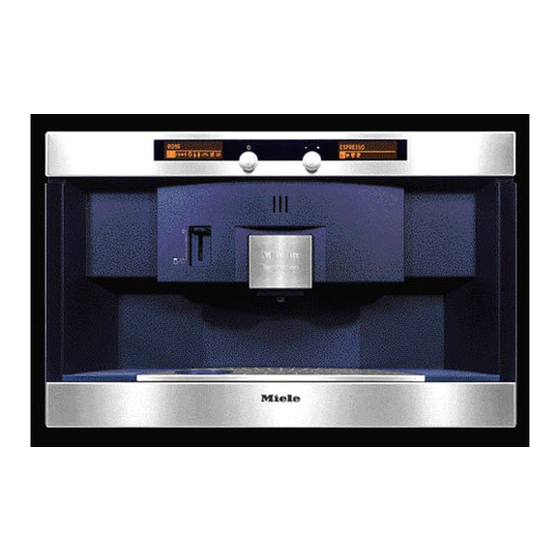

Built-in Coffee System

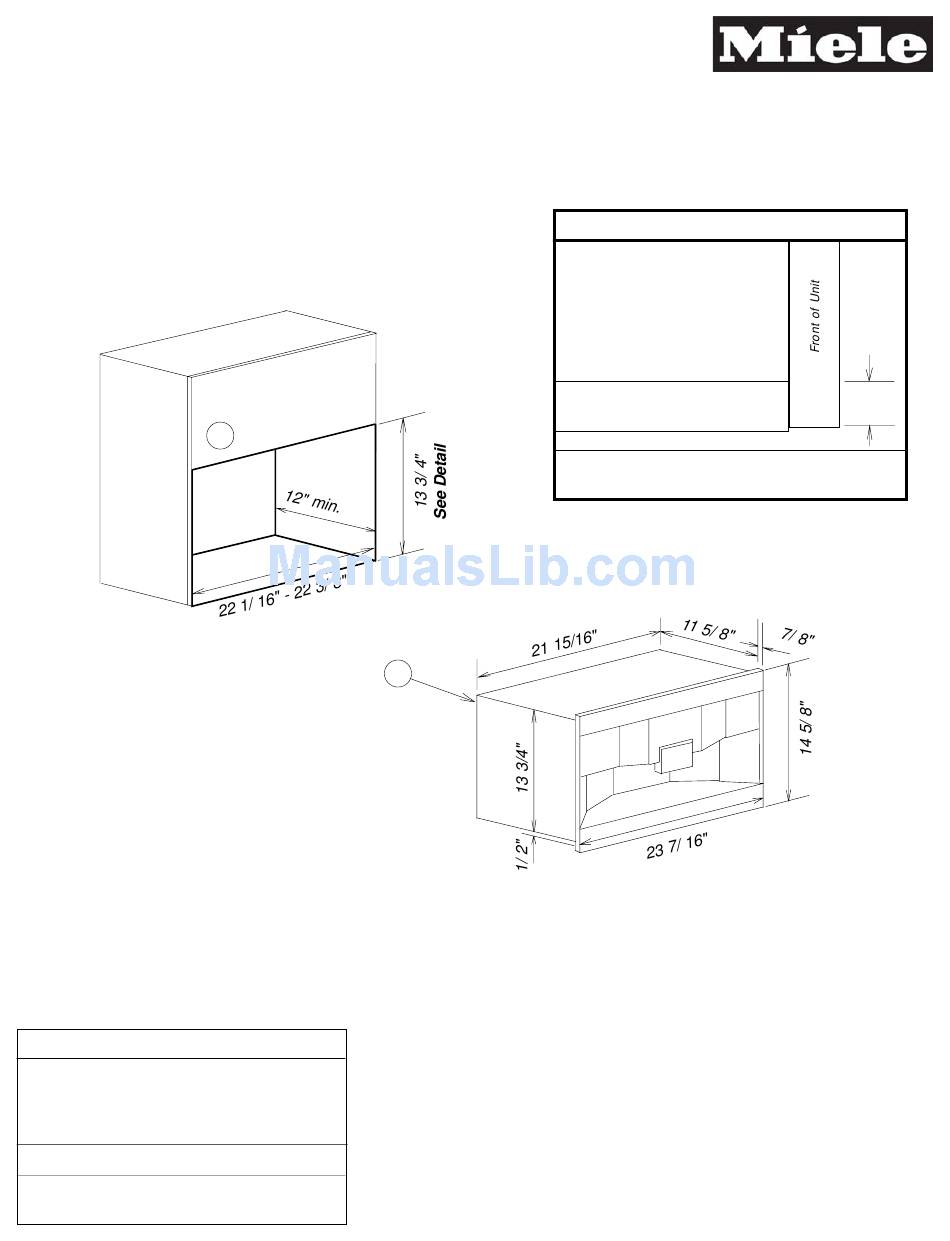

CVA 2660 - Wall cabinet installation
Location Codes
E -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
O -
Location must be accessible.
Notes
• All installations must be done in
accordance with local codes.
O
E
Lower Edge Detail - Full overhang
CVA Housing
Cabinet base
Unit should be installed without removable feet.
Unit will overhang cabinet base
SPECIFICATION SHEETS
5/8"
NOTE: Drawing is not to scale.
010405
