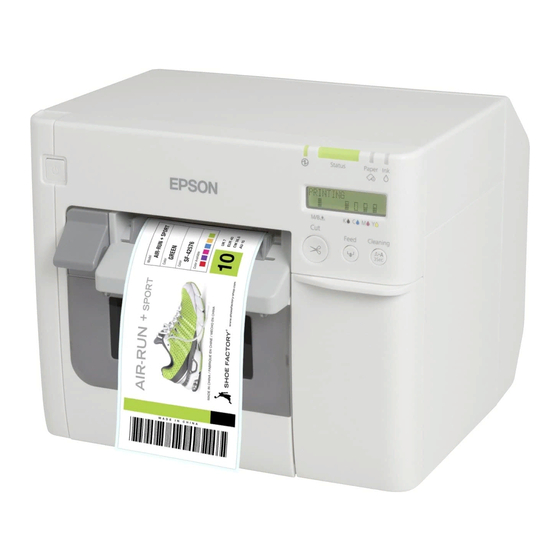

Epson TM-C3500 Quick Printing Manual
  1. Manuals
  2. Brands
  3. Epson Manuals
  4. Label Maker
  5. TM-C3500 Series
  6. Quick printing manual

Epson TM-C3500 Quick Printing Manual

Hide thumbs Also See for TM-C3500:

Advertisement

Quick Links

Download this manual
Quick Printing Guide (for NiceLabel)
M00086800
Rev.A

Advertisement

loading

Related Manuals for Epson TM-C3500

Summary of Contents for Epson TM-C3500

  • Page 1 Quick Printing Guide (for NiceLabel) M00086800 Rev.A...
  • Page 2 Trademarks EPSON is a registered trademark of Seiko Epson Corporation. Exceed Your Vision is registered trademark or trademark of Seiko Epson Corporation. NiceLabel and NiceLabel Pro are registered trademark or trademark of Euro Plus d.o.o. in the United States and other countries.
  • Page 3 Install NiceLabel beforehand. See the NiceLabel manual for how to install and operate BarTender. See the "TM-C3500 Technical Reference Guide" for details on how to use the printer and printer driver. Caution: The usage may differ when printing with a different version or edition of NiceLabel.

  • Page 4: Preparation Of The Printer

    Preparation of the Printer Insert the supplied CD into the computer, and set up the printer according to the setup tool instructions. Note: The printer driver is installed automatically if it has not been installed. "Media Layout Creation" Dialog appears. Select [Yes], then click [Next]. Specify the media source to be used.
  • Page 5 When using multiple media layouts with different media form, register and set multiple media sizes to the printer. For detail, see the "TM-C3500 Technical Reference Guide". When using multiple media layouts with different media sizes, register the media layout in NiceLabel.
  • Page 6 Preparation of NiceLabel Start NiceLabel to create a new label. Specify the printer. Select [EPSON TM-C3500], then click [Next]. Specify the Stock type. Select [<NONE>], then click [Next].
  • Page 7 Specify the Page size. Specify as shown below, and then click [Next]. Setting Items Setting Value (Method of adjusting the page size) Automatically set from label dimensions Page size NiceLabel Pro custom layout Media Type Die-cut label Specify the Orientation. Select [Portrait], then click [Next].
  • Page 8 Specify the label size. Specify as shown below, and then click [Next]. Setting Items Setting Value Label width 72.0 mm Label height 51.0 mm Top Margin 0 mm Bottom Margin 0 mm Left Margin 0 mm Right Margin 0 mm Follow the wizard instructions to create a document.
  • Page 9 Creating Label Design See the following and create a label design using NiceLabel. Make sure you have the top, bottom, left, and right margins of 1.5 mm and more inside the label size. Picture data Text data Barcode data [Text] Object [Barcode] Object [Picture] Object ...

  • Page 10: Barcode Settings

    Barcode Settings In the barcode properties, set the Narrow bar width to more than "4" dots and the ratio to "2.5". Notes: When printing a barcode, there are recommended conditions according to the Media Type. If the recommended conditions are not followed, the printed barcode may not be read properly. For the recommended conditions, see the appendix.
  • Page 11 *: You can set the ratio when the barcode type is Codabar, CODE39, Interleaved 2 of 5, or MSI. Fence bar code Ladder bar code Cautions:  The above values are valid when using paper recommended by EPSON.  Before using the barcode, print the barcode and check the scan quality.
  • Page 12 TrueType font. Notes:  For more details on how to set the printer driver, see "TM-C3500 Technical Reference Guide".  The barcode is displayed as text data on the NiceLabel screen and is not displayed as a barcode image. When you...
