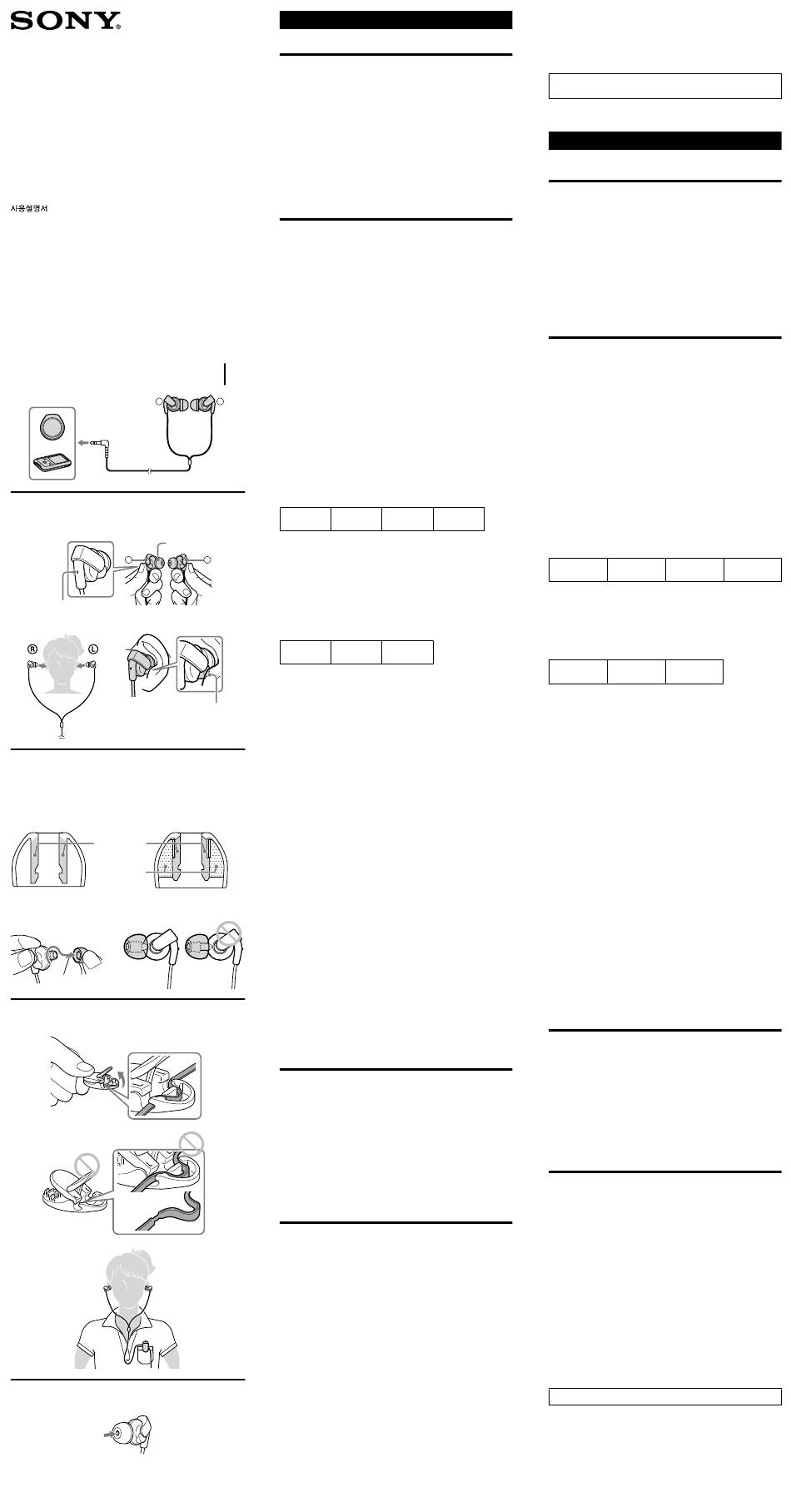

Sony MDR-XB41EX Operating Instructions

Stereo
Headphones
Operating Instructions
使用說明書
MDR-XB41EX
©2010 Sony Corporation Printed in Thailand
L

1
L
Tactile dot
觸點
2 3

Sectional View
組件圖示
 
Coloured
parts
彩色部分
Pressure-
relieving
urethane cushion
氨基鉀酸酯釋壓泡棉
 


4-264-667-11(1)
English

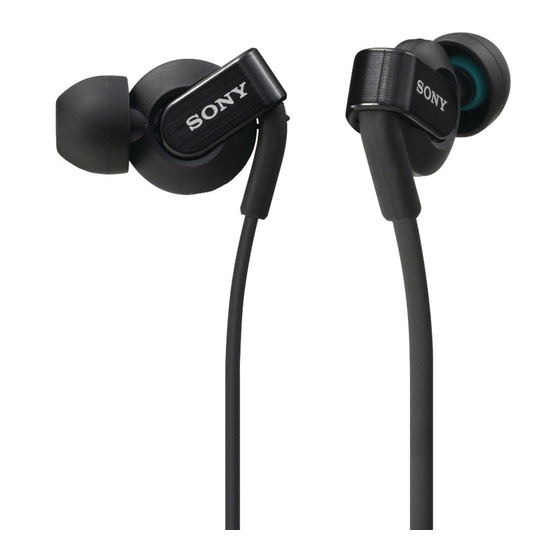

Stereo headphones
Features
 Direct Vibe Structure provides an acoustically-tight seal for
superior sound isolation and deep bass sound.
 Large 13.5 mm diameter driver units reproduce powerful and
dynamic bass sound.
 Elastomeric housing for improved adherence to the ears for full
transmission of bass sound.
 Closed type vertical in-the-ear headphones for good wearing
comfort.
 Newly developed stay-in design for a more secure fit.
 4 sizes of hybrid silicone rubber earbuds for secure fit and long-
term wearing comfort(SS, S, M, L)
3 sizes of noise isolation earbuds for effective attenuation of
ambient noise(S, M, L)
 Durable flat cord.
 Convenient carrying pouch supplied.
How to use
Wearing the headphones (see fig. )
1
Determine right and left headphone and hold them as in
the illustration.
2
Fit the headphones into your ears snugly, as in the
illustration.
3
Adjust the earbud to fit snugly in your ear.
How to install the earbuds correctly
(see fig. )
If the earbuds do not fit your ears correctly, low-bass sound
may not be heard. To enjoy better sound quality, change the
earbuds to another size or type, or adjust the earbuds position
to sit on your ears comfortably and fit your ears snugly. If the
earbuds do not fit your ears, try another size or type. Confirm
the size of the earbuds by checking the colour inside (see fig.
R
- for hybrid silicone rubber earbuds and - for noise
isolation earbuds).
When you change the earbuds, install them firmly on the
headphones to prevent the earbud from detaching and
remaining in your ear.
About hybrid silicone rubber earbuds (see fig. -)
Earbud sizes (inside colour)
Small

SS
(Red)
Earbud
To clean the hybrid silicone rubber earbuds
耳塞
Remove the earbuds from the headphones, and wash them
R
with a mild detergent solution.
About noise isolation earbuds (see fig. -)
Supplied noise isolation earbuds provides a snug fit for
effective attenuation of ambient noise.
Earbud sizes (inside colour)
Small

S
(Orange)
Notes
 Prolonged use of the noise isolation earbuds may strain your ears
due to their snug fit. If you have experience discomfort or pain in
your ears, discontinue use.
Stay-in design
 The pressure-relieving urethane cushion is extremely soft.
入耳式設計
Therefore, do not pinch or pull the urethane cushion. If the
urethane cushion is broken or detached from the earbuds, it will
not take its correct position and the earbuds will lose their noise
isolation function.
 The pressure-relieving urethane cushion may deteriorate due to
long-term storage or use. If the pressure-relieving power is lost
and the urethane cushion becomes hard, the earbuds may lose
their noise isolation function.
 Do not wash the noise isolation earbuds. Keep them dry, and
avoid accumulation of water in the pressure-relieving urethane-
cushions. Not doing so may cause early deterioration.
To detach an earbud (see fig. -)
While holding the headphone, twist the parts inside of the
earbud and pull the earbud off.
 Tip
If the earbud slips and cannot be detached, wrap it in a dry
soft cloth.
To attach an earbud (see fig. -)
Push the parts inside of the earbud into the headphone until
the projecting part of the headphone is fully covered.
How to attach the clip to the cord
(see fig. )
1
Hold the clip closed, and pull up the lever on the clip just
a little.
2
Put the cord into the groove under the lever.
Notes
 If you pull up the lever on the clip without holding the clip
closed, or holding the clip closed but opening the lever too much,
you cannot put the cord into the groove under the lever.
 Do not catch the cord on the projection of the clip or do not
wedge it into the groove. It may damage the wires of the cord.
 Do not move the clip position with the cord attached. It may
damage the wires of the cord.
Specifications
Type: Closed, dynamic / Driver unit: 13.5 mm (CCAW
adopted), dome type / Power handling capacity: 100 mW
(IEC*) / Impedance: 16 Ω at 1 kHz / Sensitivity: 105 dB/mW /
Frequency response: 4 – 24,000 Hz / Cord: 1.2 m (47
Y type, flat cord / Plug: Gold-plated L-shaped stereo mini
plug / Mass: Approx. 8 g (0.32 oz) without cord / Supplied
accessories: Hybrid silicone rubber earbuds (SS (2), S (2),
M (2), L (2)) / Noise isolation earbuds (S (2), M (2), L (2)),
Carrying pouch (1), Clip (1), Operating Instructions (1)
* IEC = International Electrotechnical Commission
Design and specifications are subject to change without
notice.
Precautions
 Please keep your headphones clean at all times especially inside
the rubber earbud. (see fig. )
If any dust or ear wax is inside the earbud, you may experience
some listening difficulties.
 Listening with headphones at high volume may affect your
hearing. For traffic safety, do not use while driving or cycling.
 Handle the driver units carefully.
 Do not put weight or pressure on the headphones as it may cause
the headphones to deform during long storage.
 The earbuds may deteriorate due to long-term storage or use.
 Install the earbuds firmly onto the headphones. If an earbud
accidentally detaches and is left in your ear, it may cause injury.
 Store the earbuds where children cannot reach in order to
prevent from accidental ingestion or choking.
 Do not leave the stereo headphones in a location subject to direct
sunlight, heat or moisture.
Large

S M L
(Orange) (Green) (Light blue)
Large

M L
(Green) (Light blue)
1 /
4
Note on static electricity
In particularly dry air conditions, mild tingling may be felt on
your ears. This is a result of static electricity accumulated in
the body, and not a malfunction of the headphones.
The effect can be minimized by wearing clothes made from
natural materials.
Optional replacement earbuds can be ordered from your
nearest Sony dealer.
繁體中文
立體聲耳機
特點
 直接振動結構提供聲學密封， 實現高度聲音隔離和低沉聲
音。
 13.5 mm大直徑激勵單元， 可產生強勁富有動感的低音。
 彈性外殼， 改善耳朵貼合度， 實現低音完整傳輸。
 密閉型垂直入耳式耳機， 便於舒適佩戴。
 新開發的穩定設計使佩戴更牢固。
 4 種尺寸的混合矽膠耳塞貼合更牢固， 且長時間佩戴也不
會感到不適 （SS、 S、 M、 L）
3 種尺寸的噪音隔離耳塞， 可有效衰減環境噪聲 （S、 M、
L）
 耐用扁平導線。
 附送便利的攜帶袋。
使用方法
佩戴耳機 （見圖）
1
確定左右耳機， 並如圖所示拿著。
2
如圖所示， 將耳機舒適地塞入您的耳朵。
3
調整耳塞使其舒適地貼合您的耳朵。
正確安裝耳塞 （見圖）
如果耳塞無法正確貼合您的耳朵， 您便可能無法聽到重低
音。 為了享受更佳音質， 請更換耳塞尺寸或型式， 或調整耳塞
的位置以舒適貼合您的耳朵。 如果耳塞不適合您的耳形， 請
更換耳塞尺寸或型式。 檢查內部顏色以確認耳塞尺寸 （如果
使用混合矽膠耳塞請見圖-， 如果使用噪音隔離耳塞請
見圖-） 。
當您更換耳塞時， 請將其牢固地安裝在耳機上以防止耳塞脫
落在您耳朵內。
關於混合矽膠耳塞 （見圖-）
耳塞尺寸 （內部顏色）
小
SS（紅色） S（橘色）
清潔混合矽膠耳塞
將耳塞從耳機體上拆下， 並以中性清潔劑溶液清洗。
關於噪音隔離耳塞 （見圖-）
附件噪音隔離耳塞可緊貼耳朵， 有效衰減環境噪聲。
耳塞尺寸 （內部顏色）
小
S（橘色） M（綠色）
注意
 長期使用噪音隔離耳塞可能會拉傷耳朵， 因為耳塞緊貼耳
朵。 如果耳朵感到不適或疼痛， 請暫停使用。
 氨基鉀酸酯釋壓泡棉非常柔軟。 因此， 切勿擠壓或拉出氨
基鉀酸酯泡棉。 如果氨基鉀酸酯泡棉損壞或與耳塞分離，
則耳塞位置不正確， 將失去噪音隔離功能。
 氨基鉀酸酯釋壓泡棉可能會因為長期存放或使用而損壞。
如果失去釋壓能力， 且氨基鉀酸酯泡棉變硬， 則耳塞可能
失去噪音隔離功能。
 請勿清洗噪音隔離耳塞。 使耳塞保持乾燥， 並避免氨基鉀
酸酯釋壓泡棉積水。 否則可能會導致過早老化。
拆掉耳塞的方式 （見圖-）
拿著耳機， 然後轉動耳塞內側部分， 把耳塞拔出來。
提示
如果耳塞較滑無法拆下， 請用柔軟乾布將其包住。
安裝耳塞的方式 （見圖-）
將耳塞內側部分推入耳機裡， 直到完全覆蓋耳機突出部分為
止。
如何將線夾安裝到耳機線上 （閱圖）
1
將線夾保持關閉， 然後將線夾上的開閉桿稍稍拉起。
2
將耳機線放入開閉桿下的凹槽內。
注意
 如果沒有將線夾保持關閉狀態就拉開開閉桿， 或雖然線夾
保持關閉但過力開啟開閉桿， 則您無法將耳機線放入開閉
桿下的凹槽內。
 切勿讓耳機線被線夾的突出部位夾住， 或讓耳機線卡在凹
槽內。 否則可能損壞耳機線內的金屬線。
 請勿在夾住耳機線時移動線夾位置。 否則可能損壞耳機線
內的金屬線。
規格
型式：封閉式，動態 / 激勵單元：13.5mm（採用CCAW），
圓頂型 / 功率處理容量：100mW (IEC
16 Ω/ 靈敏度：105 dB/mW / 頻率響應：4 - 24000 Hz /
導線：1.2 m，Y式，扁平導線 / 插頭：鍍金L型立體聲迷
你插頭 / 質量：約 8 g，不包括導線 / 附件：混合矽膠
耳塞（SS (2)，S (2)，M (2)，L (2)），噪音隔離耳塞
（S (2)，M (2)，L (2)），攜帶袋 (1)，線夾 (1)，使用
in),
說明書(1)
IEC = 國際電工委員會
*
設計和規格如有變更， 恕不另行通知。
注意事項
 請隨時保持耳機的清潔， 尤其是橡膠耳塞的內部 （見圖
） 。
如果耳塞有灰塵或耳垢， 您可能會無法順利聆聽音樂。
 戴著耳機用很高的音量收聽可能會影響您的聽力。 為了交
通安全， 切勿在駕車或騎車時使用耳機。
 小心處理激勵單元。
 請勿在耳機上放置重物或加壓， 否則可能導致耳機在長期
存放時變形。
 耳塞可能會因為長期存放或使用而損壞。
 將耳塞牢固地安裝在耳機上。 如果耳塞不小心脫落在您耳
朵內， 可能會造成傷害。
 將耳塞存放在小孩拿不到的地方， 以免誤食或窒息。
 切勿將立體聲耳機放在受陽光直射、 靠近熱源或有濕氣的
地方。
靜電注意事項
在特別乾燥的空氣條件下， 耳朵可能會感到輕微刺痛。 這是
由於體內積聚的靜電所致， 而非耳機故障。 穿著天然材料製
成的衣服可將此影響減到最少。
可向附近的Sony經銷商訂購選購的替換耳塞。
大
M（綠色） L（淺藍色）
大
L（淺藍色）
* ) / 阻抗：1 kHz時
