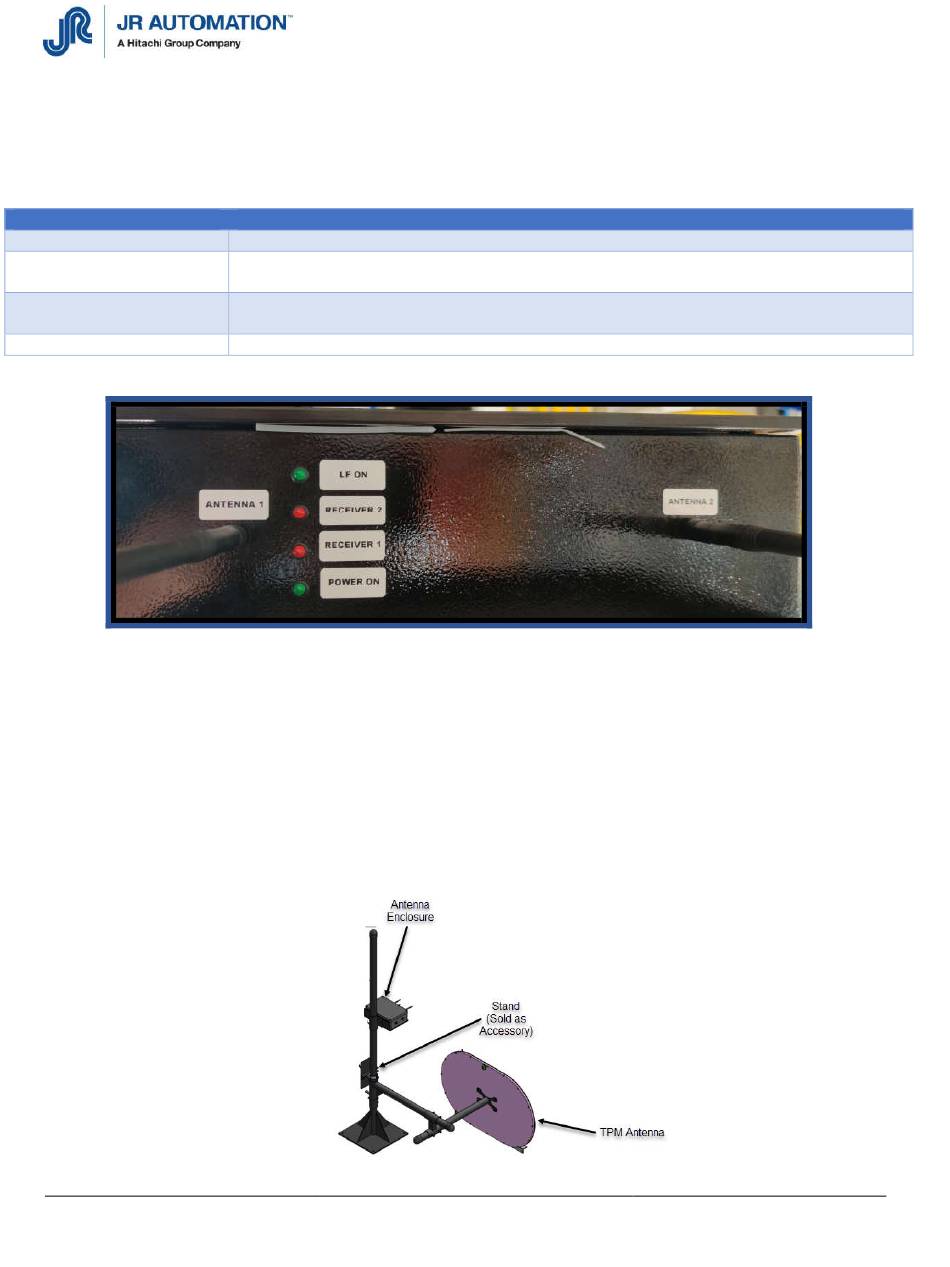

In addition to the external connections, the Antenna Enclosure has 4 indicator LED's:
LED Description
LF On
Receiver 1
Receiver 2
Power on
The antenna is typically mounted on an adjustable stand that is sold as a separate accessary. The stand also
holds the antenna enclosure, which is mounted on a backplate. Typically, this will be provided by the Automation
System Integrator.
Continuous Antenna User Manual - Canada
Prelim 1
Function
Illuminates when the antenna system is transmitting an 125KHz LF signal
Momentarily flashes whenever a valid UHF packet is received from a TPM valve
stem, on receiver 1 (antenna 1)
Momentarily flashes whenever a valid UHF packet is received from a TPM valve
stem, on receiver 2 (antenna 2)
Illuminates when the antenna is supplied with 24VDC
Receiver Antenna Connections & LED's
ANTENNA MOUNTING
