Installation Steps
To install the HP ProCurve High-Speed Transceivers, follow these steps:
1. Insert the transceiver into an HP networking device's transceiver slot
and secure the retaining screws.
2. If the transceiver slot is in a module, install the module into the switch.
3. As necessary for the type of networking device into which the trans-
ceivers are installed, reset or reboot device.
4. Connect the network cable to the transceiver and check the transceiver
and network device for correct operation.
Details on these steps are provided in the rest of this document.
Insert the Transceiver Into the Slot
The transceivers are installed into an HP networking device, as follows:
1. If you are installing the transceiver into the HP ProCurve 2424M Gigabit
Stacking Module, first remove the module from the switch. Then, for
that module and for all other networking devices, using a flat-bladed or
Torx T-10 screwdriver, unscrew the two retaining screws on the slot
cover plate or existing transceiver, and remove it from the module or
device.
hp procurve
switch 2524
j4813a
Power
Fault
Console
2. Touch a grounded, metal object (such as a powered-on switch) to
discharge any static electricity on your body, then carefully remove the
transceiver from its protective anti-static packaging. Hold the trans-
ceiver by its bulkhead or edges, taking care not touch any of its board
components or metal connectors.
25 26
1
2
3
4
5
6
13 14 15 16 17 18
7
8
9
10 11 12 19 20 21 22 23
Act FDx Max
Self
Fan
Reset
Clear
LED Mode Select
Test
Status
Transceiver Ports
25
(
See manual for supported transceivers)
!
Link
Mode
24
Link
Mode
!

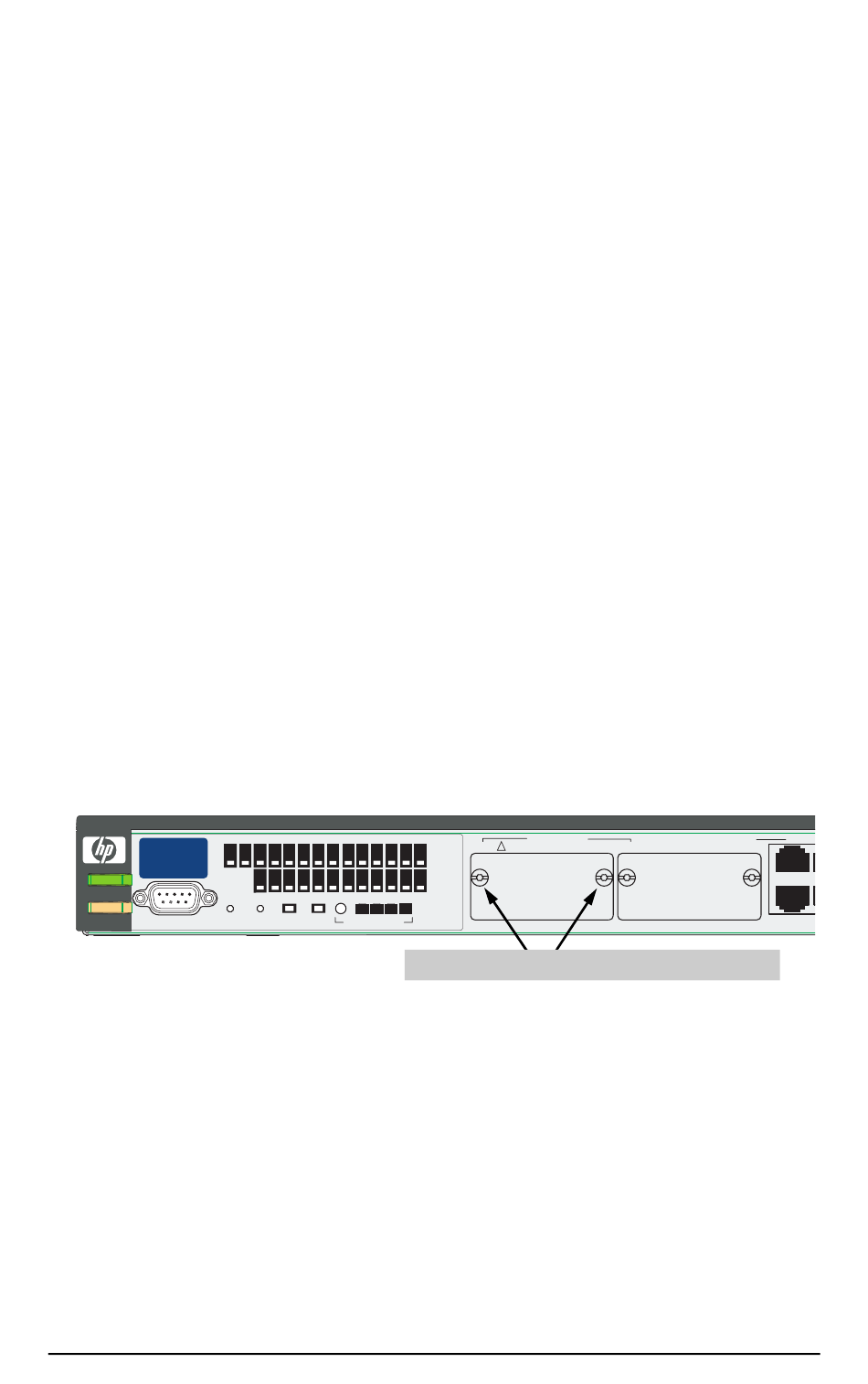

loosen these screws and remove the cover plate
1
10/100Base-T Ports (1-24)
26
(all ports are HP Auto-MDIX)
7
3
