Summary of Contents for DeWalt XR DCS356

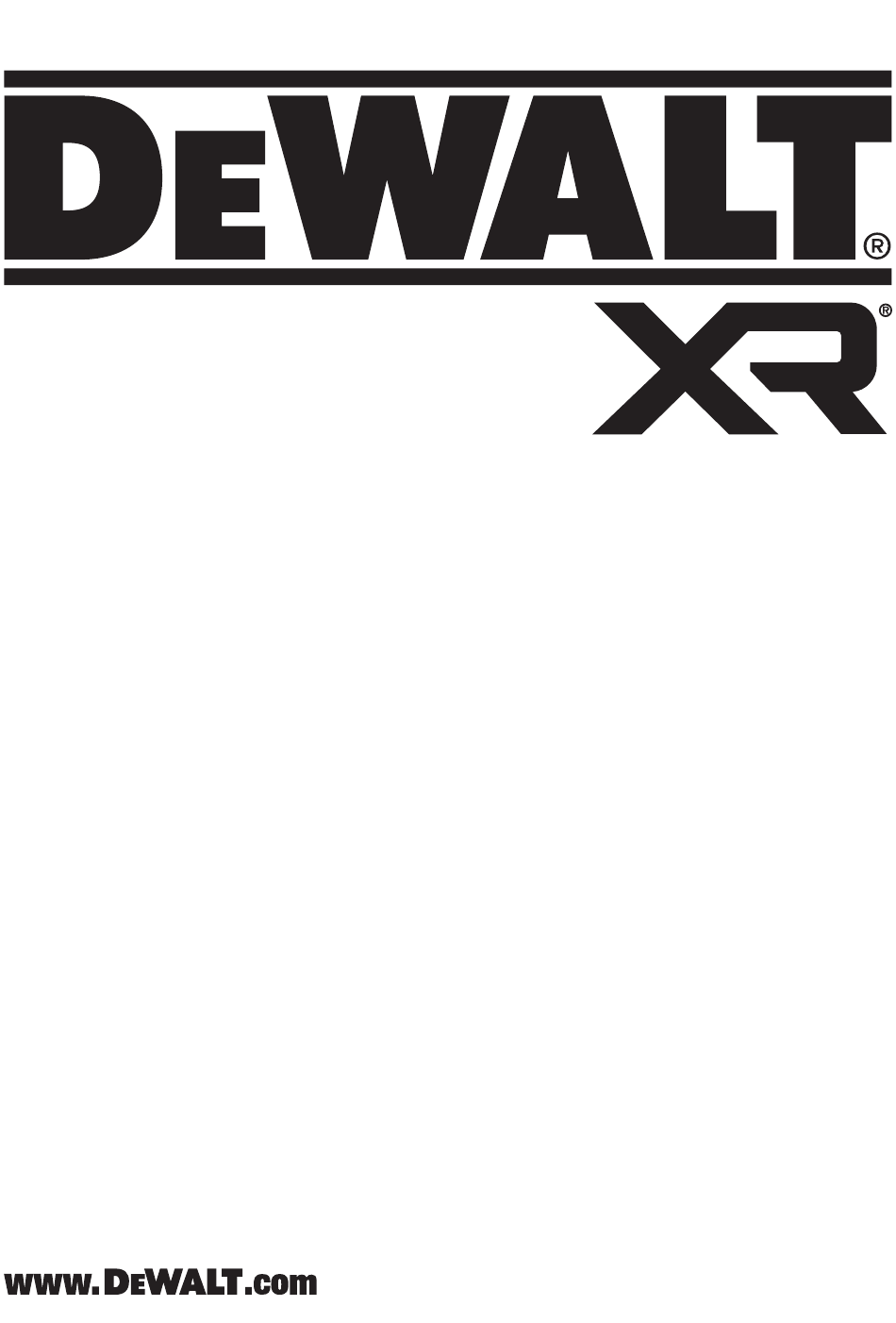

  • Page 1 DCS355 DCS356...
  • Page 2 English (original instructions) Copyright D WALT...
  • Page 3 Fig. A DCS355 DCS356 Fig. B XXXX XX XX...
  • Page 4 Fig. C Fig. D Fig. E Fig. F Fig. G...
  • Page 5 Fig. H Fig. I Fig. J Fig. K Fig. L Fig. M Fig. N...
  • Page 6 Fig. O Fig. P Fig. Q Fig. R Fig. S...

  • Page 7: Technical Data

    English CORDLESS OSCILLATING MULTI‑TOOL DCS355, DCS356 Congratulations! EC‑Declaration of Conformity Machinery Directive You have chosen a D WALT tool. Years of experience, thorough product development and innovation make D WALT one of the most reliable partners for professional power tool users. Technical Data Cordless Oscillating Multi‑Tool DCS355...

  • Page 8: Definitions: Safety Guidelines

    English Batteries Chargers/Charge Times (Minutes)*** Weight (kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB116 DCB117 DCB118 DCB132 DCB119 Cat # DCB546 18/54 6.0/2.0 1.08 DCB547 18/54 9.0/3.0 1.46 135* 110* 135* DCB548 18/54 12.0/4.0 1.46 DCB549 18/54 15.0/5.0 2.12 DCB181 0.35 DCB182 0.61 60/40**...

  • Page 9: Work Area Safety

    English e ) Do not overreach. Keep proper footing and balance 1) Work Area Safety at all times. This enables better control of the power tool a ) Keep work area clean and well lit. Cluttered or dark in unexpected situations. areas invite accidents.

  • Page 10: Residual Risks

    English b ) Use power tools only with specifically designated All persons entering the work area should wear a mask battery packs. Use of any other battery packs may create specially designed for protection against lead paint dust a risk of injury and fire. and fumes.

  • Page 11: Important Safety Instructions For All Battery Chargers

    English Using an Extension Cable charger is ventilated through slots in the top and the bottom of the housing. An extension cord should not be used unless absolutely Do not operate charger with damaged cord or plug— • necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data).

  • Page 12: Wall Mounting

    English READ ALL INSTRUCTIONS If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre. Do not charge or use battery in explosive atmospheres, • such as in the presence of flammable liquids, gases or hot/Cold Pack Delay dust.

  • Page 13: Storage Recommendations

    English batteries of 36 Wh each. The Use Wh rating might indicate materials that could contact them and cause a short circuit. NOTE: Lithium-ion batteries should not be put in 108 Wh (1 battery implied). checked baggage. Storage Recommendations WALT batteries comply with all applicable shipping 1.

  • Page 14: Package Contents

    English Battery Type Wear eye protection. The following tools operate on a 18 volt battery pack: DCS355, DCS356. These battery packs may be used: DCB181, DCB182, DCB183, Visible radiation. Do not stare into light. DCB183B, DCB183G, DCB184, DCB184B, DCB184G, DCB185, DCB187, DCB189, DCB546, DCB547, DCB548, DCB549.
  • Page 15 English WARNING: Risk of lacerations or burns. Do not touch  23  1. Attach the sanding platen  as described under the sharp edges of accessories at any time. Do not Installing/Removing Accessories. touch workpiece or blade immediately after operating the 2. Align the edges on the sanding sheet, with the edge of tool.

  • Page 16: Operation

    English nOTE: The tool will automatically shut off after operating 2. Adjust the length of the guide by pulling out or pushing for five minutes with the lock‑on button engaged. To restart inward to achieve the desired length as shown in Figure L. the tool, the user will have to release the trigger and repress 3.

  • Page 17: Maintenance

    English MAINTENANCE Oscillating rigid scraper blade Oscillating flexible scraper blade Your power tool has been designed to operate over a long Oscillating carbide grout removal blade period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and Oscillating fastcut carbide grout removal blade regular cleaning.
  • Page 20 Belgique et www.dewalt.be WALT ‑ Belgium BVBA Tel: NL 32 15 47 37 63 luxembourg België en luxemburg enduser.BE@sBDinc.com Egide Walschaertsstraat 16 Tel: FR 32 15 47 37 64 2800 Mechelen Fax: 32 15 47 37 99 Danmark www.dewalt.dk WALT (Stanley Black&Decker AS)
