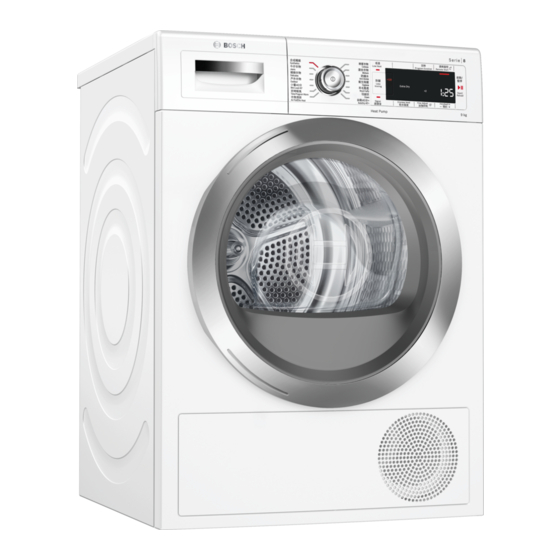

- Page 1 Tumble dryer WTW87MH0TC [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety .......... 4 8 Dryness level...... 26 1.1 General information.... 4 8.1 Changing the dryness level.. 26 1.2 Intended use....... 4 8.2 Adjusting the dryness level .. 26 1.3 Restriction on user group... 4 9 Programmes ....... - Page 3 15 Home Connect ...... 36 15.1 Setting up the Home Con- nect app ......... 37 15.2 Setting up Home Connect.. 37 15.3 Activating Wi-Fi on the ap- pliance ........ 38 15.4 Deactivating Wi-Fi on the appliance ........ 38 15.5 Resetting the appliance network settings ..... 38 15.6 Remote start ...... 38 15.7 Data protection....... 38 16 Basic settings......
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications is operated in compliance with the Telecommunications Act. The low power radio-frequency devices must be susceptible with the inter- ference from legal communications or ISM radio wave radiated devices. - Page 6 en Safety ▶ Never let the power cord come into contact with sharp points or edges. ▶ Never kink, crush or modify the power cord. WARNING ‒ Risk of fire! It is dangerous to use an extended power cord and non-approved adapters. ▶ Do not use extension cables or multiple socket strips. ▶...
-
Page 7: Safe Use
Safety en ▶ Align the appliance using the appliance feet and a spirit level. If hoses and power cords have been laid incorrectly, this causes a tripping hazard. ▶ Lay hoses and power cords in such a way that there is no risk of tripping. - Page 8 en Safety ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. WARNING ‒ Risk of suffocation! Children may breathe in or swallow small parts, causing them to suffocate.
- Page 9 Safety en Highly flammable objects such as lighters or matches may ignite during the drying process. ▶ Remove all highly flammable objects from any pockets in your laundry before the drying process. Unwashed laundry that has come into contact with solvents, oil, wax, wax remover, paint, grease or stain remover may ignite when drying is in progress.
-
Page 10: Safe Cleaning And Maintenance
en Safety 1.6 Safe cleaning and maintenance Take note of the safety instructions when cleaning and performing maintenance work on the appliance. WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. -
Page 11: Preventing Material Damage
Preventing material damage en Do not use hard scouring pads or ▶ 2 Preventing material cleaning sponges. Clean the appliance with nothing damage ▶ but water and a soft, damp cloth. Remove all detergent residue, Follow these instructions to avoid ma- ▶ spray residue or other residues im- terial damage and damage to the ap- mediately if they come into contact... -
Page 12: Energy Saving Mode
en Installation and connection Observe the programme's maximum 4 Installation and con- load capacity. nection → "Programmes", Page 27 a If the maximum load is exceeded, this extends the programme dura- 4.1 Unpacking the appliance tion and increases energy con- sumption. ATTENTION! Objects remaining in the drum that After drying, clean the fluff filter are not designed for operation with → Page 32. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en Replace the accessories in ques- If the appliance is operated immedi- ▶ tion before operating the appli- ately after transportation, the refriger- ance. ant contained in the appliance may → "Accessories", Page 30 result in damage to the appliance. Immediately after transporting the ▶... - Page 14 en Installation and connection Push the condensation hose into Connecting the water drain hose the holder. If you do not want to regularly empty the appliance's condensation con- tainer, connect the water drain hose. ATTENTION! When operating the appliance without the water drain hose being connected properly, liquid may leak out of the connecting piece.
- Page 15 Installation and connection en Remove the stopper on the under- Insert the filter into the recess in side. the top. Insert the stopper into the recess Insert the condensation container in the top. → Page 34. Connect the appliance to the water outlet. → "Water outlet connection types", Page 15 Tip: To collect condensation in the...
-
Page 16: Aligning The Appliance
en Installation and connection 4.5 Aligning the appliance Note: You can use the Y-distrib- In order to reduce vibrations and utor → Page 30 noises, align the appliance correctly. to connect the To align the appliance, turn the ap- ▶ water drain hose pliance feet. Check that the appli- of an additional ance is level using a spirit level. - Page 17 Installation and connection en Open the door. Unscrew the hinge and handle screws. Remove the mounting screws. Take the hinge and handle off the door. Take off the door. Reversing the door ring Unlock the door ring.
- Page 18 en Installation and connection Move the door away from the door Lock the door ring. ring. Installing the door Reverse the door. Note: Use a T20 (Torx) screwdriver only. Do not use any other tool to re- verse the door. Prepare the hinges and door handle as shown below and attach them to the door again.
-
Page 19: Connecting The Appliance To The Electricity Supply
Installation and connection en Disassemble the door lock. Attach the door. Assemble the door lock on the 4.7 Connecting the appliance other side. to the electricity supply Insert the mains plug of the appli- ance's power cable in a socket nearby. The connection details of the appli- ance can be found under Tech- nical data → Page 49. -
Page 20: Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Ventilation opening Fluff filter → Page 32 Door Condensation container... -
Page 21: Wool Basket
Familiarising yourself with your appliance en 5.2 Wool basket Securing foot Wool basket Insert Tab for securing in the hook 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 27 Programme selector → Page 30... - Page 22 en Display 6 Display The display shows the current settings, options or relevant information. Display Designation Description 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. 1:25 Timed programme The timed programme is set. → "Timed programmes", Page 28 ...
-
Page 23: Dryness Level
Display en Display Designation Description +120 +60 Crease-reduction The crease-reduction function is activated. function Condensation Empty the condensation container container → Page 34. Insert the condensation container → Page 34. Fluff filter Clean the fluff filter → Page 32. Cooling process The laundry is cooled while the drum is rotating, in order to avoid damage to the laundry. - Page 24 en Buttons 7 Buttons Below is an overview of the buttons and their setting options. Button Selection Description Start/Reload ¡ Start Start, cancel or pause the programme. ¡ Cancel ¡ Pause (mains switch) ¡ Switch on Switch the appliance on or off.
- Page 25 Buttons en Button Selection Description Low Heat ¡ Activate Activate or deactivate gentle drying. ¡ Deactivate The temperature is re- duced for delicate fab- rics, e.g. polyacrylic or elastane. The programme duration is extended. - Finished in + Up to 24 hours Set the programme end.
-
Page 26: Changing The Dryness Level
en Dryness level 8 Dryness level Each automatic programme has a specified dryness level. The dryness level defines how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Extra Dry Multi-layered, thick laundry The laundry is dry. that does not dry readily. -
Page 27: Programmes
Programmes en 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors ¡ Select the dryness level according measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 28: Timed Programmes
en Programmes Programme Description Max. load (kg) Outdoor Dry self-drying sportswear made of per- formance fibres, microfibres and synthet- ics. AutoDry 40'+ Dry items made of synthetics and light cotton. 9.2 Timed programmes Timed programmes are programmes with a defined or adjustable programme duration. - Page 29 Programmes en Timed program Description Max. load (kg) To reduce creasing, hang up the laundry directly after pre-drying.
-
Page 30: Accessories
QR code in the table of contents or on www.bosch- – Separate items of laundry and shake them out, or observe the home.com. programme description 11.1 Preparing the laundry... -
Page 31: Setting A Programme
operation en The switch-on process takes a few 12.5 Starting the programme seconds. Requirement: A programme is set. → "Setting a programme", Page 31 12.2 Setting a programme Press Start/Reload . ▶ a The display shows the programme Turn the programme selector and duration or the "Ready in" time. set the required programme. -
Page 32: Unloading The Laundry
en operation Remove the two-part fluff filter. 12.8 Unloading the laundry Open the door. Remove the laundry from the drum. 12.9 Switching off the appli- ance Press . ▶ 12.10 Fluff filter During drying, fluff from the laundry is Remove the fluff from the recess. collected in the fluff filter. -
Page 33: Condensation Container
operation en Open the two fluff filters. Close the two fluff filters and put them together. Remove the fluff. Insert the two-part fluff filter. Clean the two fluff filters thoroughly under warm, running water and Close the door. then dry them off. 12.11 Condensation con- tainer Condensation forms during drying,... -
Page 34: Childproof Lock
en Childproof lock Emptying the condensation Inserting the condensation container container If the drying programme has finished Requirement: The condensation con- or the display shows a notification tainer → Page 33 is removed from while the appliance is in operation, the appliance. empty the condensation container. Push the condensation container ▶... -
Page 35: Wool Basket
Wool basket en Press and hold the two 3 sec. 14.2 Starting a programme ▶ buttons for approx. 3 seconds. with the wool basket goes out in the display. ATTENTION! If items of laundry in the wool basket touch the rotating drum or the ribs of 14 Wool basket the drum, the laundry may cause ma- terial damage and damage to the ap-... -
Page 36: Examples Of How To Use The Wool Basket
en Home Connect Laundry item Programme Example duration in Pullover hours:minutes Thin woollen Approx. 1:20 pullover Thick woollen Approx. 1:30 - pullover 3:00 Skirt Approx. 1:00 - Sports shoes Lift the tongues 1:30 of the shoes. Trousers Approx. 1:00 - Remove the in- 1:30 soles or heel cushions. -
Page 37: Home Connect
Note: You can find further information the mobile device. in the digital instruction manual by scanning the QR code in the table of contents or on www.bosch- home.com. The Home Connect services are not available in every country. The avail- ability of the Home Connect function Start the Home Connect app and... -
Page 38: Activating Wi-Fi On The Appliance
en Home Connect a The network settings are reset. 15.3 Activating Wi-Fi on the a If End is shown on the display, the appliance network settings are reset. Note: When Wi-Fi is activated, the en- ergy consumption increases in com- 15.6 Remote start parison to the values specified in the Enable the appliance for remote start consumption value table. - Page 39 Home Connect en appliance will transmit the following types of data to the Home Connect server (initial registration): ¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module in- stalled). ¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
-
Page 40: Basic Settings
en Basic settings 16 Basic settings You can configure the basic settings for your appliance to meet your needs. 16.1 Overview of basic settings Basic setting Programme posi- Value Description tion End signal 0 (off) Set the volume of 1 (quiet) the signal at the 2 (medium) end of the pro- 3 (loud) -
Page 41: Changing The Basic Set- Tings
Do not use hard or rough objects, ▶ scanning the QR code in the table of abrasive cleaning products or steel contents or on www.bosch- wool for cleaning. home.com. Note: If you do not clean the appli- ance as described, the appliance's functionality may be impaired. -
Page 42: Condensation Container Filter
en Cleaning and servicing Clean the moisture sensor with a Remove the filter. sponge. Clean the filter under warm, run- ning water or in the dishwasher. 17.3 Condensation container Slide in the filter as far as it will go. filter During drying, fluff from the laundry gets into the condensation. -
Page 43: Troubleshooting
Troubleshooting en 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 44 en Troubleshooting Fault Cause and troubleshooting No connection to the Wi-Fi is switched off. home network. → "Activating Wi-Fi on the appliance", Page 38 ▶ Wi-Fi is activated but a connection to your home net- work cannot be established. Ensure that the home network is available. Reconnect the appliance to the home network.
- Page 45 Troubleshooting en Fault Cause and troubleshooting Condensation in the The appliance uses condensation for the automatic condensation tank self-cleaning. even though the water Not a fault – no action required. ▶ drain hose is connec- Water drain hose is not connected correctly. ted.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Automatic self-cleaning function rinses the appliance's heat exchanger. Not a fault. Do not pull out the condensation tank. Do not cancel the programme. Water is leaking from Appliance is not correctly aligned. the appliance. → "Aligning the appliance", Page 16 ▶...
-
Page 47: Transportation, Storage And Disposal
Transportation, storage and disposal en Empty the condensation container 19 Transportation, stor- → Page 34. age and disposal Insert the condensation container → Page 34. Disconnect the appliance's mains 19.1 Preparing the appliance plug from the power supply. for transportation a The appliance is now ready to be transported. -
Page 48: Customer Service
en Customer Service Information about current disposal ¡ On the rear of the appliance. methods are available from your Make a note of your appliance's de- specialist dealer or local authority. tails and the Customer Service tele- phone number to find them again This appliance is la- quickly. -
Page 49: Consumption Values
Consumption values en 21 Consumption values The specified values are indicative amount of laundry being loaded, en- only and were determined in accord- vironmental conditions and the activ- ance with the applicable standard ation of additional functions. IEC61121. The expected programme dura- The actual values may deviate from tion/"Ready in"... -
Page 50: Declaration Of Conformity
Directive 2014/53/ A detailed RED Declaration of Con- formity can be found online at www.bosch-home.com among the additional documents on the product page for your appliance. UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only. - Page 52 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
