Section 6 Notice - Hitachi H8S/2212 Series User Manual

1. Make sure that pin 1 on the user system IC socket is correctly aligned with pin 1 on the cable
head before inserting the cable head into the user system IC socket.
2. The dimensions of the recommended mount pad for the user system IC socket are different from
those of the MCU.
3. This user system interface cable is specifically designed for the HS2214EPI62H emulators. Do
not use this cable with any other emulator station.
4. To prevent breaking of wires in the cable body, do not place heavy or sharp metal objects on the
user system interface cable.
5. While the emulator station is connected to the user system with the user system interface cable,
force must not be applied to the cable head. Place the emulator station, user system interface
cable, and user system as shown in the example in figure 11.
Emulator station

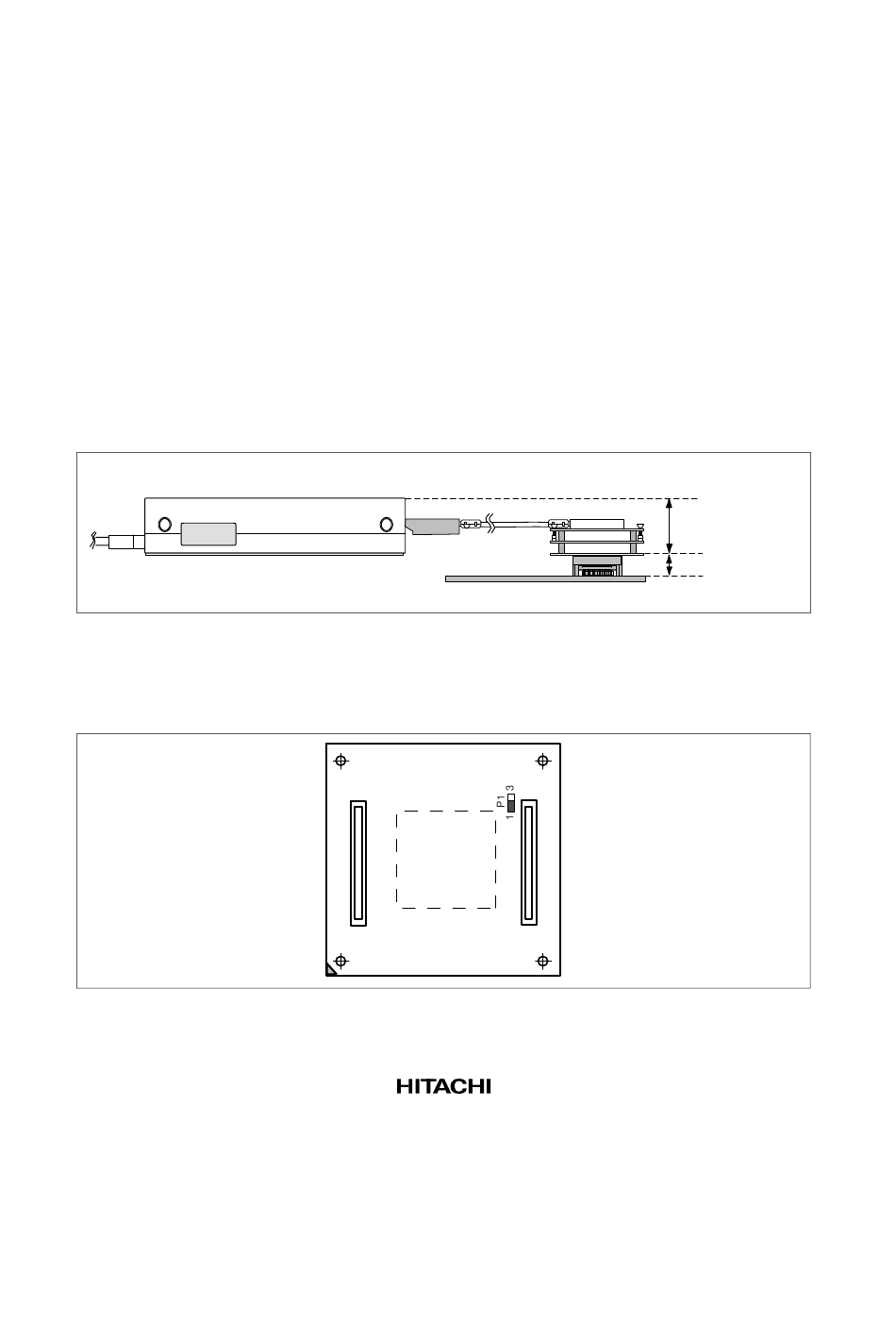

Figure 11 User System Interface Cable Location Example
6. The P1 jumper socket on the cable head is used for testing. Do not remove the inserted jumper
pin.
16

Section 6 Notice

Place components so that the cable body and cable head are
parallel to the user system.
Figure 12 P1 Jumper Socket
Cable head is parallel
to emulator station
Cable head is parallel
to user system
User system
