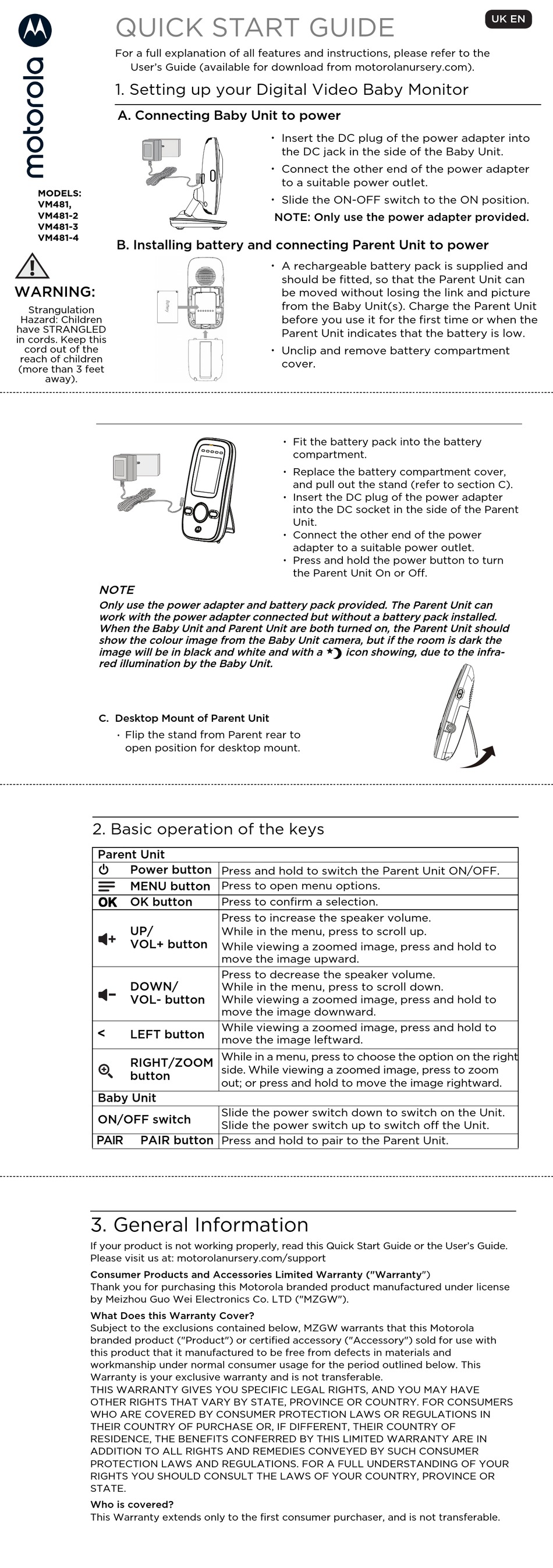

QUICK START GUIDE
For a full explanation of all features and instructions, please refer to the
1. Setting up your Digital Video Baby Monitor
A. Connecting Baby Unit to power
MODELS:
VM481,
VM481-2
VM481-3
VM481-4
B. Installing battery and connecting Parent Unit to power
WARNING:
Strangulation
Hazard: Children
have STRANGLED
in cords. Keep this
cord out of the
reach of children
(more than 3 feet
away).
NOTE
Only use the power adapter and battery pack provided. The Parent Unit can
work with the power adapter connected but without a battery pack installed.
When the Baby Unit and Parent Unit are both turned on, the Parent Unit should
show the colour image from the Baby Unit camera, but if the room is dark the
image will be in black and white and with a
red illumination by the Baby Unit.
C. Desktop Mount of Parent Unit
•
2. Basic operation of the keys
Parent Unit
0
O OK button
<
Baby Unit
ON/OFF switch
PAIR
3. General Information
If your product is not working properly, read this Quick Start Guide or the User's Guide.
Please visit us at: motorolanursery.com/support
Consumer Products and Accessories Limited Warranty ("Warranty")
Thank you for purchasing this Motorola branded product manufactured under license
by Meizhou Guo Wei Electronics Co. LTD ("MZGW").
What Does this Warranty Cover?
Subject to the exclusions contained below, MZGW warrants that this Motorola
branded product ("Product") or certified accessory ("Accessory") sold for use with
this product that it manufactured to be free from defects in materials and
workmanship under normal consumer usage for the period outlined below. This
Warranty is your exclusive warranty and is not transferable.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS THAT VARY BY STATE, PROVINCE OR COUNTRY. FOR CONSUMERS
WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN
THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF
RESIDENCE, THE BENEFITS CONFERRED BY THIS LIMITED WARRANTY ARE IN
ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER
PROTECTION LAWS AND REGULATIONS. FOR A FULL UNDERSTANDING OF YOUR
RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR
STATE.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not transferable.
User's Guide (available for download from motorolanursery.com).
Flip the stand from Parent rear to
open position for desktop mount.
Power button
Press and hold to switch the Parent Unit ON/OFF.
MENU button Press to open menu options.
Press to confirm a selection.
Press to increase the speaker volume.
UP/
While in the menu, press to scroll up.
VOL+ button
While viewing a zoomed image, press and hold to
move the image upward.
Press to decrease the speaker volume.
DOWN/
While in the menu, press to scroll down.
VOL- button
While viewing a zoomed image, press and hold to
move the image downward.
While viewing a zoomed image, press and hold to
LEFT button
move the image leftward.
While in a menu, press to choose the option on the right
RIGHT/ZOOM
side. While viewing a zoomed image, press to zoom
button
out; or press and hold to move the image rightward.
Slide the power switch down to switch on the Unit.
Slide the power switch up to switch off the Unit.
PAIR button
Press and hold to pair to the Parent Unit.
• Insert the DC plug of the power adapter into
the DC jack in the side of the Baby Unit.
• Connect the other end of the power adapter
to a suitable power outlet.
• Slide the ON-OFF switch to the ON position.
NOTE: Only use the power adapter provided.
• A rechargeable battery pack is supplied and
should be fitted, so that the Parent Unit can
be moved without losing the link and picture
from the Baby Unit(s). Charge the Parent Unit
before you use it for the first time or when the
Parent Unit indicates that the battery is low.
• Unclip and remove battery compartment
cover.
• Fit the battery pack into the battery
compartment.
• Replace the battery compartment cover,
and pull out the stand (refer to section C).
• Insert the DC plug of the power adapter
into the DC socket in the side of the Parent
Unit.
• Connect the other end of the power
adapter to a suitable power outlet.
• Press and hold the power button to turn
the Parent Unit On or Off.
icon showing, due to the infra-
UK EN
