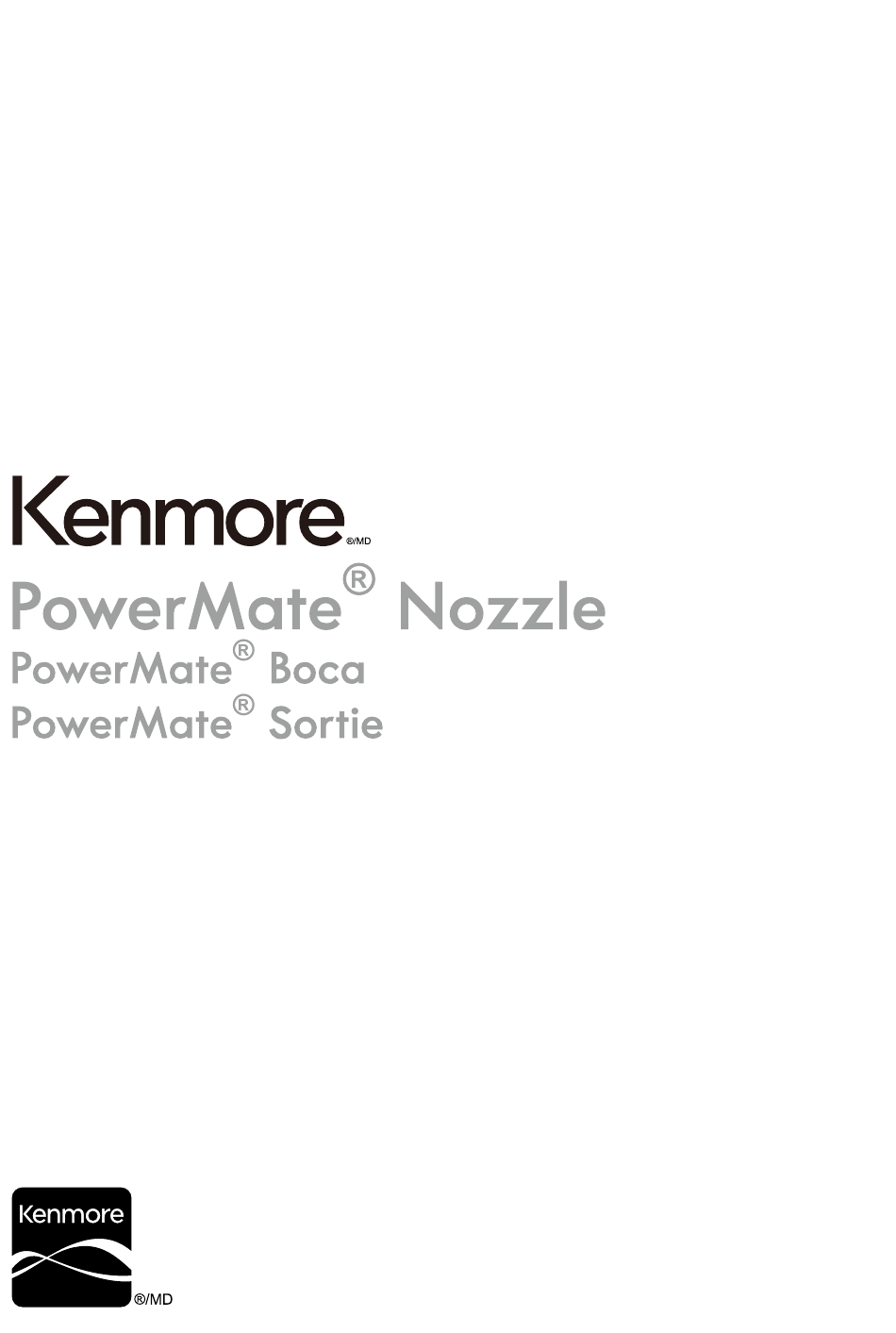

Use & Care Guide
Manual de Uso y Cuidado
Manuel d'entretien et d'utilisation
Model/Modelo/Modèle: BC1001
Vacuum Cleaner Help Line:
1-877-531-7321 (US) / 1-844-608-3081 (CA)
8:00am - 5:00pm EST, M-F
www.kenmorefloorcare.com
Kenmore and the Kenmore logo are registered
trademarks of KCD IP, LLC and/or Transform SR
Brands LLC and are used under license.
Advertisement
Table of Contents
Related Manuals for Kenmore PowerMate Nozzle
Summary of Contents for Kenmore PowerMate Nozzle
- Page 1 Manuel d'entretien et d'utilisation Model/Modelo/Modèle: BC1001 Vacuum Cleaner Help Line: 1-877-531-7321 (US) / 1-844-608-3081 (CA) 8:00am - 5:00pm EST, M-F www.kenmorefloorcare.com Kenmore and the Kenmore logo are registered trademarks of KCD IP, LLC and/or Transform SR Brands LLC and are used under license.
-
Page 2: Kenmore Limited Warranty
WITH PROOF OF SALE a defective product will be replaced free of charge. The Kenmore brand is used under license. Direct all claims for warranty service to: Cleva North America, Inc., 1-877-531-7321 (US) / 1-844-608-3081 (CA). This warranty does not cover filters or belts, which are expendable parts that can wear out from normal use within the warranty period. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions in this guide before assembling or using your PowerMate. WARNING! Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions including the following: ®... - Page 4 IMPORTANT SAFETY INSTRUCTIONS • The hose contains electrical wires. Do not • You are responsible for making sure that ® use when damaged, cut, or punctured. your PowerMate is not used by anyone Replace if cut or worn. Do not pick up unable to operate it properly.
-
Page 5: Parts And Features
PARTS AND FEATURES It is important to know your PowerMate’s parts and features to ensure its proper and safe ® use. Review these before using your PowerMate Swivel Wand Quick Release Pedal Height Adjustment Pedal Belt Height Adjustment Indicator Brushroll Status Indicator Furniture Guard Edge Cleaner... -
Page 6: Installation And Removal Instructions
INSTALLATION AND REMOVAL INSTRUCTIONS Turn power switch to the OFF position before servicing, attaching to, or removing from the vacuum cleaner handle. ® To attach, align wand and insert onto To remove wand from PowerMate , lock ® PowerMate until the wand locks into wand in upright position. -
Page 7: How To Start
OPERATING INSTRUCTIONS CAUTION Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when vacuum cleaner is on. Contacting the brushroll while it is rotating can cut, bruise or cause other injuries. Always turn off and unplug from electrical outlet before servicing. -
Page 8: Edge Cleaner
HOW TO START CAUTION EDGE CLEANER Product Damage Hazard Active brush edge cleaners are on both ® ® Use care if the PowerMate and wand is sides of the PowerMate . Guide either side left in the upright position as it may tip ®... -
Page 9: Performance/Safety Features
PERFORMANCE/SAFETY FEATURES To correct problem: Turn off and unplug WARNING vacuum cleaner, remove obstruction, then turn on the vacuum cleaner again. The Personal Injury Hazard brushroll status indicator will be off. If the To avoid accidental brushroll starting, ® PowerMate motor still does not run after always turn off and unplug the vacuum restart, immediately discontinue use and... -
Page 10: Powermate ® Care
® POWERMATE CARE Always follow all safety precautions when performing maintenance to the ® PowerMate WARNING Electrical Shock or Personal Injury Hazard Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting. - Page 11 BELT CHANGING AND BRUSHROLL CLEANING BRUSHROLL ASSEMBLY End Cap Belt Path End Cap Brush Unit Brushroll TO REPLACE BELT 1. Install new belt over motor shaft, then over belt path. 5. Check and clean end cap areas. See NOTE: See REPLACEMENT PARTS for Brushroll Assembly picture on this page.
- Page 12 BELT CHANGING AND BRUSHROLL CLEANING place. NOTE: Make sure there is no gap between the cover and base. ® 5. Turn PowerMate upside down and Cover replace the four (4) screws that secure the cover to the base. Base 4. Rotate cover back. Press cover firmly until side and rear latches snap into BRUSHROLL SERVICING base support bars, replace the brushroll...
-
Page 13: Troubleshooting
TROUBLESHOOTING Review this table to find do-it-yourself solutions for minor performance problems. For any other assistance needed, call 1-877-531-7321 (US) / 1-844-608-3081 (CA). WARNING Always turn off and unplug vacuum cleaner before performing maintenance to the PowerMate®. Failure to do so could result in electrical shock or personal injury. PROBLEM POSSIBLE CAUSE SOLUTION... - Page 14 TROUBLESHOOTING ® PowerMate connections Plug in firmly. unplugged. See BELT CHANGING AND BRUSHROLL Worn or broken belt. CLEANING (page 10-12). See BELT CHANGING AND BRUSHROLL ® PowerMate will Dirty brushroll or end caps. CLEANING (page 10-12). not run when Remove any items that may be caught or attached.
- Page 15 ...
