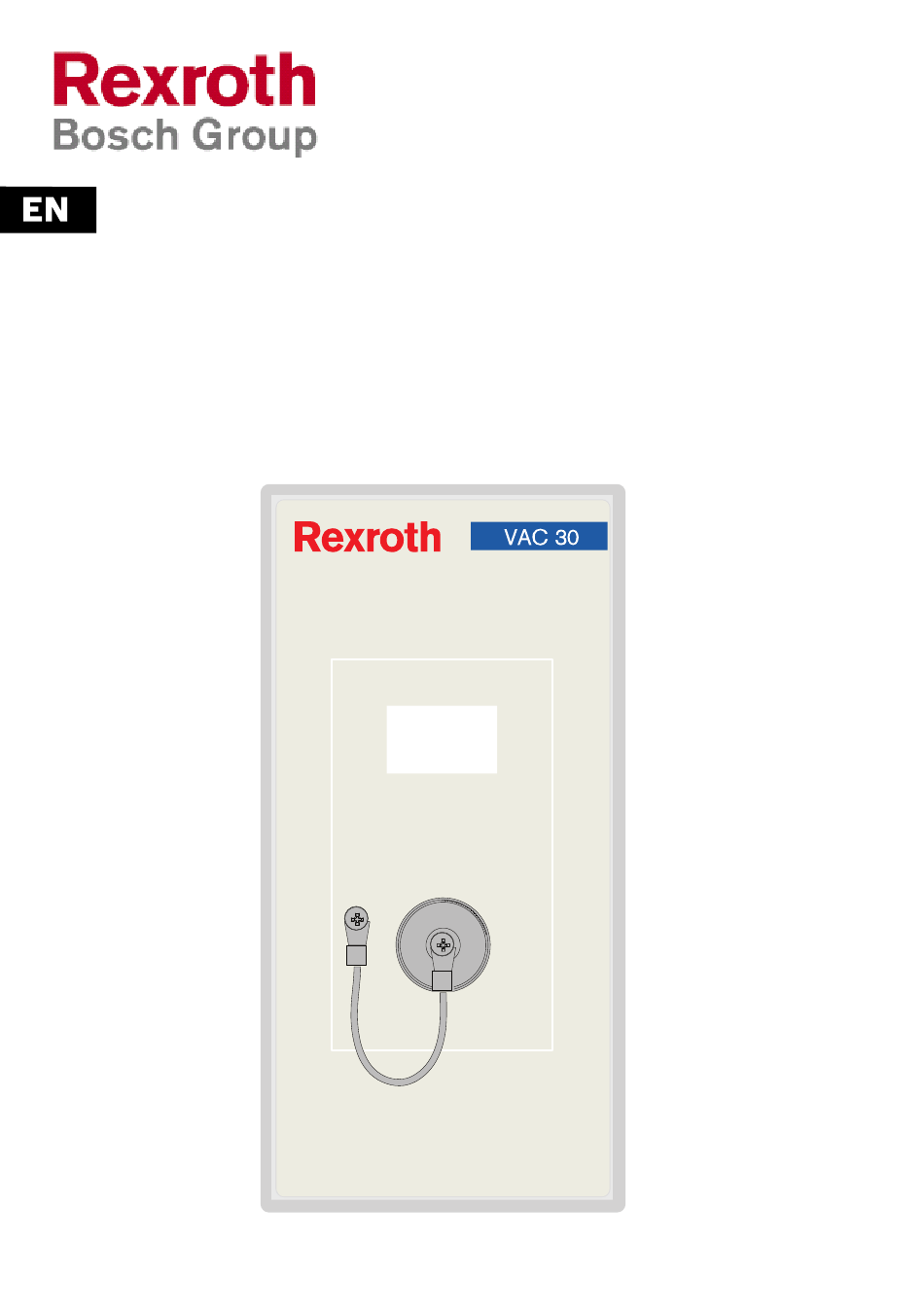

Bosch Rexroth IndraControl VAC 30.2 Assembly Instruction Manual

Connection module
Hide thumbs Also See for Rexroth IndraControl VAC 30.2:

Advertisement

Quick Links

IndraControl VAC 30.2
Connection Module
20. Januar 2011
Assembly Instruction
Page 1 of 7
Bosch Rexroth AG
Electric Drives and Controls
Bgm.-Dr.-Nebel-Str. 2
D-97816 Lohr am Main
Phone +49 (0)9352-40-50 60
Fax +49 (0)9352-40-48 85
www.boschrexroth.com
R911333525-AA_BPZ_DOC

Advertisement

loading

Summary of Contents for Bosch Rexroth IndraControl VAC 30.2

  • Page 1 Bosch Rexroth AG Electric Drives and Controls Bgm.-Dr.-Nebel-Str. 2 D-97816 Lohr am Main Phone +49 (0)9352-40-50 60 Fax +49 (0)9352-40-48 85 www.boschrexroth.com IndraControl VAC 30.2 Connection Module Assembly Instruction Page 1 of 7 20. Januar 2011 R911333525-AA_BPZ_DOC...
  • Page 2: About This Document

    About this Document The assembly instructions describe how to install the Connection Module IndraControl VAC 30.2. For further information, please refer to the project planning manual „Rexroth IndraControl VCH 08.1“, parts number R911320190 or Rexroth IndraControl VEH 30.2“, parts number R911331585. Symbols This document uses the following symbols to draw the reader’s attention to notices and dangers:...
  • Page 3 Unpack all items and check the contents for visible damages in transit. Also check, whether the delivery corresponds to the data on the delivery note. Please contact the Bosch Rexroth sales department immediately in case of discrepancies or damages in transit.
  • Page 4 The voltage is supplied via the plug-in connector X1.1 or X1.2. This device is an equipment of protection class I. To operate the device safely, a PELV cor- responding to DIN EN 61131 has to be used as supply voltage. A cable with fine wire cable cores with a minimum cross section of 0.75 mm²...
  • Page 5: Pin Assignment

    Pin assignment Connection parameters Signal name Parameters Value X2.1 Pin1 STOP button 1 IN The connection module IndraControl VAC30.2, including the automatic stop button bridging, is supplied with volt- X2.1 Pin2 STOP button 1 OUT age via X1.1 pin1 or X1.2 pin1. The connected handheld terminal is supplied with voltage via X1.1 pin3 or X1.2 X2.1 Pin3 STOP button 2 IN...
  • Page 6 Before commissioning the hand-held terminal, please ensure that the STOP button is NOT pressed. Connecting the hand-held termi- nal with a pressed STOP button will shut the installation down. To connect the hand-held terminal, plug the angled connector at an angle of approximately 45°...
  • Page 7 Notes Page 7 of 7 20. Januar 2011 R911333525-AA_BPZ_DOC...
