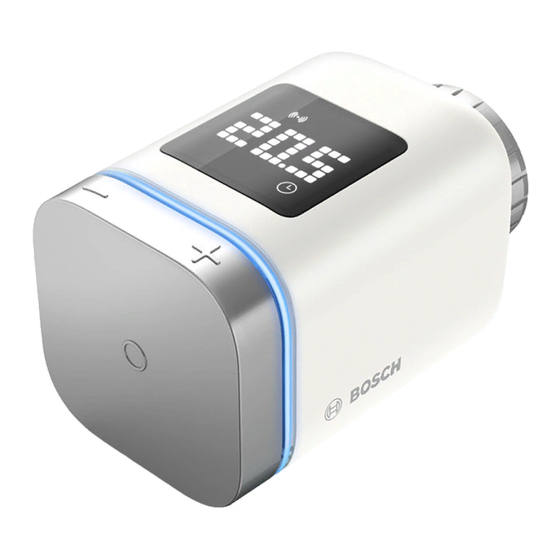

Radiator thermostat II
quick instructions
Product description
The intelligent radiator thermostat controls the
valve on the radiator in order to offer you greater
convenience for temperature control.
Description of the symbols
Safety instructions
▶ Do not charge used batteries, and do not at-
tempt to reactivate them using heat or other
means. Do not short-circuit batteries. Do not
throw batteries into fire!
There is a risk of explosion!
There is a risk of explosion!
Caution!
Note about hazards
Note:
Additional important information
Note about the installation video
8-750-002-337
Advertisement
Table of Contents
Related Manuals for Bosch Radiator thermostat II
Summary of Contents for Bosch Radiator thermostat II
- Page 1 Radiator thermostat II 8-750-002-337 quick instructions Product description The intelligent radiator thermostat controls the valve on the radiator in order to offer you greater convenience for temperature control. Description of the symbols Caution! Note about hazards Note: Additional important information...
- Page 2 ▶ Make sure the polarity is correct when in- serting the batteries! Only use batteries of the same type. Drained batteries must be re- moved from the device immediately. Remove batteries from the device if it is not used for a longer period of time.
- Page 3 ▶ Only operate the device in dry and dust-free environments without direct sunlight. ▶ Only use the device together with original com- ponents and recommended products from Bosch partners.
- Page 4 You can also use the explanatory video and additional information on our website as an additional aid for mounting, installing, starting up and restoring the factory set- tings on your Bosch Smart Home radiator thermostat II: www.bosch-smarthome.com/rom/ radiator-thermostat-2...
- Page 5 Product overview Item Description Explanation Connection ring Is screwed onto the radiator valve or adapter. M 30 × 1.5 mm Display Only switched on when operating Multi-coloured, complements the displays on Status LED the screen • Rotate in direction + + or – – , manually adjust the set temperature Control knob •...
- Page 6 (3). For an over- than those mentioned in the table, are view of possible error codes, see: possible. www.bosch-smarthome.com/rom/ radiator-thermostat-2 Mounting instructions Property damage owing to defective heat- The standards and directives applicable in...
- Page 7 For some heating models, you need one of the adapters supplied or you need to purchase a specific adapter from a shop. For a detailed list of compatible radiator valves and informa- tion on required adapters, see: www.bosch-smarthome.com/rom/ radiator-thermostat-adapter Typical assembly sequence with one adapter...
-
Page 8: Resetting To Factory Settings
When resetting to factory settings, the set- tings and information are only lost from the device and not from the Bosch Smart Home controller. To re-configure the device, first delete it in the device management section of the Bosch Smart Home app and then add it again in the usual configuring process. -
Page 9: Simplified Declaration Of Conformity
Simplified declaration of conformity Robert Bosch Smart Home GmbH hereby declare that the radio equipment type Bosch Smart Home BTH-RA corresponds with the directive 2014/53/EU. The complete text of the EU declaration of conformity is available via the following web address: https://eu-doc.bosch.com... -
Page 10: Technical Data
Technical data Device type BTH-RA designation Protection class IP20 Ambient temperature 0 °C … + 50 °C Humidity 10 % … 80 % Housing dimensions 51 × 51 × 87 mm (W × H × D) Weight 135 g (without batteries) Radio frequency band 2.4 – 2.4835 GHz Radio protocol ZigBee 3.0 Max. transmitting 3 mW power Radio range < 50 m in the open Software class... -
Page 11: Service Information
Service information Robert Bosch Smart Home GmbH Schockenriedstraße 17 70565 Stuttgart-Vaihingen Germany service@bosch-smarthome.com @ www.bosch-smarthome.com/service 8-750-002-337 V003 06/2022...
