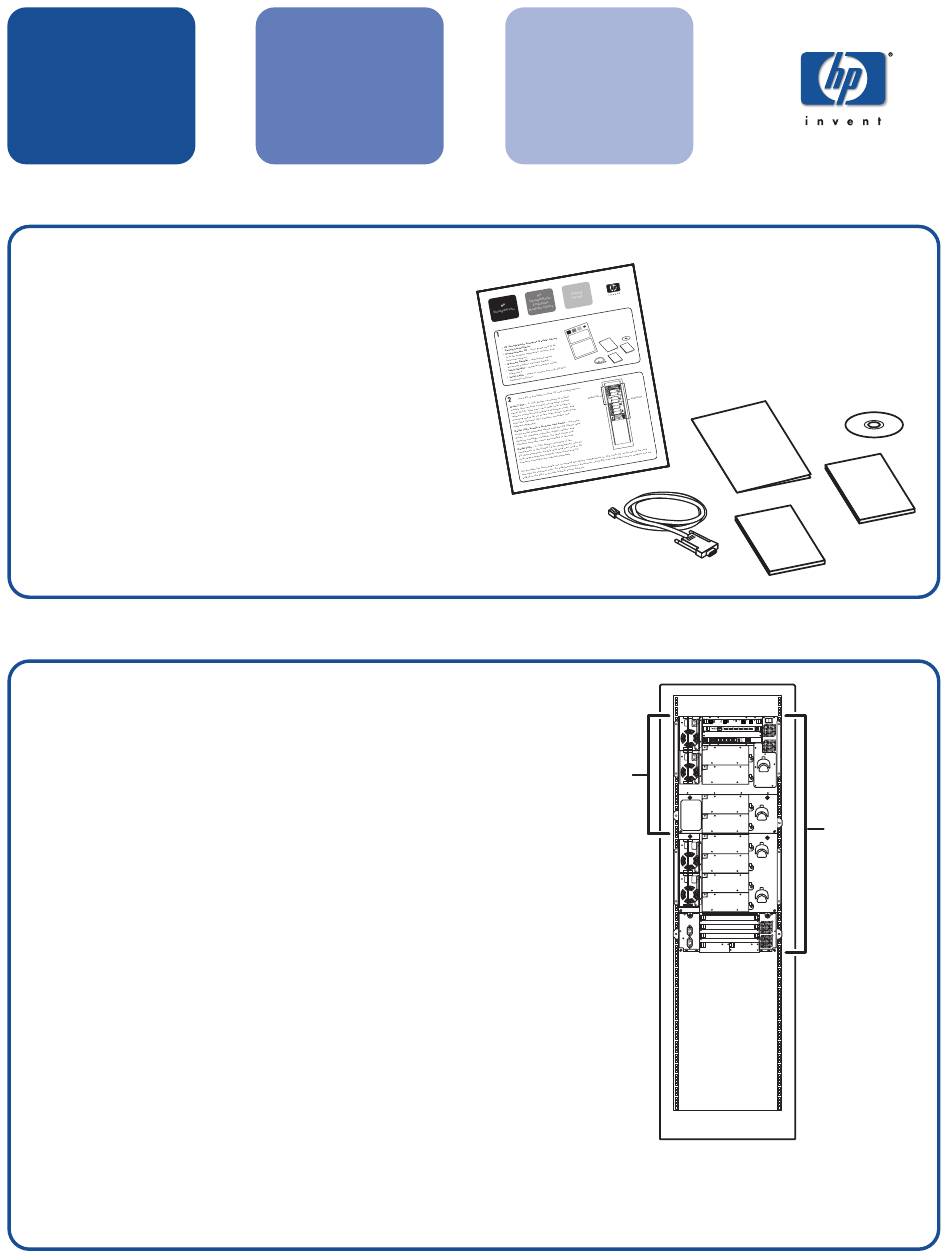

HP StorageWorks E Series Getting Started

HP
StorageWorks
1
• HP StorageWorks Enterprise Modular Library
Getting Started Poster
• Documentation CD – User guide, Web links
for product registration, drivers, component
animations, and technical support information
• Warranty Booklet – Information about
accessing product warranty details
• Safety Booklet – Important product safety
information
• Serial Cable
2

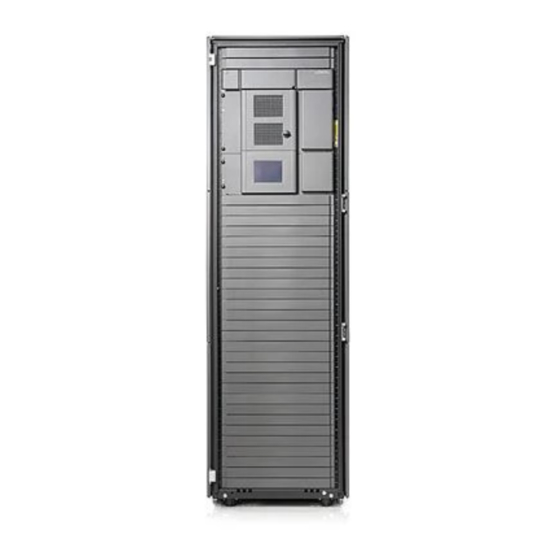

The EML is available in three HP rack configurations:
Model 103e – A 12U design consisting of a base
module that contains a robot, an operator control
panel (OCP), load port, card cage (with a library
robotics controller and Interface Manager card), and
mounting space for up to four tape drives. Tape drives
and Fibre Channel (FC) interface controllers are
ordered separately.
Model 103e bundle with drives and media – The same
as the model described above with four HP Ultrium tape
drives, FC interface controller, media, cables, and
cleaning cartridge included. The tape drives and
interface controller come preinstalled in the rack.
Model 245e – A 24U design consisting of the
components in the Model 103e configuration, plus an
8U drive expansion module with load port, and a 4U
card cage expansion module. Tape drives and FC
interface controllers are ordered separately.
HP provides kits that enable you to expand the library configuration to 42U (with 2U at the top of the rack
reserved for customer use). An additional power distribution unit (PDU) and redundant power supplies can
be added to the EML to provide failsafe power features.
E-Series
Enterprise
Modular
Library
Getting
Started
Model 103e
Model 245e
