Summary of Contents for Bosch WTW85560BY

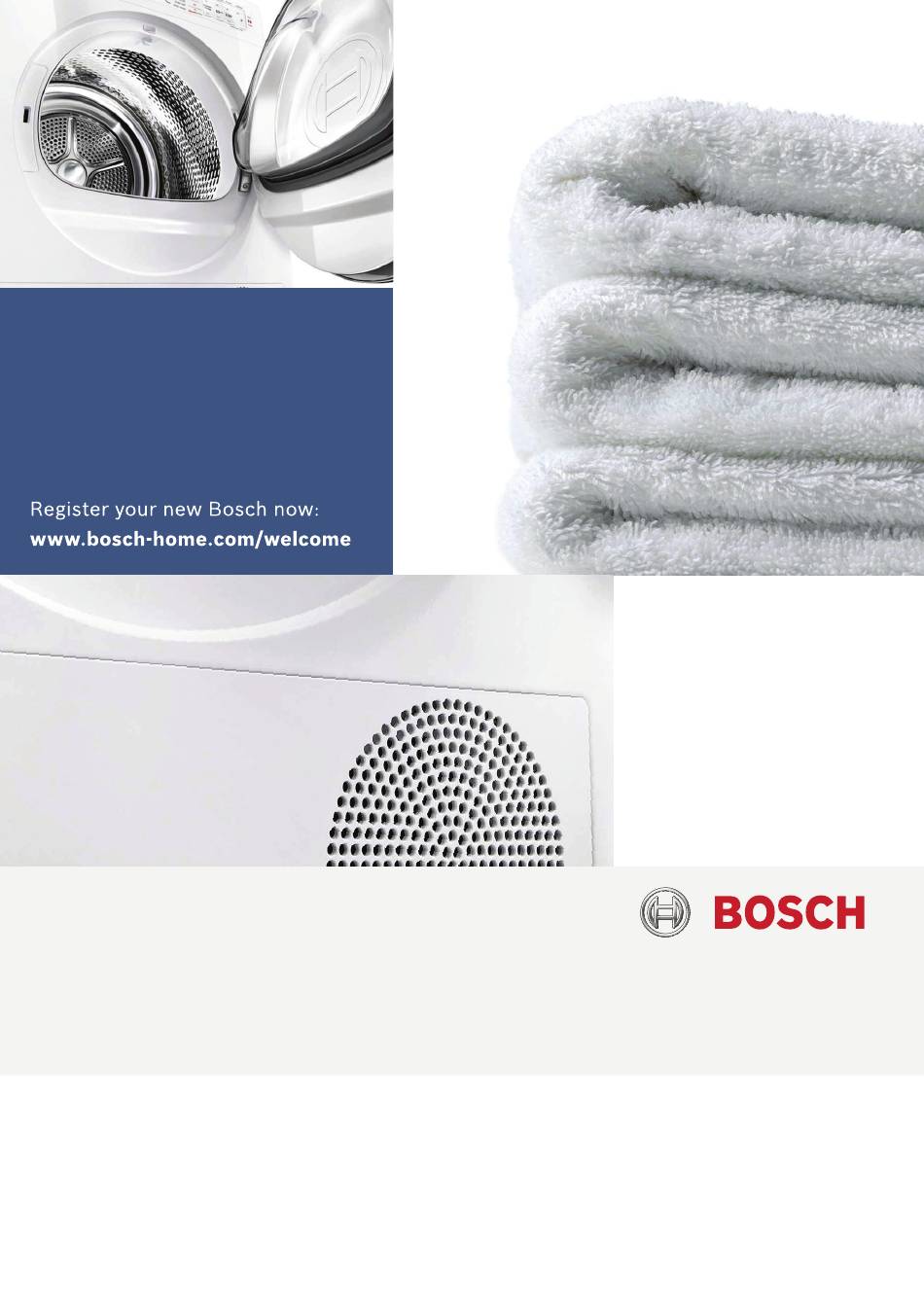

- Page 1 Tumble dryer WTW85560BY en Installation and operating instructions...
- Page 2 Caution! To meet the high quality demands required by Bosch, every tumble dryer This signal word indicates a possibly that leaves our factory is carefully dangerous situation. Not heeding the checked to ensure that it functions caution can cause property and/or correctly and is in perfect condition.
-
Page 3: Table Of Contents
Contents e n I n s t a l l a t i o n a n d o p e r a t i n g i n s t r u c t i o n s Intended use....4 Signal setting. -
Page 4: Intended Use
Intended use Intended use Safety instructions Electrical safety The dryer should: I n t e n d e d u s e S a f e t y i n s t r u c t i o n s Not be operated in outdoor areas, Warning ■... -
Page 5: Safety For Children
Safety instructions Safety for children Appliance safety Warning Warning Risk of death or injury!! Danger of death! You should therefore observe Do not use the dryer if ■ the following: industrial chemicals have Do not leave the dryer been used to clean it. ■... - Page 6 Safety instructions Caution! Risk of material damage to the dryer or fabrics. Only use the dryer for drying ■ and freshening up fabrics at home and for fabrics that have been washed with water and are suitable for tumble-drying. Any other use is not considered intended use and is prohibited.
-
Page 7: Environmental Protection
Environmental protection Energy-saving tips Environmental protection Spin the laundry before drying. The ■ drier the laundry, the shorter the drying time will be, thus consuming Packaging/old appliance less energy. E n v i r o n m e n t a l p r o t e c t i o n Load the dryer with the maximum ■... -
Page 8: The Main Points In Brief
The main points in brief The main points in brief T h e m a i n p o i n t s i n b r i e f Load the laundry and Switch the dryer on. Select a programme close the door. -
Page 9: Getting To Know Your Appliance
Getting to know your appliance Getting to know your appliance Dryer G e t t i n g t o k n o w y o u r a p p l i a n c e ( condensate container 0 Control and display panel 8 Drum interior light* @ Dryer door... -
Page 10: Control Panel
Getting to know your appliance Control panel All buttons are sensitive and only need to be touched briefly. Note: Start button for starting, interrupting Programmes. or cancelling the programme. Programme selector and On/Off but- Buttons~ Page 15. Display panel with buttons ~ Page 13. -
Page 11: Display Panel
Getting to know your appliance Display panel Buttons on the display panel Selects the childproof lock. Selects Anti-Crease. Selects Anti-Crease. Selects Low-Heat Drying. Switches the audible signal on or off. Adjusts the dryness level. The degree of dryness finely adjusts the dryness levels. -
Page 12: Laundry
Laundry Sorting washing according to: Laundry c Suitable for tumble drying P reparing the laundry a Dry at normal temperature L a u n d r y ` Dry at low temperature Warning Risk of explosion or fire! b Do not tumble-dry Remove any cigarette lighters and If you dry thin- or thick-layered fabrics or matches from pockets. -
Page 13: Programmes And Buttons
Programmes and buttons Programmes and buttons Programmes P r o g r a m m e s a n d b u t t o n s Programme and fabrics Maximum load and programme settings/info Name of the programme The maximum load is based on the dry weight of the fabrics Which fabrics is the programme suitable for? Possible programme settings... - Page 14 Programmes and buttons ‹ Shirt/Blouses 3 kg Non-iron shirts or blouses made of cotton, linen, synthetic fibres or blended fabrics 6 Duvet 2.5 kg Fabrics, pillows, quilts or bedspreads filled with synthetic fibres. Dry large items individually. Observe the care label. t Down 1.5 kg Fabrics, pillows, bedspreads or eiderdowns filled with down.
-
Page 15: Buttons
Programmes and buttons Buttons Buttons Explanations and notes Not all buttons and their functions can be selected in all programmes. Note: E child lock push You can activate or deactivate the childproof lock by pressing and holding the child- 3 sec proof lock button for three seconds. -
Page 16: Operating The Appliance
Operating the appliance Setting a programme Operating the appliance If you have activated the Note: childproof lock, you must deactivate it before you can set a programme, see Loading laundry and ~ Page 15. O p e r a t i n g t h e a p p l i a n c e switching on the dryer Select the required programme;... -
Page 17: Starting The Programme
Operating the appliance Starting the programme Programme end Press the Start button. - ‹ - appears on the display panel. If you want to lock the Note: Removing laundry and programme to prevent it from being switching off the dryer inadvertently adjusted, you can select the childproof lock, see ~ Page 15. - Page 18 Operating the appliance Remove the fluff from the recess in Dry the fluff filter, close it and reinsert the fluff filter. the two-part fluff filter. Ensure that no fluff falls into Note: Caution! the open shaft. The dryer may be damaged. Pull apart the two-part fluff filter.
-
Page 19: Emptying The Condensate Container
Operating the appliance Emptying the condensate Pour out the condensation water. container Notes You can drain the condensation ■ using an optional condensation drain leading into the waste-water system. If you drain the condensation using ■ an optional condensation drain, you do not need to empty the condensate container. -
Page 20: Signal Setting
Signal setting Changing the volume or automatic Signal setting switch-off Leave the programme selector or turn it You can change the following settings: S i g n a l s e t t i n g Position 2: Press the button for the The volume of the audible signal at ■... -
Page 21: Noises
Noises > Noises During drying, the compressor N ote: N o i s e s and pump generate some noise which is entirely normal. The compressor in the dryer may occasionally generate a humming noise. The volume of this noise varies depending on the programme and the progress of the drying. -
Page 22: Cleaning
Cleaning Cleaning the filter in the Cleaning condensate container C leaning the dryer and the The filter in the condensate Note: C l e a n i n g control panel container cleans the condensation water that is used during the dryer's Warning automatic cleaning cycle. -
Page 23: Faults And What To Do About
Faults and what to do about them Faults and what to do about them F a u l t s a n d w h a t t o d o a b o u t t h e m Faults Cause/remedy ð... - Page 24 Faults and what to do about them Faults Cause/remedy Drying time too long? The fluff filter may be dirty and cause drying to take longer. Clean the fluff ■ filter. If the air inlet on the dryer is blocked or not freely accessible, this may ■...
-
Page 25: After-Sales Service
After-sales service After-sales service After-sales service A f t e r - s a l e s s e r v i c e If you cannot rectify the fault yourself (see Faults and what to do about them), please contact our after-sales service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers. -
Page 26: Consumption Values
Consumption values Consumption values Consumption values table C o n s u m p t i o n v a l u e s Programme Spin speed which is Duration** Energy consumption** used for spinning the laundry Cottons 9 kg 4.5 kg 9 kg 4.5 kg... -
Page 27: Technical Data
Technical data Technical data Dimensions: T e c h n i c a l d a t a 85 x 60 x 60 cm Height x width x depth Weight: Approx. 57 kg Maximum load: 9 kg Condensate container: 4.6 l Connection voltage: 220 - 240 V Connected load:... -
Page 28: Installation And Connection
Installation and connection Caution! Installation and Risk of injury connection Due to the heavy weight of the dryer, ■ you may injure yourself if you lift it. Scope of delivery Do not lift the dryer on your own. I n s t a l l a t i o n a n d c o n n e c t i o n You could cut your hands on the ■... -
Page 29: Optional Accessories
Installation and connection Optional accessories Transport and frost protection Order optional accessories* from the Empty the condensate container and after-sales service: residual water from the dryer: Select any programme using the Washer/dryer stack connection set: ■ programme selector. To save space, the dryer can be Press the Start button. - Page 32 0344 892 8979 (Calls charged at local or mobile rate.) 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.) You can find the contact information for all countries in the attached after-sales service directory. Robert Bosch, Hausgeräte GmbH Carl-Wery-Straße 34 81739 München DEUTSCHLAND...
