HP Compaq dx2400 Hardware Manual

Illustrated Parts & Service Map

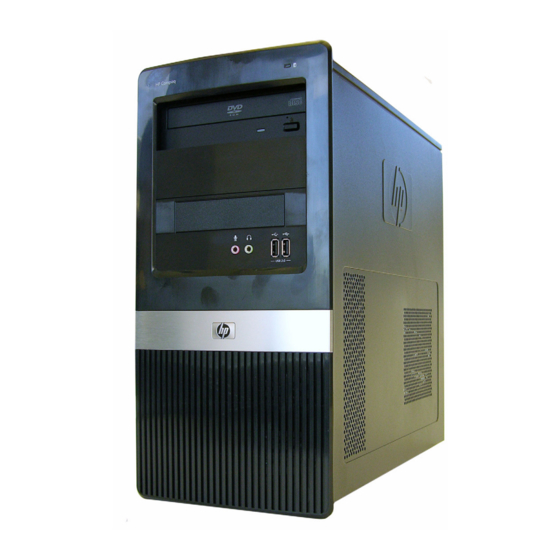

HP Compaq dx2400 Microtower Business PC
©
2008 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein. Intel, Celeron,
Core 2 Duo, Core Quad, and the Intel logo are trademarks or registered trade-
marks of the Intel Corporation and its subsidiaries in the U. S. and other coun-
tries.
Document Number 484985-001.
Key Specifications
Processor Type Intel Core 2 Duo, Pentium Dual-Core 2, Celeron,
Celeron Dual Core
RAM Type DDR2-SDRAM DIMMs, PC2-6400 (800 MHz) non-ECC
Maximum RAM Supported 4 GB
Expansion Slots •
•
•
Graphics Adapter Intel GMA 3100 integrated
Drive Support •
•
•
I/O Interfaces USB 2.0 (8), RJ-45, audio in (2), audio out, PS/2 ports (2),
VGA

Spare Parts

System Unit
1 Front bezel
2 Power supply, 300W, PFC
2 Power supply, 300W, non-PFC
3 Access panel
* 3.5-inch bezel blank - diskette drive
* 5.25-inch bezel blank
* Not shown
dx2400 Illustrated Parts & Service Map
1st Edition March 2008.
1 PCIe-x16
2 PCIe-x1
1 PCI 2.3 (full height)
(2) 5.25-inch external bays
(1) 3.5-inch external bay
(2) 3.5-inch internal bays
Cables
1 Power switch/LED cable assembly
2 SATA cable, 6.5 inch, latch on end
* SATA cable, 10 inch, 2 straight ends
* SATA hard drive cable, 4 inch, latch on end
* DMS-59 to dual VGA cable
* Modem cable - see modem cable adapters in Misc Parts section
* Adapter, DVI-I to VGA
* Diskette drive cable
*Not shown
Keyboards (not illustrated)
PS/2, Basic
USB, Basic
Arabic
Belgian
BHCSY
Czech
Danish
Finnish
French
French Arabic
French Canadian
German
Greek
Hebrew
Hungarian
International
464575-001
463317-001
463318-001
464597-001
459913-001
335937-001 DIMM Population
Item Description
1 DIMM socket XMM1, Channel A (populate first)
2 DIMM socket XMM2, Channel A
3 DIMM socket XMM3, Channel B (populate second)
4 DIMM socket XMM4, Channel B
NOTE: A DIMM must occupy the XMM1 socket.
484985-001
435302-xxx
435382-xxx
-171 Italian
-181 LA Spanish
-B41 Norwegian
-221 Portuguese
-081 Romanian
-351 Russian
-051 Slovakian
-DE1 Spanish
-121 Swedish
-041 Swiss
-151 Thai
-BB1 Turkish "Q"
-211 U.S.
-B31 U.K.
Socket Color
Black
Blue
Black
Blue
464574-001
448670-001
392307-001
449283-001
463023-001
198220-001
202997-001
395967-001
-061
-161
-091
-131
-271
-251
-231
-071
-101
-111
-281
-141
-001
-031
