Pin Assignments and Signal Levels

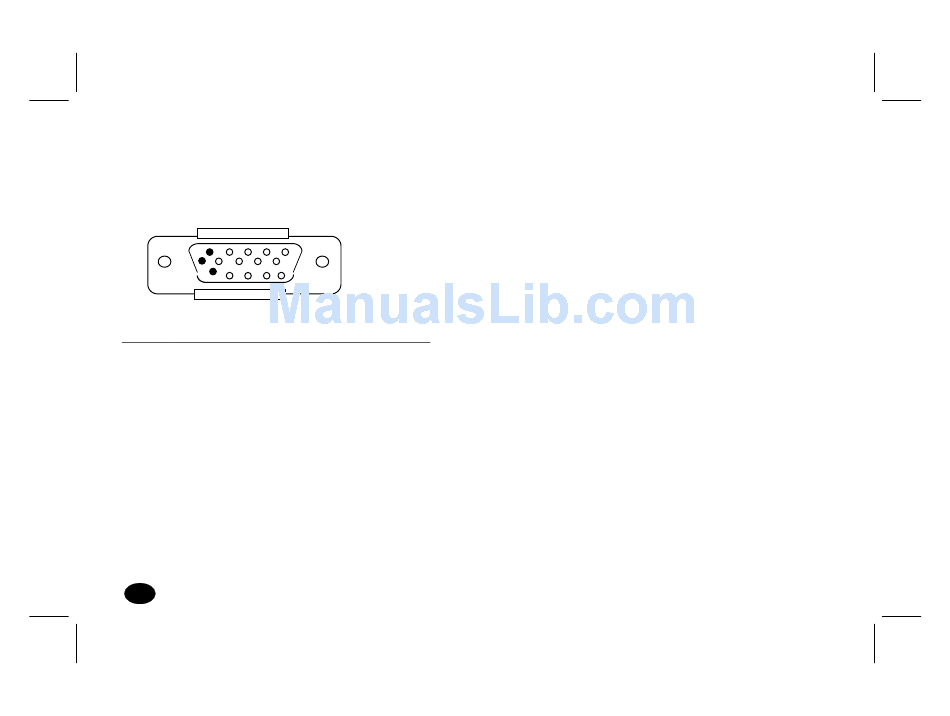

15-Pin D-SUB male video connector
1
6
11
PIN NO. SIGNAL PIN NO. SIGNAL
1 RED 9
2 GREEN 10
3 BLUE 11
4 DIGITAL GROUND 12
5 RETURN (DDC2B) 13
6 GROUND 14
7 GROUND 15
8 GROUND
14
S70 Monitor Guide
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc.
Revision #: 6 Page: 14 of 28 Printed: 05/13/99 11:33 AM
SIGNAL LEVEL
Note:
+5V FROM PC
DIGITAL GROUND
MONITOR SENSE1
SDA (DDC1/2B)
H. SYNC.
V. SYNC.
SCL (DDC2B)
Last Saved By: WASSER, Inc.
The signal level at pin 1,2,3 is 0.7 Vp-p.
The signal level at pin 13,14 is 5 Vp-p.
