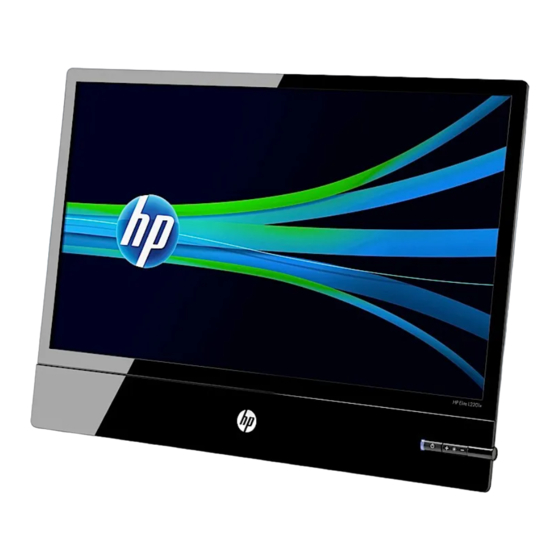

- Page 1 HP Elite L2201x 21.5-inch LED Backlit LCD Monitor User Guide...
- Page 2 Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
-
Page 3: About This Guide
About This Guide This guide provides information on setting up the monitor, installing drivers, troubleshooting and technical specifications. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. - Page 4 About This Guide ENWW...
-
Page 5: Table Of Contents
Table of contents 1 Product Features ... 1 HP Elite L2201x 21.5-inch LED Backlit LCD Monitor ... 1 2 Safety and Maintenance Guidelines ... 2 Important Safety Information ... 2 Maintenance Guidelines ... 2 Cleaning the Monitor ... 3 Shipping the Monitor ... 3 3 Setting Up the Monitor ... - Page 6 ENERGY STAR® Qualification ... 19 Materials Disposal ... 19 Disposal of Waste Equipment by Users in Private Household in the European Union ... 20 HP Recycling Program ... 20 Chemical Substances ... 20 Restriction of Hazardous Substances (RoHS) ... 20 Turkey EEE Regulation ...
-
Page 7: Product Features
The LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) panel. The monitor models and features include: ● L2201x model, 54.6 cm (21.5-inch) diagonal viewable area display with 1920 x 1080 resolution ● Non-glare panel with a LED backlight that provides better clarity and consumes less energy than traditional CCFL backlights ●... -
Page 8: Safety And Maintenance Guidelines
Damage Replacement Policy so you can replace the equipment, if surge protection fails. Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor. WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause personal injury. -
Page 9: Cleaning The Monitor
● Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord. ● Turn the monitor off when not in use. You can substantially increase the life expectancy of the monitor by using a screen saver program and turning off the monitor when not in use. -
Page 10: Setting Up The Monitor
Setting Up the Monitor To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below. Extending the Monitor Stand Lift the monitor from its box and place it face down on a flat surface. -
Page 11: Side Components
Side Components Figure 3-2 Side Components Component DisplayPort DC Power Jack ENWW Function Connects the DisplayPort cable to the monitor. Connects the power cord to the monitor. Side Components... -
Page 12: Connecting The Cables
Connecting the DisplayPort Cable Connect the power cord attached to the power supply brick to the power connector on the side of the monitor (1), and connect the other power cord between the power supply brick (2) and an electrical wall outlet (3). -
Page 13: Adjusting The Tilt
Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug. Adjusting the Tilt Tilt the monitor's panel upward to set it to a comfortable eye level. Figure 3-5 Tilting the Monitor... -
Page 14: Turning On The Monitor
The rating labels on the monitor provide the spare part number, product number, and serial number. You may need these numbers when contacting HP about the monitor model. The rating labels are located on the rear panel of the monitor display head. -
Page 15: Operating The Monitor
● additional software for the monitor model NOTE: If the monitor does not include a CD, the .INF and .ICM files can be downloaded from the HP monitors support Web site. See The Information File The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure monitor compatibility with the computer’s graphics adapter. -
Page 16: Installing The .Inf And .Icm Files
CD in the event of an installation error. Refer to the Monitor Driver Software Readme file on the CD. Downloading from the Internet To download the latest version of .INF and .ICM files from the HP monitors support Web site: Refer to http://www.hp.com/support... -
Page 17: Front Panel Controls
Figure 4-1 Monitor Front Panel Controls Table 4-1 Monitor Front Panel Controls Control NOTE: The monitor does not support an On-screen Display (OSD) menu. ENWW Function Power LED White = Fully powered. Amber = Sleep mode. Flashing Amber = Error mode (non-supported display resolution). -
Page 18: Appendix A Troubleshooting
If the power source LED on the rear of the monitor is on but the monitor will not power on, contact your HP service provider to replace the monitor. Power failure. The monitor is not receiving power. Ensure that the monitor is plugged into a working electrical outlet. - Page 19 ● Purchase date on invoice ● Conditions under which the problem occurred ● Error messages received ● Hardware configuration ● Name and version of the hardware and software you are using ENWW Preparing to Call Technical Support...
-
Page 20: Appendix B Technical Specifications
Technical Specifications NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. L2201x Model Table B-1 L2201x Specifications Display Type Viewable Image Size Tilt Maximum Weight (Unpacked) Dimensions Height Width... -
Page 21: Energy Saver Feature
There is a brief warm up period before the monitor will return to its normal operating mode. -
Page 22: Appendix C Agency Regulatory Notices
This device must accept any interference received, including interference that may cause undesired operation. For questions regarding the product, contact: Hewlett Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800-HP-INVENT (1-800 474-6836) Appendix C Agency Regulatory Notices ENWW... -
Page 23: Canadian Notice
Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family and available (in English only) either within the product documentation or at the following web site: http://www.hp.eu/certificates... -
Page 24: German Ergonomics Notice
0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact an authorized HP service provider. -
Page 25: Product Environmental Notices
STAR® Power Management Web site at http://www.energystar.gov/powermanagement. Materials Disposal Some HP LCD monitors contain mercury in the fluorescent lamps that might require special handling at end-of-life. Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact the local authorities or the Electronic Industries Alliance (EIA) http://www.eiae.org. -
Page 26: Disposal Of Waste Equipment By Users In Private Household In The European Union
Chemical Substances HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and Council). A chemical information report for this product can be found at http://www.hp.com/go/reach. -
Page 27: Turkey Eee Regulation
Turkey EEE Regulation In Conformity with the EEE Regulation EEE Yönetmeliğine Uygundur Ukraine Restriction of Hazardous Substances The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 No1057, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment. -
Page 28: Appendix D Lcd Monitor Quality And Pixel Policy
This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.
