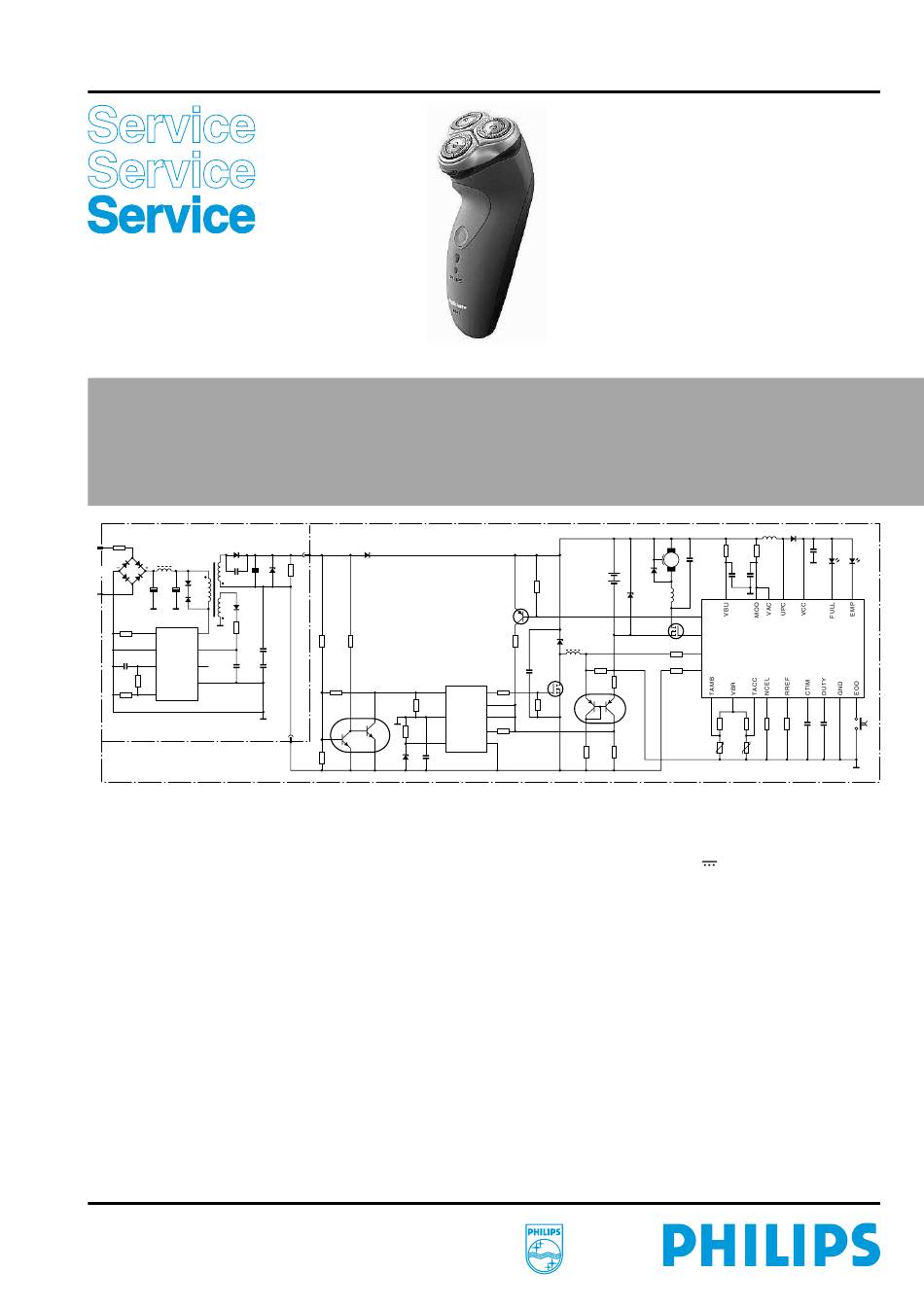

Philips HQ 6852/A Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
R1
D3
T1
L1
C7
Mains D4
C8
D1
C1 C2
D2
D5
IC3
R5
R2
1 8
SRC DRN
2 5
GND VAUX
C4
3 7
C3
CBT NC
6
R6
GND
R4
4
RREF
Power plug
Power module
TIPS FOR REPAIR
- Remove the shaving unit to prevent damage during repair.
- Remove screws A1 (2x, of which 1 is under trimmer slide).
- After the cover (item 27) has been removed, it must be
checked if the rubber seal (item 3) has not been damaged.
- The cover contains a sticker that is permeable to gas
yet impermeable to water.
This sticker may nor be removed under any circumstances.
- Remove the metal brackets.
- Unsolder the motor connector and remove the PCB.
- To replace the motor (item 20) or the driving unit (item 16),
screws B1 must be removed fi rst.
- Then push the entire unit out of the housing (item 2) and
check if its sealing is damaged.
- Detach the motor clamping springs (item 21) with a small
screwdriver.
- The entire driving unit (item 16) is supplied as a single part
to guarantee optimal sealing of the gear shafts.
- To guarantee that the shaver is completely watertight, only
the original screws may be used.
- To charge the shaver only the original HQ6000 power plug
may be used.
Published by Philips Domestic Appliances and Personal Care
4322 277 00595
01/04
D1
R3
D6
R1 R4
C6
C5
R3
4
R5
TS1 8
R23
5
D3 C2
R2
Rechargeable shaver
A
NiMH
R15
2 x AA
TS3
R6 D2
L1
C1
MF1 R9
IC1
R11
R7
3
TS2
R Q
6
R24
TH
2
VCC TR
R8
7
DIS
1
CV GND
R10 R12
TECHNICAL DATA
Input voltage
Power consumption
Motor voltage
Battery
Battery capacity
Charging indicator
Charging time
Charging current
Power supply
Shaving heads
Cleaning
Comfort control
Mains shaving
SAP CODING
Printed in the Netherlands © Copyright reserved
HQ 6852/A
QUADRA ACTION
L2 D6
R22 R25
PM C8
C5
D43
C3
17 2 16 15 14
D7 L3
5
DIS
MF2
4
SMOT
R14
IC2
12
RREG
R13
1
MAINS
8 7 6 18 19 20 11
R17
R16
C6
R20 R21
R19 R18
: 100-240 V, 50/60 Hz
: max. 7 W
: 2.4 V
: 2x NiMH AA
: approx. 1100 mAh
: 1x LED green - charge / full
: 1x LED red - battery low
: approx. 1 hour
: initial 4 hours
: 1100/40 mA temp. dependent
: HQ6000 external transformer
: HQ6010 car cord
: HQ6 - 4822 690 10214
: wet / dry
: fi xed setting
: 3-D contour following
: yes
: HQ6852
Subject to modification
C4
D4 D5
9 10
13 3
C7
SK1
