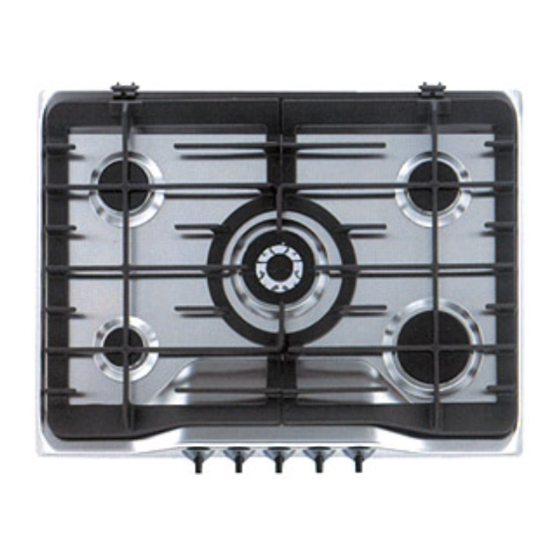

- Page 1 GAS HOB ZGF782C INSTRUCTION BOOKLET Please read this instruction booklet before using the appliance...
-
Page 2: Important Safety Information
Important Safety Information You MUST read hese warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department on 08705 727727 Service Installation Environmental Information Child Safety Keep this instruction book for future reference and ensure it is passed on to any new owner. -
Page 3: Table Of Contents
Contents For the Installer For the User Important Safety Information Instructions for the Installer Description of the Hob Important safety requirements Operation Installation Building In Maintenance and Cleaning Something Not Working? Electrical connections Guarantee Conditions Wiring Diagram Fault Finding Commissioning Conversion from Natural Gas to LPG Description of the Hob... -
Page 4: Operation
Operation Hob burners If you use a saucepan which is smaller than the recommended size, the flame will spread beyond the bottom of the vessel, causing the handle to overheat. Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite. -
Page 5: Something Not Working
Cast Iron Pan Supports Fig. 1 Something Not Working? SYMPTOM SOLUTION In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. -
Page 6: Guarantee Conditions
Service and Spare Parts Customer Care Department 0870 5 929929 Customer Care Department Guarantee Conditions Zanussi Guarantee conditions European Guarantee 8.30am and 5.30pm premium Exclusions This guarantee does not cover:... -
Page 7: Instructions For The Installer
Instructions for the Installer Ignition HT Spark Engineers technical data OVERALL DIMENSIONS Rear Left Burner (semi rapid) CUT OUT DIMENSIONS Front Left Burner (auxiliary) Rear Right Burner (semi rapid) SUPPLY CONNECTIONS Gas: Front Right Burner (rapid) Electric: Central Burner (Ultra-rapid Triple-crown) BURNER RAPID SEMI-RAPID... -
Page 8: Important Safety Requirements
Important safety requirements FITTING THE GAS HOB WITHOUT A COOKER HOOD ABOVE 700 mm 400 mm 400 mm FO 2369* FITTING THE GAS HOB Location WITH A COOKER HOOD ABOVE 700 mm 400 mm 400 mm FO 2231*... -
Page 9: Installation
Installation IMPORTANT: qualified personnel WHEN THE HOB IS FIRST INSTALLED FO 0814 FO 0264 Gas Connection Cut Out Size Rectangular cut-out size for hob 150 min FO 2038... -
Page 10: Building In
Building In Building over a cupboard or Building over a kitchen unit with drawer door ON/OFF SWITCH ON/OFF SWITCH FLEX OUTLET FLEX OUTLET 2564 FO 2563 FO 2044 Fitting the Hob into the worktop FO 2039... -
Page 11: Electrical Connections
Seal FO 0199 Electrical connections Permanent Connection THIS HOB MUST BE EARTHED. The manufacturer declines any liability should these safety measures not be observed. Ensure that the hob supply cord does not This hob is designed to be connected to a 230-240V come into contact with surfaces with 50Hz AC electrical supply. -
Page 12: Wiring Diagram
Wiring Diagram A. IGNITOR SWITCH B. IGNITOR UNIT 220/240 Fault Finding Preliminary Electrical Systems PLUG (with cover SOCKET Check removed) (face view) Earth Wire Blue Green/Yellow Brown Green Yellow START Isolate appliance Neutral Wire and carry out: Blue A: Earth Continuity check. - Page 13 Ignition System / Gas Ignition Check gas supply at Ignitor does not spark burner Check plug top fuse Light burner manually replace if necessary Check polarity and Check by pass simmer earth continuity of adjusted supply point Check position of the Check earth continuity electrode of appliance...
-
Page 14: Commissioning
Commissioning Procedure: Pressure Testing Minimum adjustment screw Conversion from Natural Gas to LPG To adjust the gas rate Method IMPORTANT... - Page 16 CUSTOMER CARE Zanussi © From the Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
