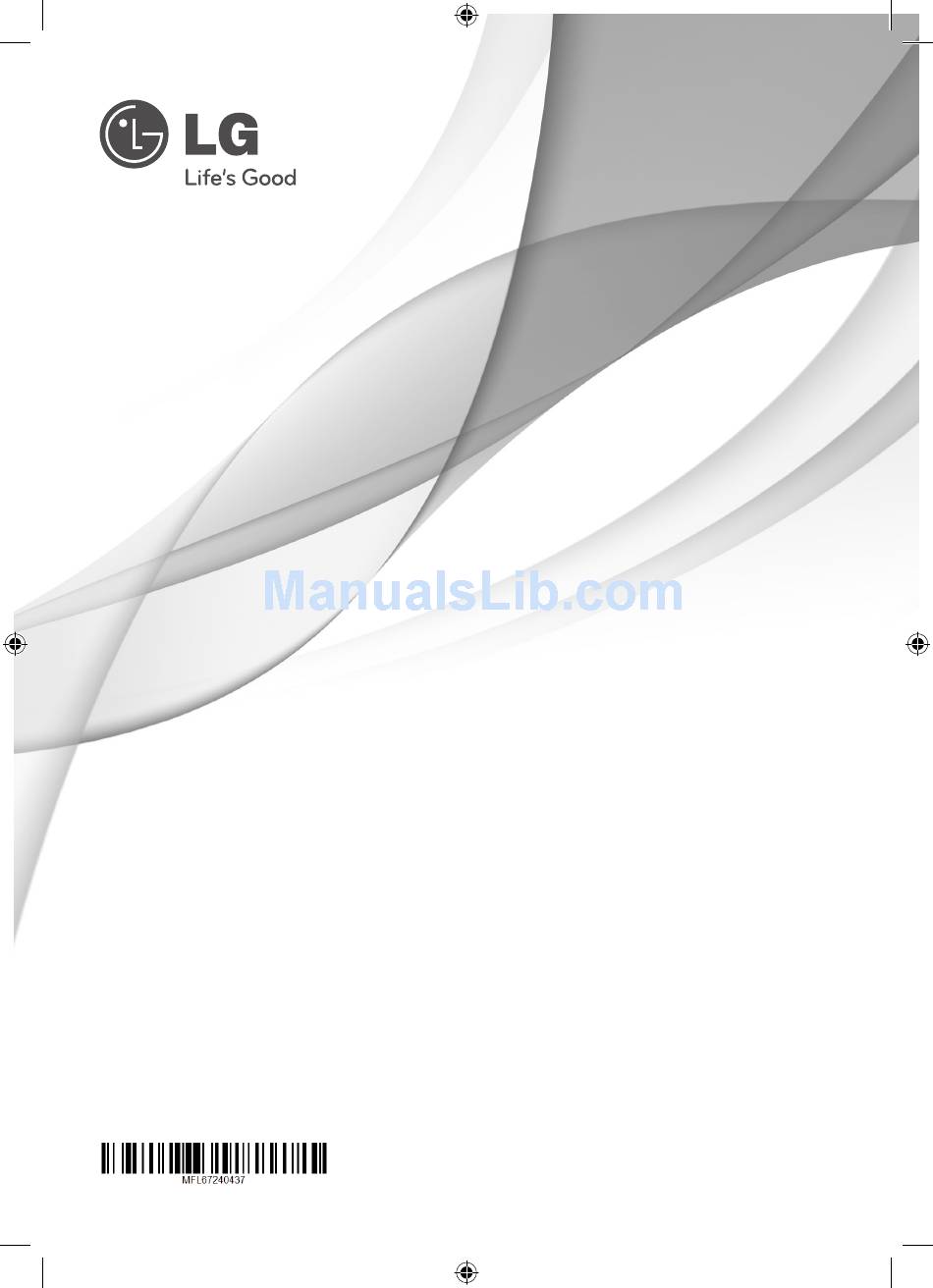

- Page 1 OWNER’S MANUAL Speaker Sound Bar Please read this manual carefully before operating your set and retain it for future reference. LSB306 www.lg.com HLS26W-NB_DUSALLK_ENG_0437.indd 1 2011-08-26 10:17:35...
-
Page 2: Safety Information
Getting Started Safety Information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: Do not install this equipment in a confined space such as a book case or similar unit. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The... -
Page 3: Important Safety
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution... -
Page 4: Table Of Contents
Table of Contents Table of Contents Getting Started Safety Information Unique Features – Portable In – Speaker ez (easy) Setup Accessories Introduction – Symbols Used in this Manual Playable file – MP3/ WMA music file requirement Remote control Front panel Rear panel Connecting Mounting the main unit on a wall... - Page 5 Troubleshooting Troubleshooting Appendix Maintenance – Handling the Unit Trademarks and Licenses Specifications Warranty Warranty HLS26W-NB_DUSALLK_ENG_0437.indd 5 Table of Contents 2011-08-26 10:17:35...
-
Page 6: Unique Features
Getting Started Unique Features Portable In Listen to music from your portable device. (MP3, Notebook, etc) Speaker ez (easy) Setup Listen to sounds from TV, DVD or Digital device with vivid 2.0 ch mode. HLS26W-NB_DUSALLK_ENG_0437.indd 6 Accessories Please check and identify the supplied accessories. Remote control (1) Batteries (2) WALL BRACKET Wall bracket (1) INSTALL GUIDE (1) Optical cable (1) 2011-08-26 10:17:36... -
Page 7: Introduction
Introduction Symbols Used in this Manual Note Indicates special notes and operating features. Indicates tip and hints for making the task easier. > Caution Indicates cautions for preventing possible damages from abuse. HLS26W-NB_DUSALLK_ENG_0437.indd 7 Getting Started Playable file MP3/ WMA music file requirement MP3/ WMA file compatibility with this unit is limited as follows : y Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) y Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA) y Maximum files : Under 999 y File extensions : “.mp3”/ “.wma” 2011-08-26 10:17:36... -
Page 8: Remote Control
Getting Started Remote control Battery Installation Remove the battery cover on the rear of the Remote Control, and insert two (size AAA) battery with and matched correctly. HLS26W-NB_DUSALLK_ENG_0437.indd 8 • • • • • • • • • • a • • • • • • • • • 1 POWER: Switches the unit ON or OFF. AV SYNC: Synchronizes the audio and video. DOLBY DRC: Sets the Dobly DRC. MUTE: Mutes the sound. • • • • • • • • • • b • • • • • • • • • FOLDER: Searches for a folder of MP3/ WMA files. -
Page 9: Front Panel
Front panel A Display B USB Port C F FUNCTION Press it repeatedly to select other function. Rear panel A PORT. (Portable) IN HLS26W-NB_DUSALLK_ENG_0437.indd 9 D I STOP E T PLAY / PAUSE F – VOL + Adjusts speaker volume. G 1 STANDBY/ON B OPTICAL IN 1/ 2 Getting Started 2011-08-26 10:17:37... -
Page 10: Connecting
Connecting Mounting the main unit on a wall You can mount the main unit on a wall. Prepare screws and brackets. Preperation Unit WALL BRACKET INSTALL GUIDE 1. Match the TV’s BOTTOM EDGE of WALL BRACKET INSTALL GUIDE with the bottom of TV and attach to the position. Step 1 HLS26W-NB_DUSALLK_ENG_0437.indd 10 2. When you mount it on a wall (concrete), use the wall plugs (Not supplied). You should drill some holes. A guide sheet (WALL BRACKET INSTALL GUIDE) is supplied to drill. Use the sheet to check the point to drill. Step 2 Wall bracket Note Screws and Wall Plugs are not supplied for mounting the unit. We recommend the Hilti (HUD-1 6 x 30) for the mounting. Please purchase it. 2011-08-26 10:17:37... - Page 11 3. Remove the WALL BRACKET INSTALL GUIDE. 4. Fix it with screws (not supplied) as shown in the illustration below. Step 4 Note Detach the unit from the bracket as shown below. HLS26W-NB_DUSALLK_ENG_0437.indd 11 Connecting 5. Hang the main unit onto the bracket as shown below. Step 5 Note You can arrange power cord cable with the bracket as shown below. Power cord cable Power cord cable > Caution y Do not hang onto the installed unit and avoid any impact to the unit. y Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may result in an injury or damage to the product. y When the unit is installed on a wall, please make sure that a child does not pull any of connecting cables, as it may cause it to fall. 2011-08-26 10:17:38...
-
Page 12: Optional Equipment Connection
Connecting Optional Equipment Connection AUDIO (PORT. IN) In Connection PORT.IN Connection MP3 player, etc... Listening to music from your portable player The unit can be used to play the music from many types of portable player or external devices. 1. Connect the portable player to the AUDIO (PORT. IN) IN connector of the unit. 2. Turn the power on by pressing 1 POWER. 3. Select the PORTABLE function by pressing INPUT. 4. Turn on the portable player or external device and start playing it. HLS26W-NB_DUSALLK_ENG_0437.indd 12 OPTICAL In connection Connect an optical output of Unit (or Digital Device etc) to the OPTICAL IN 1/ 2 connector. OPTICAL IN Connection To the digital optical output jack of your component Speaker ez (easy) setup... -
Page 13: Usb Playback
USB Playback Insert USB memory device to the USB port on the front of the unit. USB Connection Removing the USB Device from the unit. 1. Choose a different function mode or press I STOP twice in a row. 2. Remove the USB device from the unit. HLS26W-NB_DUSALLK_ENG_0437.indd 13 Connecting Compatible USB Devices y MP3 Player : Flash type MP3 player. y USB Flash Drive : D evices that support USB2.0 or USB1.1. y The USB function of this unit does not support some USB devices. USB device requirement y Devices which require additional program installation connected to a computer, are not supported. y Do not extract the USB device while in operation. y For a large capacity USB, it may take longer than a few minutes to be searched. -
Page 14: Operating
Operating Basic Operations USB Operation 1. Connect the USB device to the USB port. 2. Select the USB function by pressing INPUT. 3. Select a file you want to play by pressing C or V. Stop Press Z Playback Press d/M Press d/M Pause During playback, press C or V to go to the next file Skipping to the or to return to the beginning next/ previous of the current file. file Press C twice briefly to step back to the previous file. Press REPEAT on the remote Playing control repeatedly, the display repeatedly or change in the following order, randomly RPT 1 RPT D (DIRECTORY) RPT ALL RANDOM OFF. Press 0 to 9 numerical buttons on the remote Selecting files... -
Page 15: Sleep Timer Setting
Sleep Timer Setting Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the unit will turn off. To check the remaining time, press SLEEP. To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press SLEEP once again while “SLEEP 10” is displayed. Note You can check the remaining time before the Unit turns off. Press SLEEP The remaining time appears in the display window. Dimmer Press SLEEP once. The display window will be darken by half. To cancel it, press SLEEP repeatedly until dim off. Turn off the sound temporarily Press MUTE to mute your unit. You can mute your unit in order, for example, to answer the telephone, appearing the display window. HLS26W-NB_DUSALLK_ENG_0437.indd 15 Displaying file and input source You can display various information on the USB and OPTICAL IN 1/ 2 mode by pressing INFO.. USB : MP3/ WMA containing file information OPTICAL IN 1/ 2 : Audio format, Audio channel in the Operating 2011-08-26... -
Page 16: Sound Adjustment
Operating Sound adjustment Setting the surround mode This system has a number of pre-set surround sound fields. You can select a desired sound mode by using SOUND EFFECT. The displayed items for the equalizer may be different depending on sound sources and effects. On Display You can enjoy comfortable NATURAL and natural sound. You can enjoy the sound BYPASS without equalizer effect. The BASS is Bass Blast. During playback, reinforce the treble, BASS bass and surround sound effect. The CLRVOICE is Clear Voice. This program make voice sound clear, improving the CLRVOICE quality of voice sound. (We encourage to use this EQ when you watch the movie of 5.1 channel.) The VIRTUAL is VSM Plus. VIRTUAL You can enjoy more virtual surround sound. The GAME is Game Equalizer. You can enjoy more virtual GAME sound while playing video games. -
Page 17: Using Bluetooth Technology
Pairing your unit and Bluetooth device Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device’s user guide. Once a pairing operation is performed, it does not need to be performed again. 1. Select the Bluetooth function by using the INPUT. Appears “BT” and then “BT READY” in display window. 2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device.Your unit appears as “LG AUDIO”. 3. Enter the PIN code. PIN code : 0000 4. When this unit successfully paired with your Bluetooth device, Bluetooth LED of this unit lights up and appears “PAIRED”. Note y Depending on the Bluetooth device type, some device have a different pairing way. y This function is recommended to use to listening to music. While using Bluetooth headset, sound and images may not be matched depending on the wireless environment or the connection conditions. 5. Listen to music. To play a music stored on your Bluetooth device, refer to your Bluetooth device’s user guide. -
Page 18: Listening To Sound Through The Bluetooth Devices
Operating Listening to sound through the Bluetooth devices Pairing your unit and Bluetooth device Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device’s user guide. Once a pairing operation is performed, it does not need to be performed again. 1. Select a function other than the Bluetooth function by using the INPUT. 2. Place the Bluetooth device to be connected to this unit within 3 feet of the unit. 3. Put the Bluetooth device in pairing mode. Refer to your Bluetooth device’s user guide. 4. Press and hold BLUETOOTH. Appears “INQUIRY”. If searched Bluetooth is only one, pairing the unit. Refer the step 7. 5. Appears depending on type of Bluetooth devices in display window . 6. Select a Bluetooth device you want to connect by using WS FOLDER and press Z (STOP). 7. Enter the PIN code by using numberical buttons. -
Page 19: Checking The Information Of Connected Bluetooth Device
Checking the information of connected Bluetooth device This function is operated after pairing. You can check the Bluetooth information. Press and hold INFO. repeatedly. Bluetooth information is changed as follows. Local Bluetooth Device Address None ... HLS26W-NB_DUSALLK_ENG_0437.indd 19 Note y This units does not be supported the Mono Headset Profile (Hands Free Profile) y The sound may be interrupted when the connection interfered by the other electronic wave. y You cannot control the Bluetooth device Device Name with this unit. y Pairing is limited one Bluetooth device per one unit and multi-pairing is not supported. y Although the distance between your Bluetooth and the set is less than 10m, there are obstacles between both, your Bluetooth device cannot be connected. y Depending on the type of the device, you may not be able to use the Bluetooth function. y You can enjoy wireless system using phone, MP3, Notebook, headset, etc.. -
Page 20: Controlling A Tv With The Supplied Remote Control
Operating Controlling a TV with the Supplied Remote Control You can control your TV using the buttons below. Button Operation 1 (TV POWER) Turn the TV on or off. Switch the TV’s input source AV/INPUT between the TV and other input sources. Adjust the volume of the VOL +/– Scan up or down through PR/CH W/S memorized channels. Note Depending on the unit being connected, you may not be able to control your TV using some of the buttons. HLS26W-NB_DUSALLK_ENG_0437.indd 20 Setting up the remote to control your TV You can operate your TV with the supplied remote control. -
Page 21: Troubleshooting
Troubleshooting PROBLEM Plug in the power cord. No Power Check the condition by operating other electronic devices. Press FUNCTION and check the selected function. No sound The remote control is too far from the unit. Operate the remote control within about 23 ft (7m). The remote There is an obstacle in the path of the remote control and the unit. control does Remove the obstacle. not work properly. The battery in the remote control is exhausted. Replace the battery with new one. HLS26W-NB_DUSALLK_ENG_0437.indd 21 Troubleshooting CORRECTION 2011-08-26 10:17:39... -
Page 22: Appendix
Appendix Maintenance Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit. y Wiping with strong pressure may damage the surface. y Do not leave rubber or plastic products in contact with the unit for a long period of time. Cleaning the unit To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. HLS26W-NB_DUSALLK_ENG_0437.indd 22 2011-08-26 10:17:39... -
Page 23: Trademarks And Licenses
Trademarks and Licenses Manufactured under license from Dolby Labo- ratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max. range of 10 meters. Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless tech- nology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. HLS26W-NB_DUSALLK_ENG_0437.indd 23 ® Appendix 2011-08-26 10:17:39... -
Page 24: Specifications
Appendix Specifications General Power requirements Power consumption Dimensions (W x H x D) Net Weight (Approx.) Operating temperature Operating humidity Bus Power Supply (USB) Inputs DIGITAL IN (OPTICAL IN) PORT. IN Amplifier Stereo mode Designs and specifications are subject to change without prior notice. HLS26W-NB_DUSALLK_ENG_0437.indd 24 Refer to main label. Refer to main label. (39 x 3 x 2) inches without foot 5.1 lbs 41 °F to 95 °F (5 °C to 35 °C) 5 % to 90 % DC 5 V 0 500 mA 3 V (p-p), Optical jack x 2 0.5Vrms (3.5 mm stereo jack) 70 W + 70 W (4 Ω at 1 kHz) 2011-08-26 10:17:39... -
Page 25: Warranty
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG ELECTRONICS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY... - Page 26 1-800-243-0000 1-888-865-3026 Printed in China HLS26W-NB_DUSALLK_ENG_0437.indd 26 LG Customer Information Center USA, Consumer USA, Commercial Register your product Online! www.lg.com 2011-08-26 10:17:39...
