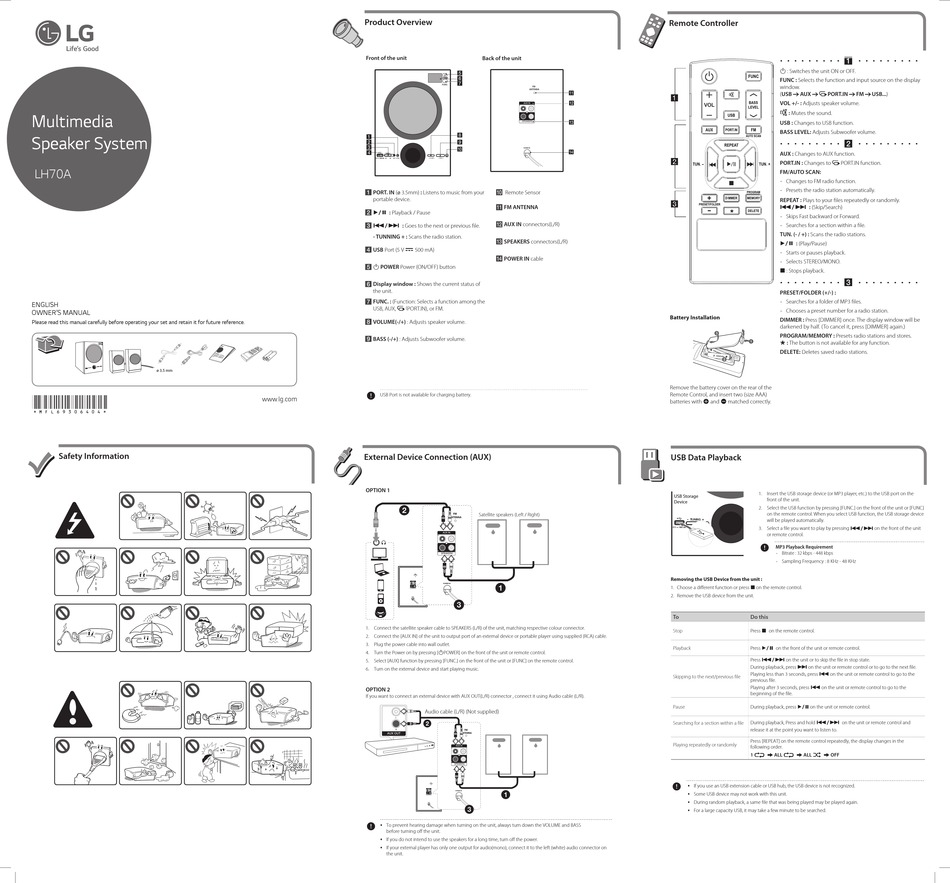

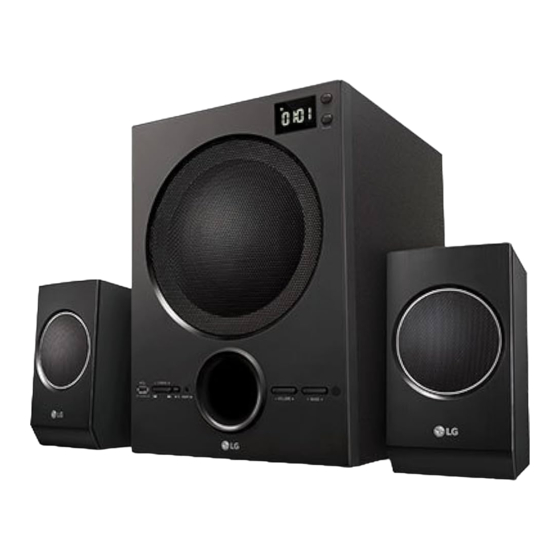

LG LH70A Owner's Manual

Multimedia
Speaker System
LH70A
ENGLISH
OWNER'S MANUAL
Please read this manual carefully before operating your set and retain it for future reference.
ø 3.5 mm
*MFL69306404*
Safety Information
Product Overview
Front of the unit
a
b
c
d
PORT. IN (ø 3.5mm) : Listens to music from your
a
portable device.
d/M : Playback / Pause
b
C/V : Goes to the next or previous file.
c
- TUNNING + : Scans the radio station.
d USB Port (5 V 0 500 mA)
e 1 POWER Power (ON/OFF) button
f Display window : Shows the current status of
the unit.
FUNC. : (Function: Selects a function among the
g
(
USB, AUX, PORT.IN), or FM.
VOLUME(-/+) : Adjusts speaker volume.
h
i BASS (-/+) : Adjusts Subwoofer volume.
,
USB Port is not available for charging battery.
www.lg.com
External Device Connection (AUX)
OPTION 1
FM
ANTENNA
1. Connect the satellite speaker cable to SPEAKERS (L/R) of the unit, matching respective colour connector.
2. Connect the [AUX IN] of the unit to output port of an external device or portable player using supplied (RCA) cable.
3. Plug the power cable into wall outlet.
4. Turn the Power on by pressing [1POWER] on the front of the unit or remote control.
5. Select [AUX] function by pressing [FUNC.] on the front of the unit or [FUNC] on the remote control.
6. Turn on the external device and start playing music.
OPTION 2
If you want to connect an external device with AUX OUT(L/R) connector , connect it using Audio cable (L/R).
Audio cable (L/R) (Not supplied)
FM
ANTENNA
,
y To prevent hearing damage when turning on the unit, always turn down the VOLUME and BASS
before turning off the unit.
y If you do not intend to use the speakers for a long time, turn off the power.
y If your external player has only one output for audio(mono), connect it to the left (white) audio connector on
the unit.
Back of the unit
e
f
g
FM
ANTENNA
k
l
m
h
i
j
n
Remote Sensor
j
FM ANTENNA
k
AUX IN connectors(L/R)
l
SPEAKERS connectors(L/R)
m
POWER IN cable
n
FM Satellite speakers (Left / Right)
ANTENNA
FM
ANTENNA
Remote Controller
• • • • • • • • • a • • • • • • • • •
1 : Switches the unit ON or OFF.
FUNC : Selects the function and input source on the display
window.
(USB AUX PORT.IN
a
VOL +/- : Adjusts speaker volume.
: Mutes the sound.
USB : Changes to USB function.
BASS LEVEL: Adjusts Subwoofer volume.
• • • • • • • • • b • • • • • • • • •
AUX : Changes to AUX function.
b
PORT.IN : Changes to PORT.IN function.
FM/AUTO SCAN:
- Changes to FM radio function.
- Presets the radio station automatically.
REPEAT : Plays to your files repeatedly or randomly.
c
C/V : (Skip/Search)
- Skips Fast backward or Forward.
- Searches for a section within a file.
TUN. (- / +) : Scans the radio stations.
d/M : (Play/Pause)
- Starts or pauses playback.
- Selects STEREO/MONO.
Z : Stops playback.
• • • • • • • • • c • • • • • • • • •
PRESET/FOLDER (+/-) :
- Searches for a folder of MP3 files.
- Chooses a preset number for a radio station.
Battery Installation
DIMMER : Press [DIMMER] once. The display window will be
darkened by half. (To cancel it, press [DIMMER] again.)
PROGRAM/MEMORY : Presets radio stations and stores.
? : The button is not available for any function.
DELETE: Deletes saved radio stations.
Remove the battery cover on the rear of the
Remote Control, and insert two (size AAA)
batteries with 4 and 5 matched correctly.
USB Data Playback
1. Insert the USB storage device (or MP3 player, etc.) to the USB port on the
USB Storage
front of the unit.
Device
2. Select the USB function by pressing [FUNC.] on the front of the unit or [FUNC]
on the remote control. When you select USB function, the USB storage device
will be played automatically.
3. Select a file you want to play by pressing C/V on the front of the unit
or remote control.
,
MP3 Playback Requirement
- Bitrate : 32 kbps - 448 kbps
- Sampling Frequency : 8 KHz - 48 KHz
Removing the USB Device from the unit :
1. Choose a different function or press Z on the remote control.
2. Remove the USB device from the unit.
To Do this
Stop Press Z on the remote control.
Playback Press d/M on the front of the unit or remote control.
Press C/V on the unit or to skip the file in stop state.
During playback, press V on the unit or remote control or to go to the next file.
Playing less than 3 seconds, press C on the unit or remote control to go to the
Skipping to the next/previous file
previous file.
Playing after 3 seconds, press C on the unit or remote control to go to the
beginning of the file.
Pause During playback, press d/M on the unit or remote control.
Searching for a section within a file During playback, Press and hold C/V on the unit or remote control and
release it at the point you want to listen to.
Press [REPEAT] on the remote control repeatedly, the display changes in the
Playing repeatedly or randomly
following order.
1 h / ALL h / ALL G / OFF
,
y If you use an USB extension cable or USB hub, the USB device is not recognized.
y Some USB device may not work with this unit.
y During random playback, a same file that was being played may be played again.
y For a large capacity USB, it may take a few minute to be searched.
FM USB...)
