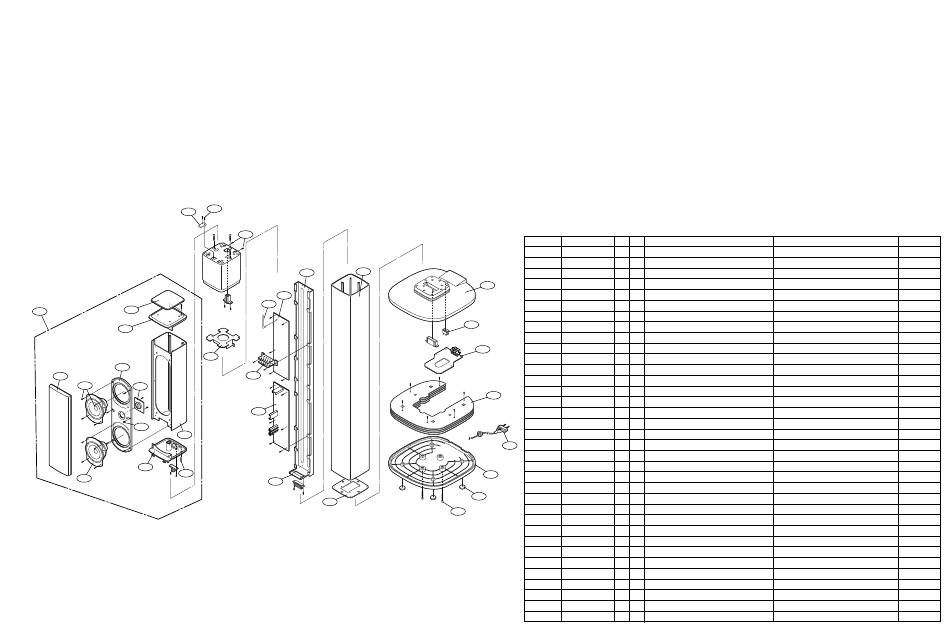

LG FE-6100CVE Service Manual page 90

MODEL: FA-W6100SL
FA-W6100SR
864
855
A80
856
867
854
851
853
874
853
858
859
859
852
881
865
870
868
A46
866
877
A47
869
871
FA-W6100SL/SR
LOCA. NO. PART NO.
851 3701RM0034A
852 6400FETC01B
853 353M025F
854 3720RMF036A
872
855 3806RM0020A
856 3550RM0003A
857 353M025C
878
858 3110RMP001A
864 3034RCD001A
865 3550RC0394A
A43
865 3550RC0394B
866 5010R-R003A
867 4810RC0023A
868 4810RC0022A
873
869 4810RC0024A
870 3110RMP002B
871 4810RC0025A
872 3110RCD003A
873 3301RCD001A
876
874 3110RCD004A
874 6400DBHX01A
874
875 3610RM0006A
876 6410RCHZ05A
875
877 4920RCP014A
878 4940RCS006A
887
881 353-028AAAA
882 353-025T
884 1BK-0503608
886 353-025C
887 1BK-0505508
A43 6871RF4019A
A46 6871RR4012F
A47 6871RP4018G
A48 6871RJ4024A
A80 6401RM0034C
6-25 6-26
NSP : Non SVC Parts
SL SR DESCRIPTION SPECIFICATION
O O NET ASSEMBLY ASSY FE-5000TE STANDARD
O O SPEAKER,WOOFER 08B18EHC2163A EAW WOOFER FE-50
O O SCREW TAPTITE, 3X8 FZMY
O O PANEL,FRONT FRONT FE-5000TE/CVE STANDARD
O O DECO PLATE FE-5000TE/CVE STANDARD
O O COVER TOP FE-5000TE/CVE STANDARD
O O SCREW TAPTITE, 3X10 FBK
O O CASE REAR FE-5000TE OTHER AL ANODI
O O REFLECTOR FA-W6100S MOLD ANT MID LIGHTIN
O COVER HID-ANT
O COVER DVD FA-6100SR
O O ANTENNA,ROD OMNI ANTENNA SW-02-00 AIRLINK
O O BRACKET TOP FA-W6100S
O O BRACKET GUIDE-RAIL FA-W6100S
O O BRACKET LOWER FA-W6100S
O O CASE FA-W6100SL/SR OTHER 722MM
O O BRACKET LOWER-PLATE FA-W6100S
O O CASE FA-W6100S MOLD TOP
O O PLATE ASSEMBLY FA-W6100S BASE
O O CASE FA-W6100S MOLD BOTTOM
O O SPEAKER,TWEETER SN11AP06D BALHAE TWEETER(DOME)
O O FOOT RUBBER FE-5000TE PHI 20 X 3T H
O O POWER CORD CE-503/KKJ-1004A(ST-HS:200MM)
O O HEAT SINK AL PR 78*20*40 FA-W6100S
O O KNOB SLIDE MODE-SPK FA-W6100S
O O SCREW TAPTITE 2X6 FZMY
O O SCREW,DRAWING TAPTITE 3X10.5 FZMY
O O BOLT,HEXAGON SOCKET HEAD D5.0 L25.0 SWRCH16A/BK
O O SCREW,DRAWING TAPTITE 3X10 FBK
O O BOLT,HEXAGON SOCKET HEAD D5.0 L60.0 SWRCH16A/BK
O O PWB(PCB) ASSEMBLY,FRONT(AUDIO) FA-W6100SL/R
O O PWB(PCB) ASSEMBLY,ROBOT(VCR) FA-W6100SL
O O PWB(PCB) ASSEMBLY,POWER(MULTI) FA-6100SR
O O PWB(PCB) ASSEMBLY,JACK(AUDIO) FA-W6100SL/R JA1KLLS RX
O O SPEAKER ASSEMBLY 06N39EHC1319B EAW FE-6100S SAT
REMARKS
