Canon LV-8320 User Manual

Canon lv-8320: user guide
Hide thumbs Also See for LV-8320:
Table of Contents

Advertisement

Quick Links

Download this manual
MULTIMEDIA PROJECTOR
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Canon LV-8320

Summary of Contents for Canon LV-8320

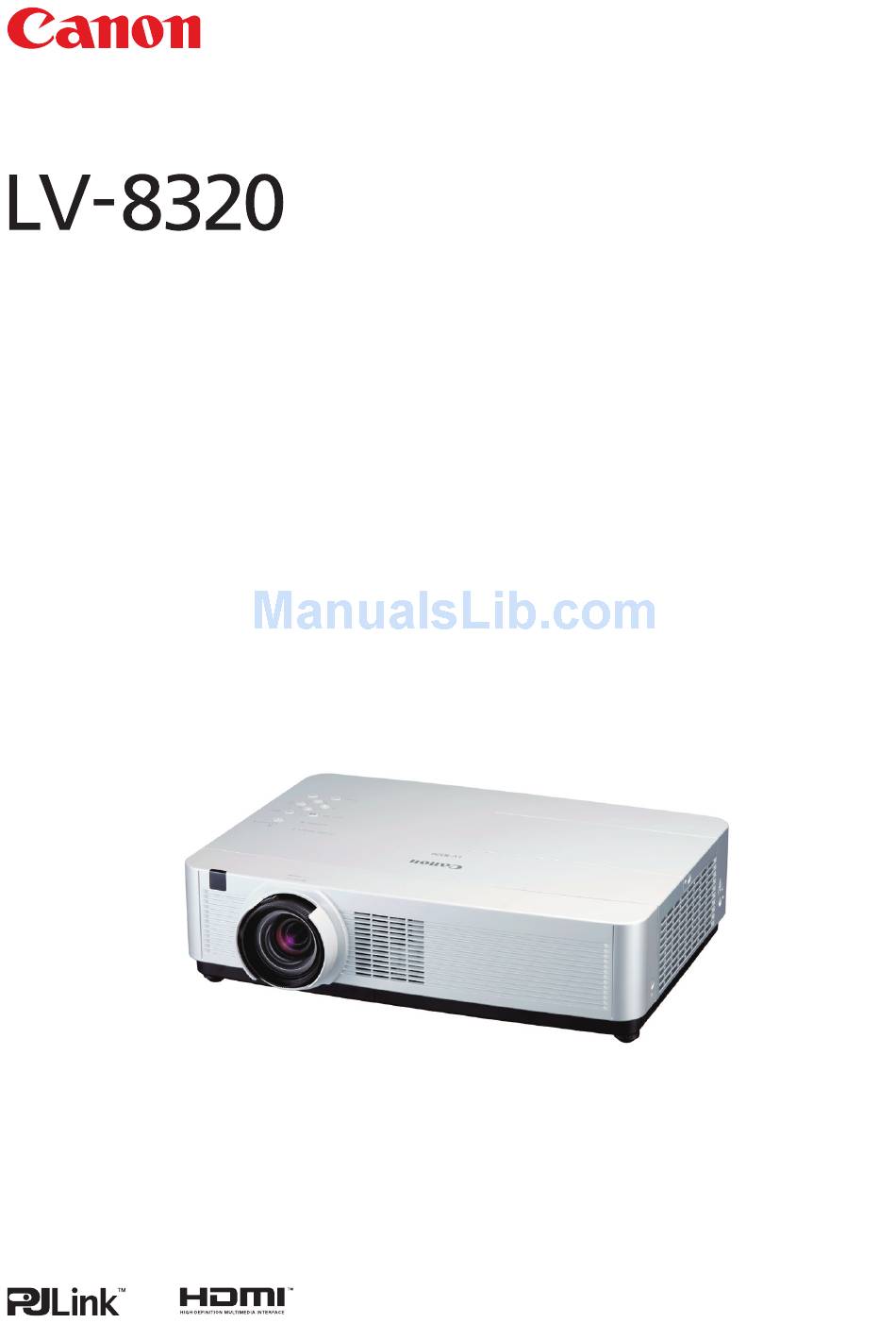

  • Page 1 MULTIMEDIA PROJECTOR User’s Manual...

  • Page 2: Features And Design

    This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ♦ Compact Design This projector is designed compact in size and weight.

  • Page 3: Table Of Contents

    Appendix . . . . . . . . . . . . . . . . . . . . . . .67 Troubleshooting Menu Tree Indicators and Projector Condition Compatible Computer Specifications Technical Specifications Optional Parts PJ Link Notice Attaching the Filter Cover to the Projector 77 Configurations of Terminals List of Picture in Picture PIN Code Protection Dimensions...

  • Page 4: To The Owner

    The dimension shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained. SIDE and TOP 0.7’(20cm)

  • Page 5: Safety Instructions

    When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the operating instructions.
  • Page 6 – Do not bend, wind, or bind excessively the power cord when using it. – Be sure to connect the projector to a grounded outlet. Failure to do so may result in an electric shock.
  • Page 7 60˚C) – Do not install the projector near high-voltage electric power lines or power sources. – Do not place the projector on a carpet or bed. The internal temperature will rise, causing malfunction. – To avoid increase in the internal temperature, do not block the intake/exhaust vents.

  • Page 8: Air Circulation

    This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer. – Do not put the projector in a case before the projector is cooled enough Position Do not roll the projector more than 20 degrees from side to side.

  • Page 9: Compliance

    Canadian Radio Interference Regulations This Class B digital apparatus complies with Canadian ICES-003. AC POWER CORD REQUIREMENT The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 10: Part Names And Functions

    High temperature from light beam may damage the lens. ⑤ Lens Cap (See page 64 for attaching.) ⑤ ⑨ Do not turn on a projector with lens cap attached. High temperature from light beam ⑩ ⑪ ⑫  may damage lens cap and result in fire hazard.

  • Page 11: Rear Terminal

    Rear Terminal ④ ③ ⑦ ⑧ ⑦ CONTROL PORT When controlling the projector with RS-232C, connect the control equipment to this connector with the serial control cable. ⑧ AUDIO IN Connect the audio output signal from video equipment connected to ⑥ or ⑨ to this jack.

  • Page 12: Top Control

    Select an input source (pp.29, 38-39). ④ POWER button Turn the projector on or off (pp.20-22). ⑤ POWER indicator – Lights red when the projector is in stand-by mode. – Lights green during operations. – Blinks green in the Power management mode (p.53).

  • Page 13: Remote Controller

    ⑧ ⑨ ⑩ ⑪ ⑫ ① POWER button Turn the projector on or off. (pp.20-22) ② AUTO SET button Execute the setting of Auto setup (includes Auto input, Auto PC and Auto Keystone functions) in the setting menu. (pp.25, 47) ③ COMPUTER 1/2 buttons Select the COMPUTER 1 or COMPUTER 2 input source.

  • Page 14: Remote Controller Battery Installation

    Change the remote control code for the projector first before changing that for the remote controller. See "Remote control" in the Setting Menu on page 56.

  • Page 15: Installation

    For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. Note: • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

  • Page 16: Connecting To A Computer

    COMPUTER IN 2 / MONITOR OUT and the COMPUTER IN 1/ COMPONENT IN terminal as input. • When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. • When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1 / COMPONENT IN and not the COMPUTER IN 2/ MONITOR OUT.

  • Page 17: Connecting To Video Equipment

    AC outlet before connecting cables. External Audio Equipment Audio Input Audio cable (stereo) AUDIO OUT (stereo)  Note: When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. Video and Audio Output (Video) Video and HDMI cable audio cable AUDIO IN...

  • Page 18: Connecting To Component Video And Scart Equipment

    External Audio Equipment Audio Input Audio cable (stereo) AUDIO OUT (stereo)  Note: • When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. • See page 76 for ordering optional cables. Audio Output Monitor Input Scart-VGA Audio cable...

  • Page 19: Connecting The Ac Power Cord

     Note: Unplug the AC power cord when the projector is not in use. When this projector is connected to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power. NOTE ON THE POWER CORD AC power cord must meet requirement of the country where you use the projector.

  • Page 20: Basic Operation

    OK button. And then follow the input signal guidance window to correct the signal and connection. If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed on the next page.
  • Page 21 •The “1234” is set as the initial PIN code at the factory. CAUTION ON HANDLING PIN CODE If you forget your PIN code, the projector can no longer be started. Take special care in setting a new PIN code. Write down the number as a reminder.

  • Page 22: Turning Off The Projector

    • The running speed of cooling fans is changed according to the temperature inside the projector. • Do not put the projector in a case before the projector is cooled enough. • If the WARNING indicator blinks or lights red, see “WARNING indicator”...

  • Page 23: How To Operate The On-Screen Menu

    How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.

  • Page 24: Main Menu

    Custom adj., Keystone, Ceiling, Rear, Screen aspect and Reset] . (pp.44-45) ⑥ Sound Used to adjust the volume or mute the sound or set configurations to the MIC functions (p.26). ⑦ Setting Used to set the projector’s operating configurations. (pp.46-60) ⑧ Information Display the input source information. (p.61) ⑨ Network See user’s manual of “Network Set-up and Operation”.

  • Page 25: Zoom And Focus Adjustment

    Rotate the Zoom Ring to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Auto setup function is provided to automatically execute the setting of Auto setup (includes Auto input, Auto PC and Auto Keystone functions) in the setting menu by just pressing the AUTO SET button. Refer to page 47 for the setting of the Auto setup function.

  • Page 26: Sound Adjustment

    Basic Operation Direct Operation Volume Press the VOLUME+/– buttons on the top control or on the remote controller to adjust the volume. The volume dialog box appears on the screen for a few seconds. Mute Press the MUTE button on the remote controller to select On to temporarily turn off the sound.

  • Page 27: Remote Controller Operation

    Using the remote controller for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER 1/2, HDMI, VIDEO, S-VIDEO and COMPONENT buttons Press the COMPUTER 1/2, HDMI, VIDEO, S-VIDEO and COMPONENT buttons on the remote controller to select the input source.
  • Page 28 Basic Operation BLANK button Press the BLANK button on the remote controller to black out the image. To restore to normal, press the BLANK button again or press any button. When the projected image is captured and is set as User in the Logo selection (p.

  • Page 29: Computer Input

    Input Source Selection (ANALOG PC: COMPUTER 1/COMPUTER 2) Direct Operation Choose either COMPUTER 1 (ANALOG PC) or COMPUTER 2 (ANALOG PC) by pressing the COMPUTER 1 or COMPUTER 2 button on the remote controller. Or you can press the INPUT button on the top control to choose the desired input source. Before using these buttons, correct input source should be selected through Menu operation as described below.

  • Page 30: Computer System Selection

    This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on page 73-74.)

  • Page 31: Auto Pc Adjustment

    PC and then press the OK button. To store adjustment parameters The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–10) in the PC System Menu (p.30). See also “Store”...

  • Page 32: Manual Pc Adjustment

    Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted.
  • Page 33 Note: • Display area (H/V) cannot be selected when 480i, 575i, 480p, 575p, 720p, 1035i or 1080i is selected in the PC System Menu (p.30). • When input computer signal to the projector, PC adjust will become available. Computer Input Mode free This Mode has stored parameters.

  • Page 34: Image Mode Selection

    Use the Point ▲▼ buttons to select the desired item and then press the OK button. Presentation For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. High contrast Picture mode with improved halftone for graphics. Cinema Picture mode adjusted with fine tone.

  • Page 35: Image Adjustment

    Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ► button or the OK button. Use the Point ▲▼ buttons to select the desired item and then press the OK button to display the adjustment dialog box.

  • Page 36: Aspect Setting

    Computer Input This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Aspect and then press the Point ►...
  • Page 37 When this function is set to On, the picture will be top/ bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen.

  • Page 38: Video Input

    Input Source Selection (VIDEO, S-VIDEO) Direct Operation Choose VIDEO or S-VIDEO by pressing the INPUT button on the top control, or the VIDEO or the S-VIDEO button on the remote controller. Before using these buttons, correct input source should be selected through menu operation as described below.

  • Page 39: Input Source Selection (Component, Scart, Hdmi)

    Input Source Selection (COMPONENT, SCART, HDMI) Direct Operation Choose COMPUTER 1(COMPONENT) or COMPUTER 1 (SCART) by pressing the COMPONENT or the COMPUTER 1 button on the remote controller. Choose HDMI by pressing the HDMI button on the remote controller or you can press the INPUT button on the top control to choose the desired input source.

  • Page 40: Video System Selection

    When VIDEO System is PAL-M or PAL-N, select the system manually. PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4.43, PAL-M and PAL-N.

  • Page 41: Image Mode Selection

    Use the Point ▲▼ buttons to select the desired item and then press the OK button. Presentation For viewing pictures in a bright room. Standard Normal picture mode preset on the projector. High contrast Picture mode with improved halftone for graphics. Cinema Picture mode adjusted with fine tone.

  • Page 42: Image Adjustment

    VIDEO Input Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ► button or the OK button. Use the Point ▲▼ buttons to select the desired item and then press the OK button to display the adjustment dialog box.
  • Page 43 L 1 ... For an active picture. L 2 ... For a still picture. Film ... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality. Reset To reset the adjusted data, select Reset and press the OK button.

  • Page 44: Aspect Setting

    VIDEO Input This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Aspect and then press the Point ►...
  • Page 45 When this function is set to On, the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen.

  • Page 46: Setting

    This projector has a Setting menu that allows you to set up the other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ buttons to select Setting and press the Point ► button or the OK button to access the submenu items.
  • Page 47 On 2...Auto input works under the following situation. – When turning on the projector by pressing the POWER button on the top control or the remote controller. – When pressing the AUTO SET button on the top control or the remote controller.
  • Page 48 Countdown off ... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.
  • Page 49 Logo select function and set it to User. Then the captured image will be displayed the next time you turn on the projector or when you press the BLANK button (p. 28). To cancel the capture function, select Yes in the Quit? confirmation box.
  • Page 50 Key lock will be reset, as well. 1. Unplug the AC Power Cord from the AC outlet. 2. Hold down the OK button on the projector and connect the AC Power Cord into the outlet again. Keep holding down the OK button until the POWER indicator lights.
  • Page 51 HDMI Digital RGB output equipment. Terminal The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output (p.11). Select COMPUTER 2 or Monitor out with the Point ▲▼ buttons.
  • Page 52 Setting Picture in Picture This function is used to project two images simultaneously by placing a separate small sub screen within or next to the main screen. Use the Point ▲▼ buttons to select Picture in Picture and then press the Point ► button or the OK button to access the submenu.
  • Page 53 Timer (1~30 min). Note: Factory default is Standby: 5 min. Direct power on When this function is set to On, the projector will be automatically turned on just by connecting the AC power cord to a wall outlet. Note: Be sure to turn off the projector properly (see “Turning Off the Projector”...
  • Page 54 Operation”. Note: When selecting Network, the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off. P-timer This function allows you to change the setting of the P-timer and execute it.
  • Page 55 Closed caption Closed caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4.
  • Page 56 Note: • Lamp mode can not be changed for a while after turning on the projector. Lamp needs some time to stabilize after the power is turned on. Stored lamp mode will be active after the lamp is stabilized.
  • Page 57 PIN code at the factory. If you want to change the PIN code lock setting, press the OK button and the PIN code dialog box appears. When the projector is locked with the PIN code, the Security icon appears on the guide. Key lock PIN code lock...
  • Page 58 Key lock will be reset, as well. 1. Unplug the AC Power Cord from the AC outlet. 2. Hold down the OK button on the projector and connect the AC Power Cord into the outlet again. Keep holding down the OK button until the POWER indicator lights.
  • Page 59 Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector. Off... Normal speed. Set this function to Off when using the projector in non- high altitude environment.
  • Page 60 CO2. Warning log This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.

  • Page 61: Information

    Off or On 1 or On 2 is displayed. Remote control The selected remote code is displayed. SERIAL NO. The serial number of the projector is displayed. The serial number is used to service the projector. Total power savings The saved amount of power and the exhausted CO2 are displayed.

  • Page 62: Maintenance And Cleaning

    The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red. When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector.

  • Page 63: Replacing The Filters

    If a “Filter warning” icon appears on the screen, replace the filters immediately. Replace the filters by following the steps below.

  • Page 64: Attaching The Lens Cap

    Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet. When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches.

  • Page 65: Lamp Replacement

    (p.27), or Blank (p.28). • When Mode 2 is selected in the Lamp life control menu, if the projection lamp of the projector reaches its end of life, the lamp replacement icon appears on the screen, and the projector is turned off automatically after 3 minutes.
  • Page 66 ● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

  • Page 67: Appendix

    – Make sure you have properly connected the projector to peripheral equipment as described on pages 16-18. – Make sure all equipment is connected to AC outlet and the power is turned on. – When the projector does not project an image from the connected computer, restart the computer. Problem: No power The initial display is not shown. –...
  • Page 68 – Press the VOLUME + button. See page 26. – Press the MUTE button. See page 26. – When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available. – Is the image projected? You will hear the Computer and VIDEO sound only when the image is projected.
  • Page 69 High voltages are used to operate this projector. Do not attempt to open the cabinet. If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service. See pages 31-32, 36-37.

  • Page 70: Menu Tree

    Lamp mode Eco 1/Eco 2 Lamp life control Mode1/Mode 2 Remote control Code 1–Code 2 Security Key lock Projector Remote control PIN code lock Off/On 1/On 2 PIN code change L 1/L 2 Fan control Off/On 1/On 2 Video delay control...
  • Page 71 HDMI Input/VIDEO Input System Auto System 1080i 1035i 720p 575p 480p 575i 480i Image Adjust Contrast Brightness Color Tint Color temp. Green Blue Sharpness Gamma Noise reduction Progressive Reset Store Aspect Normal Full 16:9 Zoom Natural wide Custom Custom adj. Keystone Ceiling Rear Screen aspect Default(16:10)/16:9/4:3 Reset...

  • Page 72: Indicators And Projector Condition

    The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again,  unplug the AC power cord and contact the dealer or the service center for service and checkup.

  • Page 73: Compatible Computer Specifications

    Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN H-Freq. RESOLUTION DISPLAY (KHz) VGA 1 640 x 480 31.47...
  • Page 74 PC settings. • When you project a DVI signal, connect the cables, turn the projector on, then select the input. Finally, turn on your PC. Be sure to follow this procedure, otherwise an image may not be projected on the screen.

  • Page 75: Technical Specifications

    Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System SD/HD TV Signal Input Scanning Frequency Optical Information Projection Image Size (Diagonal) Throw Distance Projection Lens...

  • Page 76: Optional Parts

    (0.01% or less) may be ineffective by the characteristics of the LCD panels. The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer. COMPONENT-VGA Cable Remote Controller Projector Attachment Ceiling Attachment : LV-CL18 High Ceiling Attachment Optional Parts Model No. : LV-CA32...

  • Page 77: Pj Link Notice

    This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1. For PJ Link password, see the user’s manual of “Network Set-up and Operation.”...

  • Page 78: Configurations Of Terminals

    Appendix COMPUTER IN 1 / COMPONENT IN Terminal: Analog RGB (Mini D-sub 15 pin) COMPUTER IN 2/MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) HDMI (19 Pin Type A) 1 3 5 7 9 11 13 15 17 19 CONTROL PORT CONNECTOR (D-sub 9 pin) Configurations of Terminals Red/Cr Input Green/Y Input Blue/Cb Input ----- Ground (Horiz.sync.) Ground (Red) Ground (Green) Ground (Blue) Red Input/Output Green Input/Output Blue Input/Output ----- Ground (Horiz.sync.) Ground (Red) Ground (Green)

  • Page 79: List Of Picture In Picture

    • Inputting signal formats: SXGA 20, WUXGA 1, WUXGA 2, WSXGA+1, WXGA+2, UXGA 1, UXGA 2, UXGA 3, UXGA 4, D-1080p While the projector is locked with the PIN code. Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.

  • Page 80: Dimensions

    Appendix 350 (13.78) 176.3 (6.94) 79.7 (3.14) 256.0 (10.08) 52.4 (2.06) 47.7 (1.87) 240.0 (9.45) 78.0 (3.07) Dimensions Unit: mm(inch) Screw Holes for Ceiling Mount Screw: M4 Depth: 12.0(0.47) 86.0 (3.38) 46.0 (1.81) 40.7 (1.60) 47.0 (1.85) 74.1 (2.92) 81.1 (3.19) 216.5 (8.52) 208.0 (8.19) 64.0 (2.52)
  • Page 81 CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan U.S.A. CANON U.S.A. INC. One Canon Plaza, Lake Success, NY 11042-1198, U.S.A. For all inquires concerning this product, call toll free in the U.S. 1-800-OK-CANON CANADA CANON CANADA INC. HEADQUARTERS 6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada CANON CANADA INC.
