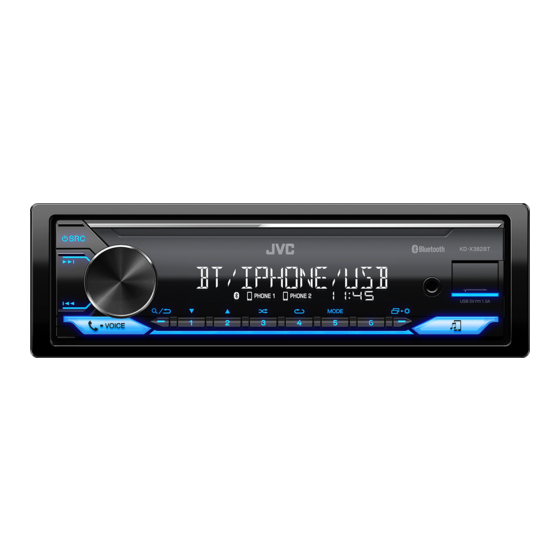

KD-X382BT / KD-X282BT
DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL
RECEPTOR DE MEDIOS DIGITALES
MANUAL DE INSTRUCCIONES
DIGITALE MEDIAONTVANGER
GEBRUIKSAANWIJZING
RECEPTOR MÉDIA DIGITAL
MANUAL DE INSTRUÇÕES
KD-X382BT_E_B5A-3841-00_Cover_1st Draft.indd 1
KD-X382BT_E_B5A-3841-00_Cover_1st Draft.indd 1
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
ENGLISH
ESPAÑOL
NEDERLANDS
PORTUGUÊS
B5A-3841-00 [E]
10/9/2021 2:01:43 PM
10/9/2021 2:01:43 PM

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-X382BT

Summary of Contents for JVC KD-X382BT

  • Page 1 ENGLISH ESPAÑOL NEDERLANDS PORTUGUÊS KD-X382BT / KD-X282BT DIGITAL MEDIA RECEIVER INSTRUCTION MANUAL RECEPTOR DE MEDIOS DIGITALES MANUAL DE INSTRUCCIONES DIGITALE MEDIAONTVANGER GEBRUIKSAANWIJZING RECEPTOR MÉDIA DIGITAL MANUAL DE INSTRUÇÕES B5A-3841-00 [E] KD-X382BT_E_B5A-3841-00_Cover_1st Draft.indd 1 KD-X382BT_E_B5A-3841-00_Cover_1st Draft.indd 1 10/9/2021 2:01:43 PM 10/9/2021 2:01:43 PM...
  • Page 2 Lever deze producten in bij de aangewezen inzamelingspunten, waar ze gratis worden geaccepteerd en op de juiste manier worden verwerkt, teruggewonnen en hergebruikt. Hereby, JVCKENWOOD declares that the radio equipment “KD-X382BT/KD-X282BT” is in compliance with Voor inleveradressen zie www.nvmp.nl, www.ictmilieu.nl, www.stibat.nl. Wanneer u dit product op de the relevant statutory requirements.
  • Page 3 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN Par la présente, JVCKENWOOD déclare que Português EU Representative: l’équipement radio « KD-X382BT/KD-X282BT » est Deste modo, a JVCKENWOOD declara que o JVCKENWOOD Europe B.V. conforme à la directive 2014/53/UE. equipamento de rádio “KD-X382BT/KD-X282BT”...
  • Page 4 JVCKENWOOD ovim izjavljuje da je radio oprema Русский Slovensko JVCKENWOOD настоящим заявляет, что Käesolevaga JVCKENWOOD kinnitab, et “KD-X382BT/KD-X282BT” u skladu s Direktivom S tem JVCKENWOOD izjavlja, da je radijska oprema „KD-X382BT/KD-X282BT“ raadiovarustus on 2014/53/EU. радиооборудование «KD-X382BT/KD-X282BT» »KD-X382BT/KD-X282BT« v skladu z Direktivo vastavuses direktiiviga 2014/53/EL.
  • Page 5 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be...
  • Page 6 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed -jansson Software, any related documents and copies thereof within two (2) weeks from such date of termination. Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
  • Page 7 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
  • Page 8 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. T-Kernel 2.0 Author: Chris G. Demetriou This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, provided that both the copyright notice and this permission notice appear in all copies of the software, BSD-3-Clause derivative works or modified versions, and any portions thereof, and that both notices appear in supporting...
  • Page 9 viii KD-X382BT_E_B5A-3841-00_Cover_1st Draft.indd viii KD-X382BT_E_B5A-3841-00_Cover_1st Draft.indd viii 10/9/2021 2:01:46 PM 10/9/2021 2:01:46 PM Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

  • Page 10: Table Of Contents

    2 Set the clock and date 3 Set the basic settings Radio ......................6 USB/iPod ....................8 AUX......................10 JVC Remote Application ............... 10 Bluetooth® ....................11 Bluetooth — Connection Bluetooth — Mobile phone Bluetooth — Audio Audio Settings ..................18 Display Settings ..................

  • Page 11: Before Use

    • Please keep the manual in a safe and accessible place for future reference. • Operations are explained mainly using buttons on the faceplate of KD-X382BT. WARNING • English indications are used for the purpose of explanation. You can Do not operate any function that takes your attention away from safe select the display language from the menu.

  • Page 12: Basics

    Basics Faceplate Attach Volume knob Display window* Detach How to reset Reset the unit within Detach button 5 seconds after detaching the faceplate. * Only for illustration purpose. On the faceplate Turn on the power Press B SRC. • Press and hold to turn off the power. Adjust the volume Turn the volume knob.

  • Page 13: Getting Started

    Getting Started To set the date Turn the volume knob to select [DATE SET], then press the knob. Turn the volume knob to make the settings, then press the knob. Set the date in the order of “Day”  “Month”  “Year”. Press to exit.

  • Page 14: Radio

    Press and hold one of the number buttons (1 to 6). *2 Firmware downgrade is prohibited. (or) *3 Only for KD-X382BT. Press and hold the volume knob until “PRESET MODE” flashes. Turn the volume knob to select a preset number, then press the knob.
  • Page 15 Radio Select a stored station [MONO SET] [ON]: Improves the FM reception, but the stereo effect will be lost. ; [OFF]: Cancels. Press one of the number buttons (1 to 6). (or) [NEWS SET]* [ON]: The unit will temporarily switch to News Programme if available. ; Press [OFF]: Cancels.

  • Page 16: Usb/Ipod

    USB device The source changes to USB automatically and playback starts. Selectable source: * Do not leave the cable inside the car when not in use. • KD-X382BT: USB/iPod USB or iPod BT • KD-X282BT: USB Connect an iPod/iPhone (for KD-X382BT) For playable audio file, see “Playable files”...
  • Page 17 USB/iPod Alphabet search (applicable only for iPod USB source and iPod BT source) Select music drive You can search for a file according to the first character. While in USB source, press 5 MODE repeatedly. Press Stored songs in the following drive will be played back. Turn the volume knob to select a list, then press the knob.

  • Page 18: Aux

    JVC Remote Application You can listen to music from a portable audio player via the auxiliary input You can control the JVC car receiver from the following device using jack. JVC Remote application. KD-X382BT: iPhone/iPod touch (via Bluetooth or via USB input terminal) or...

  • Page 19: Bluetooth

    Selects the Android device to use from the list. – Advanced Audio Coding (AAC) (for KD-X382BT) LIST] • For KD-X382BT: Displayed only when [ANDROID] of [SELECT] is set to [YES]. [STATUS] Shows the status of the selected device. Connect the microphone [IOS CONNECTED]: You are able to use the application using the iPhone/ iPod touch connected via Bluetooth or USB input terminal.
  • Page 20 • Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see Search and select the name of your receiver (“KD-X382BT”/ [DEVICE DELETE] on page 16.

  • Page 21: Bluetooth - Mobile Phone

    Bluetooth® Bluetooth — Mobile phone The following operations may differ or be unavailable depending on the connected phone. On the faceplate First incoming call... Answer a call Press or the volume knob. Reject a call Press and hold or the volume knob.
  • Page 22 Bluetooth® Default: [XX] Improve the voice quality [SETTINGS] While talking on the phone... [AUTO ANSWER] [01 SEC] to [30 SEC]: Answers an incoming call automatically in the selected Press and hold time (in seconds). ; [OFF]: Cancels. Turn the volume knob to select an item (see the following table), then press the knob.
  • Page 23 Bluetooth® Make a call using voice recognition [RECENT CALL] (Applicable only if the phone supports PBAP.) 1 Press the volume knob to select a name or a phone number. Press and hold to activate the voice recognition of the • “<” indicates call received, “>“ indicates call made, “M” indicates call connected phone.
  • Page 24 PHONE” “PIN IS 0000” scrolls on the display. “ ” appears in front of the device name when connected. Search and select the name of your receiver (“KD-X382BT”/ “ ” appears in front of the current playback audio device. [AUDIO SELECT] •...

  • Page 25: Bluetooth - Audio

    Bluetooth® After pairing is done successfully, “PAIRING OK” “Device Name” appears Bluetooth — Audio and Bluetooth compatibility check starts. • Operations and display indications may differ according to their availability If “CONNECT NOW USING PHONE” appears, operate the Bluetooth device to on the connected device.

  • Page 26: Audio Settings

    To return to the previous setting item, press Listen to iPod/iPhone via Bluetooth (for KD-X382BT) You can listen to the songs on the iPod/iPhone via Bluetooth on this unit. Default: [XX] Press B SRC repeatedly to select iPod BT.
  • Page 27 Audio Settings [EASY EQ] Adjusts your own sound settings. [SUB.W LEVEL]*1 [SPK-OUT]*2 (Not applicable when 3-way crossover is selected.) • The settings are stored to [USER] in [PRESET EQ]. [SUB.W 00] to [SUB.W +06] ([SUB.W +03]): Adjusts • The settings made may affect the current settings of [PRO EQ]. the output level of the subwoofer connected via speaker [SUB.W SP]*1*2: [00] to [+06] (Default: [+03]...
  • Page 28 Select the output setting for the speakers [SPK/PRE OUT], based on the speaker [SUB.W/SUB.W]. connection method. *4 This adjustment will not affect the subwoofer output. Connection via lineout terminals For connections through an external amplifier (Page 31) KD-X382BT: Audio signal through lineout terminal Setting on [SPK/PRE OUT] FRONT REAR/SW...
  • Page 29 Audio Settings KD-X282BT: Crossover settings Audio signal through lineout terminal Setting on Below are the available setting items for 2-way crossover and 3-way [SPK/PRE OUT] REAR/SW crossover. [REAR/REAR] Rear speakers output CAUTION Select a crossover type according to how the speakers are connected. [REAR/SUB.W] (default) Subwoofer output (Page 31) [SUB.W/SUB.W]...
  • Page 30 Audio Settings 2-way crossover setting items [SUBWOOFER [SW LPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ LPF]*2*3 [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [SPEAKER SIZE] [220HZ]/[250HZ]/[THROUGH] [FRONT] [SIZE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/ [SW LPF SLOPE] [–06DB]/[–12DB]/[–18DB]/[–24DB] [17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/ [SW LPF PHASE] [REVERSE] (180°)/ [NORMAL] (0°) [7×10] [SW LPF GAIN] [–08DB] to [00DB] [TWEETER] [SMALL]/[MIDDLE]/[LARGE]/[NONE] (not connected) 3-way crossover setting items [REAR]*1...
  • Page 31 Audio Settings [MID RANGE] [HPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ Digital Time Alignment settings [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ Digital Time Alignment sets the delay time of the speaker output to create a [THROUGH] more suitable environment for your vehicle. [HPF SLOPE] [–06DB]/[–12DB] • For more information, see “Determining the delay time automatically” on page 24.

  • Page 32: Display Settings

    Display Settings Audio Settings Zone identification for brightness settings Determining the delay time automatically If you specify the distance from the currently set listening position to every speaker, the delay time will be automatically calculated. 1 Set [POSITION] and determine the listening position as the reference point (the reference point for [FRONT ALL] will be the center between the right and left in the front seats).

  • Page 33: References

    Playable files • USB mass storage class device: Playable audio file: KD-X382BT: MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac) KD-X282BT: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac) Playable file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.
  • Page 34 References About iPod/iPhone (for KD-X382BT) Source name Display information: Main • Made for For MP3/WMA/WAV/FLAC files: – iPod touch (6th generation) Song title/Artist Song title/Artist with Music Synchronization – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR, 11, 11 Pro, 11 Pro...

  • Page 35: Troubleshooting

    Troubleshooting Symptom Remedy Symptom Remedy Sound cannot be heard. • Adjust the volume to the optimum level. “READING” keeps flashing. • Do not use too many hierarchical levels and folders. • Check the cords and connections. • Reattach the device (USB/iPod/iPhone) “MISWIRING CHECK WIRING Turn the power off, then check to be sure the terminals of “UNSUPPORTED DEVICE”...
  • Page 36 Troubleshooting Symptom Remedy Symptom Remedy No Bluetooth device is • Search from the Bluetooth device again. “PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the detected. • Reset the unit. (Page 4) message does not disappear, turn off and turn on the unit, then connect the device again.

  • Page 37: Installation/Connection

    Installation/Connection Part list for installation This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. (A) Faceplate (×1) (B) Trim plate (×1) WARNING • The unit can only be used with a 12 V DC power supply, negative ground. •...
  • Page 38 Installation/Connection Installing the unit (in-dash mounting) Do the required wiring. (Page 31) Hook on the top side Orientate the trim Dashboard of plate as illustrated your car before fitting. Bend the appropriate tabs to hold the sleeve firmly in place. Installing the unit (without mounting sleeve) Removing the unit 1 Remove the mounting sleeve and trim plate from the unit.
  • Page 39 Installation/Connection Wiring connection KD-X382BT: KD-X282BT: Front output/3-way crossover: Mid Range output Rear/subwoofer output/ When connecting to an external Rear/subwoofer output/3-way crossover: Woofer output 3-way crossover: Woofer output amplifier, connect its ground wire to the car’s chassis to avoid damaging Fuse (10 A) Antenna terminal the unit.

  • Page 40: Specifications

    WMA Decode Compliant with Windows Media Audio Usable Sensitivity (S/N = 30 dB) 0.71 μV/75 Ω (8.2 dBf) AAC Decode KD-X382BT: Quieting Sensitivity (DIN S/N = 46 dB) 2.0 μV/75 Ω AAC-LC “.aac”, “.m4a” files Frequency Response (±3 dB) 30 Hz — 15 kHz...
  • Page 41 Specifications Maximum Output Power 50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω) Full Bandwidth Power 22 W × 4 (at less than 1 % THD) Speaker Impedance 4 Ω — 8 Ω Band 13 Band Frequency...
  • Page 42 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. •...
